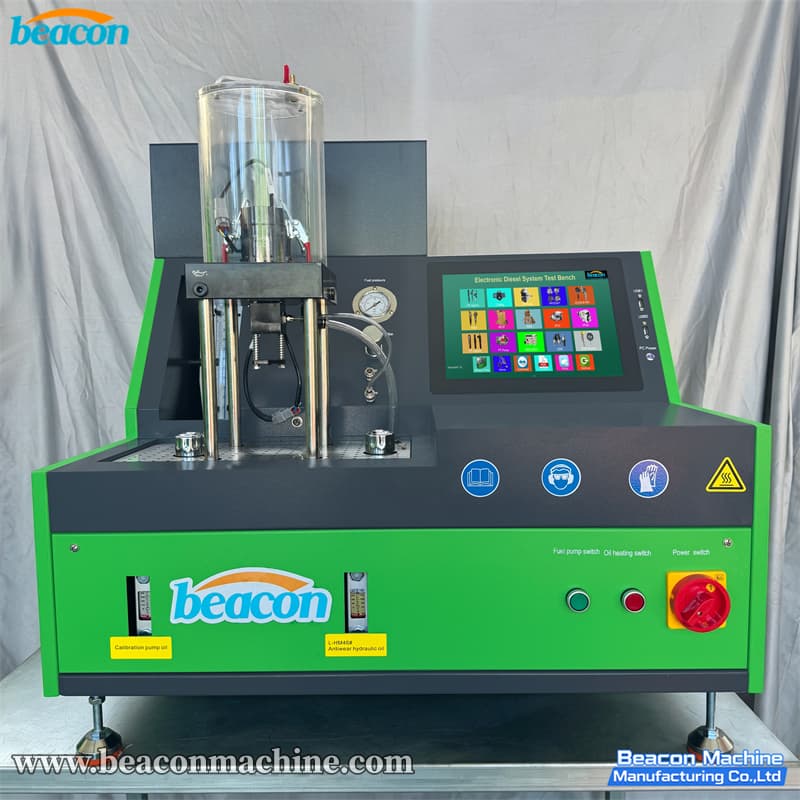

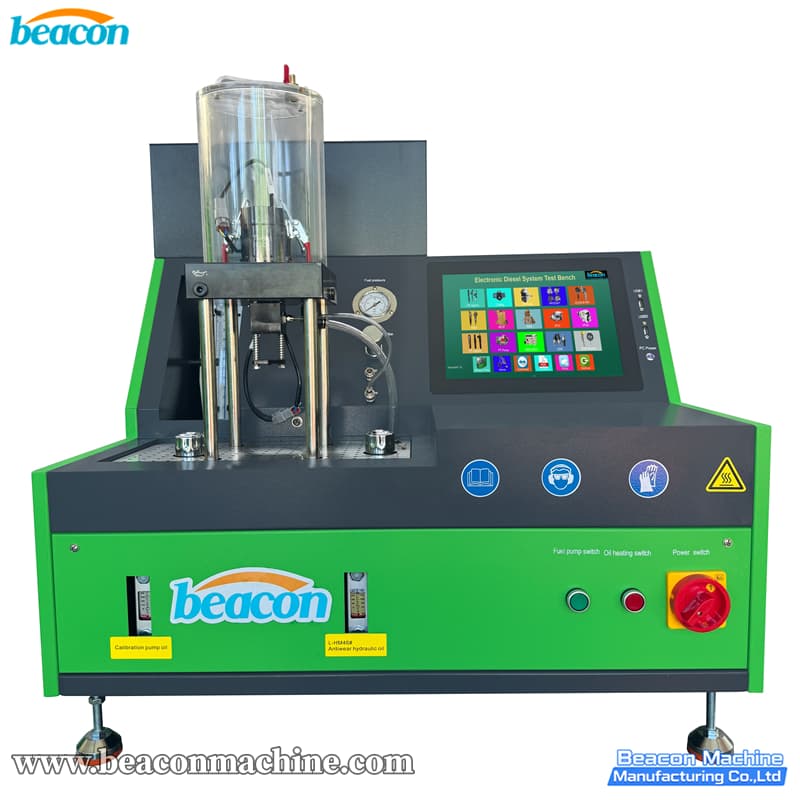

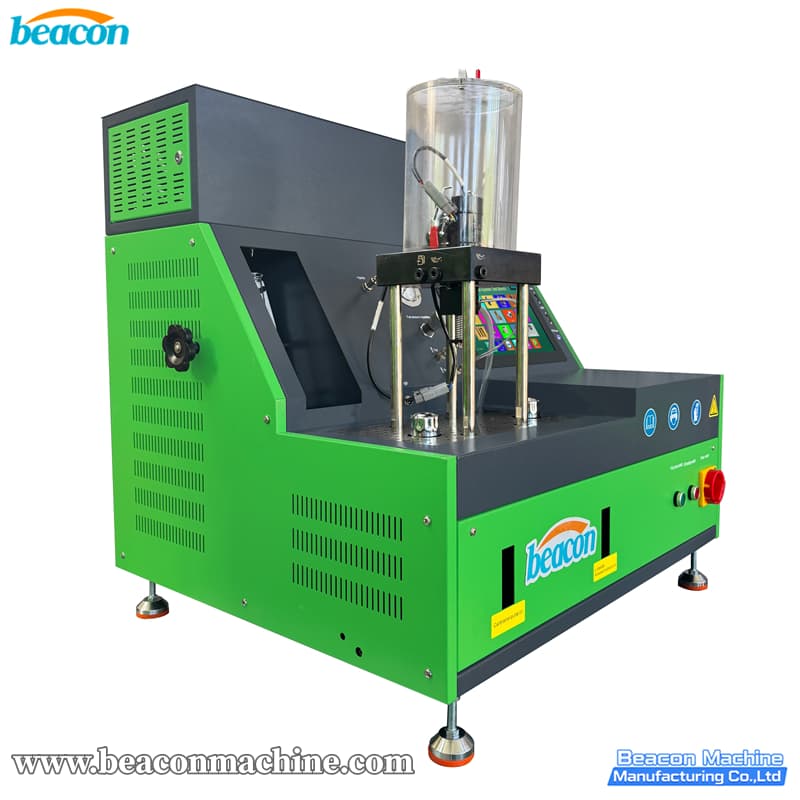

HEUI-FS CAT C7 C9 HEUI Injector Test Bench

The HEUI-FS HEUI Injector Test Bench is a compact professional testing system designed for testing CAT C7, C9 and 3126B HEUI injectors.

The standard configuration includes dedicated adapters for C7, C9 and 3126B injectors, allowing technicians to perform comprehensive injector performance testing. The system uses separate engine oil and diesel fuel circuits, with independent oil and diesel tanks and dedicated flow sensors for accurate measurement.

The test bench supports measuring-cylinder testing and computer-based display of test results. Test data can be monitored through the computer system, helping technicians evaluate injector performance under different operating conditions.

With a 2.2KW motor, compact dimensions of approximately 100 × 85 × 100 cm and a net weight of about 220 kg, HEUI-FS is suitable for professional diesel injector repair shops that need dedicated HEUI testing capability without a large industrial test bench.

Standard Test Models

The standard configuration supports:

• CAT C7 HEUI injectors

• CAT C9 HEUI injectors

• CAT 3126B HEUI injectors

Optional Test Systems

Optional adapters and test systems are available for:

• CAT 3126A

• CAT 3126B

• CAT 3412E

• Isuzu HEUI

• Ford G2.8

• Ford G2.9

• Navistar HEUI

The modular configuration allows workshops to expand their HEUI testing capability according to their injector repair requirements.

Main Test Points

The HEUI-FS supports the following injector test points:

• LEAK – Leakage performance

• VL – Low-speed/low-load test condition

• LL – Low-load test condition

• VE – Fuel delivery/performance test

• START – Starting condition test


Product Advantages

Dedicated HEUI Testing System
Designed specifically for HEUI injectors, providing a focused solution for CAT and other HEUI injector repair applications.

Dual Fluid Circuits
The machine uses separate engine oil and diesel fuel circuits to simulate the two-fluid operating principle of HEUI injectors.

Independent Oil and Diesel Tanks
Dedicated tanks help separate the engine-oil and diesel-fuel testing circuits and simplify workshop operation.

Oil and Diesel Flow Sensors
Flow sensors measure the relevant fluid flow during testing and provide digital test results.

Standard C7/C9/3126B Adapters
The standard configuration includes adapters for CAT C7, C9 and 3126B injectors, allowing immediate testing of these common HEUI applications.

Computerized Test Results
Testing results are displayed through the computer system, making it easier to record and compare injector performance.

Compact Workshop Design
With a size of approximately 100 × 85 × 100 cm and a weight of around 220 kg, the HEUI-FS requires less workshop space than large multi-function test benches.

Expandable Configuration
Optional test systems allow the same platform to be expanded for CAT, Ford, Navistar and Isuzu HEUI injector applications.

Applications

The HEUI-FS is suitable for:

• HEUI injector repair workshops

• CAT injector repair centers

• Diesel fuel injection service centers

• Heavy-duty engine service workshops

• Construction machinery maintenance

• Mining equipment maintenance

• Truck and commercial vehicle repair

• Agricultural machinery service

• Diesel injector remanufacturing

• HEUI injector testing and calibration centers

FAQ

Q1: Which HEUI injectors can be tested as standard?
The standard configuration includes adapters for CAT C7, C9 and 3126B HEUI injectors.

Q2: Can the HEUI-FS test other HEUI injector models?
Yes. Optional test systems are available for CAT 3126A, CAT 3412E, Isuzu, Ford G2.8, Ford G2.9 and Navistar applications.

Q3: Does the machine use engine oil and diesel fuel?
Yes. The HEUI-FS has separate oil and diesel circuits with dedicated tanks.

Q4: Can the machine measure oil and diesel flow?
Yes. The configuration includes oil and diesel flow sensors for measuring fluid flow during injector testing.

Q5: What test points are available?
The standard test program includes LEAK, VL, LL, VE and START test points.

Q6: Can test results be displayed on a computer?
Yes. The computer system displays the injector testing results for convenient analysis and comparison.

Q7: What is the motor power?
The HEUI-FS is equipped with a 2.2KW motor.

Q8: Is the HEUI-FS suitable for small workshops?
Yes. Its compact approximately 100 × 85 × 100 cm design makes it suitable for professional HEUI injector workshops with limited space.
