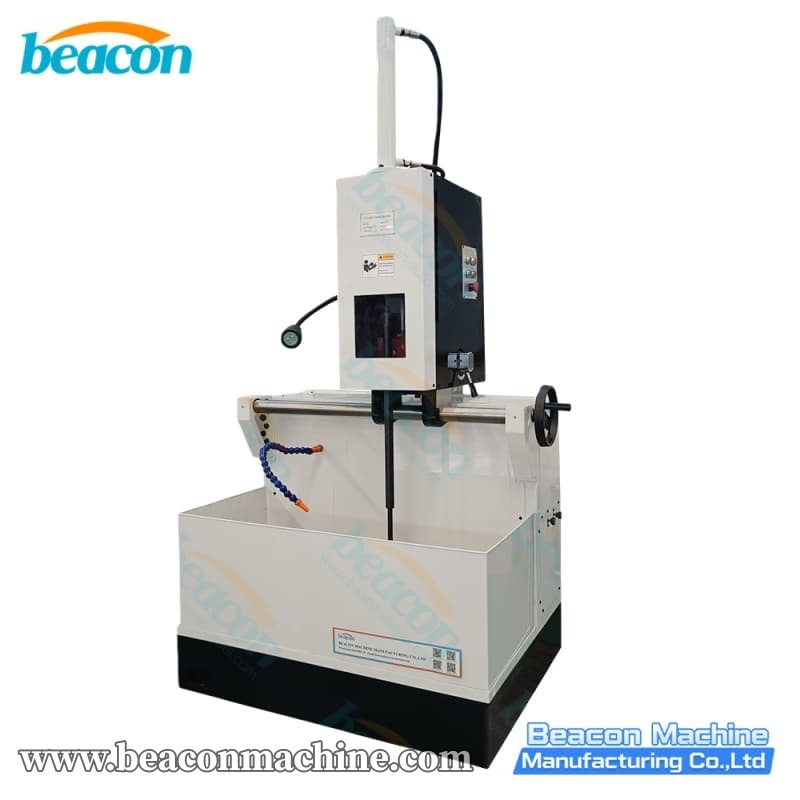

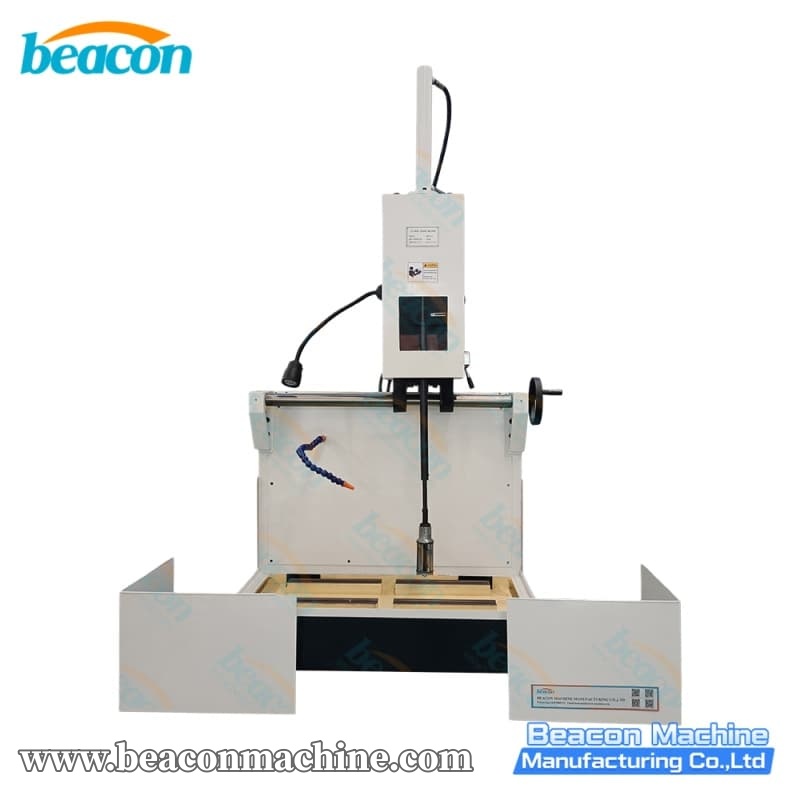

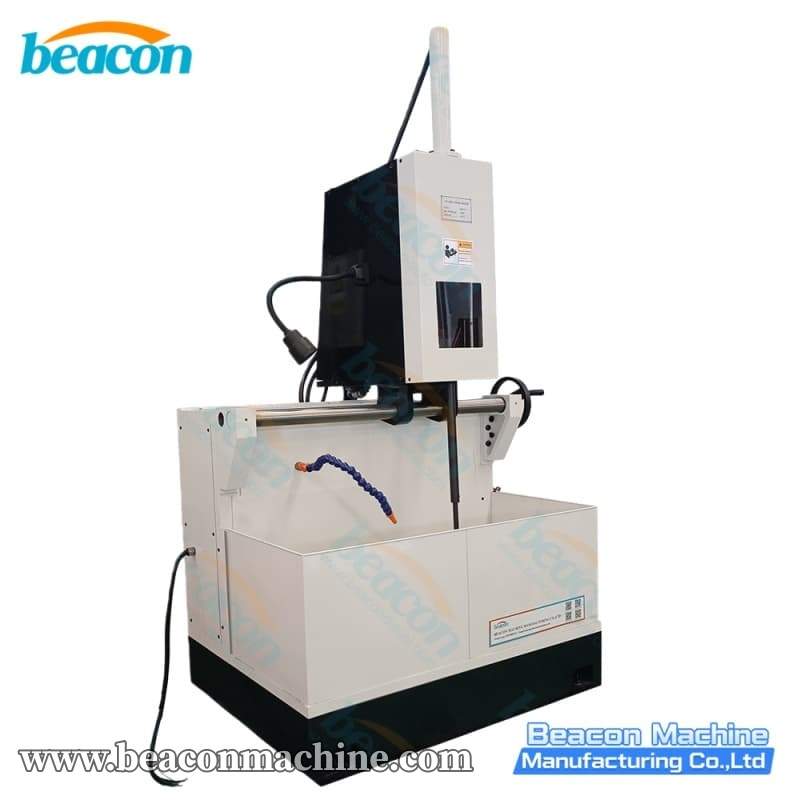

Introduction to the 3M9816 Cylinder Honing Machine

If you are looking for precise and reliable equipment for engine maintenance and manufacturing, the 3M9816 Cylinder Honing Machine manufactured by Beacon Machine Manufacturing Co., Ltd. is an excellent choice. This machine is engineered to deliver high-quality surface finishing for cylinder holes and liners.

Product Function and Application

The 3M9816 is versatile and designed primarily for the automotive and agricultural machinery sectors. Its main applications include:

• Honing cylinder holes and cylinder liner inner holes of internal-combustion engines for vehicles and tractors.

• Fine honing of inner holes for various other mechanical parts.

Whether you are rebuilding an engine block or manufacturing new components, this machine ensures the necessary geometric accuracy and surface finish.

Key Product Characteristics

The 3M9816 stands out due to its robust design and user-friendly features:

• Hydraulic Drive: The machine utilizes a hydraulic system for the up/down movement, ensuring smooth operation.

• Infinitely Variable Speed: It offers infinitely variable speed for the reciprocating motion, allowing operators to adjust based on specific honing requirements.

• Safety & Reliability: Designed for stability and safe operation in an industrial environment.

• Mechanical Rotation Control: Features mechanical rotation speed changes for the honing head.


Technical Specifications

Below are the main parameters for the 3M9816 model:

• Model: 3M9816

• Processing Diameter: 45 - 160 mm

• Max Honing Depth: 320 mm

• Spindle Speed: 125 / 250 r/min

• Reciprocating Speed of Honing Head: 0 - 10 m/min

• Machine Power: 1.5 / 1.1 kW

• Overall Dimensions: 1240 x 850 x 2310 mm

• Packing Dimensions: 1310 x 1010 x 2100 mm

• Net Weight / Gross Weight: 940 kg / 1130 kg


Standard Attachments

The machine comes equipped with a set of standard attachments to ensure you can get to work immediately. These include necessary clamping tools, V-blocks, bolts, and spacers to secure various cylinder block sizes effectively.
