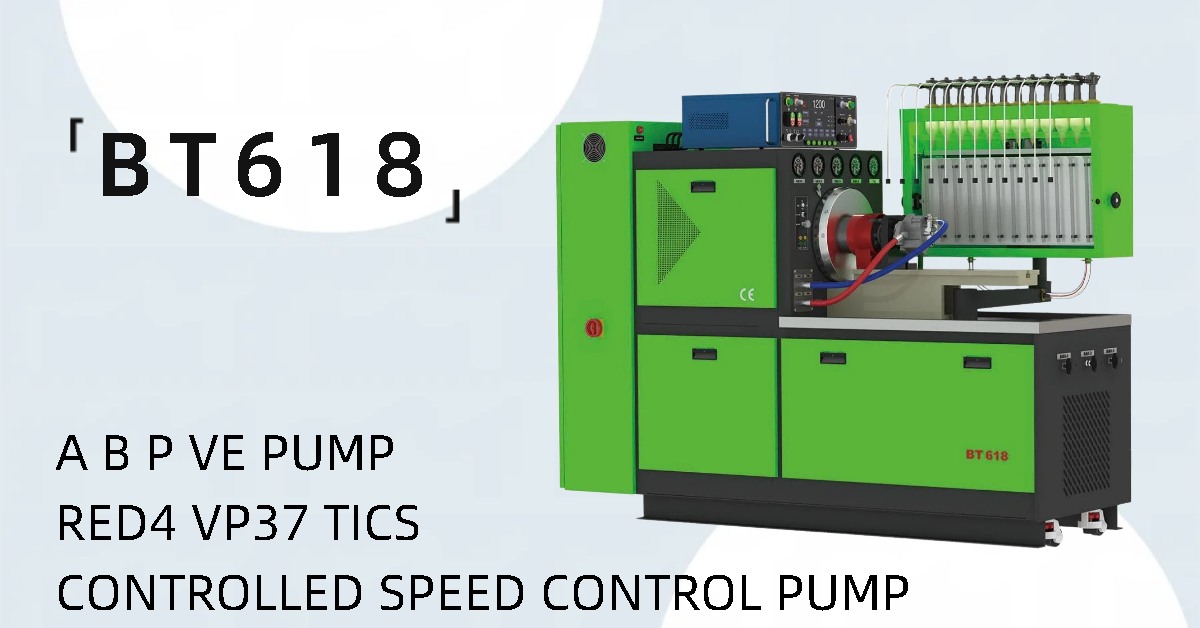

BEACON BT618 Mechanical Test Bench for Diesel Injection Pumps

For workshops that require unyielding power and ultimate versatility in mechanical pump diagnostics, the BEACON BT618 Mechanical Test Bench is the premier solution. This heavy-duty bench is specifically designed to handle a massive variety of traditional and electronically controlled fuel pumps, making it the backbone of any serious diesel calibration laboratory.

The BT618 is engineered to perform an exhaustive list of vital checks: from basic sealing tests and fuel supply capacity measurements to advanced diagnostics like advance angle measurement, distribution pump solenoid valve performance, pressure compensator examinations, and pneumatic/mechanical governor checks.

Comprehensive Pump Testing Range:
Out of the box, the BEACON BT618 is equipaped to test a wide spectrum of fuel injection pumps, including:

• Inline Pumps: A, B, and P type injection pumps.

• Rotary/Distributor Pumps: VE type pumps.

• Electronically Controlled Pumps: VP37, RED4, TICS, and various generator electronically controlled speed control pumps.

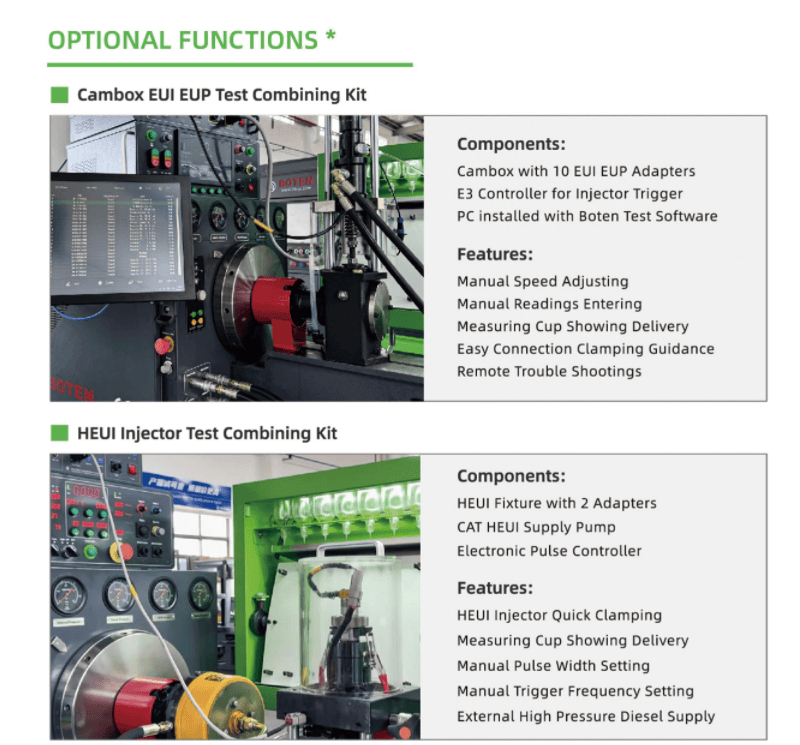

• Optional Upgrades: Add the Cambox EUI EUP Test Combining Kit or the HEUI Injector Test Combining Kit to transform this mechanical bench into a universal unit injector/HEUI testing station.


Technical Parameters:

Application Scenarios:
Perfect for traditional diesel pump calibration laboratories, agricultural tractor repair facilities, marine diesel service centers, and large-scale engine remanufacturing plants.

FAQ:

• Q: Does it come with standard injectors for testing large flow pumps?
  A: Yes, it includes 6 pieces of Orifice Standard Injectors (BTE-1095) specifically applied to conventional fuel injection pumps with large flow rates.

• Q: Can I test HEUI injectors on this mechanical bench?
  A: Yes, you can add the optional HEUI Injector Test Combining Kit, which directly integrates with the BT618 to provide high-pressure diesel supply and pulse control for HEUI testing.
