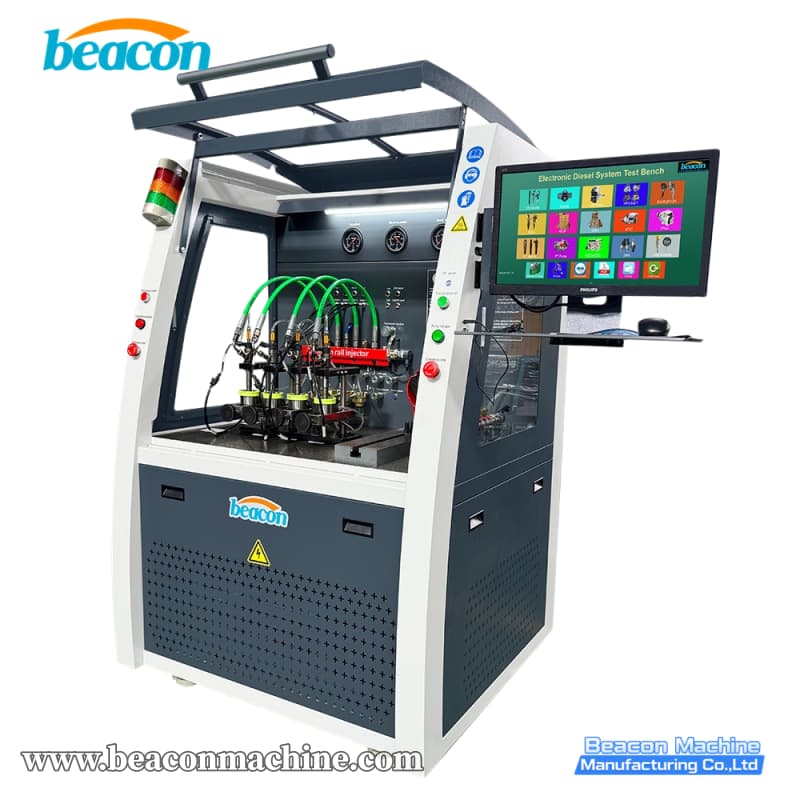

CR1029 Common Rail Test Bench 4-Injector Simultaneous Tester

Introduction to the CR1029 Common Rail Test Bench
For high-volume diesel repair workshops, time is money. The CR1029 Common Rail Test Bench is specifically engineered to maximize diagnostic efficiency without sacrificing precision. Powered by a robust 7.5KW motor (available in 380V/220V), this machine’s standout feature is its ability to test 4 injectors simultaneously, making it an indispensable asset for comprehensive diesel remanufacturing and repair centers.

Advanced Hardware & Built-in Equipment
The CR1029 is a self-contained diagnostic powerhouse. It comes factory-equipped with a built-in BOSCH CP3 pump and motor, ensuring stable high-pressure generation. To maintain optimal testing conditions, it features a built-in circulating refrigeration motor, two sets of rail-and-tube DRVs, a low liquid level alarm system, and a dedicated low-pressure oil supply pump.

Core Testing Functions
The CR1029 is packed with software and hardware capabilities designed to handle modern diesel systems:

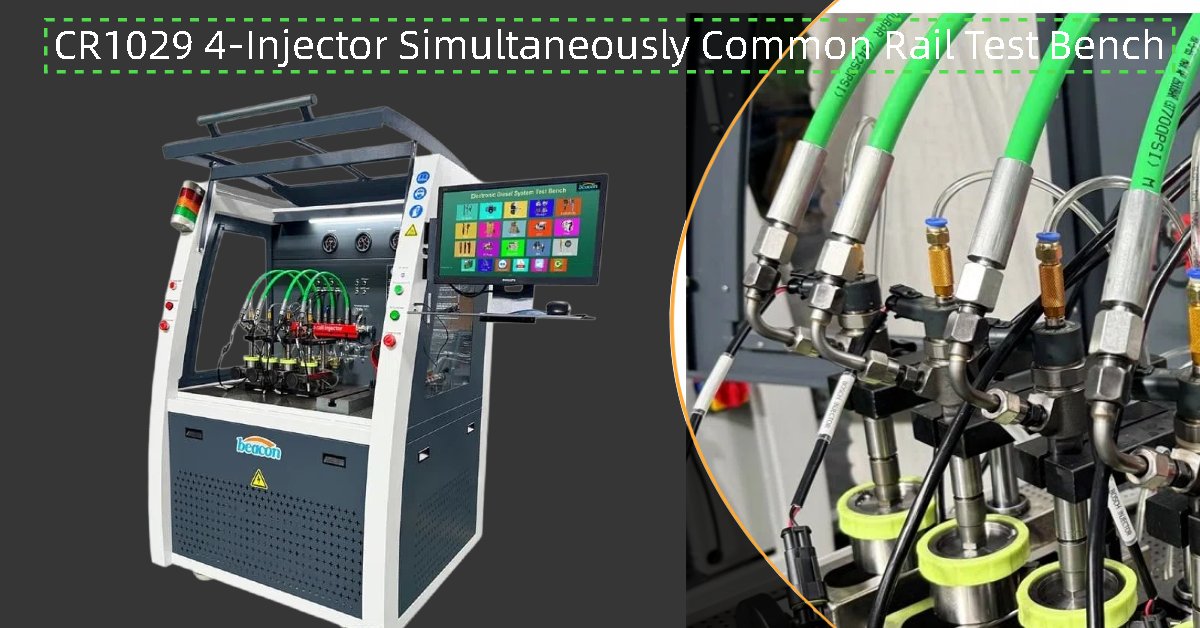

• Simultaneous 4-Injector Testing: Equipped with 4 independent flow sensors, the CR1029 can accurately test a complete set of 4 common rail or piezoelectric injectors at the exact same time, drastically cutting down testing hours.

• Simultaneous BIP Testing: Includes a specialized test stand with 4 BIP (Bypass Injector Proportioning / Valve Response Time) sensors to evaluate the dynamic response of all 4 injectors concurrently.

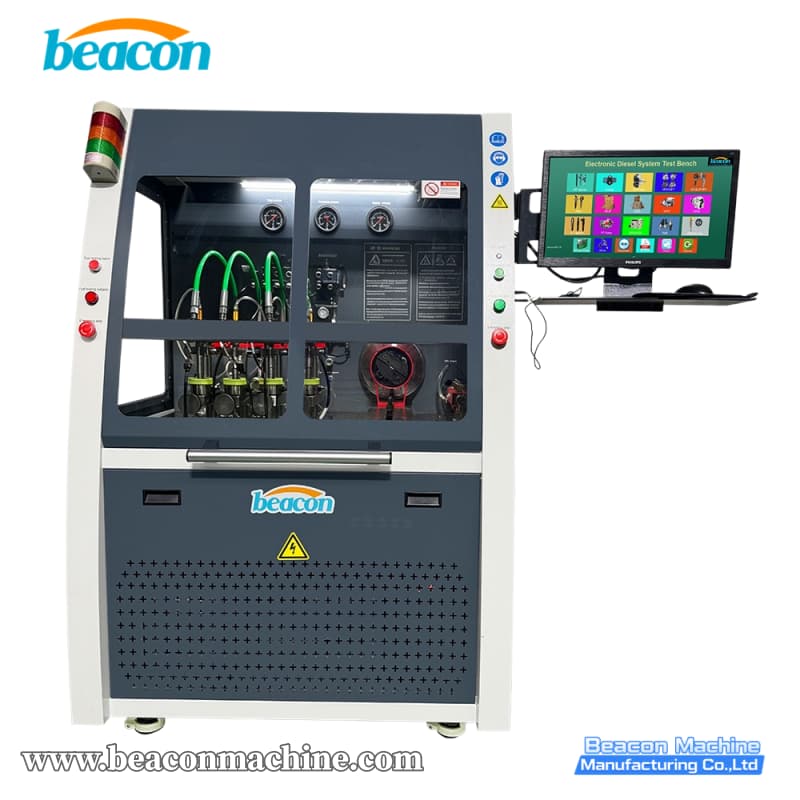

• Comprehensive Pump Testing: Fully capable of testing common rail pumps from all major brands, with dedicated support for DENSO HP0 pumps (spacer blocks and brackets included).

• Advanced Injector Coding & Calibration: Automatically generates precise compensation codes for Bosch, Denso, Delphi, and Siemens injectors.

• Denso i-ART Support: Comes standard with the Denso 6-pin test wiring harness for modern i-ART injector testing.


Rich Standard Accessories
Out of the box, the CR1029 is ready to work. The packing list includes a massive array of standard accessories: 2000-bar and 2600-bar high-pressure oil hoses, multi-hole pump brackets with couplings, transparent tubing, high-pressure elbows, quick connectors, and a complete set of wiring harnesses covering Bosch, Denso, Siemens, Delphi, and Piezo systems.

Optional Pump Test Kits (Expand Your Capabilities)
To further enhance the versatility of the CR1029, workshops can invest in optional upgrade kits tailored to specific heavy-duty and modern pumps. Available optional expansions include:

• CP4 Pump Test Kit: For testing modern Bosch CP4 high-pressure pumps.

• CAT 320D Pump Test Kit: Specifically designed for Caterpillar 320D excavator pump diagnostics.

• HP5 / HP6 Pump Test Kit: Essential for testing late-model Denso HP5 and HP6 common rail pumps.


6. Application Scenarios & FAQ

Application Scenarios:

• High-Volume Diesel Repair Shops: The ability to test 4 injectors simultaneously means technicians can diagnose and calibrate a full 4-cylinder engine set in a fraction of the time it takes on a single-cylinder bench.

• Diesel Remanufacturing Factories: Perfect for assembly line environments where fast throughput, precise coding, and strict quality control are required for refurbished injectors.

• Fleet Maintenance Depots: Ideal for commercial fleets running a variety of engines (Bosch, Denso, Delphi), allowing in-house mechanics to quickly verify fuel system health and get trucks back on the road.

FAQ:

Q1: How does the CR1029 test 4 injectors at once?
A: Unlike entry-level machines that simply split the fuel flow, the CR1029 is equipped with 4 independent, high-precision flow sensors. This guarantees that each of the 4 injectors is measured individually and accurately during the simultaneous test.

Q2: Can it generate QR codes for repaired injectors?
A: Yes, the CR1029 features built-in injector coding and calibration software capable of generating codes for Bosch, Denso, Delphi, and Siemens injectors.

Q3: Does the machine support Piezo and Denso i-ART injectors?
A: Absolutely. The machine includes standard testing capabilities and the necessary wiring harnesses for both Piezoelectric injectors and Denso 6-pin (i-ART) injectors.

Q4: What is included in the standard packing list for pump testing?
A: The standard package includes everything needed for standard common rail pumps and DENSO HP0 pumps, including a multi-hole oil pump bracket with couplings and HP0 spacer blocks.

Q5: Can I test CAT 320D or Bosch CP4 pumps on this machine?
A: Yes, the machine's software supports these pumps. To physically mount and test them, you simply need to purchase the Optional CAT 320D Pump Test Kit or the Optional CP4 Pump Test Kit listed in our upgrade options.
