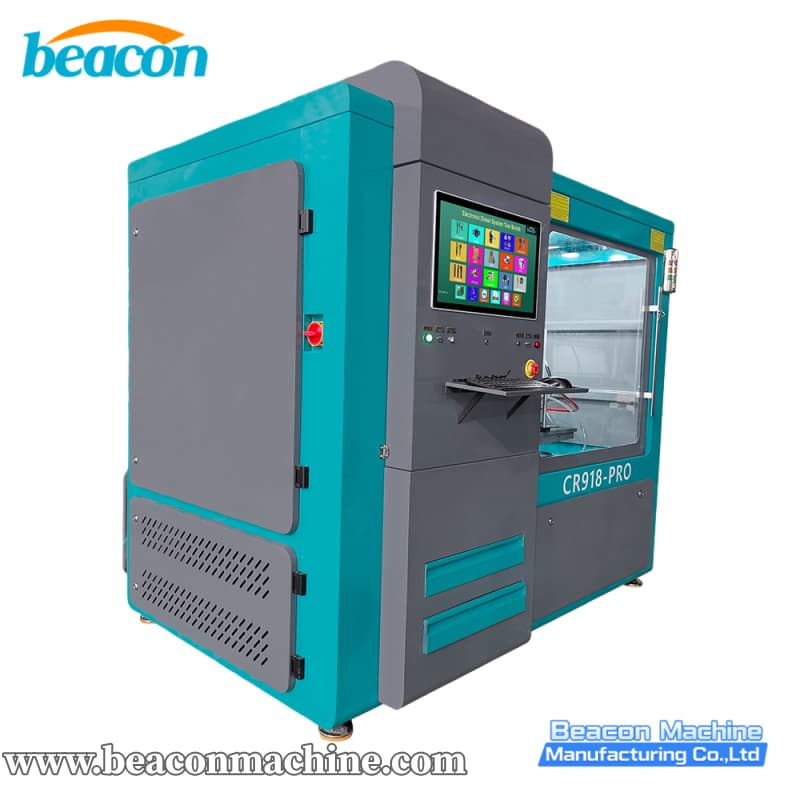

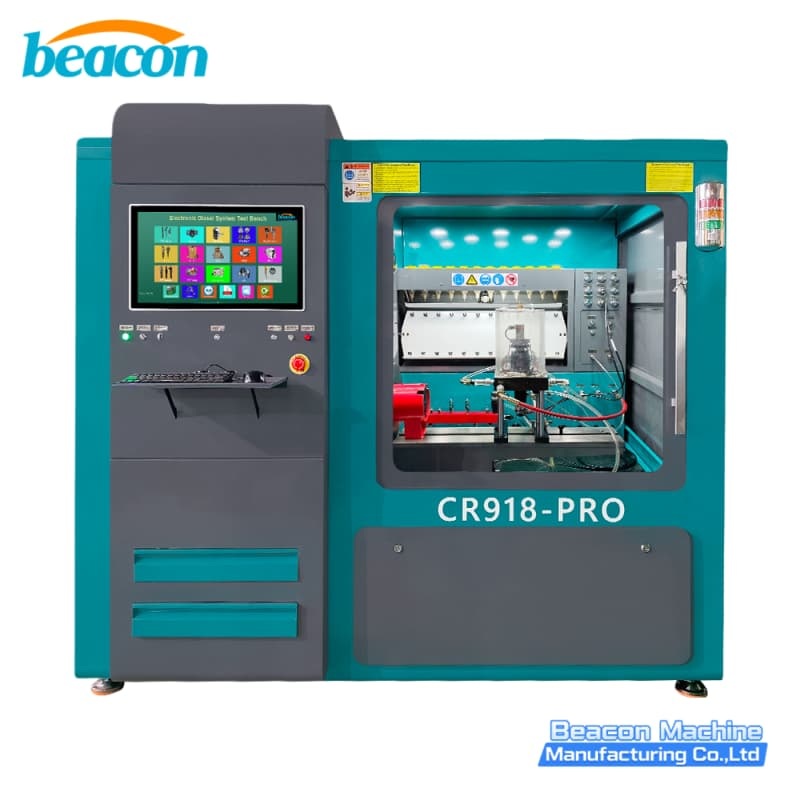

CR918-PRO Common Rail Test Bench Advanced HEUI EUI Calibration Machine with BIP Function

Precision Meets Ergonomics: The CR918-PRO Common Rail Test Bench

In the competitive field of diesel repair, technicians need equipment that is not only accurate but also efficient and easy to use. Beacon Machine is thrilled to launch the CR918-PRO, a high-end multifunctional test bench designed with the user experience in mind.

Combining advanced diagnostics (like BIP testing) with superior industrial design (4-tank system), the CR918-PRO is the ultimate upgrade for professional diesel workshops.

1. Superior Industrial Design & Hardware

The "PRO" in CR918-PRO stands for professional-grade hardware improvements designed to make your workflow smoother:

• Innovative 4-Tank System: Unlike standard benches, the CR918-PRO is equipped with four distinct tanks: Diesel tank, Engine oil tank, Lubricating oil tank, and a Waste fuel tank. This separation ensures fluid purity and simplifies maintenance.

• Ergonomic Operation: Features a massive 21.5-inch touchscreen for clear data visualization. The system includes an Electric tilt-and-turn flip mechanism (for the monitor/console), allowing technicians to adjust the viewing angle for maximum comfort.

• Maintenance Made Easy: The main fuel tank features a rail mounting and pull-out design. This allows for effortless cleaning and filter changes without dismantling the machine.

• Safety & Durability: All connections use Aviation Connectors with waterproof covers, ensuring stable signal transmission in oily environments. It also includes a low fuel level alarm and a dedicated oil lubrication system.

2. Comprehensive Standard Functions

The CR918-PRO covers all essential modern diesel systems out of the box:

• Common Rail Mastery: Tests all brands of Common Rail Injectors (including Piezo technology) and Common Rail Pumps.

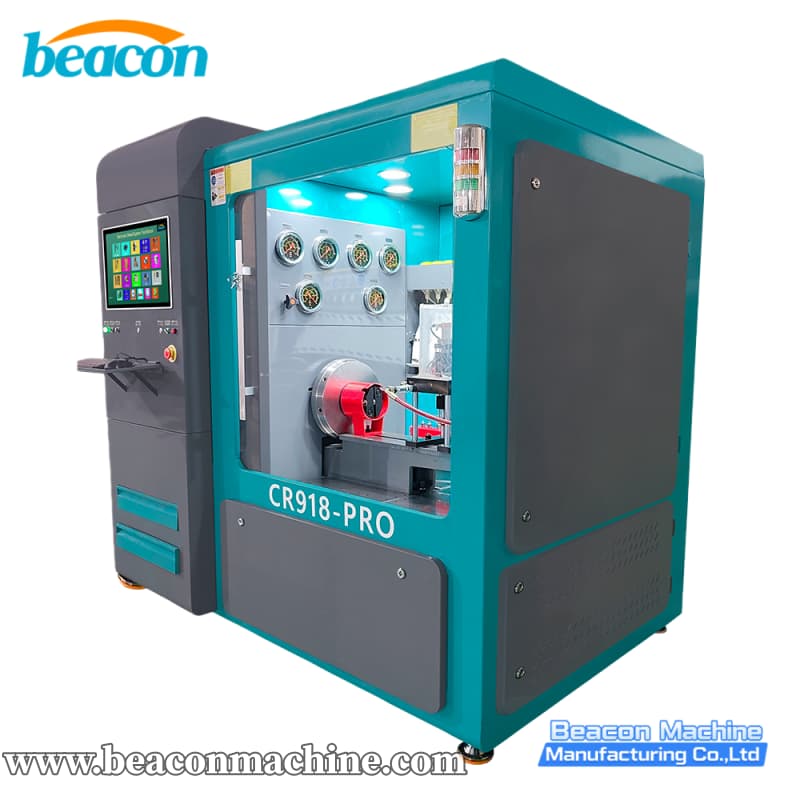

• HEUI Capabilities: Standard testing for CAT C7, C9, and 3126B injectors.

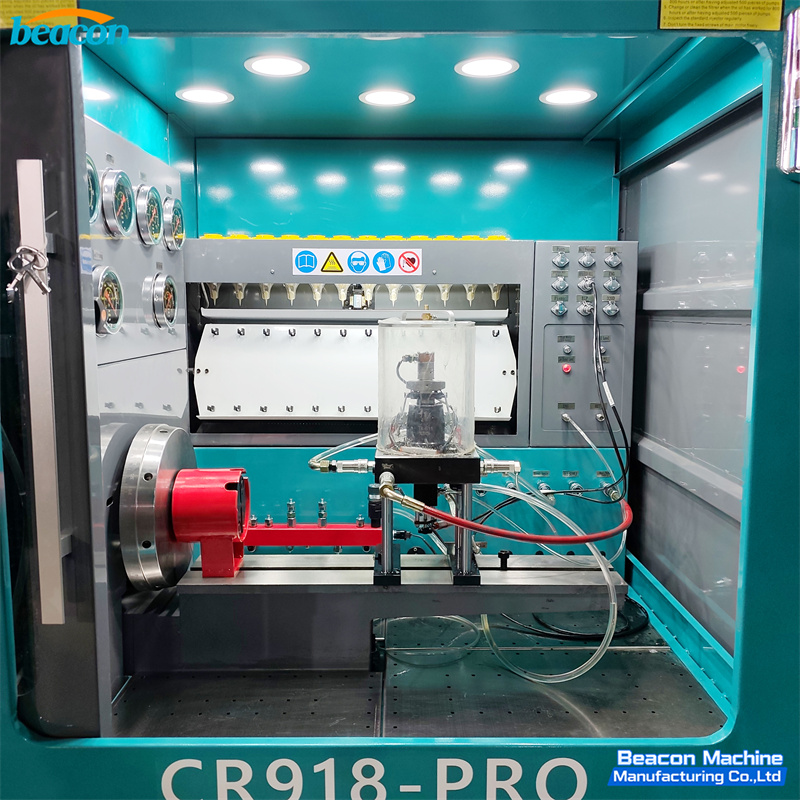

• EUI/EUP Testing: Includes the TU-D Cam Box for testing Electronic Unit Injectors and Pumps.

• Advanced Coding: Generates coding (QR/IMA/ISA) for Bosch, Denso, Siemens, and Delphi injectors to ensure proper ECU communication.

• BIP Function: Crucially, the CR918-PRO comes with BIP (Beginning of Injection Period) testing. This advanced feature measures the response time of the injector solenoid, critical for tuning high-performance engines.

• Pump Testing: Capable of testing Denso HPO pumps and CAT 320D pumps.


3. Extensive Optional Upgrades

The CR918-PRO is built to adapt. You can customize this bench with a vast array of optional kits to expand your service range:

Heavy Duty & Specialized HEUI:

• Expand HEUI testing to include CAT 3126A, CAT 3412E, Navistar, Isuzu, and Ford PowerStroke (6.0/G2.8/G2.9).

Cummins Ecosystem:

• Full support for Cummins PT Injectors and Pumps (using TU-C/TU-D/TU-E Cambox).

• Test kits for Cummins HPI (Q60, X15) and Cummins XPI systems.

• Heavy-duty Cummins QSK19 injector testing.

Latest Technology:

• CRIN4 Support: Test kits for the newest 4-pin Bosch MP4 injectors.

• Denso Tech: Kits for Denso 6-Pin injectors and HP5, HP6, HP7 pumps.

• Smart Injectors: Testing for Delphi Smart Injectors (F2, F2E) and DAF CR injectors.

• Dynamic Stroke: AHE injector dynamic stroke measurement with Bosch 110/120 tools.

Mechanical & Electronic Pumps:

• Test VP37 and VP44 electronic-mechanical pumps.

• Test RED4 and EDC (V3, V4, V5, VE) electronic pumps.

• Standard mechanical pump testing capabilities.

Component Testing:

• Verify the function of Rail Pressure Sensors, DRV/HPV valves, Solenoid valves, and SCV/ZME metering units.

Conclusion

The CR918-PRO is more than just a test bench; it is a complete diagnostic hub. Its pull-out tank design and 4-tank fluid management system solve the common headaches of machine maintenance, while the BIP function ensures your calibration is factory-precise.

Upgrade to the PRO standard. Contact Beacon Machine today for a quote on the CR918-PRO.

6. FAQ

Q1: What is the advantage of the 4-tank system?
A: The CR918-PRO separates diesel, engine oil (for HEUI), lubricating oil (for the cam box), and waste fuel. This prevents cross-contamination of fluids, extends the life of the test bench, and ensures more accurate test results compared to single-tank systems.

Q2: Does the CR918-PRO support BIP testing?
A: Yes, BIP (Beginning of Injection Period) testing is a standard function on the CR918-PRO. It allows you to measure the exact response time of the injector solenoid.

Q3: How do I clean the fuel tank?
A: The CR918-PRO features a unique "pull-out" design for the main fuel tank. You can simply slide the tank out on its rails for easy cleaning and maintenance, which is much faster than traditional fixed-tank designs.

Q4: Can I test Cummins PT injectors on this machine?
A: Yes, by adding the optional Cummins PT test kits and utilizing the compatible Cam Box (TU-C/TU-D/TU-E), you can fully test and calibrate Cummins PT injectors and pumps.

Q5: Is the screen easy to use?
A: Absolutely. The machine features a large 21.5-inch touchscreen with an electric tilt-and-turn mechanism, allowing operators of any height to adjust the screen for the best viewing angle.
