Comprehensive Guide to the Denso 6pin Smart Injector Tester (iART-02)

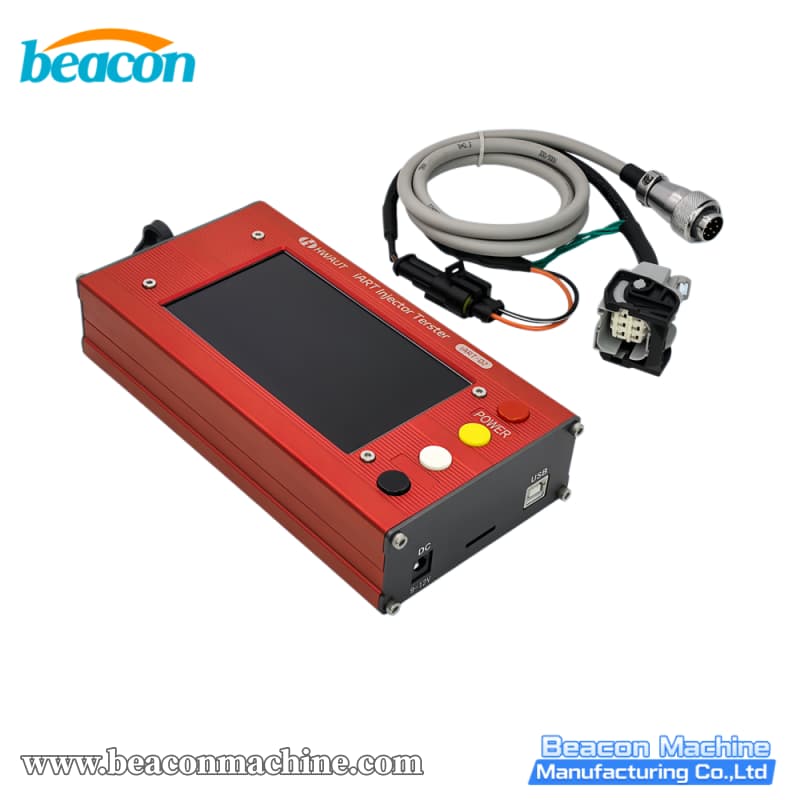

The iART-02 is a high-precision, multi-functional testing tool specifically designed for DENSO i-ART series fuel injectors. By integrating fast and accurate measurement functions, it effectively assists automotive technicians and diesel specialists in diagnosing fuel injectors and evaluating their performance.

Main Functional Features

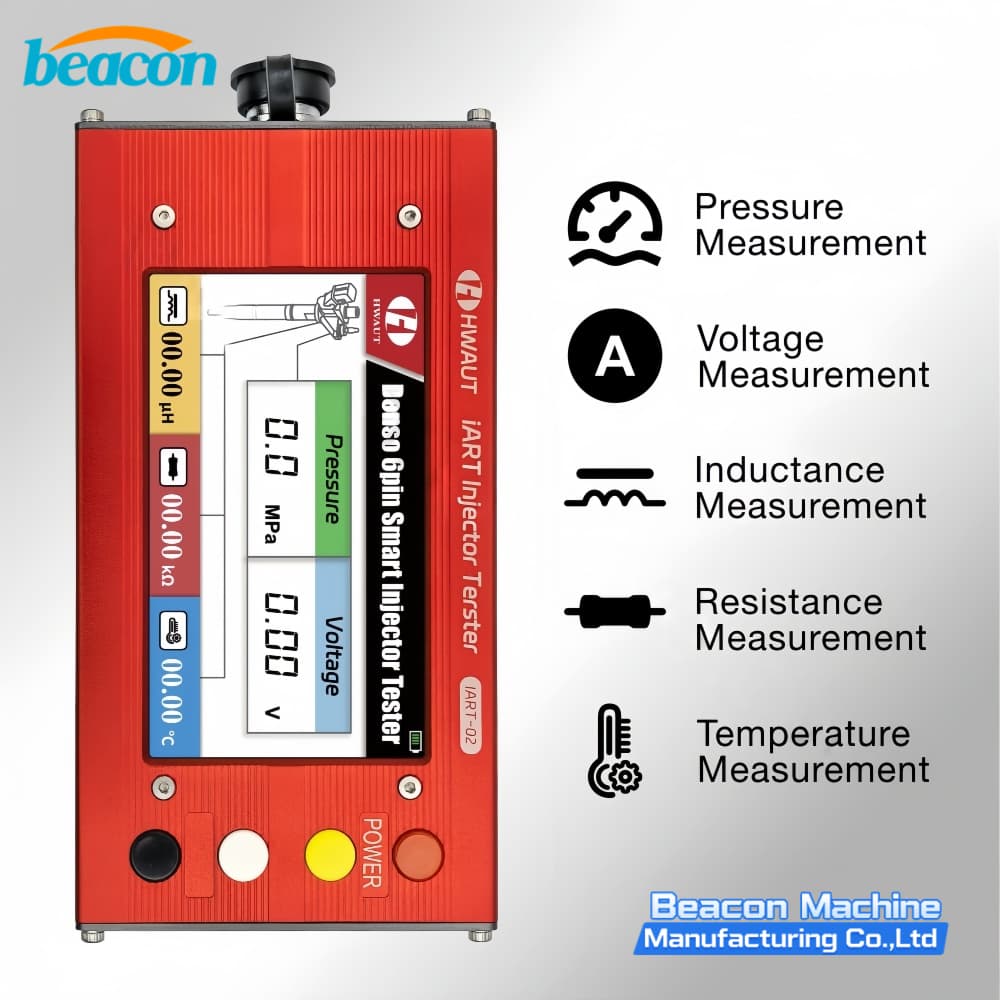

• Multi-parameter Measurement: Quickly measures the pressure value of the fuel injector under working conditions, as well as the resistance, inductance, and internal temperature under static conditions.

• High-precision Design: An internal high-precision bridge is adopted to ensure the accurate measurement of parameters such as fuel injector impedance and inductive reactance.

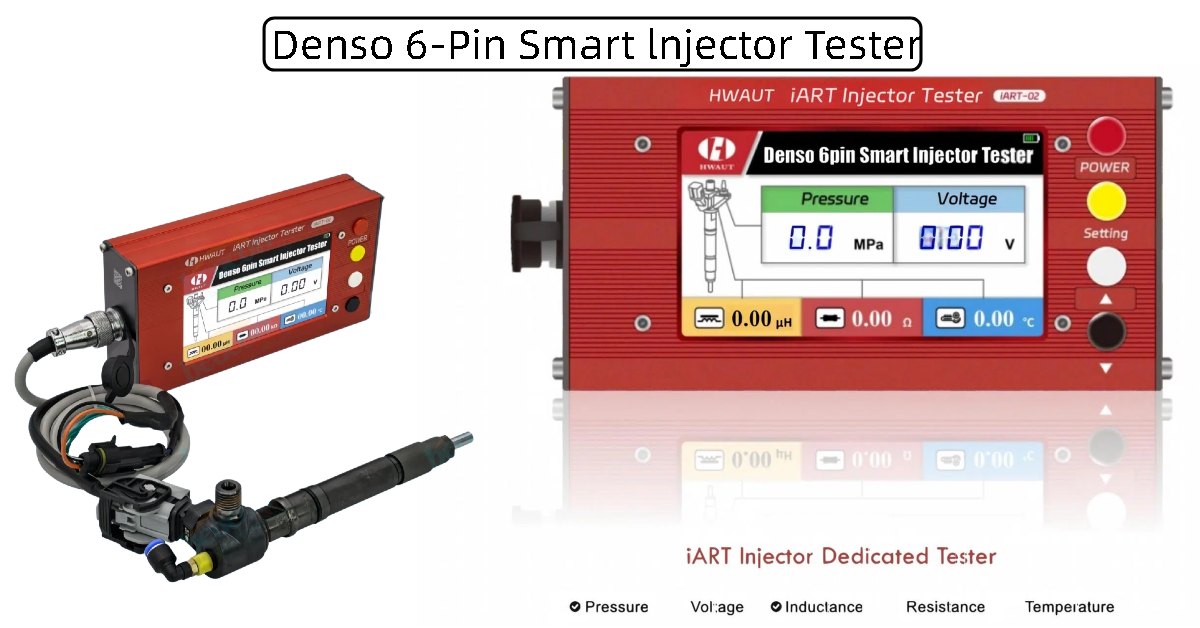

• Intuitive Display: Equipped with a 5-inch high-resolution LCD color screen, featuring a clear interface and intuitive data display for pressure (MPa), voltage (V), inductance (μH), resistance (kΩ/Ω), and temperature (°C).

• Sturdiness and Durability: Housed in a high-quality aluminum alloy shell, ensuring a solid structure and an exquisite appearance suitable for tough workshop environments.


Technical Specifications

Key Operation Instructions

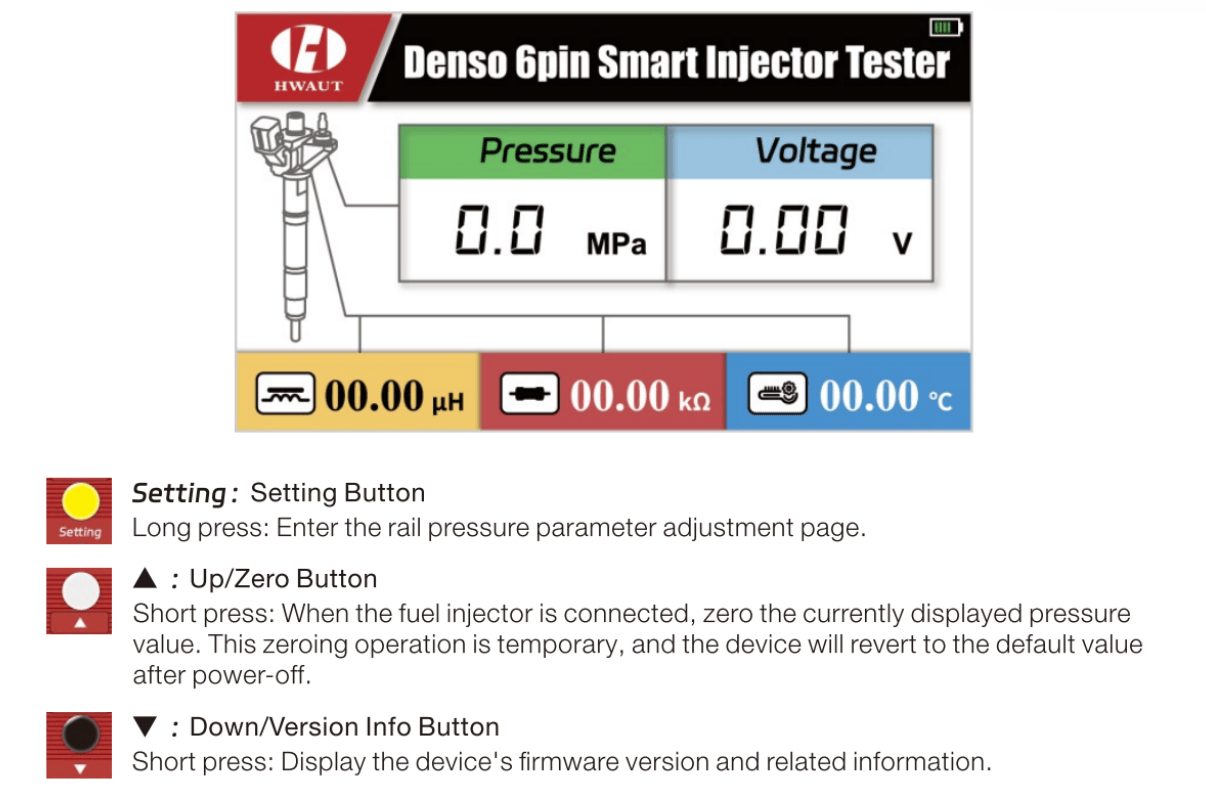

The device features an intuitive button layout. Operations are divided into two modes: "Main Interface" and "Parameter Adjustment Interface".

1. POWER Button (Red):
Press briefly or long-press to turn the device on or off.

2. Setting Button (Yellow):

• Main Interface: Long press to enter the rail pressure parameter adjustment (Calibration) page.

• Adjustment Interface: Long press to exit back to the main interface. Short press to switch between currently adjustable items.

3. Up/Zero Button (White ▲):

• Main Interface: Short press when the injector is connected to zero the currently displayed pressure value. (Note: This zeroing operation is temporary and reverts to default after power-off).

• Adjustment Interface: Short press to increase the value of the selected item.

4. Down/Version Info Button (White ▼):

• Main Interface: Short press to display the device's firmware version and related information.

• Adjustment Interface: Short press to decrease the value of the selected item.

(Note: The device also features a Pressure Calibration matrix mapping Voltage (mV) to Pressure (MPa) for precise tuning).

6. Application Scenarios & FAQs

Application Scenarios

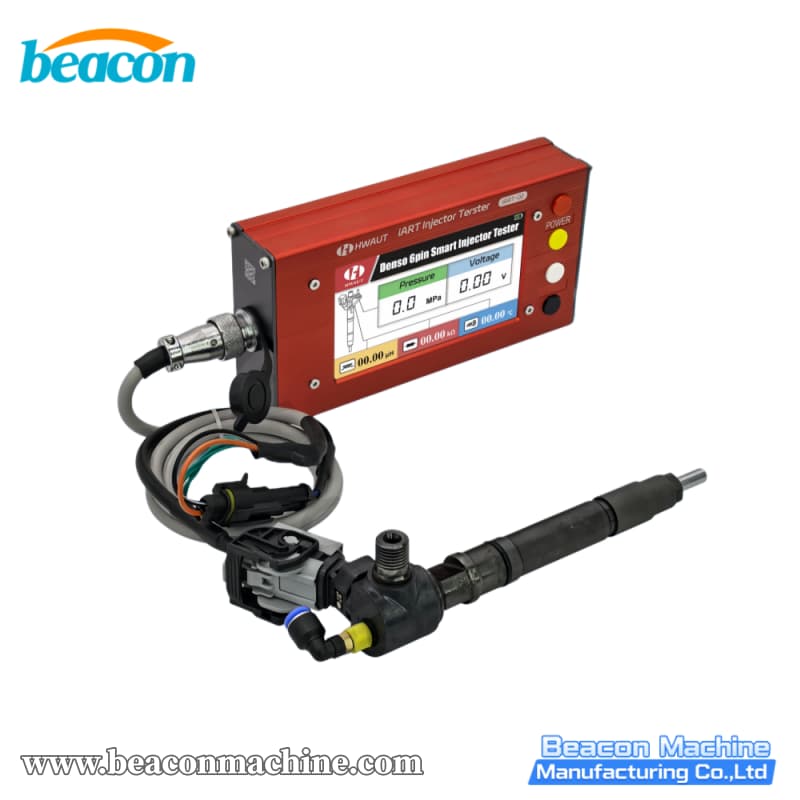

1. Diesel Fuel Injection Workshops: Used by technicians to diagnose faulty Denso i-ART 6-pin injectors without needing complex, bulky test benches.

2. Injector Remanufacturing & Repair: A vital tool for verifying the internal resistance, inductance, and pressure parameters of refurbished i-ART injectors before reinstalling them into a vehicle.

3. On-site Vehicle Diagnostics: Thanks to the built-in 2000MAH lithium battery, mobile mechanics can carry this compact tool directly to the vehicle for quick static and dynamic tests.

Frequently Asked Questions (FAQ)

Q1: What specific parameters can the HWAUT iART-02 measure?
A: It measures dynamic working pressure (MPa) and voltage (V), as well as static inductance (μH), resistance (Ω/kΩ), and internal temperature (°C).

Q2: Does this tester require an external power supply to operate?
A: Not necessarily. While it supports a 9-12V external power supply, it comes with a built-in 3.7V 2000MAH lithium battery, making it highly portable and ready for wireless use.

Q3: How do I zero out the pressure reading before a test?
A: On the main interface, simply short-press the "Up/Zero" (▲) button when the fuel injector is connected. Please note that this is a temporary zeroing, and the device will revert to its default value after being powered off.

Q4: How do I access the Pressure Calibration settings?
A: From the main interface, long-press the yellow "Setting" button. This will take you to the calibration screen where you can adjust the Voltage (mV) to Pressure (MPa) mapping (e.g., 943mV = 0.0 MPa, 2680mV = 160.0 MPa) using the Up and Down buttons. Long-press the "Setting" button again to exit.
