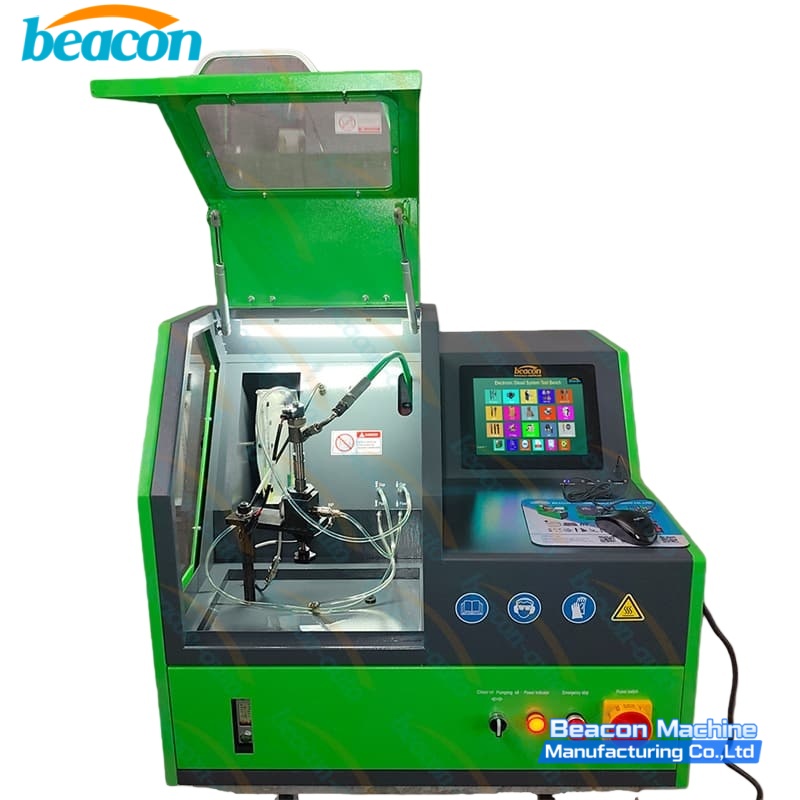

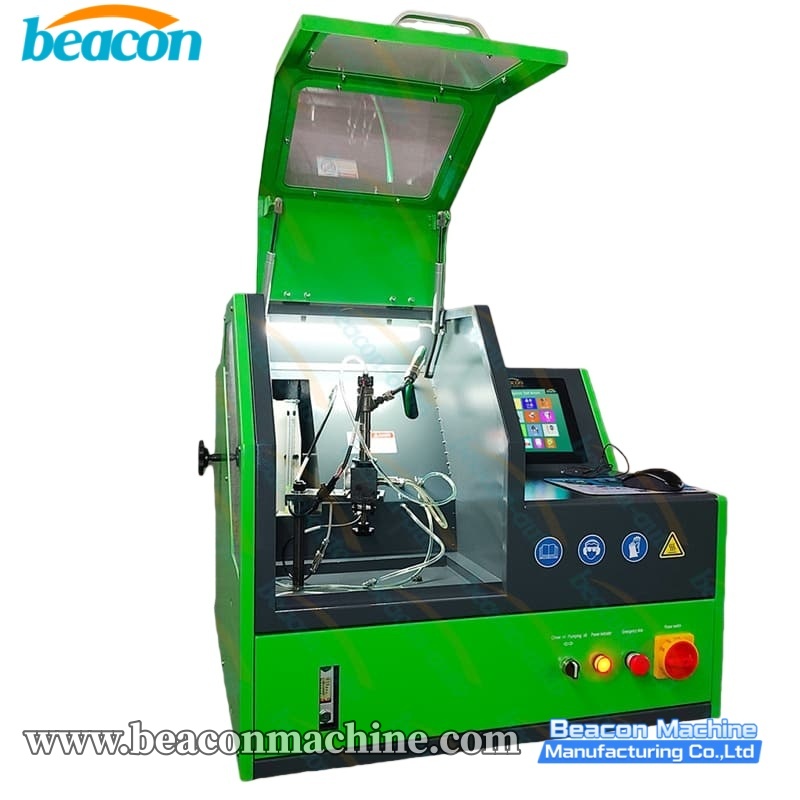

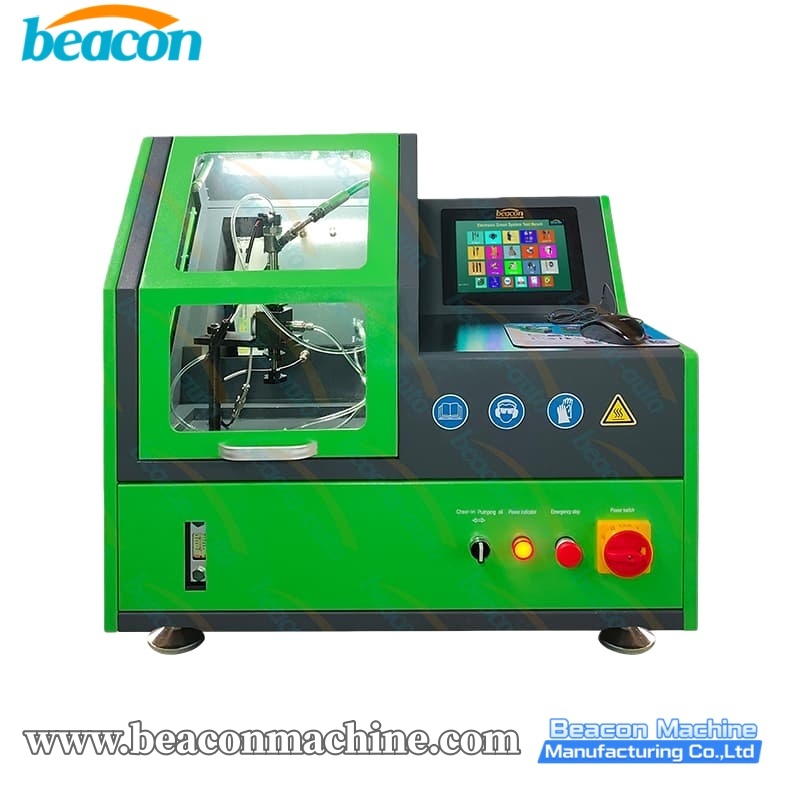

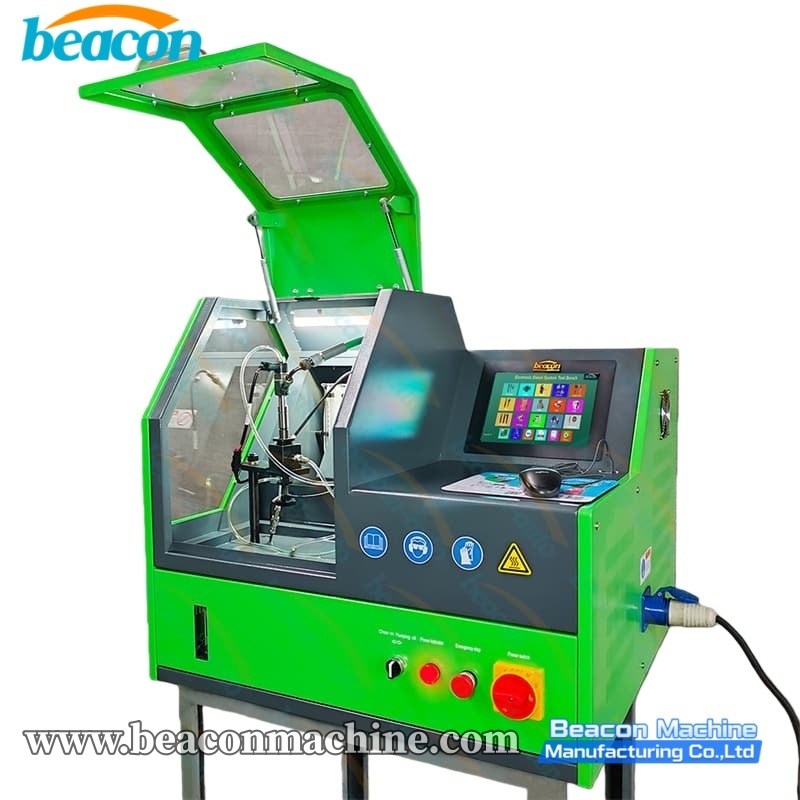

EPS210S Common Rail Injector Test Bench Professional Diesel Injection Diagnostic Equipment

Comprehensive Review: EPS210S Common Rail Injector Test Bench Features and Capabilities

In the evolving world of diesel engine maintenance, precision and versatility are paramount. Beacon Machine Manufacturing Co., Ltd. presents the EPS210S Common Rail Injector Test Bench, a compact yet powerful solution designed for professional workshops. Here is a deep dive into why the EPS210S is the standard for modern diesel injection testing.

High-Performance Technical Specifications

The EPS210S is engineered for stability and accuracy. It operates on a standard 220V 1-phase power supply with a 2.6KW output power.

• Working Pressure: Adjustable from 0 to 200MPa, ensuring it can handle high-pressure modern systems.

• Hardware: Equipped with a reliable CP1H common rail pump and a high-precision flow meter for oil measuring.

• Speed Control: Measuring motor speed ranges from 0 to 3000rpm with intelligent PID algorithms for precise pressure control.

• Safety: Built-in short-circuit protection (software and hardware) and safety guards ensure operator security.


Core Testing Functions

The EPS210S is not just a tester; it is a comprehensive diagnostic station. It supports both solenoid valve and piezoelectric crystal common rail injectors (Generation 3 technology).

1. Sealing Test: Checks for high-pressure leaks.

2. Performance Testing: Analyzes Full Load, Mid-load, Idling, and Pre-injection performance.

3. Broad Compatibility: The database includes over 7,543 injector profiles, covering Bosch (2493), Denso (4287), Delphi, Siemens, Carter, and Cummins.

Advanced Coding and Optional Features

One of the standout features of the EPS210S is its coding capability, essential for modern ECU calibration:

• Bosch: IQA / IMA / IS coding.

• Denso: 16/22/24/26/28/30/32QR coding.

• Delphi: I2C / I3C / C2i / C3i coding.

• Siemens: IIC coding.

Optional Expansion Modules Include:

• Bosch 4-Pin Injector Test: Specialized adapter for newer models.

• AHE Dynamic Stroke Measurement: Includes stroke measuring tool and dial indicator.

• Sensor & Valve Testing: Capable of testing Rail Pressure Sensors, DRV/HPV valves, and Solenoid valves response time.

User-Friendly Interface

Designed for global use, the control system supports 15 languages, including English, Spanish, Russian, and Portuguese. The system allows users to print detailed test reports with customizable logos, making it easier to present results to customers.

6. Application Scenarios

• Diesel Repair Workshops: For diagnosing faulty injectors (leaking, clogged, or electronic failure) and generating QR codes for new components.

• Auto Parts Distributors: Verification of refurbished or new injectors before sale to ensure quality control.

• Vocational Training Schools: Teaching students the principles of high-pressure common rail systems and electronic diagnostics.

• Fleet Maintenance Centers: Routine maintenance of trucks and heavy machinery to ensure fuel efficiency and engine health.





FAQ (Frequently Asked Questions)

Q1: What types of injectors can the EPS210S test?
A: The EPS210S supports a wide range of common rail injectors, including high-speed solenoid types and piezoelectric types from brands like Bosch, Denso, Delphi, Siemens, CAT, and Cummins.

Q2: Does the machine come with warranty support?
A: Yes. We provide a one-year warranty and lifetime technical support. If non-human damage occurs within one year, accessories are replaced free of charge.

Q3: Can I update the test data?
A: Yes, the system software is designed to be updated as new injector data becomes available. The current database holds over 7,500 part numbers.

Q4: Is the machine difficult to operate?
A: No. The interface is user-friendly with a touchscreen, supports 15 languages, and includes an intelligent PID algorithm that automates pressure control. We also provide TeamViewer remote support if needed.

Q5: What is the "AHE" function listed in the optional features?
A: AHE stands for Armature Lift Travel. This function measures the dynamic stroke of the injector's armature, which is critical for precise fuel metering. The EPS210S can be equipped with a stroke measuring tool and dial indicator for this purpose.
