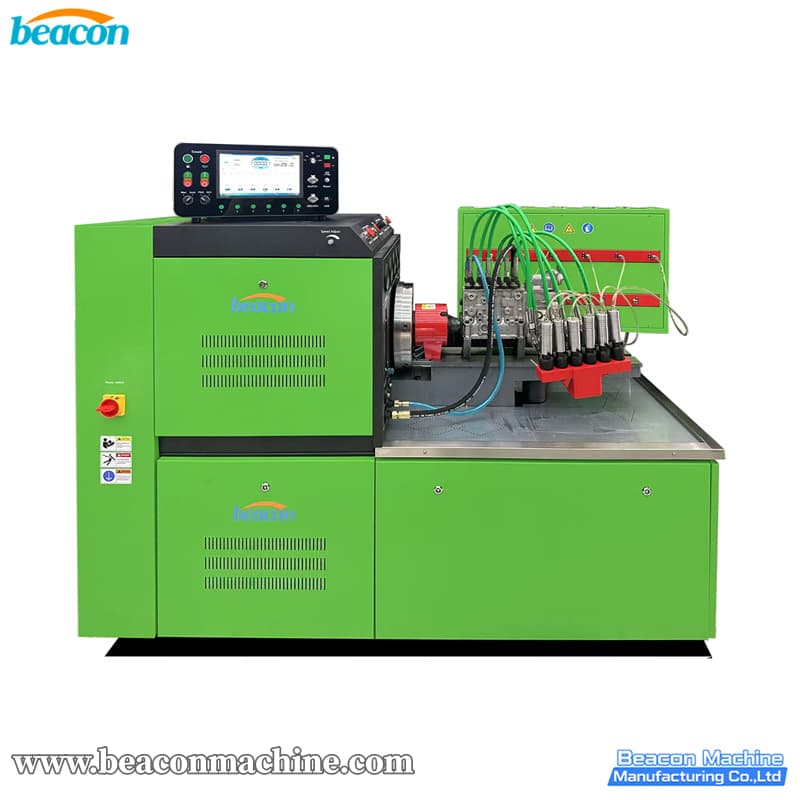

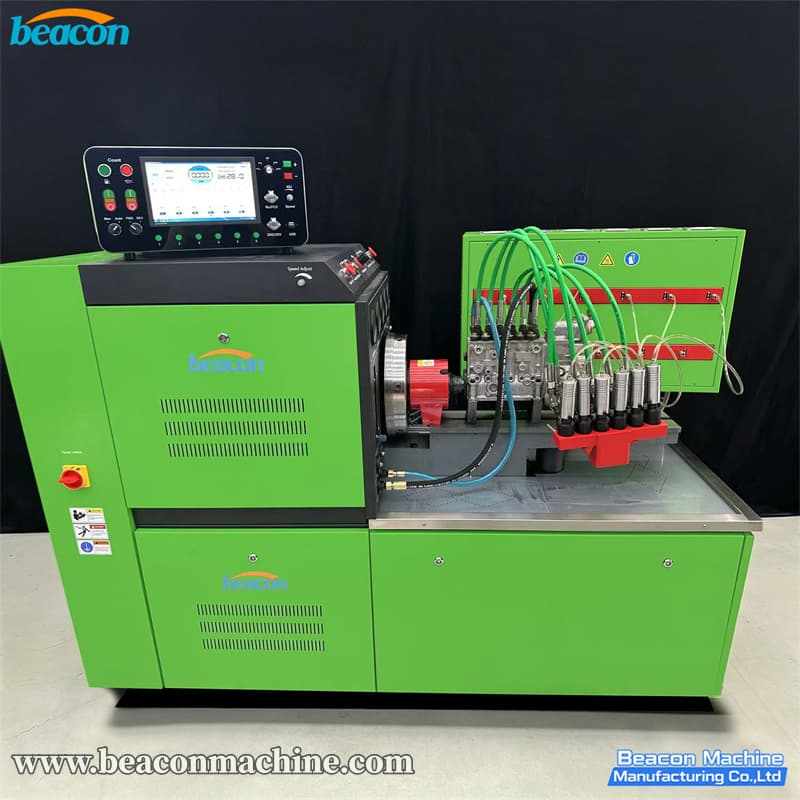

ES816 Mechanical Fuel Injection Pump Test Bench for A, B, P and VE Pumps

The ES816 Mechanical Fuel Injection Pump Test Bench is designed for professional testing, calibration and adjustment of mechanical diesel fuel injection pumps. With a powerful 22 kW motor, oil lubrication system, stainless-steel worktable, multiple control buttons and computer-based measurement, the ES816 provides an efficient solution for diesel pump repair shops, injection specialists and engine service centers.

The test bench supports A-type, B-type, P-type mechanical injection pumps and VE distribution pumps, covering a wide range of traditional diesel fuel injection systems.

Key Features

1. Powerful Drive System

The ES816 uses a 22 kW motor with variable-frequency speed control. It provides stable operation, high output torque and a small speed drop under load.

The variable-speed system allows technicians to select different testing speeds according to the pump type and testing requirements.

2. Multi-Cylinder Fuel Delivery Measurement

The test bench can measure the fuel delivery quantity of individual cylinders at different speeds.

Up to 12 flow sensors are available for precise measurement and comparison of fuel delivery between cylinders. This helps technicians identify uneven fuel delivery and make accurate pump adjustments.

3. VE Distribution Pump Testing

The ES816 is equipped with a dedicated VE pump flow measurement system and supports testing of VE distribution pumps.

Testing functions include:

• VE pump return oil quantity measurement

• Internal pressure measurement

• Solenoid valve testing

• 12V/24V solenoid valve control

• Supply pump testing

• Pump sealing inspection

• Advance device testing as an optional function

4. Injection Timing and Governor Testing

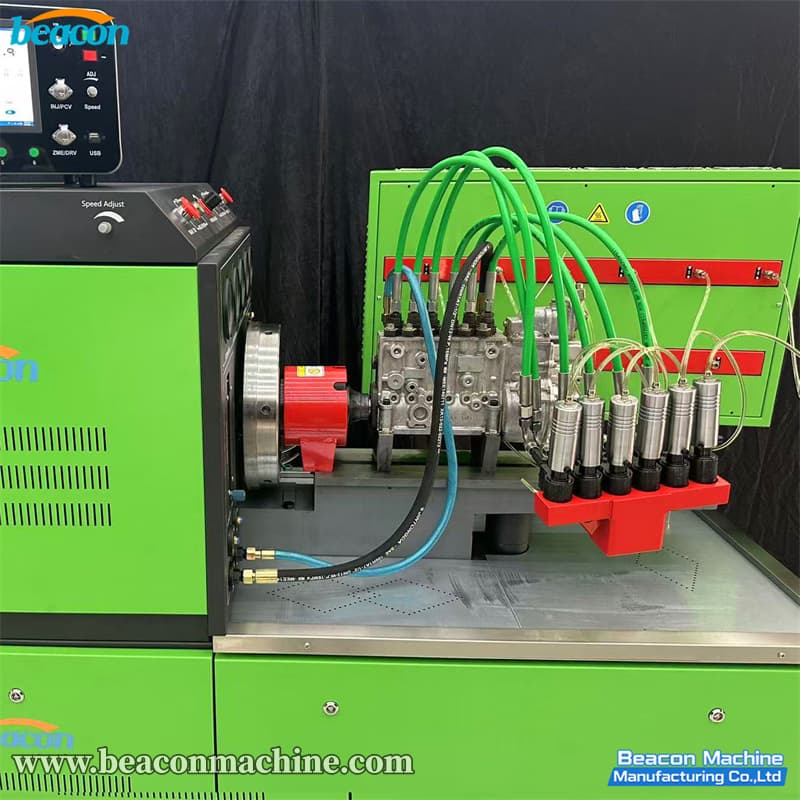

The ES816 can test the fuel delivery point and delivery interval angle of mechanical injection pumps.

It can also be used to inspect and adjust:

• Mechanical governors

• Boost compensators

• Fuel compensation devices

• Pump delivery characteristics

• Injection timing mechanisms

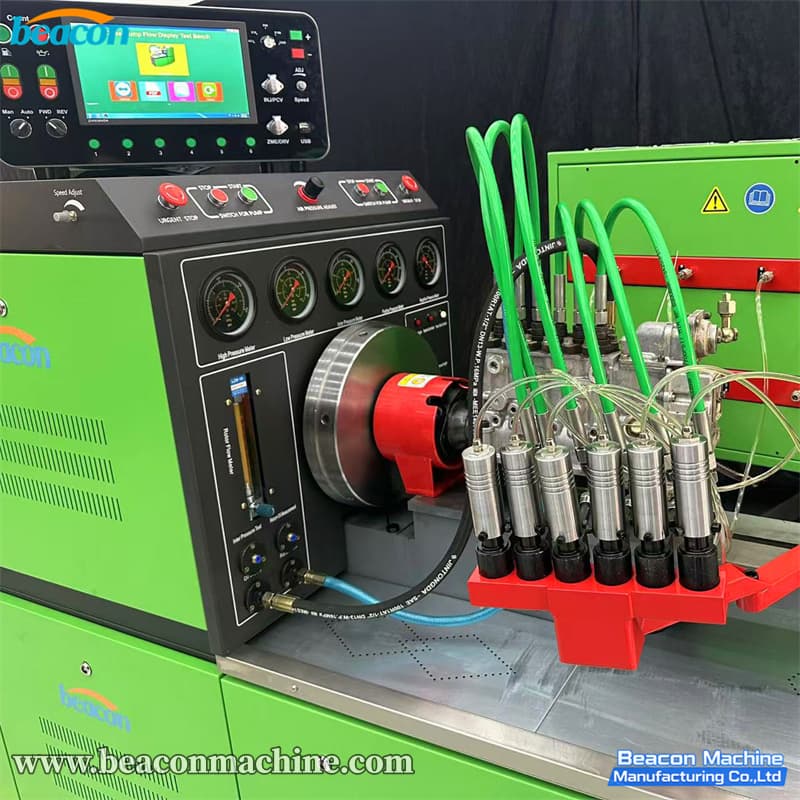

5. Computerized Measurement and Data Management

The computer control system monitors and displays important testing parameters in real time.

Depending on the configuration, the system can measure and control:

• Pump speed

• Test count

• Fuel temperature

• Air pressure

• Feed angle

• Rack travel

• Fuel delivery quantity

Test results can be displayed on a computer interface, with an optional 17-inch LCD touchscreen available according to customer requirements.

6. Pump Database and Test Reports

The ES816 allows testing data to be managed digitally.

Technicians can:

• Save pump testing data

• Modify testing parameters

• Upload data to the pump database

• Search pump data quickly

• Generate test reports

• Print test results

• Display speed characteristics and rack-travel curves

This makes the ES816 suitable for professional workshops that need repeatable testing procedures and organized customer records.

Main Testing Functions

The ES816 can perform the following tests:

1. Measure fuel delivery quantity at different speeds.

2. Test the fuel delivery point and delivery interval angle.

3. Inspect and adjust mechanical governors.

4. Inspect and adjust VE distribution pumps.

5. Test boost and compensation devices.

6. Measure VE pump return oil quantity.

7. Test 12V/24V VE pump solenoid valves.

8. Measure internal pressure of distribution pumps.

9. Check the advance angle device with optional equipment.

10. Check the sealing performance of the injection pump.

11. Check the supply pump, including VE pump supply systems.

12. Measure and analyze pump speed characteristics.


Operating Advantages

The ES816 is designed for stable, accurate and convenient workshop operation.

High Torque and Stable Speed

The variable-frequency drive system provides stable speed control and high torque, helping maintain consistent test conditions under different loads.

High Measurement Accuracy

Multiple flow sensors allow technicians to compare fuel delivery between cylinders and identify abnormal fuel delivery conditions.

Temperature Control

The system includes constant-temperature control to help maintain stable fuel testing conditions and improve measurement consistency.

Built-In Air Supply

An integrated air supply system is available for testing components that require pneumatic control or compensation.

Low Noise

The machine is designed for low-noise operation, making it more suitable for long-term use in professional workshops.

Multiple Operating Positions

The control system can be operated from either side of the test bench, providing greater flexibility for technicians during installation, testing and adjustment.

Safety Protection

The ES816 includes protection functions such as:

• Overvoltage protection

• Overload protection

• Short-circuit protection

Typical Applications

The ES816 is suitable for a variety of diesel fuel injection service applications.

Diesel Injection Pump Repair Shops

Used for testing, calibration and adjustment of conventional mechanical diesel injection pumps after repair or overhaul.

Diesel Engine Service Centers

Suitable for workshops servicing agricultural machinery, trucks, construction equipment, generators and other diesel-powered equipment.

Fuel Injection Specialists

Useful for professional diesel injection specialists who need accurate fuel delivery measurement and repeatable pump calibration.

VE Pump Repair

The dedicated VE pump testing functions make the ES816 suitable for inspection and adjustment of VE distribution pumps, including return flow, internal pressure and solenoid valve testing.

Diesel Pump Remanufacturing

The computer-based data management system helps remanufacturers establish standardized testing procedures and maintain pump test records.

Frequently Asked Questions

What types of injection pumps can the ES816 test?

The ES816 is designed to test A-type, B-type and P-type mechanical fuel injection pumps, as well as VE distribution pumps.

How many flow sensors does the ES816 have?

The standard configuration described here includes 12 flow sensors for fuel delivery measurement.

Can the ES816 test VE pumps?

Yes. The ES816 includes a VE pump flow measurement system and supports VE pump testing, including return oil quantity, internal pressure and solenoid valve testing.

Can it test 12V and 24V VE pump solenoid valves?

Yes. The test bench supports testing of 12V/24V VE pump solenoid valves.

Can the machine measure fuel delivery for each cylinder?

Yes. The system can measure the fuel delivery quantity of individual cylinders at different test speeds.

Can the ES816 test the mechanical governor?

Yes. The ES816 can be used to inspect and adjust mechanical governors and evaluate their operating characteristics.

Does the machine have computer data management?

Yes. Test data can be displayed, saved, modified and uploaded to a pump database. Test reports can also be generated and printed.

Can the test data be saved for future reference?

Yes. Pump data and test results can be stored in the database, making it easier to retrieve previous testing information.

Is the LCD touchscreen included?

A 17-inch LCD touchscreen can be supplied according to the selected configuration. Please confirm the required configuration before ordering.

Conclusion

The ES816 Mechanical Fuel Injection Pump Test Bench combines high-power drive performance, multi-channel fuel delivery measurement, VE pump testing and computerized data management in one professional testing system.

With support for A, B, P and VE pumps, the ES816 is a practical solution for diesel injection pump calibration, repair, remanufacturing and performance verification. Its variable-speed control, temperature management, multiple flow sensors and digital test-data system help improve testing efficiency and consistency in professional diesel workshops.
