Guide to the EUS-1800 EUI EU HPI Tester

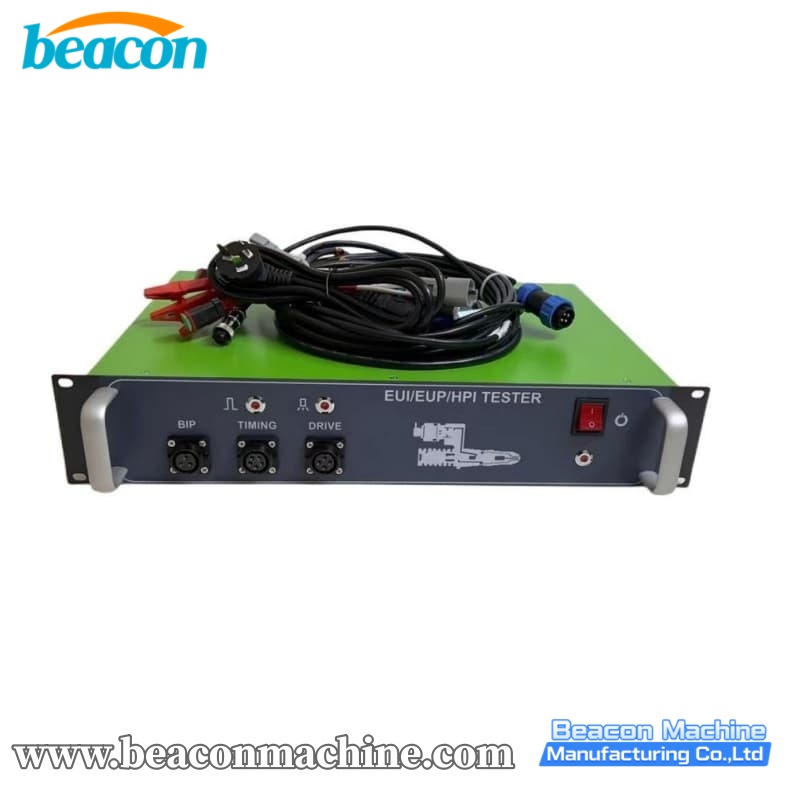

Unlocking Precision Diesel Repair with the EUS-1800 EUI/EUP/HPI Tester

In the evolving world of diesel fuel injection repair, versatility and accuracy are paramount. Today, we are taking a deep dive into the EUS-1800, a comprehensive tester designed for EUI (Electronic Unit Injector), EUP (Electronic Unit Pump), and HPI systems. Based on the latest V2.2 user manual, here is why this equipment is an essential addition to any modern diesel workshop.

What Can the EUS-1800 Test?

The EUS-1800 is engineered to handle a wide variety of heavy-duty applications. It supports testing for major manufacturers including:

• Bosch

• Caterpillar

• Cummins

• Delphi (Including the complex Delphi E3 double solenoid valve EUI)

Whether you are working on a standard EUI or a specialized HPI system, this tester provides the coverage needed for diverse repair jobs.

Key Features that Set It Apart

According to the system specifications, the EUS-1800 isn't just about compatibility; it's about precision and usability.

1. Original Data Standard: The test data is consistent with original factory standards, ensuring your repairs meet OEM specifications.

2. Open Database: One of the standout features is the fully open database. Users can increase part numbers manually, making the system future-proof.

3. Advanced Measurements: Beyond standard fueling, it can test injection response time, injector resistance, and inductance. It also supports BIP (Beginning of Injection Period) testing, which is critical for accurate diagnostics.

4. Automatic Updates: The system supports automatic network upgrades, keeping your test data and functions up to date without manual hassle.

The Mechanical Setup: Modular and Robust

The mechanical part of the EUS system is designed for flexibility. It consists of the CB-A Cam Box and the EU-A Modular Design Test Bench.

• The Cam Box is mounted on a standard high-pressure oil pump test bench and driven by the bench motor.

• It comes with various adapters to fit different injectors (EUI) and pumps (EUP).

• Visual guides in the software (Help section) assist technicians in correctly mounting complex units like the Cummins M11 or Delphi E3, ensuring the cam box is unobstructed and the pressure is correct.

Intelligent Software Interface

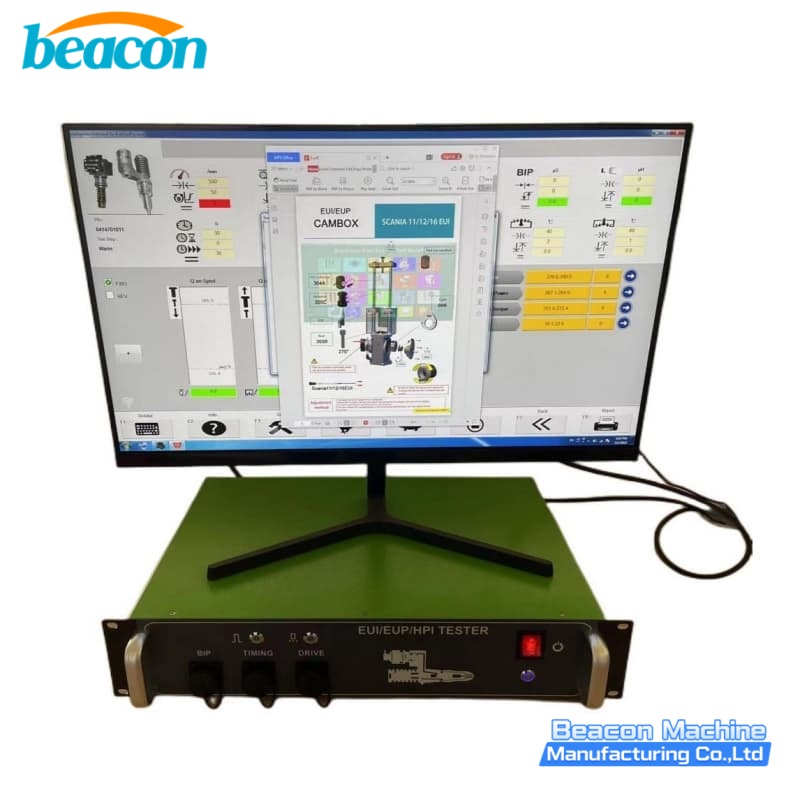

The "TestBench" software running on the EUS-1800 is user-friendly and feature-rich.

• Easy Search: You can quickly find the injector to be tested by selecting the Maker (e.g., Volvo, Cummins) or searching by Part Number (PN).

• Real-Time Monitoring: The interface displays the Real-time curve of injector driving current (Wave Show), allowing technicians to visually diagnose electrical faults.

• Customization: If a specific compensation code is needed, the software allows for the input and modification of original compensation codes.

Conclusion

The EUS-1800 EUI/EUP/HPI Tester combines robust hardware with intelligent, updatable software. For workshops looking to expand their service capabilities to include high-pressure unit injectors and pumps, specifically for demanding engines like Caterpillar and Delphi E3 systems, the EUS-1800 offers a reliable and precise solution.

Ready to upgrade your test bench? Contact us today for more details on the EUS-1800.
