How to Test and Repair Cummins PT Injectors

How to Test and Repair Cummins PT Injectors

If you run a diesel engine repair shop, you are likely familiar with the reliable and rugged Cummins engines. A critical component of these heavy-duty engines is the PT fuel system. In this comprehensive guide, we will explore what a Cummins PT injector is, how it works, its typical applications, and the best professional equipment from Beacon Machine to test and repair them efficiently.

Introduction to the Cummins PT Injector

The Cummins PT (Pressure-Time) fuel system is a unique and highly durable fuel injection system primarily used in heavy-duty diesel engines. Unlike conventional common rail systems, the PT system relies on a central gear pump to deliver fuel to the injectors at relatively low pressure. The injector itself acts as the high-pressure generating unit, driven by the engine's camshaft.

Working Principle:
According to authoritative diesel engineering principles (such as those outlined in official Cummins service manuals and the DieselNet technical database), the acronym "PT" stands for Pressure and Time:

• Pressure (P): The fuel pressure is controlled by the PT fuel pump, which varies based on engine load and speed.

• Time (T): The time allowed for the fuel to meter into the injector cup is determined by the speed of the engine's camshaft, which controls the injector plunger's upward movement.
  When the camshaft pushes the plunger down, it creates immense high pressure, atomizing the metered fuel and injecting it directly into the combustion chamber.

Applications: Engines and Vehicles

Cummins PT injectors are widely used in industrial, marine, mining, and power generation applications. They are most commonly found in classic heavy-duty Cummins engine series.

To help our workshop clients identify the right parts, we have compiled a detailed table of Key Part Numbers, Interchange Numbers, and Compatible Engines.

(Pro Tip: Use Ctrl+F or Cmd+F to search for your specific pump or injector part number)

(Note: Always verify the specific CPL (Control Parts List) number on your engine data plate before ordering replacements).

How to Test Cummins PT Injectors: Beacon Machine Solutions

Testing and calibrating a Cummins PT Injector requires high precision. At Beacon Machine, we manufacture specialized test benches and adapters to ensure your rebuilt injectors meet OEM standards.

Here is our recommended equipment lineup for professional diesel workshops:

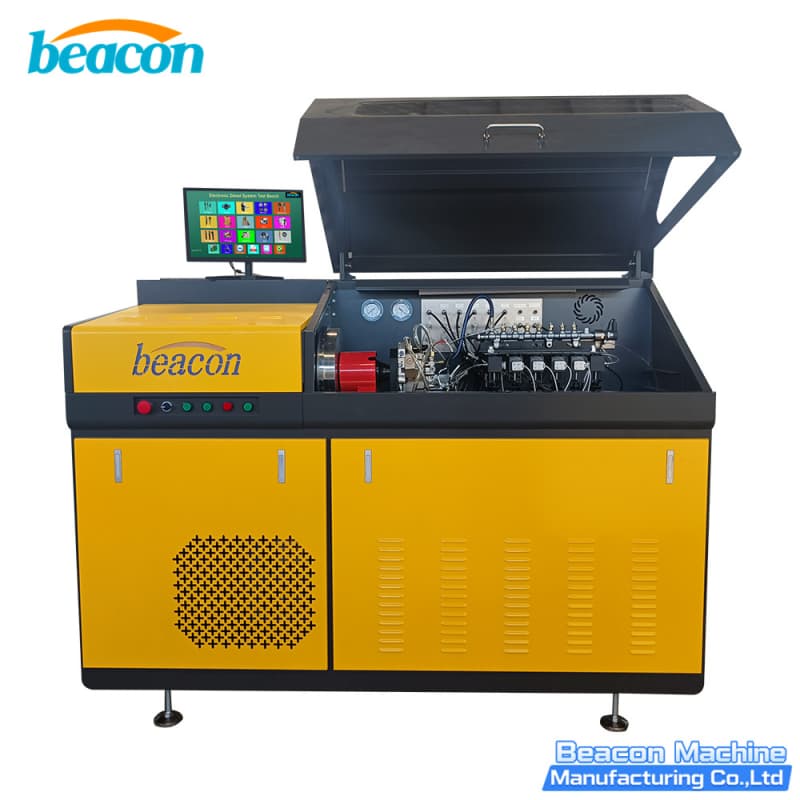

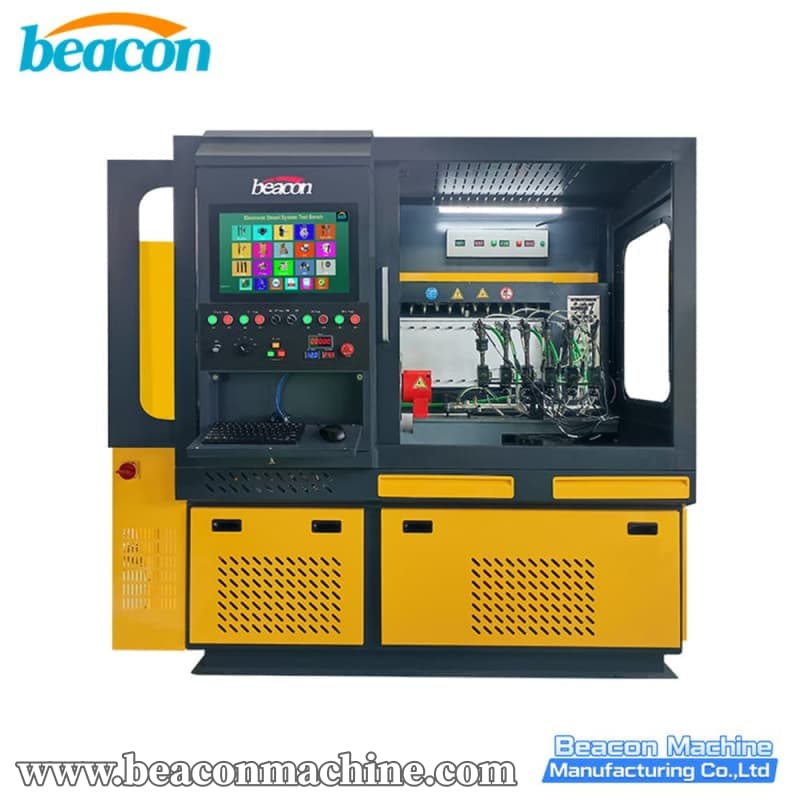

1. CR708 & CR919 Common Rail Test Bench with CAMBOX & PT Adapter

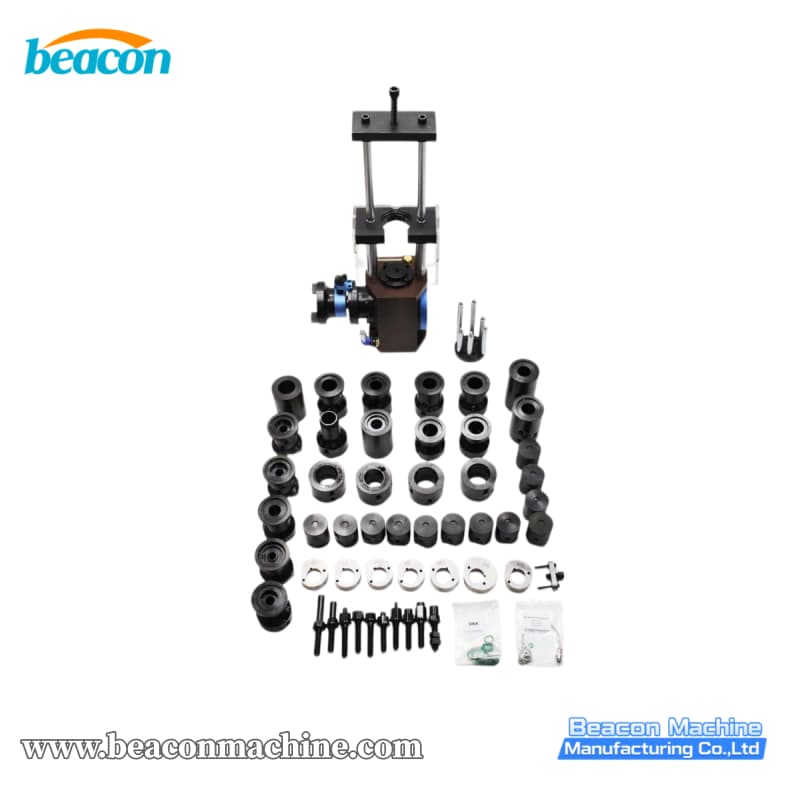

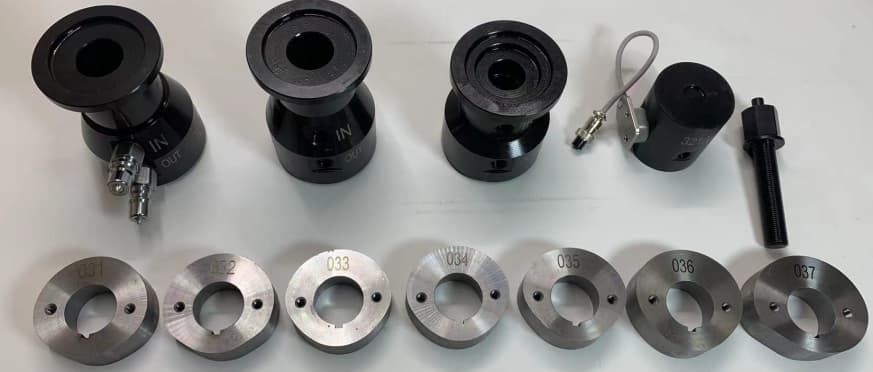

If you want an all-in-one workstation, our premium CR708 and CR919 test benches are the ultimate choice. By attaching our specialized CAMBOX and PT Injector Test Adapter, these benches can seamlessly transition from testing modern common rail injectors to classic Cummins EUI/EUP and PT injectors.

• Versatility: Tests Common Rail, EUI/EUP, and PT injectors on one machine.

• Accuracy: Provides precise measurement of fuel delivery under simulated camshaft pressure.

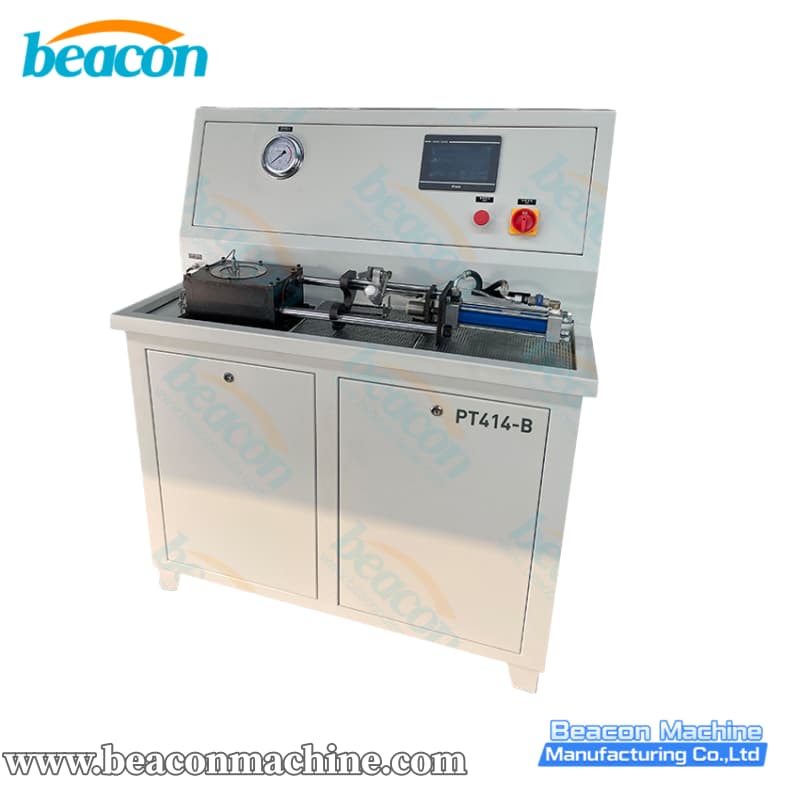

2. PT414 Dedicated PT Injector Test Bench
For workshops that specialize heavily in Cummins rebuilds, the PT414 Test Bench is a dedicated, classic testing solution. It is explicitly designed to simulate the operating conditions of the Cummins PT system, allowing technicians to calibrate fuel flow, spray patterns, and operational pressure with absolute reliability.

3. PT301 Cummins PT Injector Sealing Test Bench
Before testing flow, ensuring the injector doesn't leak is vital. The PT301 is a specialized test bench used to strictly evaluate the sealing performance of the PT injector's nozzle cup and O-rings under pressure, preventing engine hydrolock or fuel dilution.

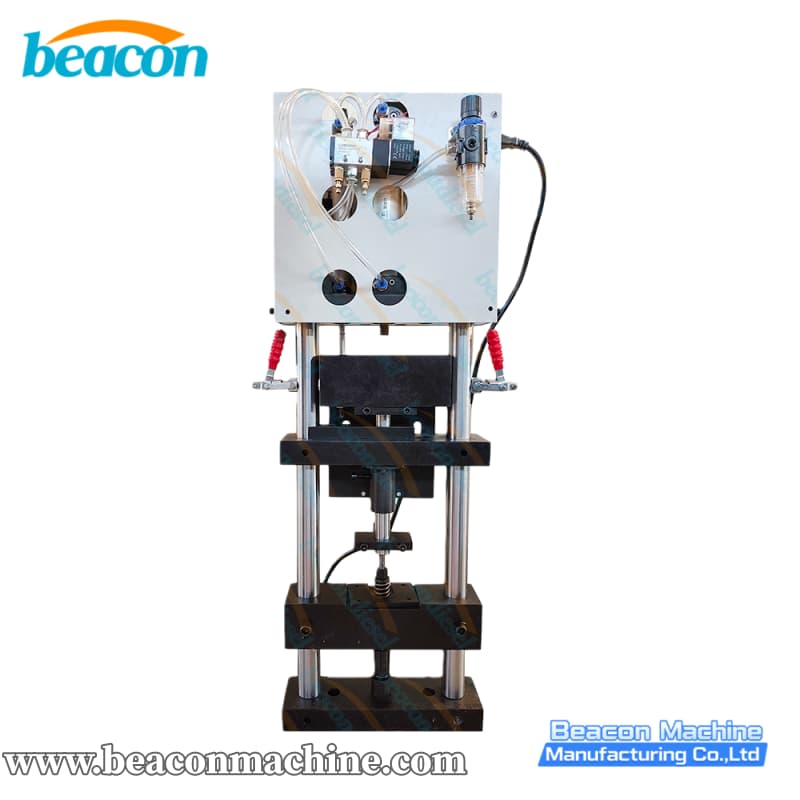

4. PT101 Cummins PT Injector Top Dead Center (TDC) Fixture Setup Test Bench
The PT101 is an essential calibration device. It is used to lock the injector at Top Dead Center (TDC) and accurately test the spring pressure and plunger travel, ensuring the injector operates exactly when the engine's camshaft actuates it.

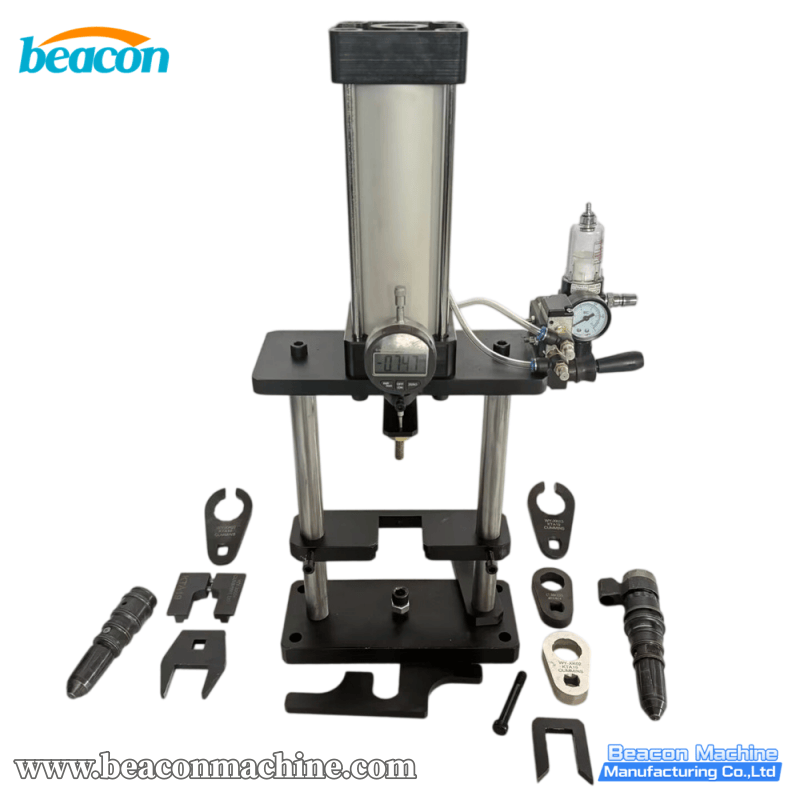

5. G4-86 PT Injector Disassembly and Assembly Stroke Measurement Bracket
Precision is everything in PT rebuilding. The G4-86 bracket allows mechanics to safely hold the injector while measuring the plunger stroke with a dial indicator, guaranteeing that the factory tolerances are perfectly restored during assembly.

Professional Repair Tools for PT Injectors

Removing and disassembling a PT injector without causing damage to the plunger or body requires specialized tooling. We highly recommend adding these to your tool chest:

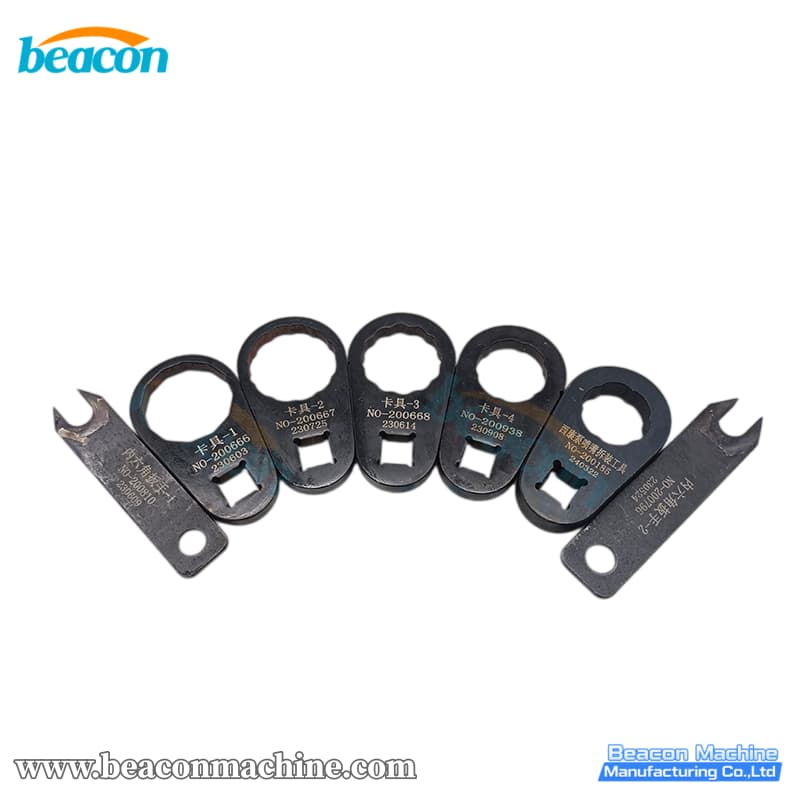

• G4-41 PT Injector Disassembly and Assembly Tool: A robust, manual heavy-duty fixture designed to safely clamp and dismantle the injector body without distorting the sensitive barrel.

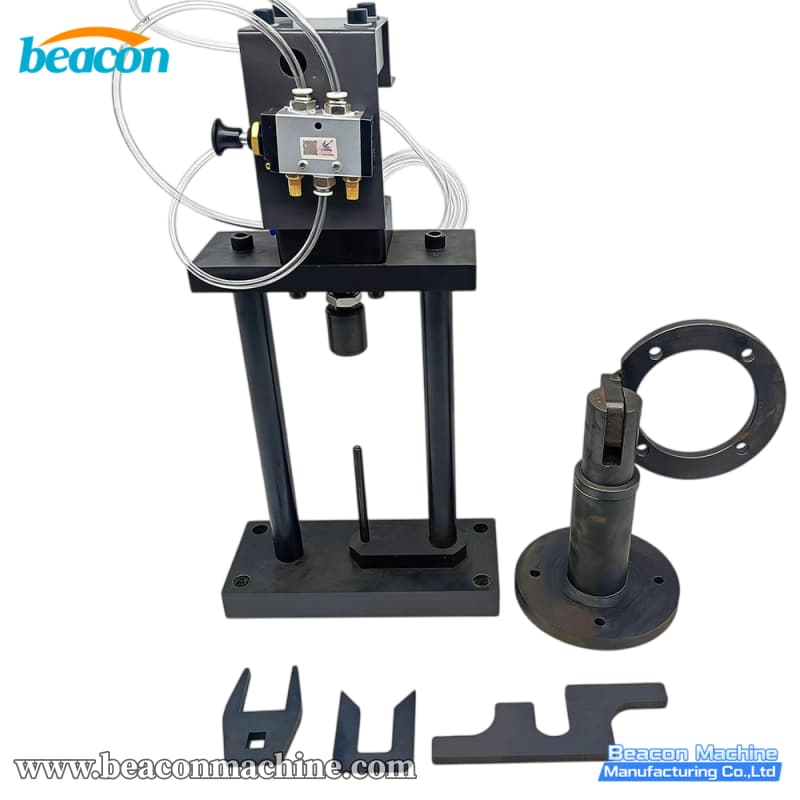

• PT800 Cummins Injector Pneumatic Disassembly Tool: A game-changer for high-volume workshops. The PT800 uses pneumatic power to quickly, safely, and effortlessly assemble and disassemble PT injectors, saving labor time and reducing technician fatigue.





7. Application Scenarios & FAQ

Application Scenarios

• Heavy-Duty Diesel Repair Shops: Upgrade your workshop's capabilities to accept profitable Cummins NT855 and KTA series rebuild contracts.

• Marine Engine Maintenance: Marine vessels rely heavily on KTA19 and KTA38 engines. Using Beacon Machine test benches ensures vessels are not stranded at sea due to poor injector calibration.

• Mining & Generator Fleet Operators: Large fleets can bring injector remanufacturing in-house using the CR919 + CAMBOX setup, significantly reducing equipment downtime and maintenance budgets.

Frequently Asked Questions (FAQ)

Q1: Why do I need a CAMBOX to test a PT Injector on a Common Rail Test Bench?
A: Unlike common rail injectors that use high-pressure fuel lines, a PT injector relies on mechanical camshaft force to create injection pressure. The CAMBOX simulates the engine's camshaft movement, physically driving the PT injector plunger while the test bench measures the fuel output.

Q2: What are the common signs of a failing Cummins PT injector?
A: Typical symptoms include hard starting, excessive black or white smoke, poor engine power, engine misfires, and fuel dilution in the engine oil (often due to worn injector cup O-rings).

Q3: Can I disassemble a PT injector in a standard bench vise?
A: It is highly discouraged. Using a standard vise can easily crush or warp the injector barrel, causing the internal plunger to bind. Always use dedicated tools like the G4-41 manual fixture or the PT800 pneumatic tool to ensure safe handling.

Q4: Where can I buy these PT injector test benches and tools?
A: All the equipment mentioned in this article, from the PT414 Test Bench to the PT800 repair tools, are manufactured by and available directly from Beacon Machine. Contact our sales team today for global shipping and factory-direct pricing.
