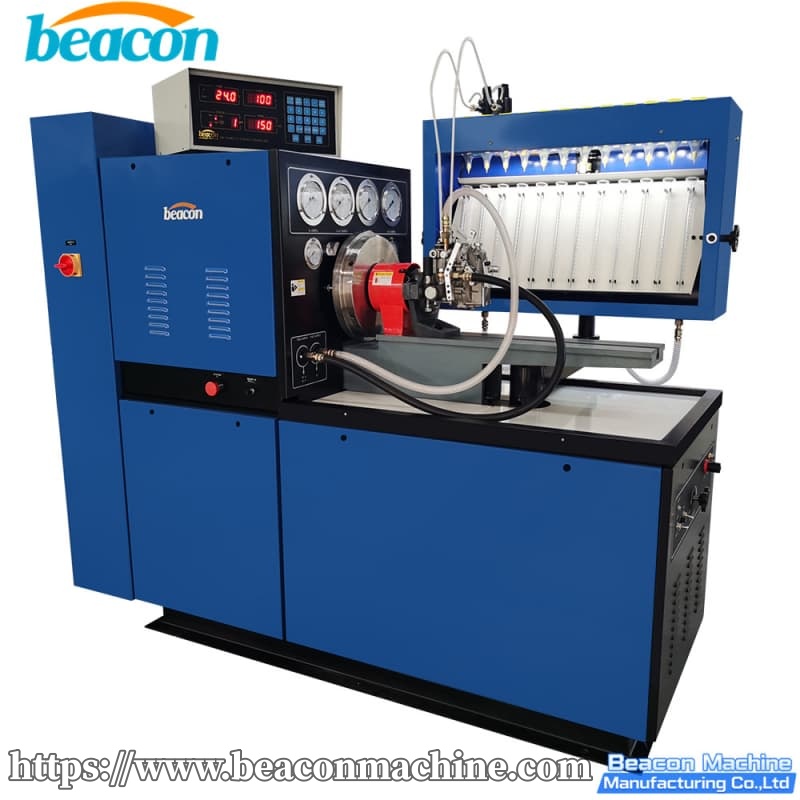

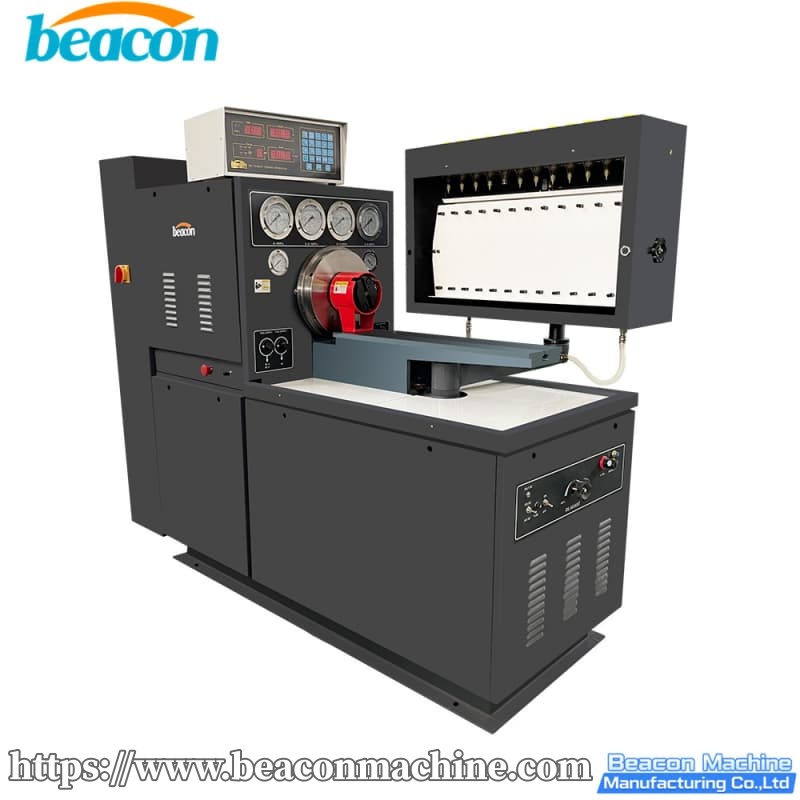

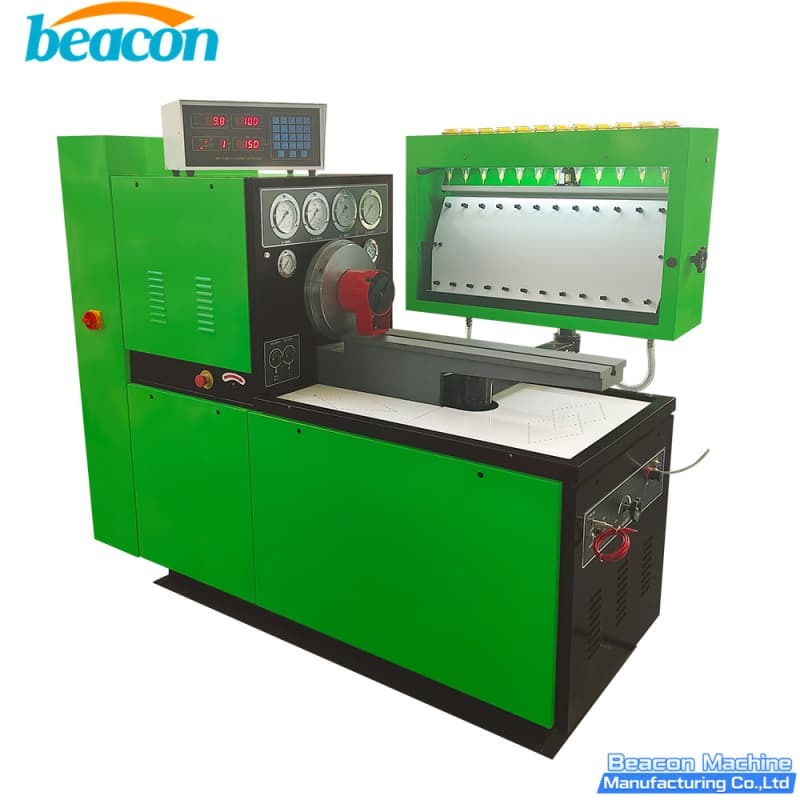

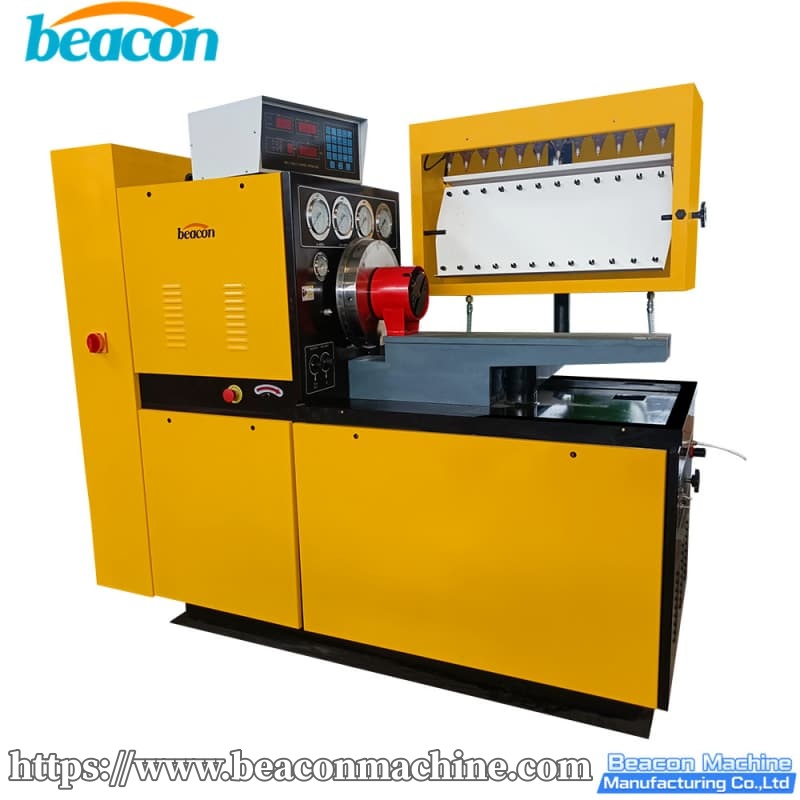

Mastering Diesel Calibration: A Comprehensive Guide to the 12PSB Diesel Injection Pump Test Bench

In the field of diesel engine maintenance, the accuracy of the fuel injection pump is paramount. For workshops specializing in mechanical pumps, the 12PSB Diesel Injection Pump Test Bench from Beacon Machine stands out as a reliable, high-performance solution. Built with advanced frequency conversion technology and a robust mechanical structure, the 12PSB is designed to handle the rigorous demands of pump calibration.

In this article, we will take a deep dive into the features, technical specifications, and operational advantages of this essential equipment based on its technical manual.

1. Introduction to the 12PSB System

The 12PSB series is a variable frequency speed control fuel injection pump test bench. Unlike older mechanical test stands, this system employs a high-performance, low-noise inverter (Bosch advanced techniques) to control the main motor. This results in:

• Wide Speed Range: From 0 to 4000 RPM.

• High Stability: Consistent speed output regardless of load.

• Large Torque Output: Capable of driving heavy-duty pumps effortlessly.

The main body is constructed from tubular steel bars, ensuring rigidity and minimizing vibration during high-speed testing.

2. Key Testing Capabilities

The 12PSB is not just about spinning a pump; it is a comprehensive diagnostic tool. According to the functional specifications, it can perform the following 12 critical tests:

1. Delivery Measurement: Precise measurement of fuel delivery for each of the 12 cylinders at any speed.

2. Injection Timing: Testing the injection point and interval angle of oil supply.

3. Governor Calibration: Checking and adjusting mechanical governors.

4. Distributor Pump Testing: Checking and adjusting distributor pumps, including pressure measurement.

5. Supercharging Compensation: Experimenting with and adjusting the behavior of supercharging (boost) and compensatory devices.

6. Oil Return: Measurement of oil return flow for distributor pumps.

7. Solenoid Valve Testing: Testing the electromagnetic valves (12V/24V) of distributor pumps.

8. Internal Pressure: Measurement of the internal pressure of distributor pumps.

9. Advance Angle: Checking of the advance angle device (on request).

10. Sealing Test: Verifying the sealing integrity of the injection pump body.

11. Auto-Sucking Supply: Install a tube for auto-sucking oil supply to check feed pumps (including VE pumps).

12. Stroke Travel: Checking the travel of the stroke (on request).


3. The Brain of the Machine: YH-770 Controller

At the heart of the 12PSB is the YH-770 Multi-Purpose Controller. This advanced digital unit replaces manual dials with precise electronic control.

• Digital Display: The screen displays RPM, stroke count, oil temperature, and pressure/vacuum data clearly.

• 10-Step Speed Preset: Technicians can store up to 10 groups of spindle speed settings. This allows for rapid switching between testing speeds (e.g., idle, partial load, full load) without manual fine-tuning every time.

• Self-Adaptation: The controller features unique anti-interference technology and self-adaptive functions to ensure stable work across different gears.

• Temperature Control: It automatically monitors test oil temperature, ensuring it remains within the optimal range (Standard: 40±2℃).


4. Technical Specifications at a Glance

For technicians who need the hard numbers, the 12PSB delivers:

• Main Motor: 380V 3-Phase, 15HP (11KW).

• Cylinders: 12 Cylinders.

• Speed Range: 0-4000 r/min with 10 gear presets.

• Fuel Supply Pressure:

• Low Pressure: 0~0.4Mpa.

• High Pressure: 0~4Mpa.

• Fuel Tank Capacity: 45 Liters.

• Standard Accessories: Includes functional flanges, couplings, 12PCS high-pressure oil pipes, and 12PCS standard injectors.

5. Advanced Oil and Pneumatic Systems

The Oil System

The machine uses a dedicated test oil system with a 40L tank capacity. It supports standard ISO testing fluids (such as ISO 4114-1978C or Shell 4113). The system includes both heating and cooling capabilities (via radiator) to maintain fluid viscosity accuracy. The pressure is adjustable via manual valves, allowing operators to simulate various feed pump pressures.

The Pneumatic System

The 12PSB also includes a pneumatic system for checking pumps with boost control (LDA). It requires a compressed air input of 0.6Mpa. This allows for the testing and feeding of pneumatic boosters, essential for turbocharged engine pumps.

6. Maintenance and Safety

To ensure the longevity of your investment, the 12PSB is designed for easy maintenance.

• Routine Checks: The manual recommends a maintenance check every 200 hours of running time, including changing the test fluid and filters.

• Safety Features: The machine includes an emergency stop button, protective covers for the coupling, and strict grounding requirements to protect the operator and the sensitive electronics.

Conclusion

The 12PSB Diesel Injection Pump Test Bench is a versatile and robust solution for any diesel repair shop. Whether you are calibrating inline pumps or rotary distributor pumps, the combination of the 12PSB's mechanical strength and the YH-770's digital precision ensures factory-level results.

Ready to upgrade your workshop capabilities? Contact Beacon Machine today for a quote on the 12PSB Test Bench.
