The BK2000 Governor Test Bench: The Professional Solution for Woodward Governor Calibration & Repair

Introduction
The governor is the "brain" of any diesel engine or turbine, controlling speed and load with precision. However, when it comes to maintenance, technicians face a challenge: How do you accurately test and calibrate a governor away from the engine?

This is where the Beacon Machine BK2000 Governor Test Bench comes in. Developed by engineers with over ten years of governor maintenance experience, the BK2000 is a universal testing platform designed to simulate engine conditions, allowing you to check, detect, and adjust governor performance with factory-level precision.

In this post, we will explore why the BK2000 is the ultimate tool for workshops servicing Woodward and other major governor brands.

What is the BK2000 Governor Test Bench?

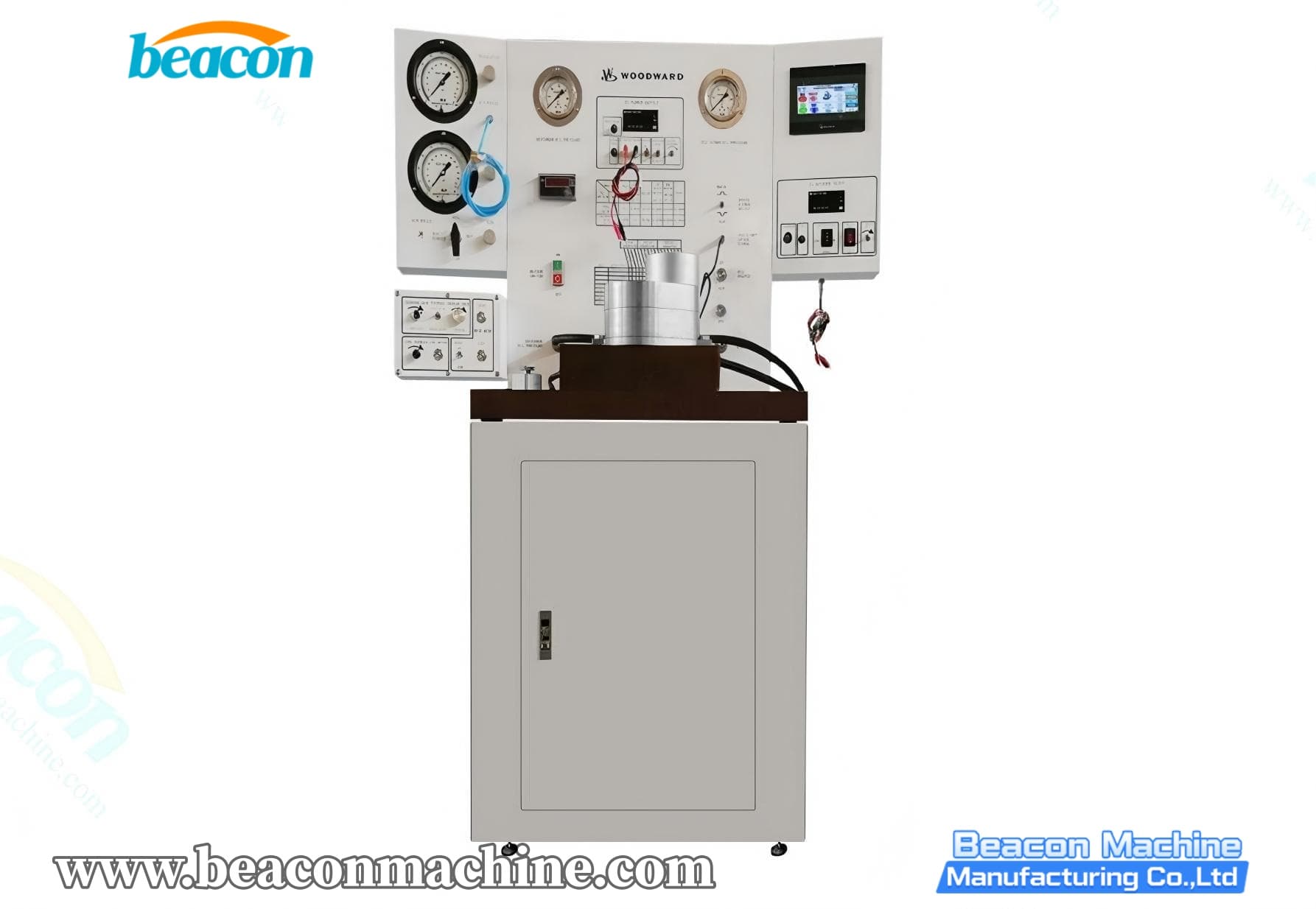

The BK2000 is a compact yet powerful test stand that drives the governor using a variable speed motor while providing a controlled oil pressure and temperature environment. It simulates the "prime mover" (engine or turbine), allowing technicians to verify parameters such as:

• Oil pump pressure.

• High/Low-speed stops.

• Speed drop (droop) settings.

• Load limit control.

• Internal sealing and safety devices.

With its robust design (approx. 450kg) and precise instrumentation, it bridges the gap between manual repair and automated testing.

Unmatched Compatibility: Testing Woodward and More

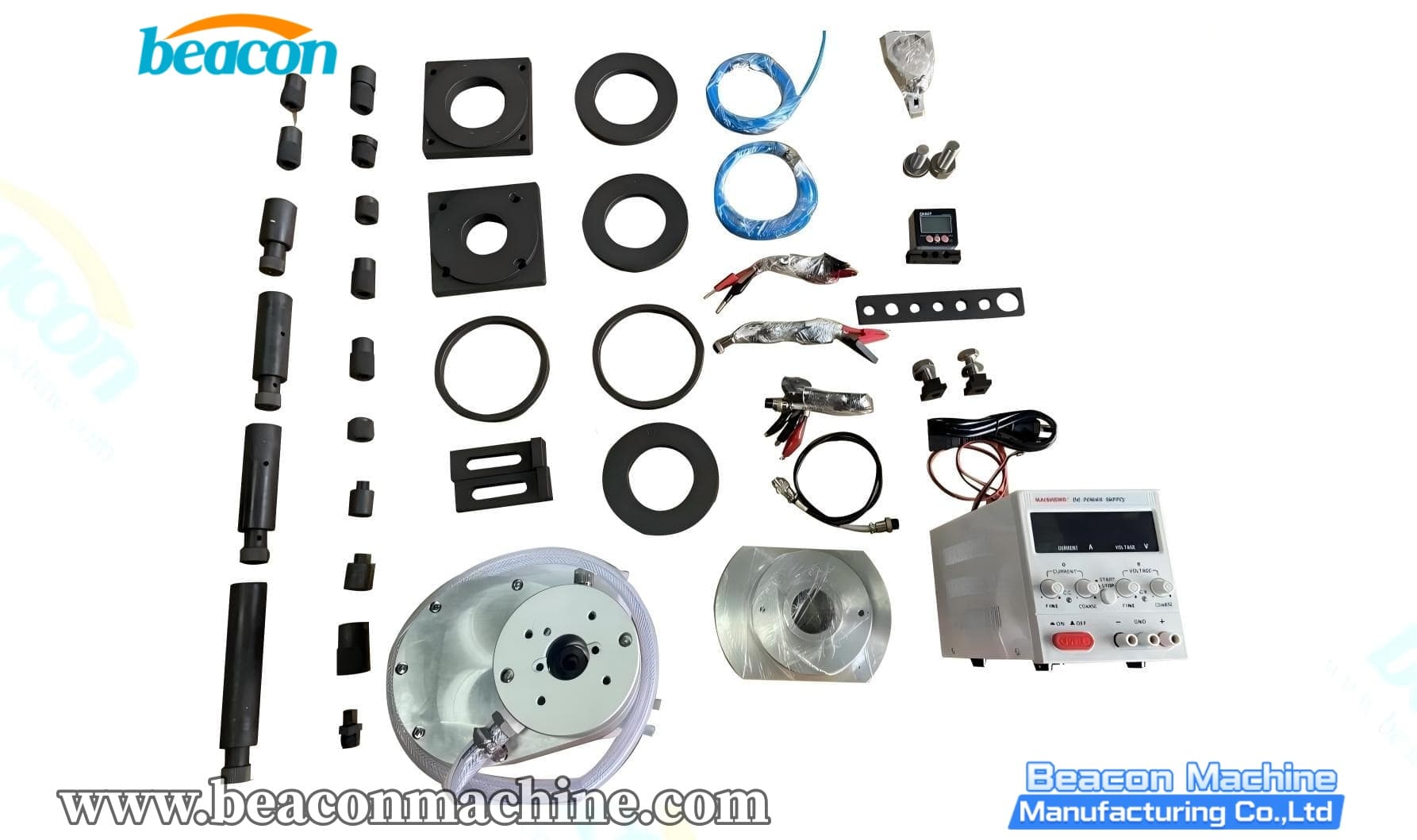

One of the BK2000's strongest selling points is its versatility. It comes equipped with various positioning flanges and drive couplings to fit a wide range of spline and keyway types.

Supported Woodward Models:

• UG Series: UG-8, UG-32, UG-40

• PG Series: PG-PL, PG-PH, PG-EG, PG (Standard Base), PG-Dial, PG-Lever

• EGB Series: EGB-2, EGB-10, EGB-13, EGB-25, EGB-50, EGB-58, EGB 200, EGB 300

• Other Woodward Models: SG, PSG, LSG-10, 3161, TG-13, EG-3, EG-10

Non-Woodward Compatibility:

• EUROPA, RHD6, TY111, TY555, and other actuators.

Note: For governors requiring speeds higher than 2500 RPM, the BK2000 supports an optional 3x Speed Multiplier attachment.

Key Technical Features

To ensure your calibration matches OEM standards, the BK2000 offers precise control over every variable:

1. Precision Drive System

• Speed Range: 30 to 2500 RPM (Stepless regulation).

• Direction: Clockwise and Counter-Clockwise (reversible via control panel).

• Accuracy: Digital tachometer with 0.02 level accuracy.

2. Hydraulic & Temperature Control

• Oil Pressure: Adjustable from 0 MPa to 0.8 MPa.

• Temperature Control: Integrated 1kW heaters with an automatic controller maintain oil temperature between 0-100°C. This is crucial for simulating the viscosity of hot engine oil.

• Tank Capacity: 26 Liters (approx. 5 gallons) with filtration and sight glass.

3. Electrical & Pneumatic Support

• DC Power Supply: Built-in 0-120V DC supply for testing electric governors and actuators.

• Air Control: Dedicated air pressure regulators and gauges (0-200 PSI) for pneumatic speed control governors (e.g., PG-PL).

Dual Operation: Manual Feel + Digital Precision

The BK2000 gives technicians the best of both worlds.

The Operation Control Box:
Located on the left, it features physical knobs for Gain, Load, and Speed Adjustment. This allows experienced technicians to "feel" the response of the governor, particularly when testing load changes and feedback resistance.

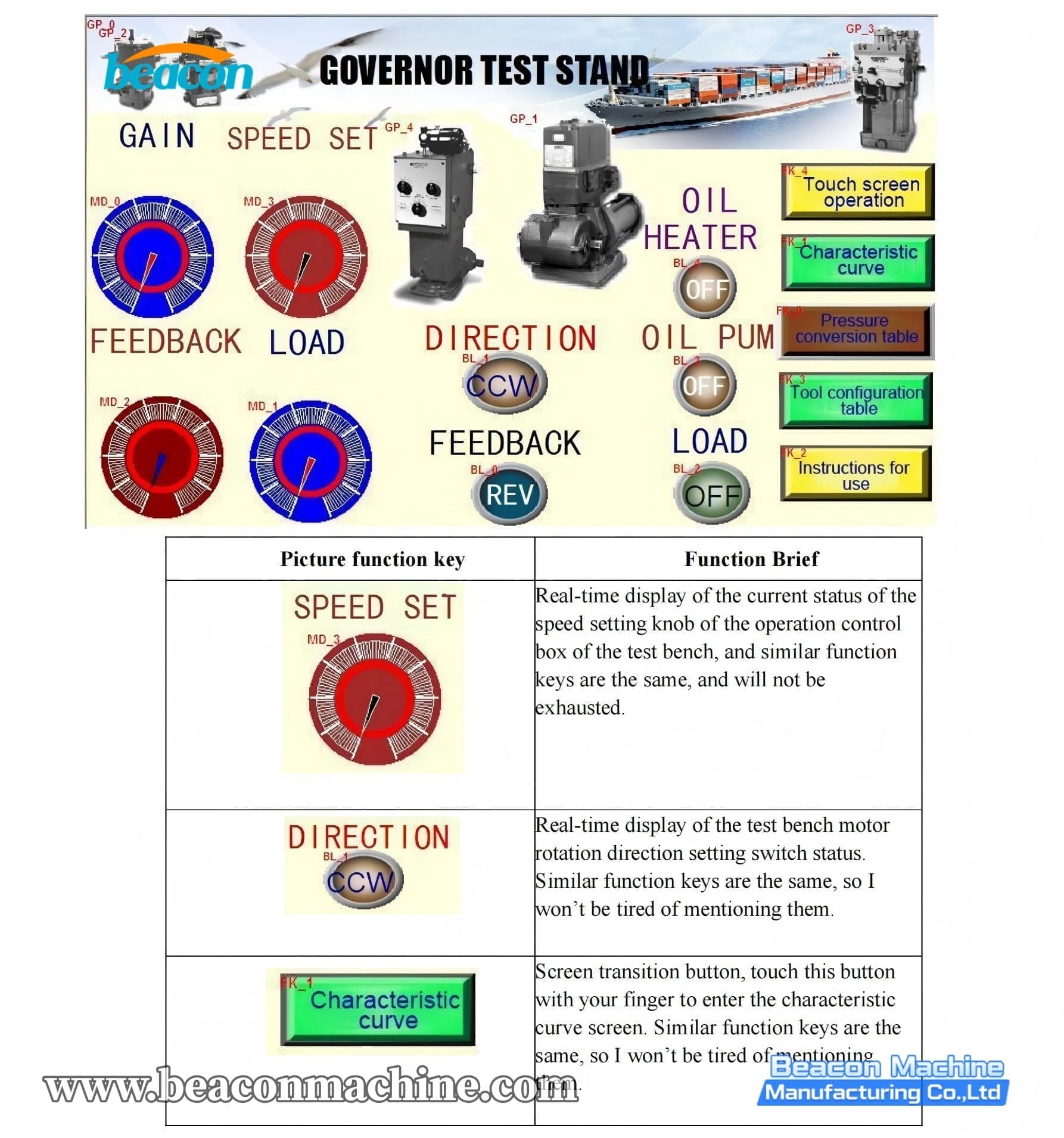

The HMI Touch Screen:
For modern diagnostics, the integrated Human-Machine Interface (HMI) displays:

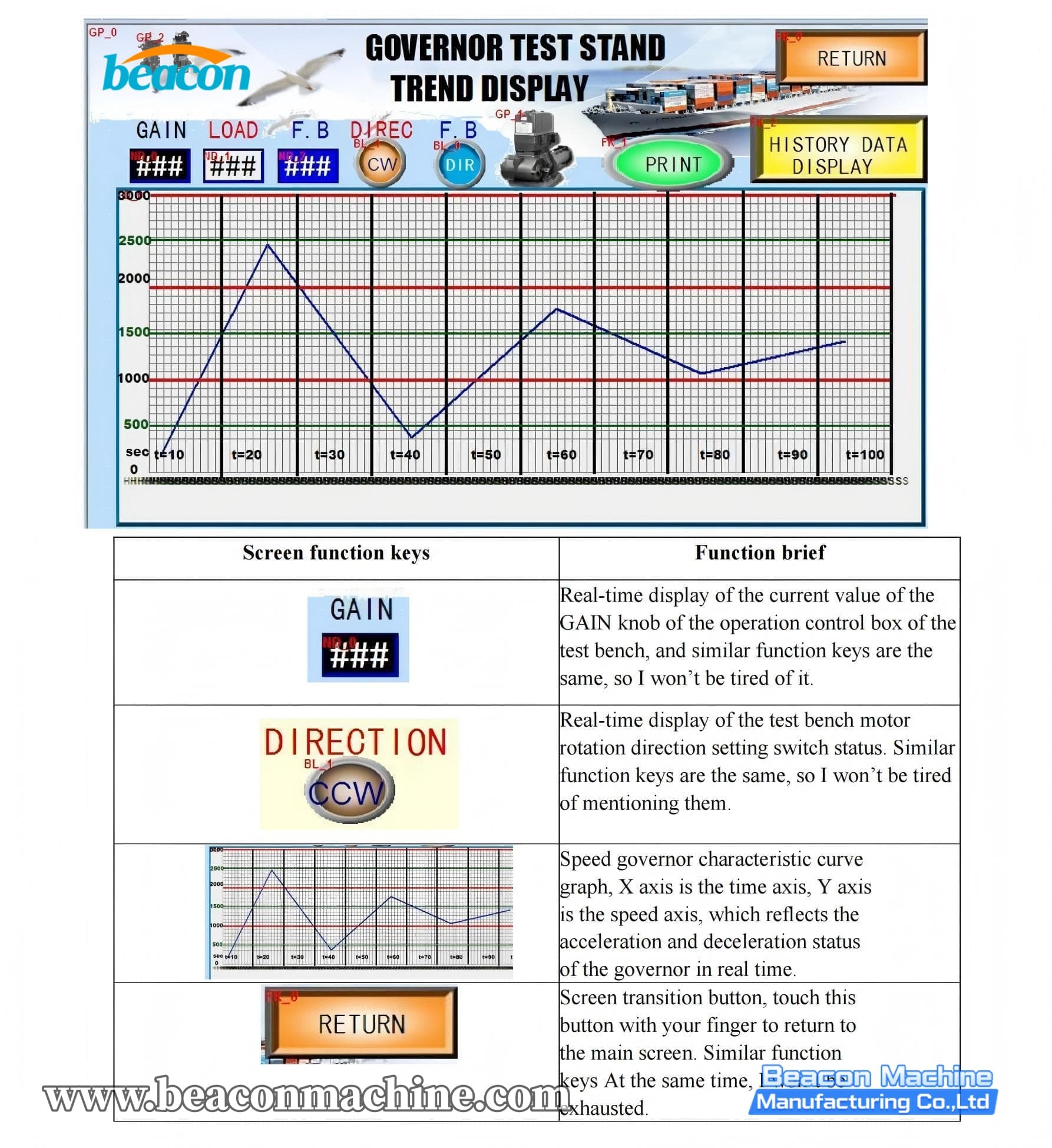

• Characteristic Curves: A real-time graph plotting Speed vs. Time, visualizing acceleration, deceleration, and stability.

• Digital Data: Clear readouts of all sensor inputs.

• Safety Status: Monitors system health (oil levels, motor status).


Why Choose Beacon Machine?

At Beacon Machine Manufacturing Co., Ltd., we don't just build machines; we understand the repair business.

• Quality Assurance: Every unit undergoes rigorous unpacking inspection and testing before shipment.

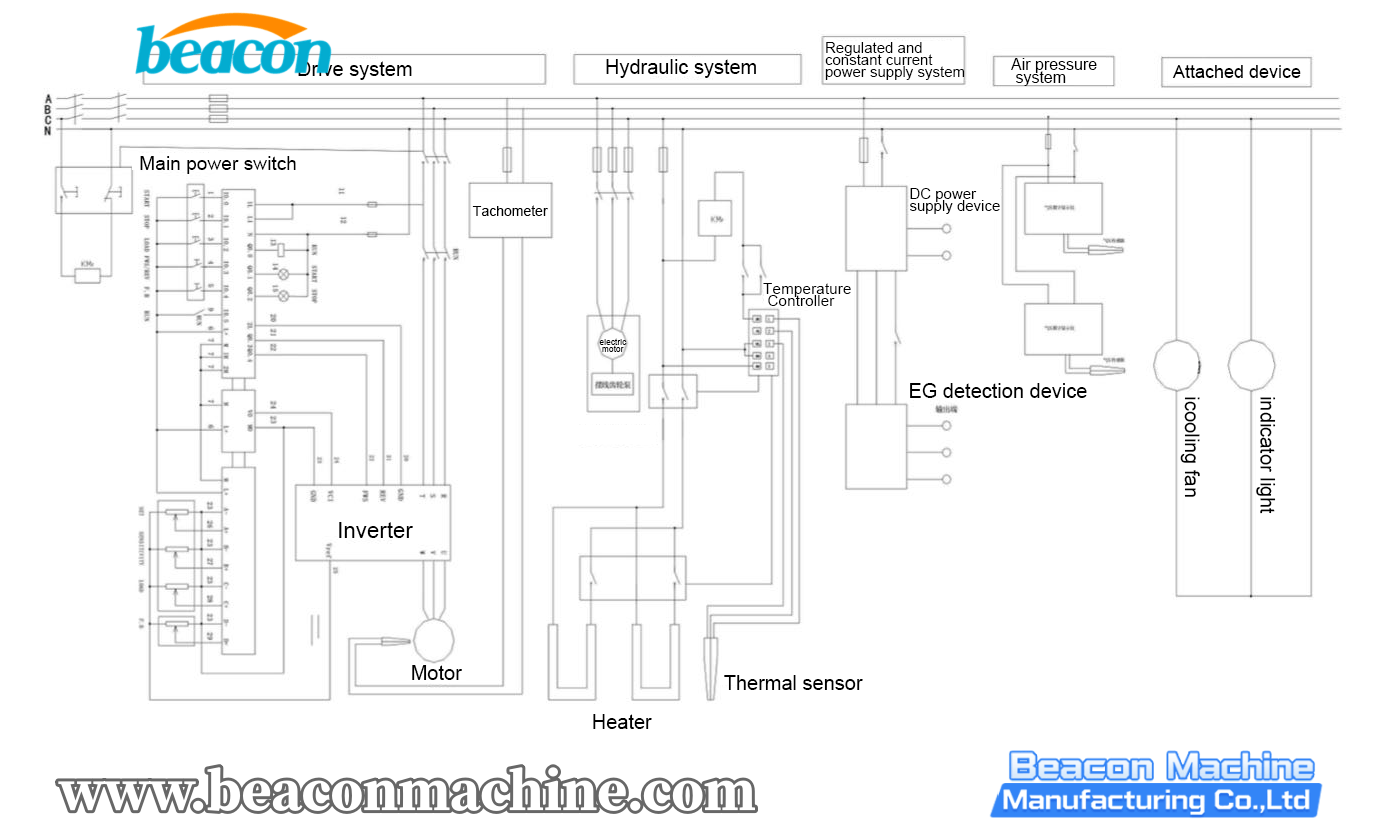

• Complete Package: The machine includes all necessary tool configuration tables, wiring diagrams, and connection accessories.

• Support: We provide a 12-month warranty and dedicated technical support via Email and WhatsApp.

Conclusion

If your workshop repairs diesel engines, marine generators, or industrial turbines, the BK2000 Governor Test Bench is an essential investment. It eliminates the guesswork, ensures safety, and proves to your customers that their governors are calibrated to perfection.

Ready to upgrade your workshop?
Contact us today for a quote or technical consultation.
