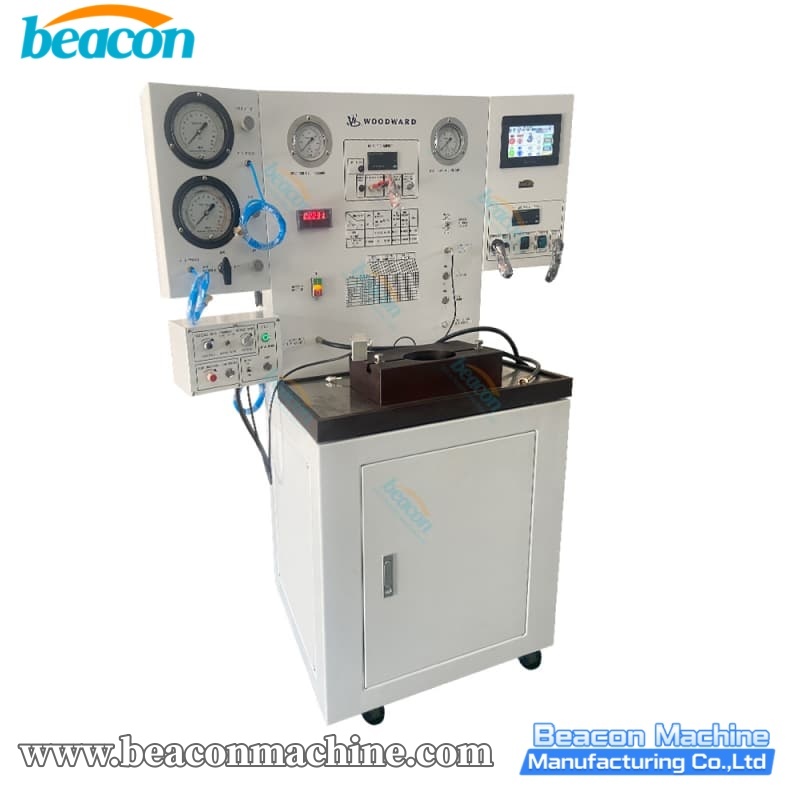

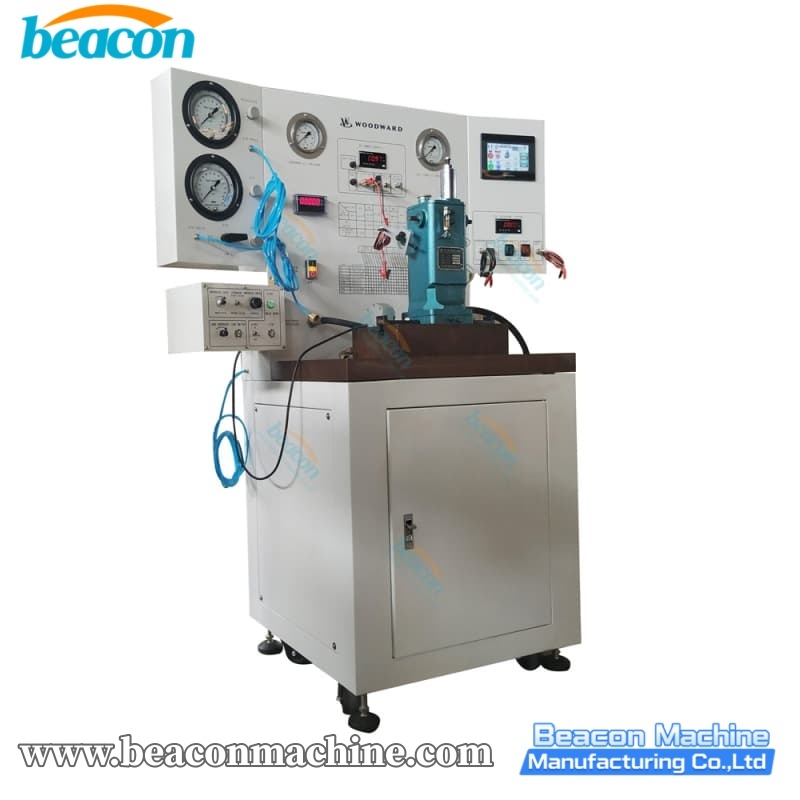

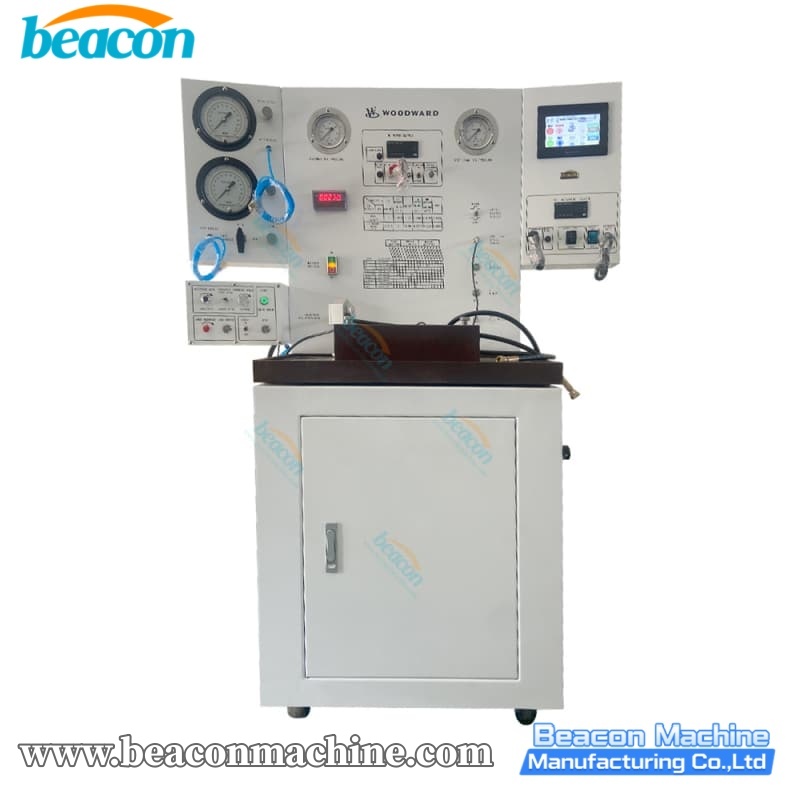

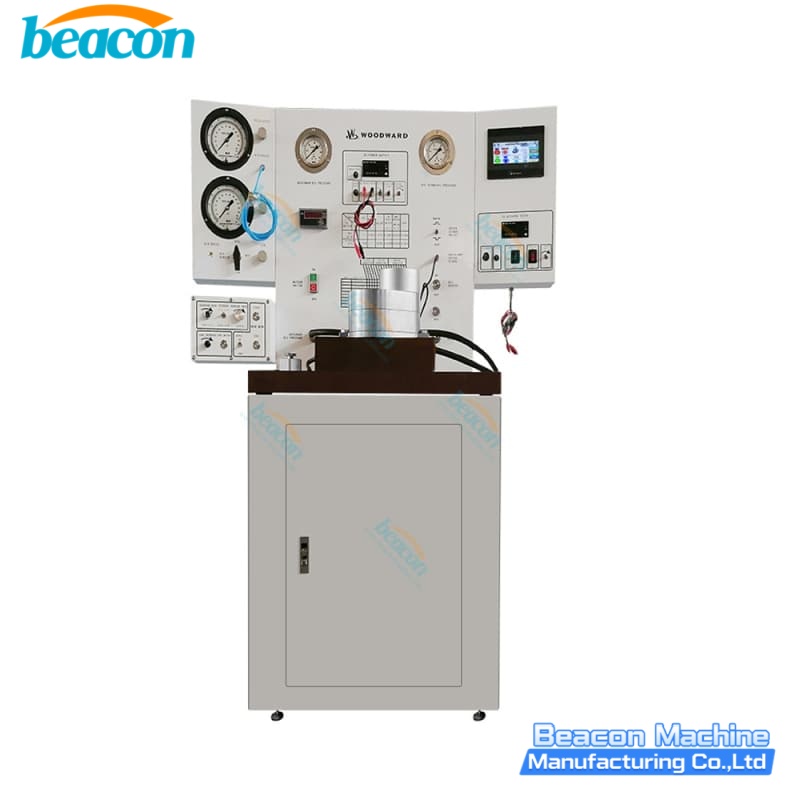

BK2000 Woodward Governor Test Bench

The BK2000 Woodward Governor Test Bench is a specialized calibration station designed for testing and adjusting various hydraulic and electronic speed governors, particularly Woodward models. Powered by a 3.7KW AC motor and controlled via a programmable PLC with a 7-inch touch screen, it ensures precise speed regulation and data monitoring.

The bench is uniquely equipped with a 3x speed multiplier, allowing the test speed to expand from a standard 2500 RPM to a maximum of 7500 RPM, making it suitable for high-speed governor applications.

Key Features:

1. Versatile Speed Range: Operates at 200-2500 RPM natively, and up to 7500 RPM with the integrated gearbox (Accuracy ±1 RPM).

2. Precision Pneumatics: Features three sets of dual-scale (MP/PSI) mechanical gauges (150mm dial) with 0.25 accuracy and SMC precision regulating valves.

3. Hydraulic System: Provides adjustable pressure (0-0.8MP) and temperature control (Room temp to 60°C) with a 26L tank.

4. Electrical Testing: Includes a 0-1000mA current source and a 0-110V DC power supply for testing electronic actuators.

5. User-Friendly Design: Ergonomic 900mm working height and intuitive digital/analog display combination.


Application Range & Compatibility:

The BK2000 Governor Test Bench is a professional offline calibration station, designed to test and adjust governors away from the prime mover (engine or turbine). It provides a safe and precise environment for correcting governor parameters before installation.

1. Supported Woodward Models:
The bench is fully compatible with a wide range of Woodward hydraulic governors and actuators (standard base and drive shaft), including but not limited to:

• UG Series: UG-8, UG-32, UG-40

• PG / EGB Series: PG (Standard Base), PG-EG, PG-PH, P G500, EGB-200, EGB-300, EGB-2, EGB-58

• Other Series: 3161, SG, PSG, LSG-10, EG-3, EG-10, TG-13

2. Non-Woodward & Other Brands:
It also supports governors and actuators from other manufacturers, such as:

• Models: EUROPA, RHD6, TY111, TY555.

3. Expandable Capability:
For governors or actuators with non-standard bases, output shafts, or models not listed above, custom auxiliary adapters can be added to the BK2000 to extend its testing capabilities.

• High-Speed Capability: Unlike standard benches, the built-in 3x speed booster allows testing of high-speed governors used in turbines or special engines (up to 7500 RPM).

• Dual Display Precision: Combines modern PLC touch screen control with large 150mm mechanical gauges (Class 0.25). This allows operators to see digital precision while observing dynamic needle fluctuations, which is critical for governor tuning.

• Comprehensive Simulation: Capable of simulating real-world conditions with precise oil temperature control (up to 60°C) and adjustable oil/air pressures.

• Universal Compatibility: With its DC voltage and current sources, it can service not just mechanical hydraulic governors but also electro-hydraulic actuators.

• Robust Build: Features a heavy-duty frame with SMC valves and industrial-grade components, ensuring long-term reliability in marine and industrial workshops.
