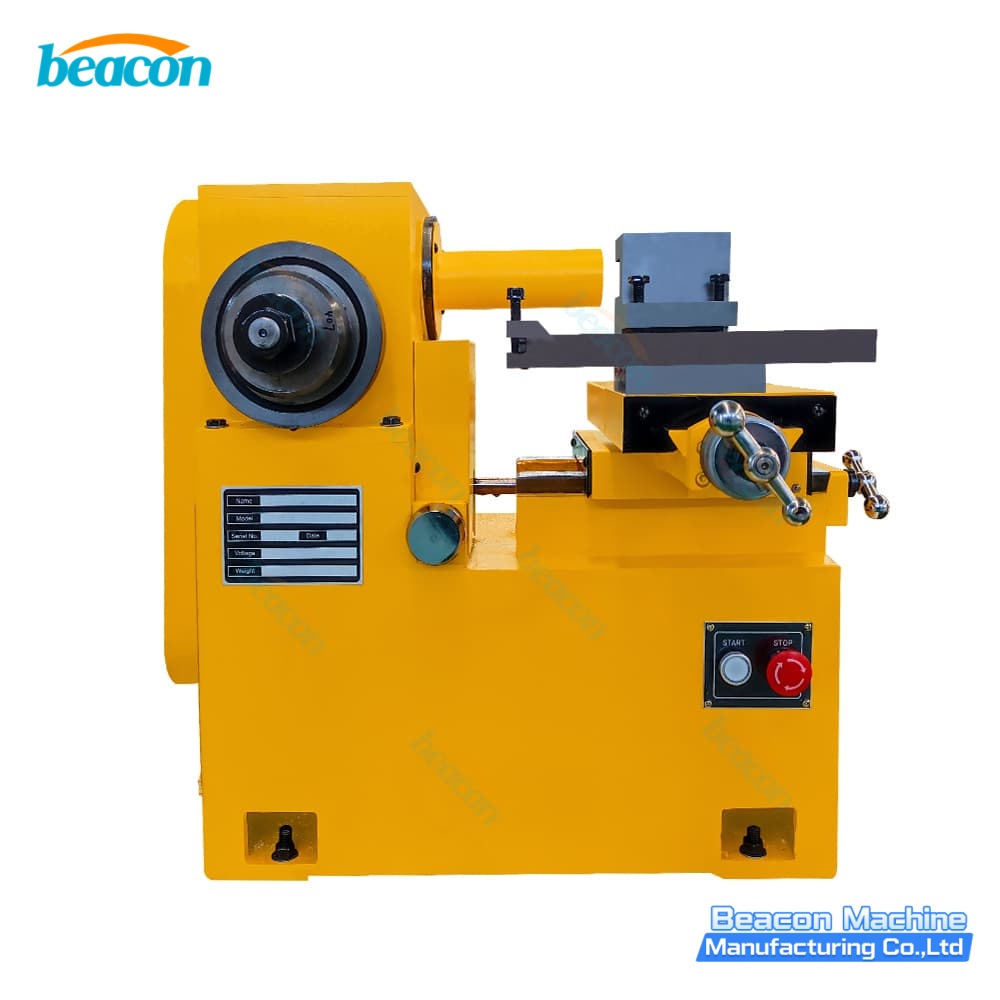

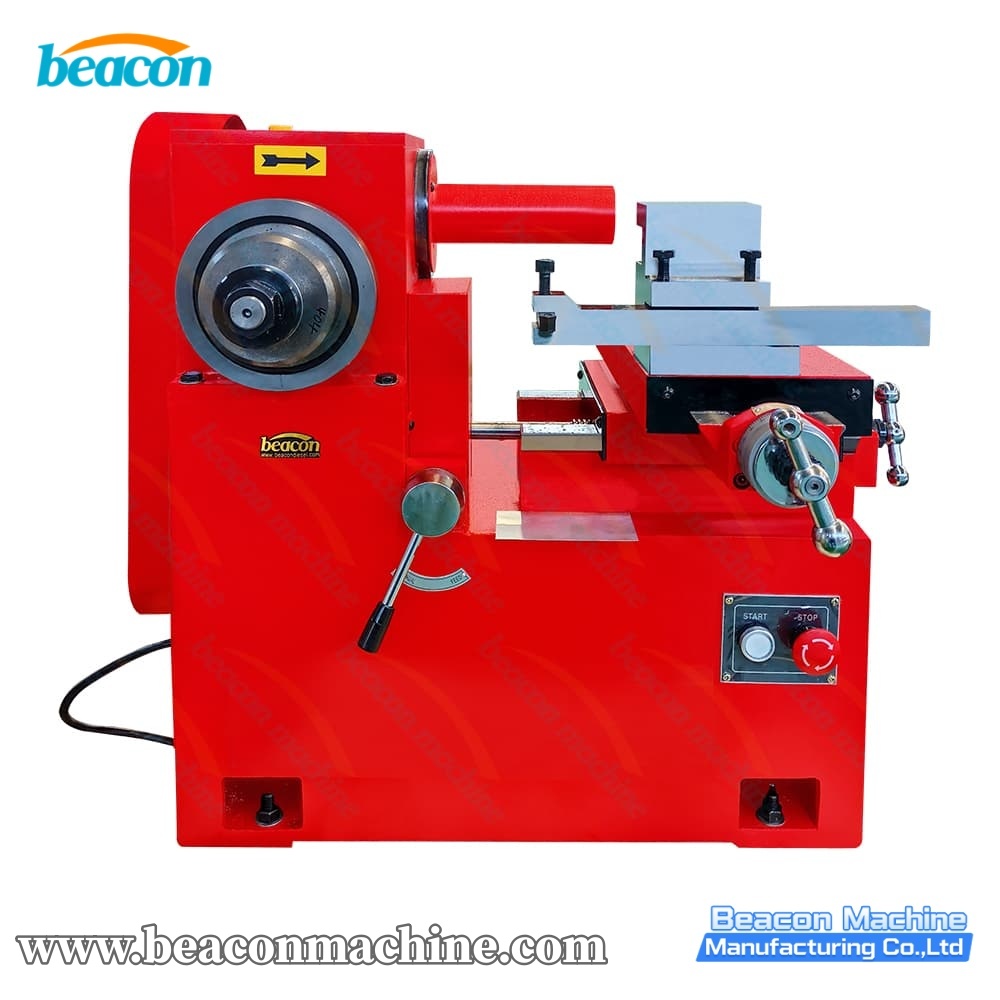

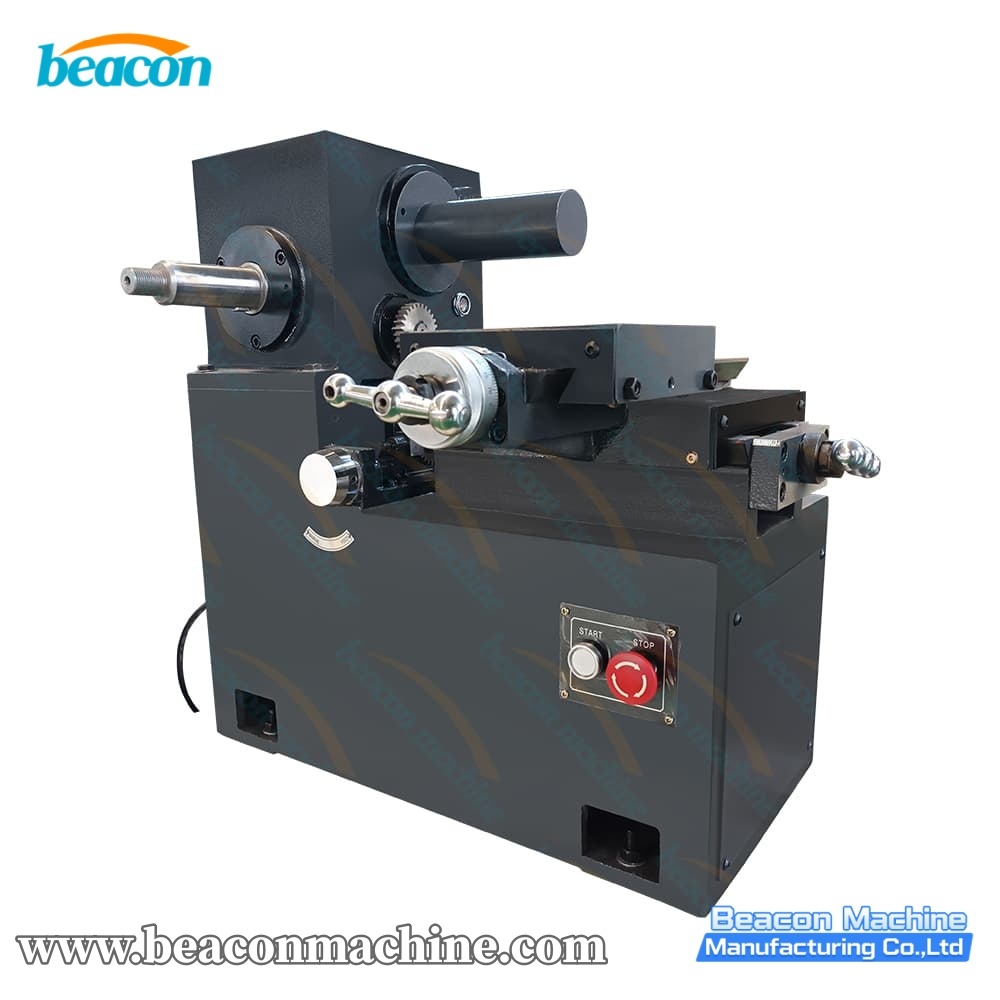

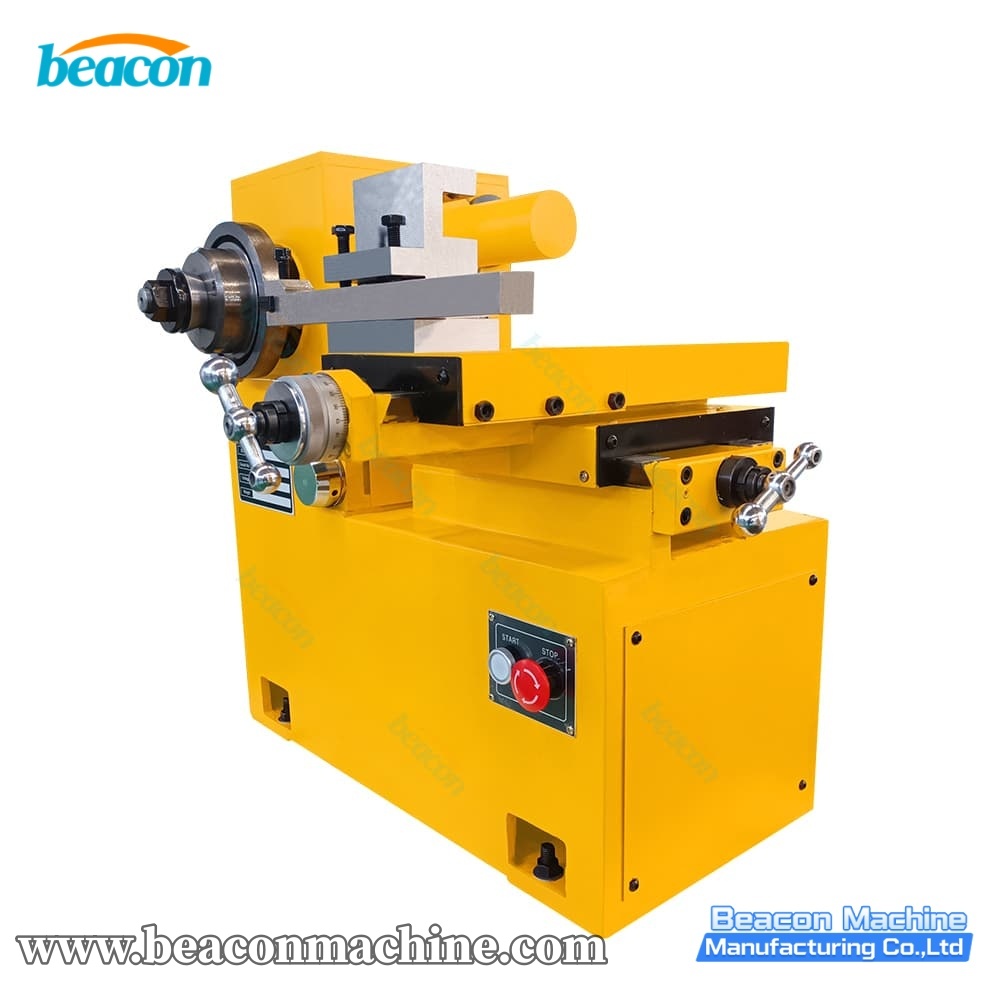

C9335 Combination Brake Drum and Disc Lathe

The C9335 Brake Drum and Disc Lathe is a versatile machining solution designed for automotive repair shops that need to service both braking systems. Unlike dedicated disc lathes, the C9335 allows for the rapid repair of both brake discs and brake drums for almost all small to medium-sized vehicles. It features a unique mounting system that connects directly using wheel screws, ensuring high concentricity and processing precision. With its optimized double-knife structure and robust rigidity, it provides a one-stop solution for resurfacing worn hubs, drums, and rotors.

• Dual Functionality: Capable of processing both brake drums (180-350mm) and brake discs (180-350mm), maximizing workshop utility and ROI.

• Advanced Feeding System: Adopts an oil-free self-lubricating stainless steel ball screw for auto-feeding. This advanced mechanism ensures smoother movement, higher durability, and maintenance-free operation compared to traditional lead screws.

• Superior Rigidity: Built with a heavy-duty machine frame (Gross Weight 200kg), effectively eliminating vibration during high-speed cutting to ensure a mirror-like finish.

• Efficient Cutting: The optimized double-knife structure allows for rapid adjustments and efficient milling, while the powerful 1.1KW motor provides consistent torque.

• High Precision Mounting: Connects with the workpiece using wheel screws directly, mimicking the wheel's actual mounting on the car for superior alignment accuracy.

• Flexible Mobility: The base is equipped with universal wheels, allowing the heavy machine to be moved easily and flexibly within the workshop.
