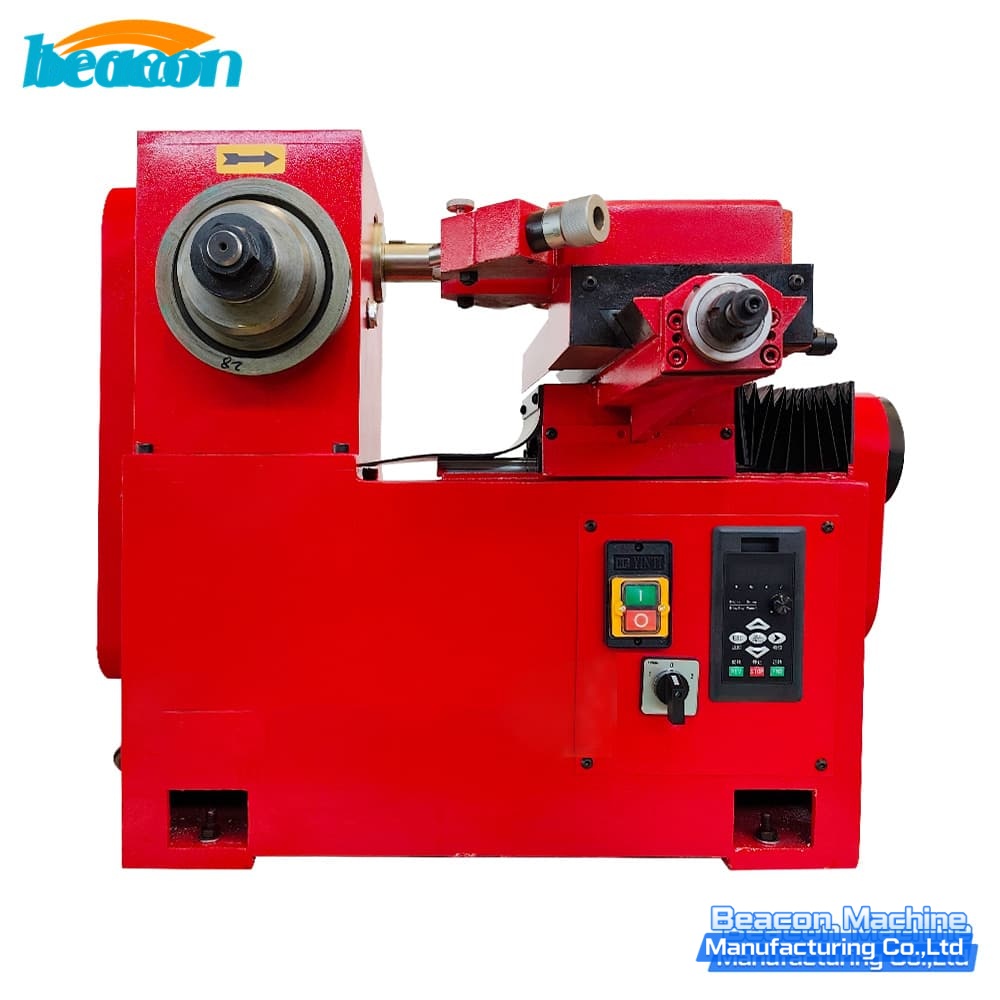

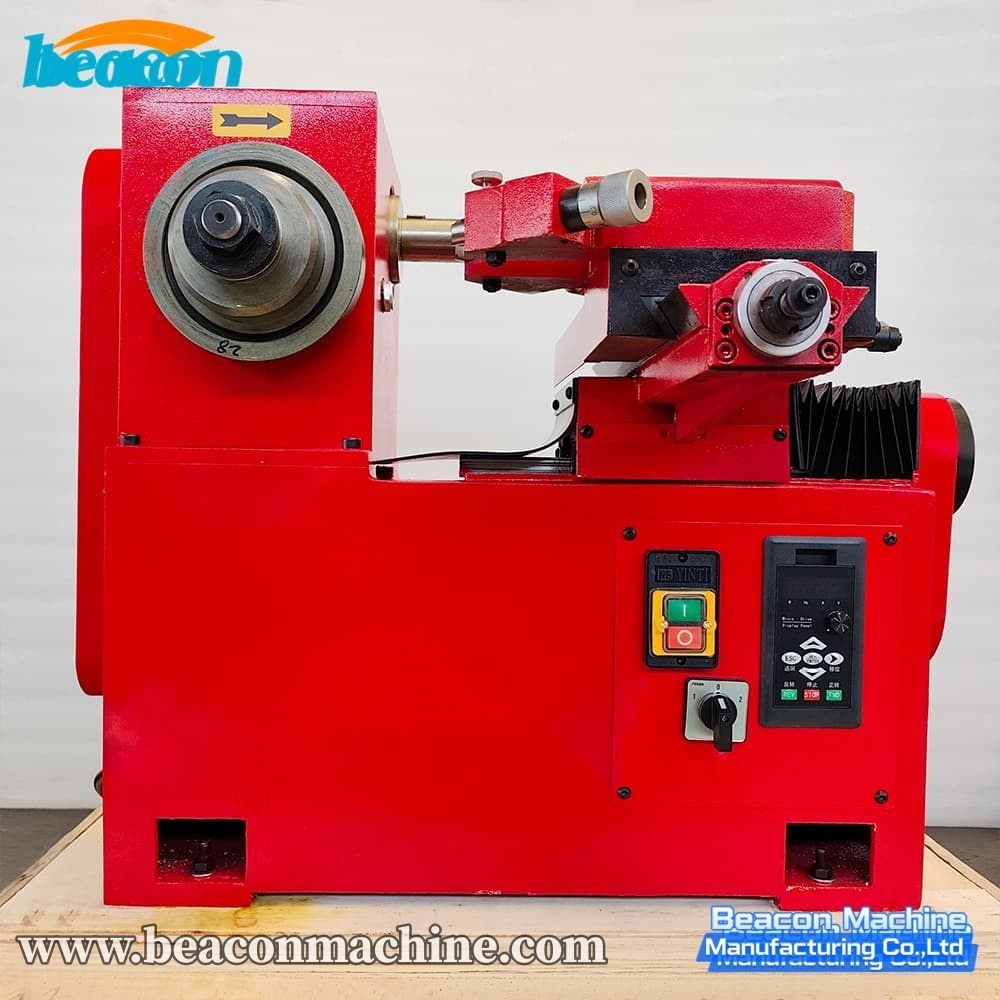

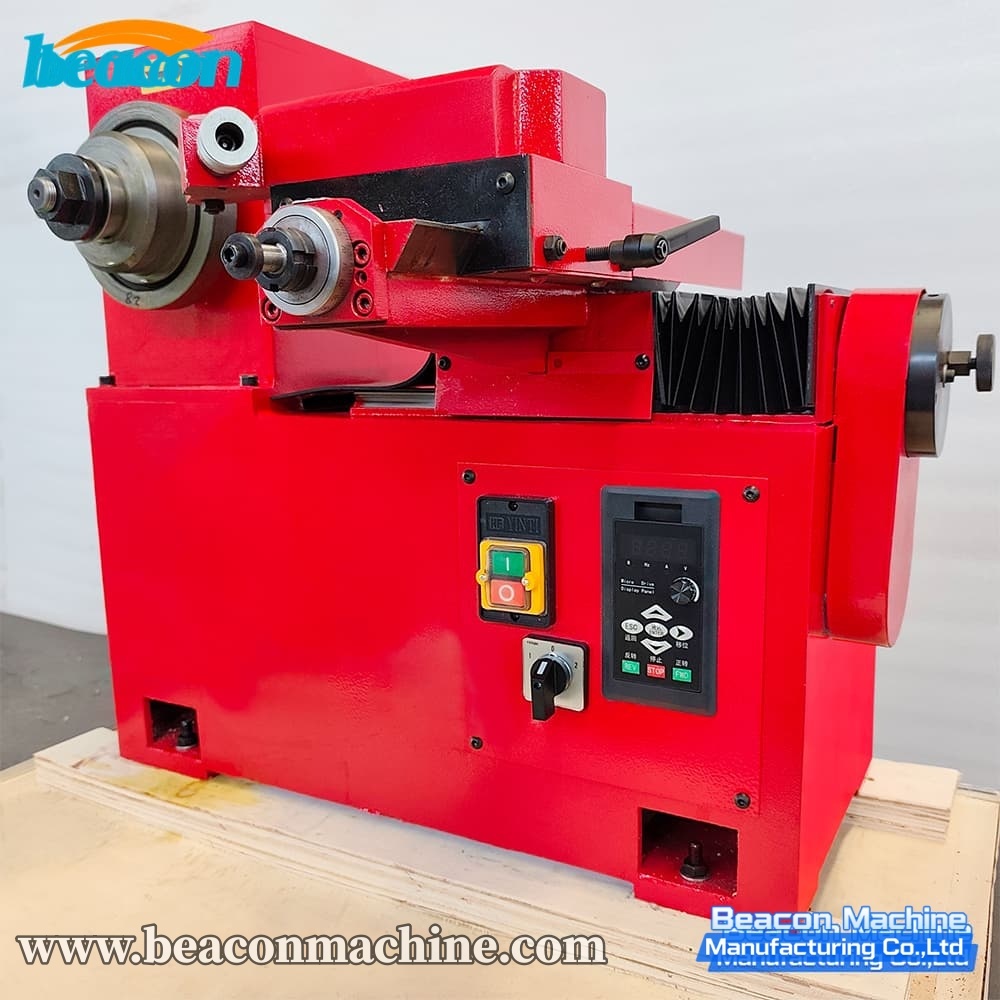

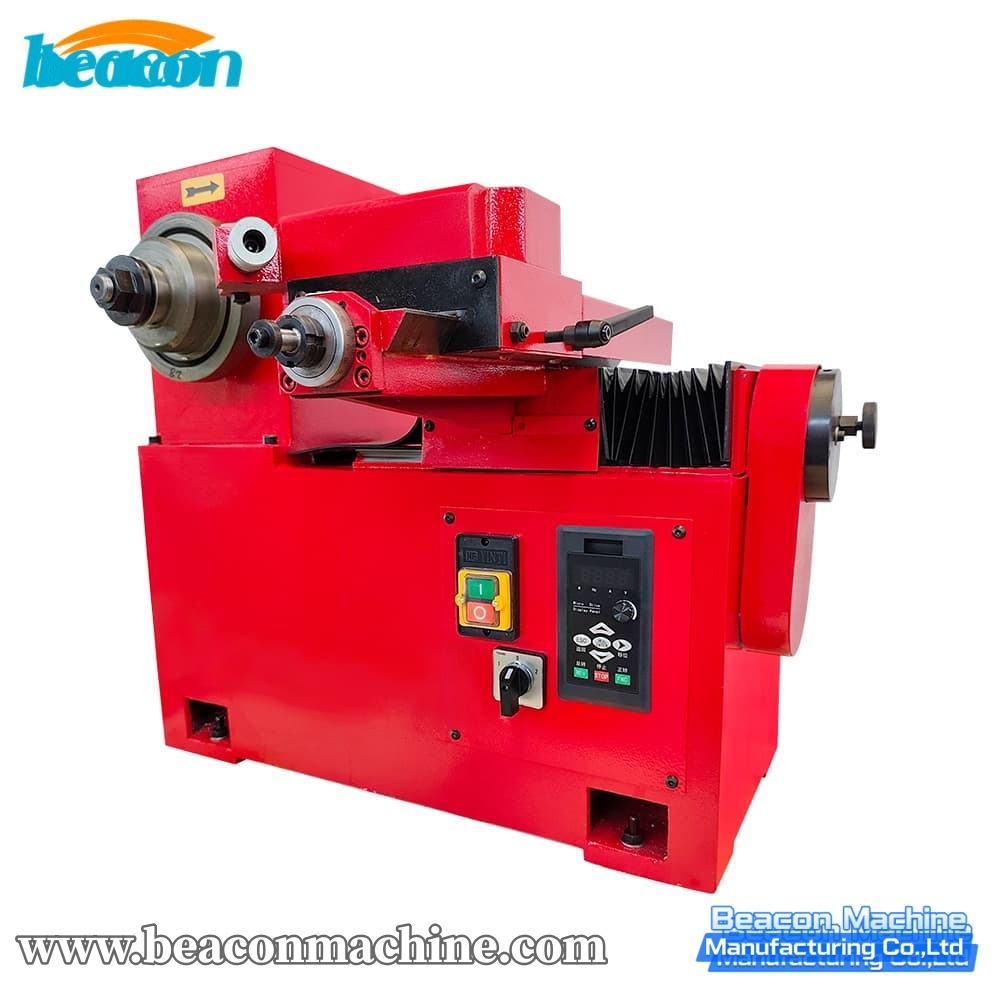

C9340 Max Disc 450mm Variable Speed Brake Drum and Disc Lathe

The C9340 Brake Drum and Disc Lathe is an advanced machining solution designed to handle a wider range of vehicle applications. Compared to standard models, the C9340 boasts an expanded processing capacity, capable of resurfacing brake discs up to 450mm in diameter and brake drums up to 350mm. It features a modern stepless speed regulation system (0-150 r/min), allowing operators to precisely adjust the rotation speed to eliminate vibration and chatter. With a finer feeding rate of 0.08mm/r, the C9340 ensures a smoother, mirror-like finish, making it ideal for workshops servicing SUVs, light trucks, and passenger cars.

• Larger Disc Capacity: Expanded processing range handles brake discs up to 450mm, significantly larger than the standard 350mm limit, covering larger SUVs and light commercial vehicles.

• Stepless Speed Control: Features a 0-150 r/min variable speed system. Unlike fixed-gear lathes, this allows the operator to find the perfect resonance-free speed for any disc size or hardness.

• Fine Finish Processing: The feeding capacity is optimized at 0.08 mm/r (finer than C9335A's 0.15), providing a high-precision cut for a superior surface finish.

• Dual Functionality: Versatile combination design supports both brake drum and brake disc repair in one machine.

• Energy Efficient: Equipped with a 0.75KW motor that delivers efficient power, perfectly matched with the variable speed drive system for stable torque.
