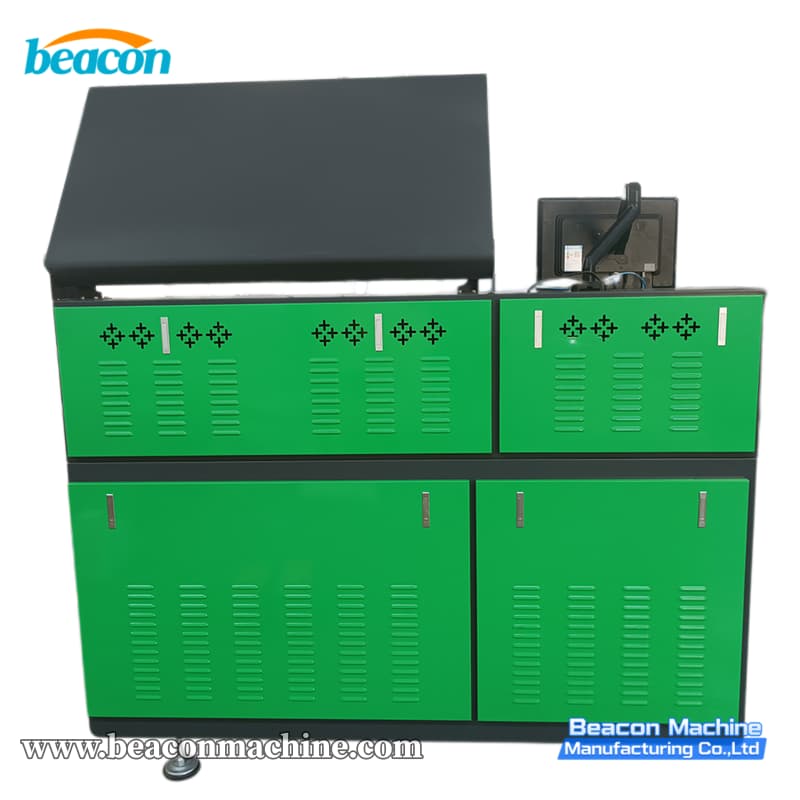

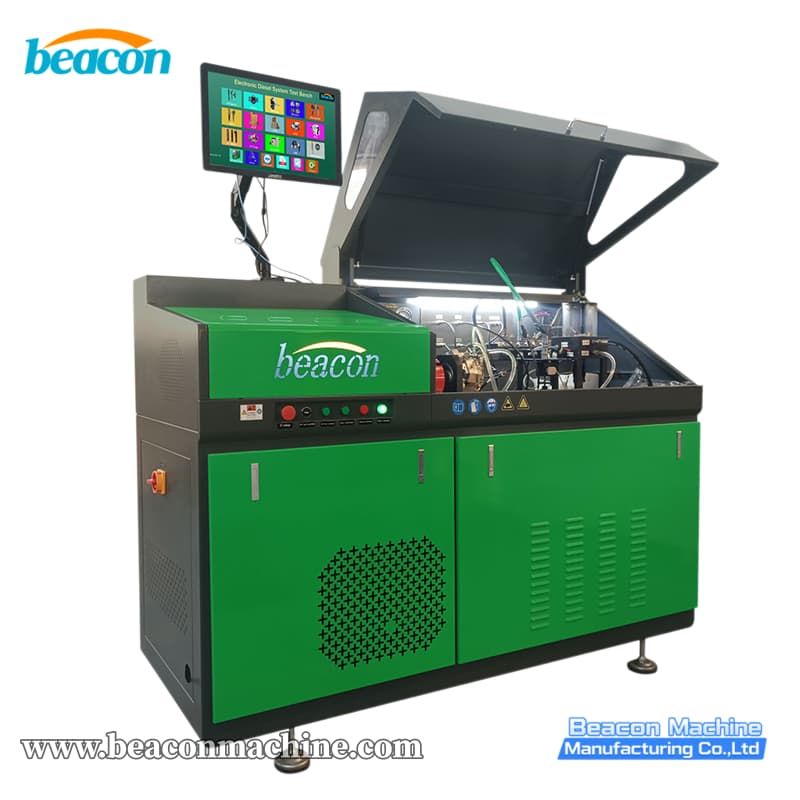

CR707 Common Rail Injector and Pump Test Bench

Beacon Machine CR707 common rail test bench features 2500Bar pressure, coding for Bosch/Denso/Delphi, and extensive upgrades for HEUI, EUI/EUP, and PT systems.

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

WhatsApp: +86-13375386258

Details

The CR707 Common Rail Test Bench is a highly advanced, fully modular diesel calibration platform designed for modern diesel injection repair centers. In its standard configuration, it boasts a powerful 380V 3-Phase 11KW motor and a BOSCH CP3 pump delivering a maximum testing pressure of 2500 Bar. The base machine is fully equipped to test Common Rail injectors (including Piezoelectric and I-art types), Common Rail pumps (all major brands and DENSO HPO), and features comprehensive BIP testing. Moreover, it supports highly accurate injector coding and calibration for Bosch, Denso, Delphi, Siemens, and Cummins XPI injectors.

Product Advantages:

Ultimate Modularity & Upgradability: Starting from a robust base, you can upgrade the machine to test 2, 4, or even 6 injectors simultaneously. You can also upgrade to a brand new BOSCH CP4 pump (2700 Bar), add air-conditioning forced cooling, or integrate an advanced oil lubrication system.
Extensive Optional Add-ons: The CR708 can be transformed into a universal testing powerhouse by adding optional kits for HEUI systems (CAT, Ford, Isuzu, Navistar), Cummins PT & HPI systems, and EUI/EUP systems (using CAMBOX TU-C/D/E).
Comprehensive Pump Testing Capabilities: Standard pump testing can be expanded with optional kits for high-pressure pumps like CAT 320D, C7/C9, CP4, DENSO HP5/HP6/HP7, Cummins X15, and FORD Siemens.
Specialized Injector & Valve Testing: Easily add modules for testing AHE dynamic stroke, SCV ZME valves, Delphi E3 Dual Pulse Control, CRIN4 4-pin Bosch MP4, MTU 4000 series, DAF, CAT C9.3, and Liebherr injectors.

Application Scenarios:
Perfect for professional diesel fuel injection repair shops, heavy-duty machinery maintenance centers, diesel system remanufacturing factories, and businesses looking for an all-in-one scalable test bench.
FAQ:

Q: Can this machine test multiple injectors at the same time?
A: Yes! While the standard version tests one, you can purchase optional upgrades to test 2, 4, or 6 injectors simultaneously (with BIP function) to greatly improve your workshop's efficiency.
Q: Does this test bench generate injector codes?
A: Yes, the CR708 standard configuration includes precise injector coding and calibration for Bosch, Denso, Delphi, Siemens, and Cummins XPI injectors.
Q: Can I test HEUI or EUI/EUP systems on this machine?
A: Absolutely. The CR708 serves as a universal platform. You can add various optional HEUI test kits (for CAT C7/C9, Ford, Isuzu, etc.) and Cambox systems (TU-C, TU-D, TU-E) for EUI/EUP testing according to your budget and needs.
