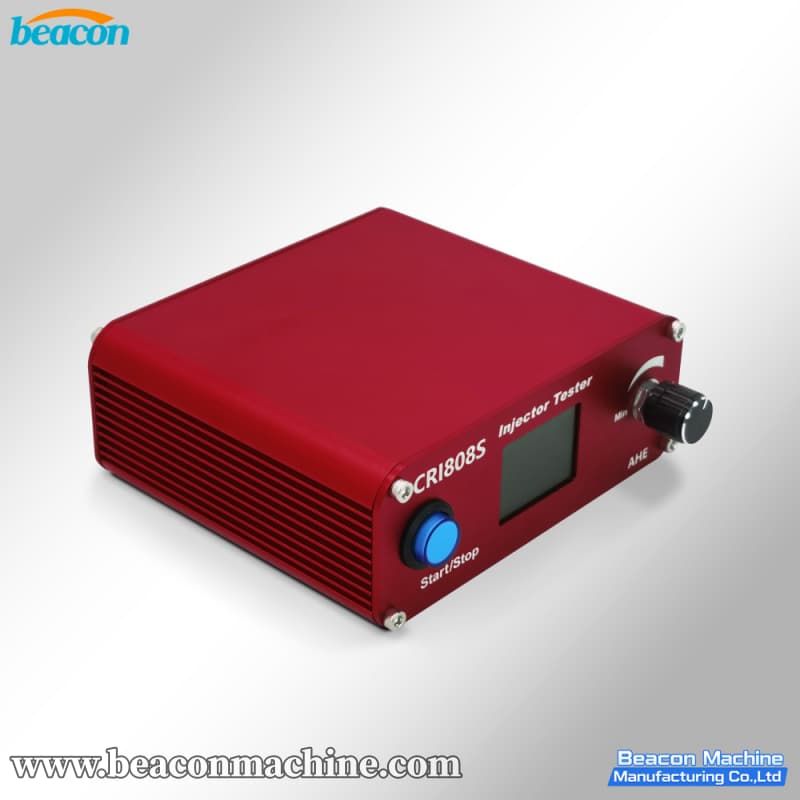

CRI808S Common Rail Injector Tester

The CRI808S Common Rail Injector Tester is a professional, highly portable diagnostic tool designed for testing diesel fuel injectors. Equipped with a clear LCD display and a user-friendly rotary knob, it allows operators to easily adjust injection frequency, pulse width, and switch between test points (VL, TL, LL, VE). The device supports a wide range of common rail injectors including Bosch, Delphi, Denso, and Siemens. Additionally, it features a built-in Bluetooth antenna for extended connectivity and smart diagnostics, making it an indispensable tool for modern diesel engine maintenance.

Product Advantages:

• Wide Compatibility: Comes with a comprehensive set of adapter cables (Bosch, Siemens, Delphi new/old, Denso, and universal alligator clips) to test almost all mainstream common rail injectors.

• Highly Portable: Weighing only about 0.435kg with ultra-compact dimensions (130x120x45mm), it is perfect for both mobile mechanics and workbench testing.

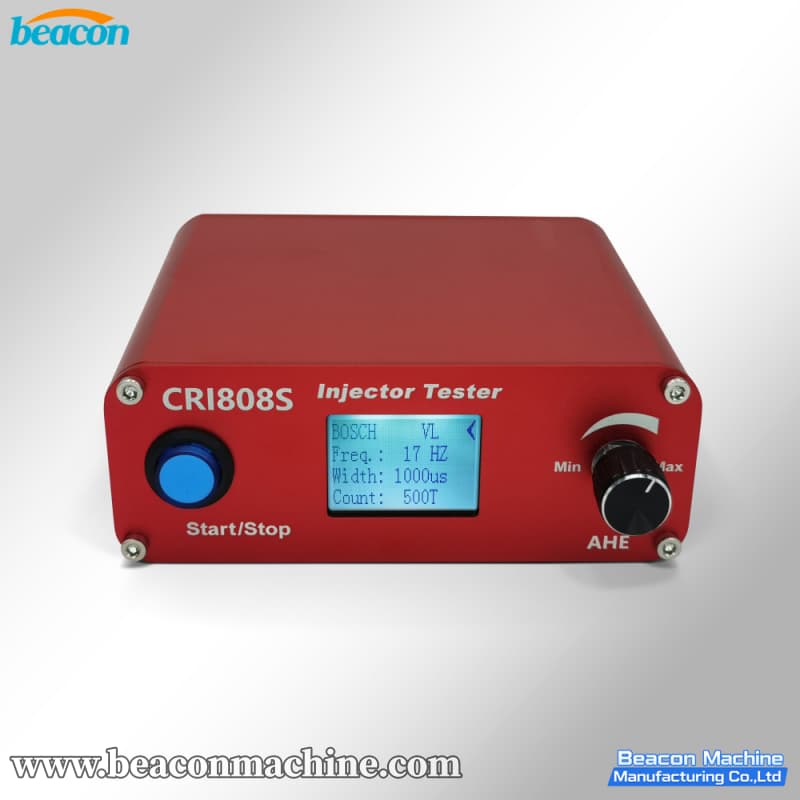

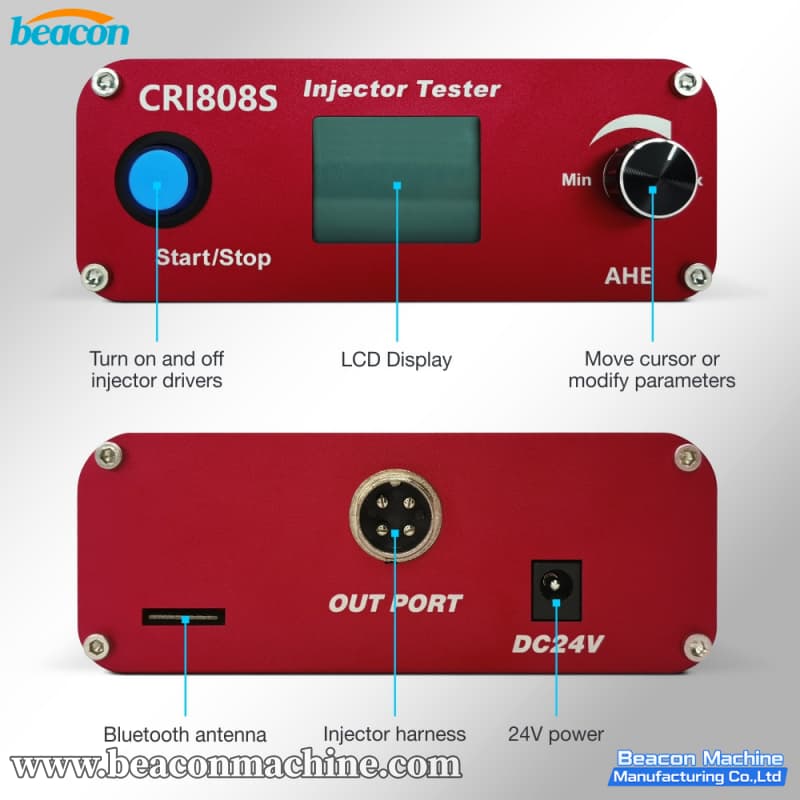

• User-Friendly Interface: Features a simple "Start/Stop" button and a multi-function rotary knob to move the cursor and modify parameters instantly on the LCD screen.

• Advanced Features: Built-in Bluetooth antenna supports wireless connection capabilities, and it includes support for AHE (Armature Stroke) testing.

• Global Power Compatibility: The included AC adapter supports 100~240V, making it ready for use in any region.

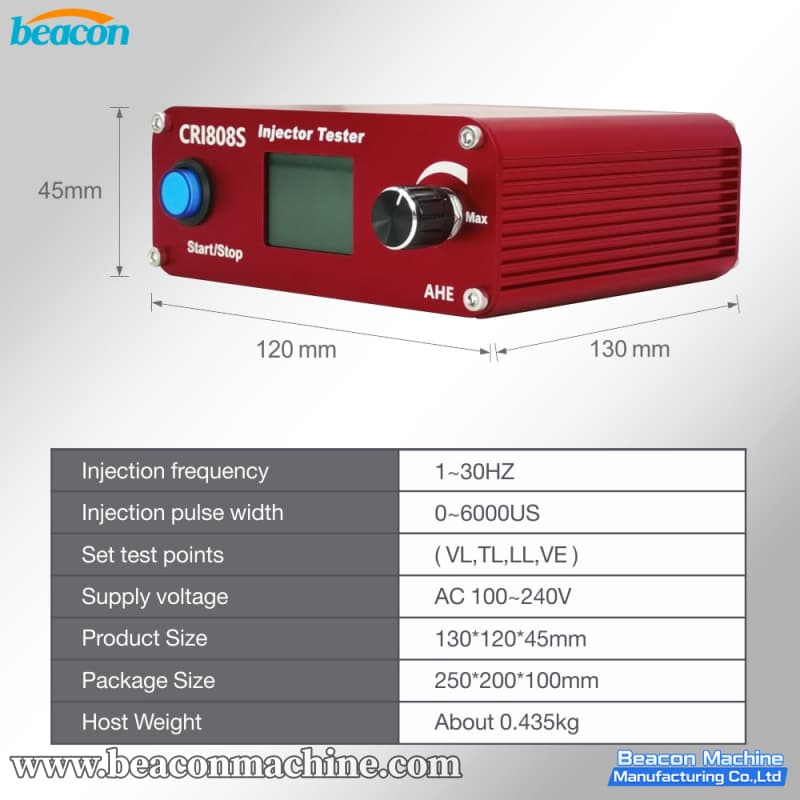

Parameters:

• Injection Frequency: 1~30 HZ

• Injection Pulse Width: 0~6000 US

• Set Test Points: (VL, TL, LL, VE)

• Supply Voltage: AC 100~240V (Output DC24V)

• Product Size: 130 * 120 * 45 mm

• Package Size: 250 * 200 * 100 mm

• Host Weight: About 0.435 kg


Application Scenarios:

• Diesel fuel injection pump test benches and repair centers.

• Automobile repair shops and independent garages.

• Mobile mechanic diagnostic services.

• Diesel engine maintenance training and vocational schools.

FAQ:

• Q: Which injector brands can this device test?
  A: The CRI808S comes with specific adapter cables for Bosch, Siemens, Delphi, and Denso injectors, as well as a universal alligator clip adapter for others.

• Q: Can I use this tester in my country with 110V power?
  A: Yes, the included power adapter has a wide input voltage range of AC 100~240V, making it suitable for global use.

• Q: What is the purpose of the Bluetooth antenna?
  A: The Bluetooth antenna allows the tester to connect wirelessly with compatible mobile apps or software for easier parameter control and data viewing.

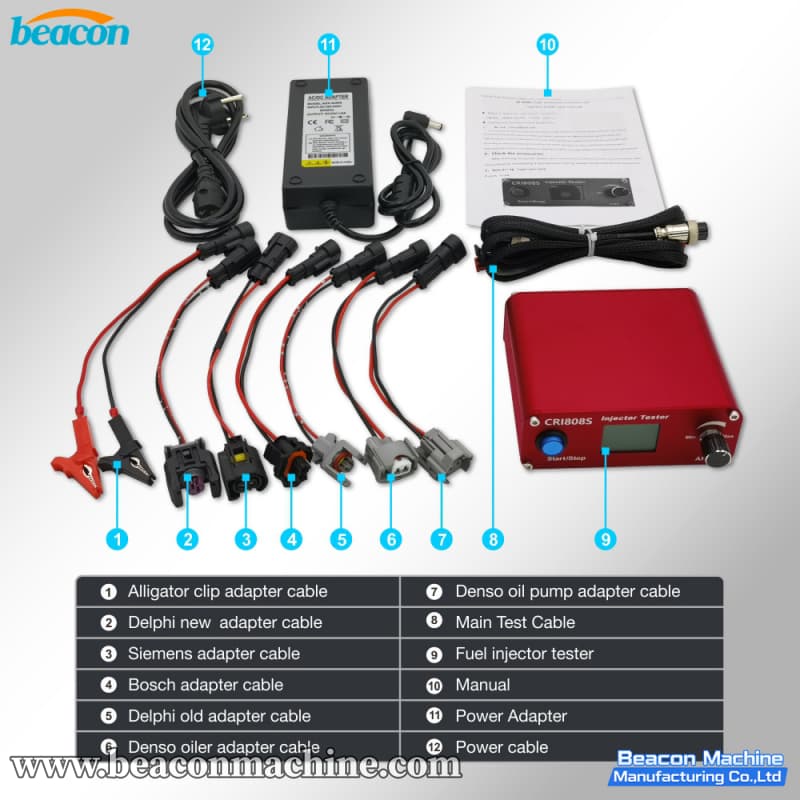

• Q: What is included in the package?
  A: The package includes the CRI808S main unit, power adapter and cable, main test cable, user manual, and 7 different types of adapter cables (including alligator clips, Bosch, Delphi, Denso, and Siemens).
