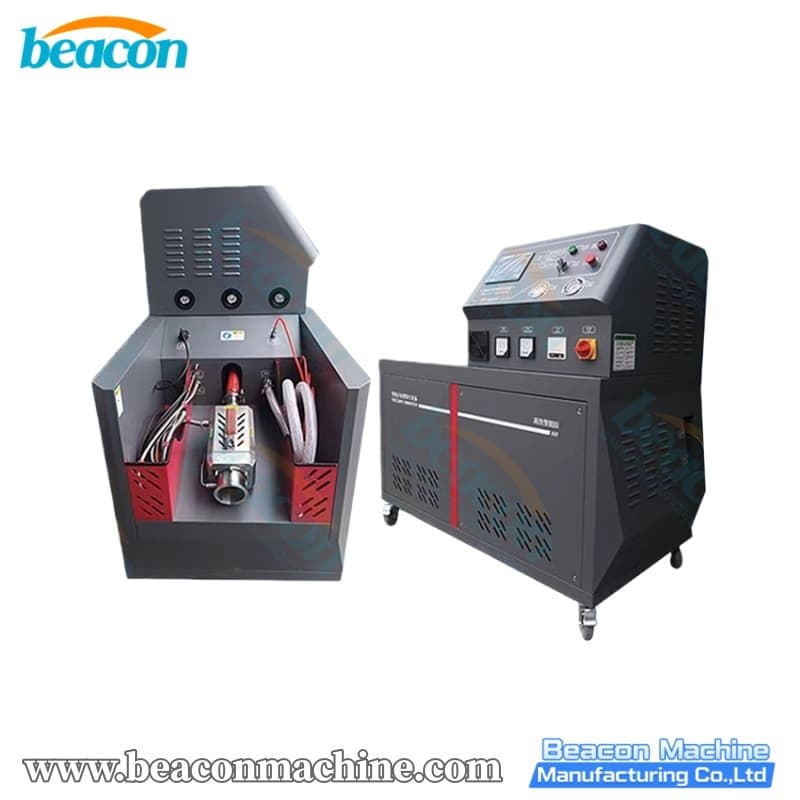

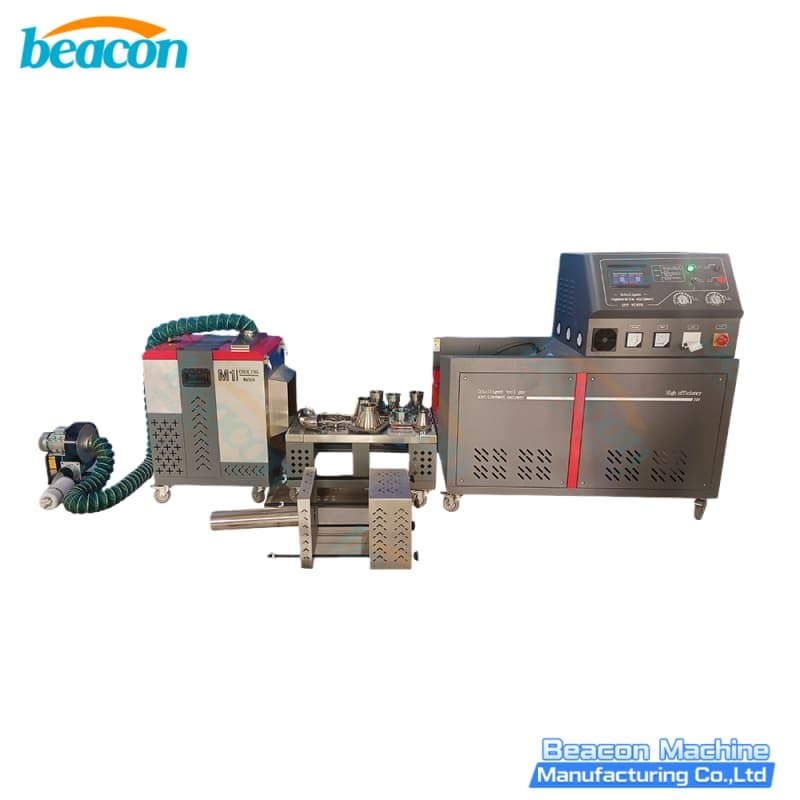

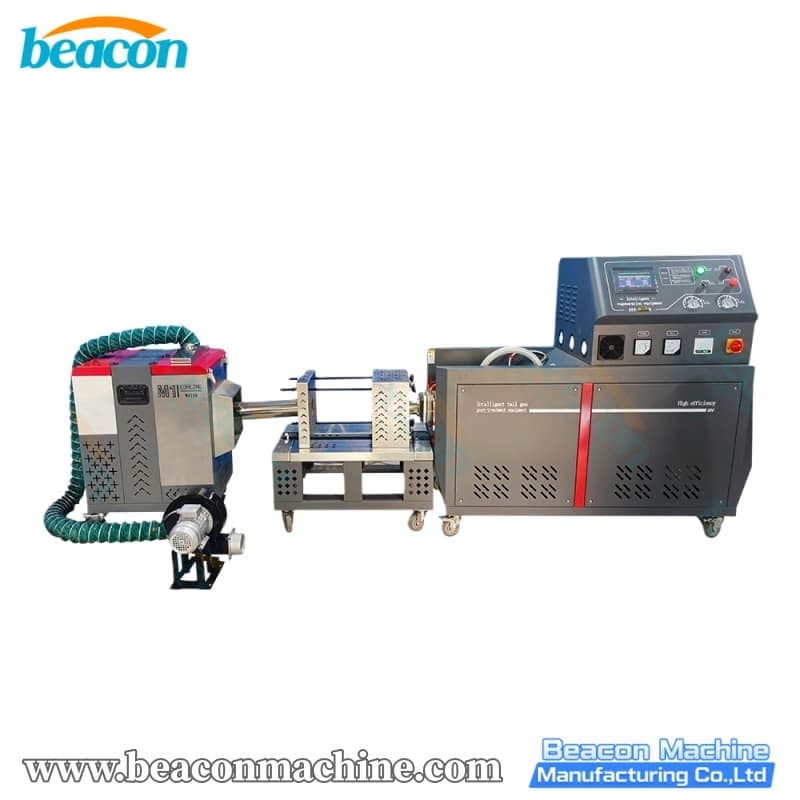

DPF-CL Intelligent DPF Cleaning Station with Back Pressure Test

DPF-CL: Intelligent Electric DPF Cleaning Station

(Best for: Professional service centers needing proof of cleaning)

Product Overview
The DPF-CL represents the future of DPF maintenance. This "All-in-One" station moves away from traditional baking ovens to use Intelligent Internal Heating & Pneumatic Blasting. By heating the filter from the "core out" and blasting it with high-pressure air, it cleans a DPF in 40 minutes (vs. 5-10 hours in an oven). Crucially, it features a built-in Back-Pressure Tester and Printer, giving you a physical report to hand to your customer proving the "Before & After" results.

• Non-Destructive Cleaning: No cutting or welding required. Clean DPFs, SCRs, and DOCs directly.

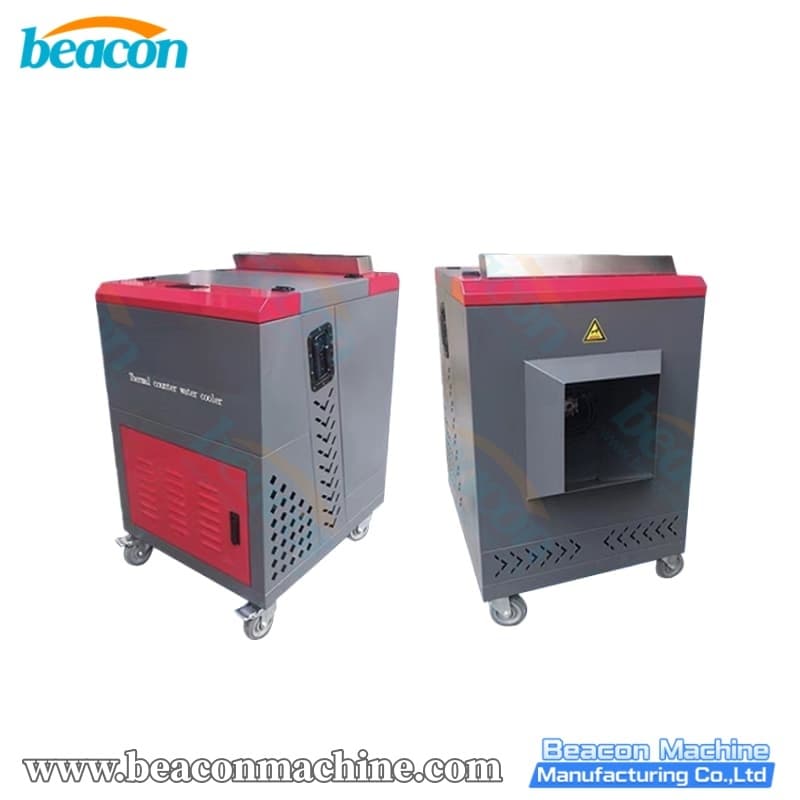

• Total Pollution Control: Includes a Thermal Water Cooler (Wet Scrubber) that captures exhaust heat and traps carbon ash/particulate matter, keeping your shop air clean.

• Ultra-Fast Cycle:

• Heating: 0-600°C in 4 minutes.

• Cleaning: Total cycle ~40 minutes.

• Cooling: Drops from 600°C to 50°C in just 3-5 minutes.

• Verified Results: Automatically tests back-pressure before and after the cycle. The built-in thermal printer generates a data report, increasing customer trust.

• High-Pressure Blasting: Once the carbon is turned to ash, the automated blast function forces it out completely.

Application: Complete post-treatment system regeneration for all vehicle types.
