Electronic Controlled Inline Diesel Pump Tester

The Electronic Controlled Inline Diesel Pump Tester is a portable diagnostic device designed for electronically controlled inline diesel fuel injection pumps.

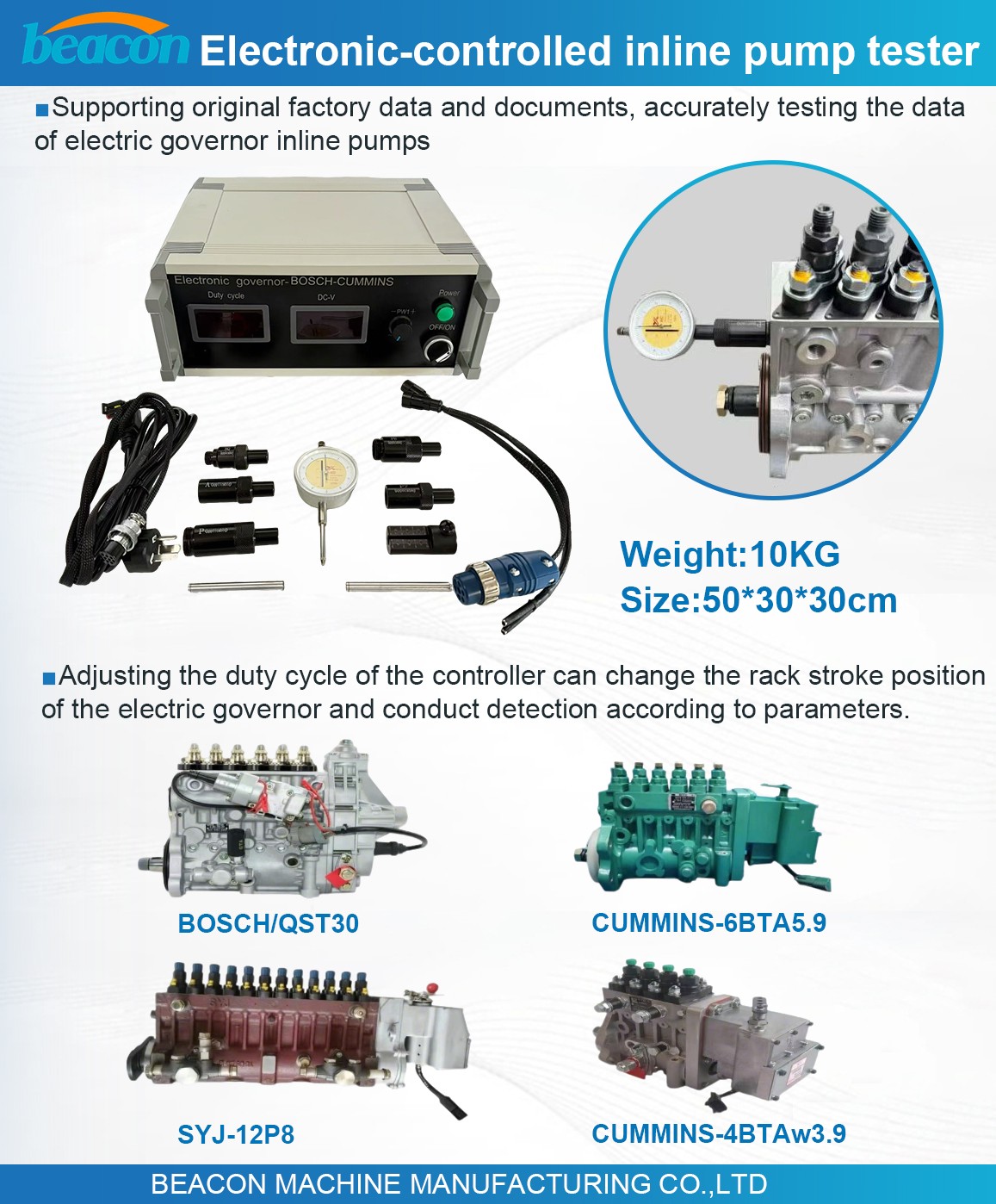

It supports applications including BOSCH/QST30, SYJ-12P8, Cummins 6BTA5.9 and Cummins 4BTA 3.9.

The tester uses electronic control signals to adjust the pump governor and rack position, allowing technicians to check rack stroke and compare operating data with reference specifications.

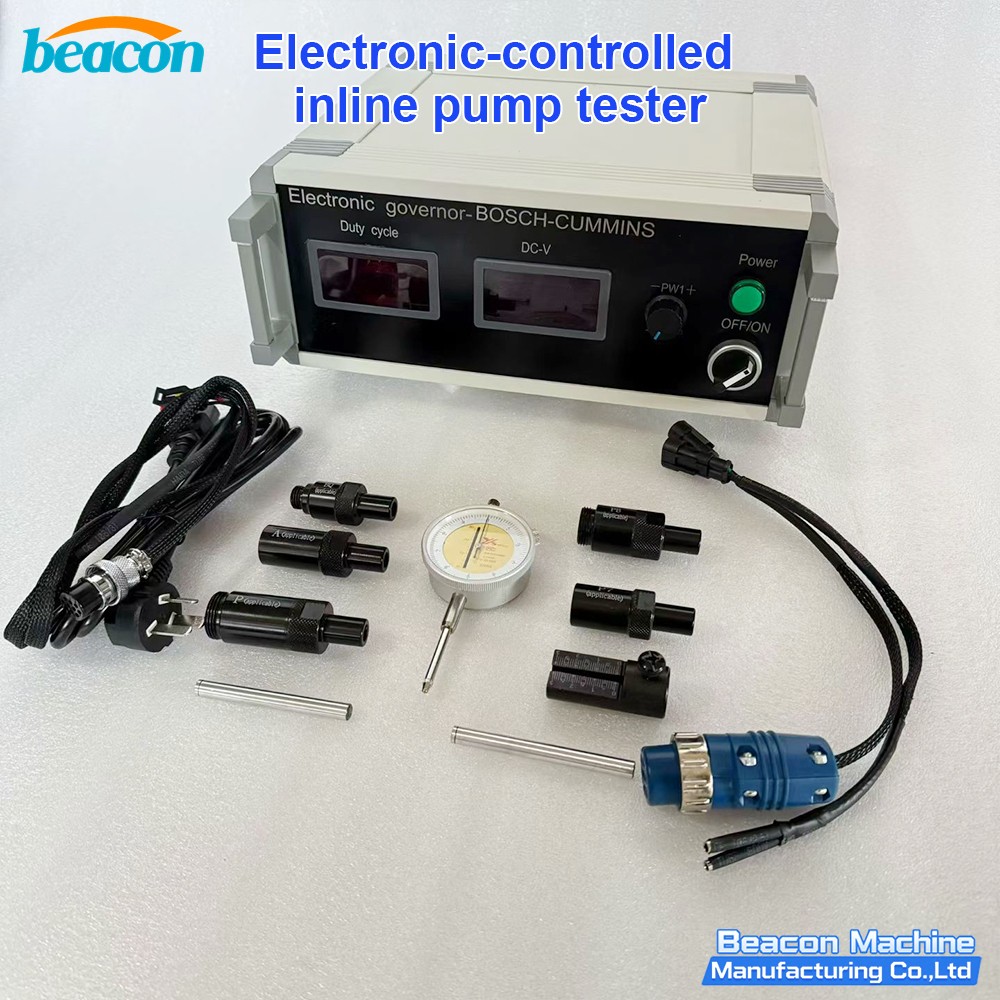

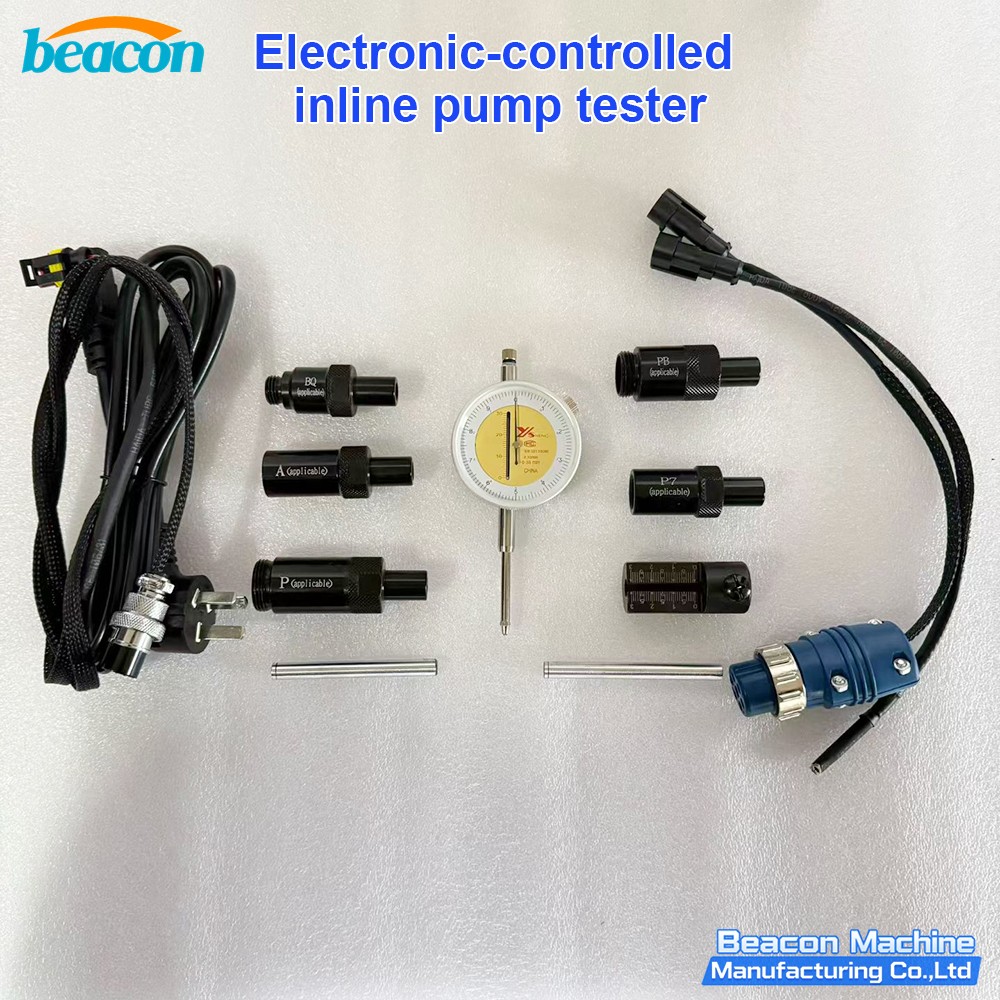

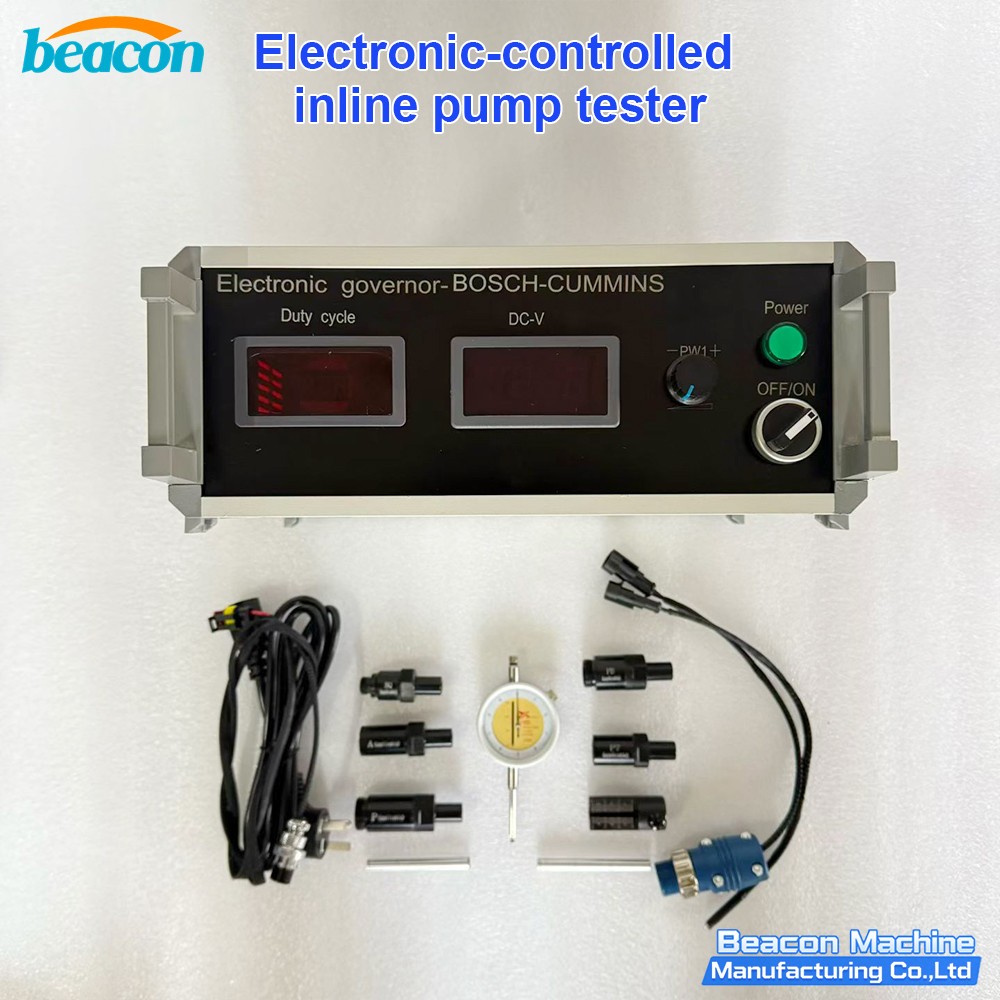

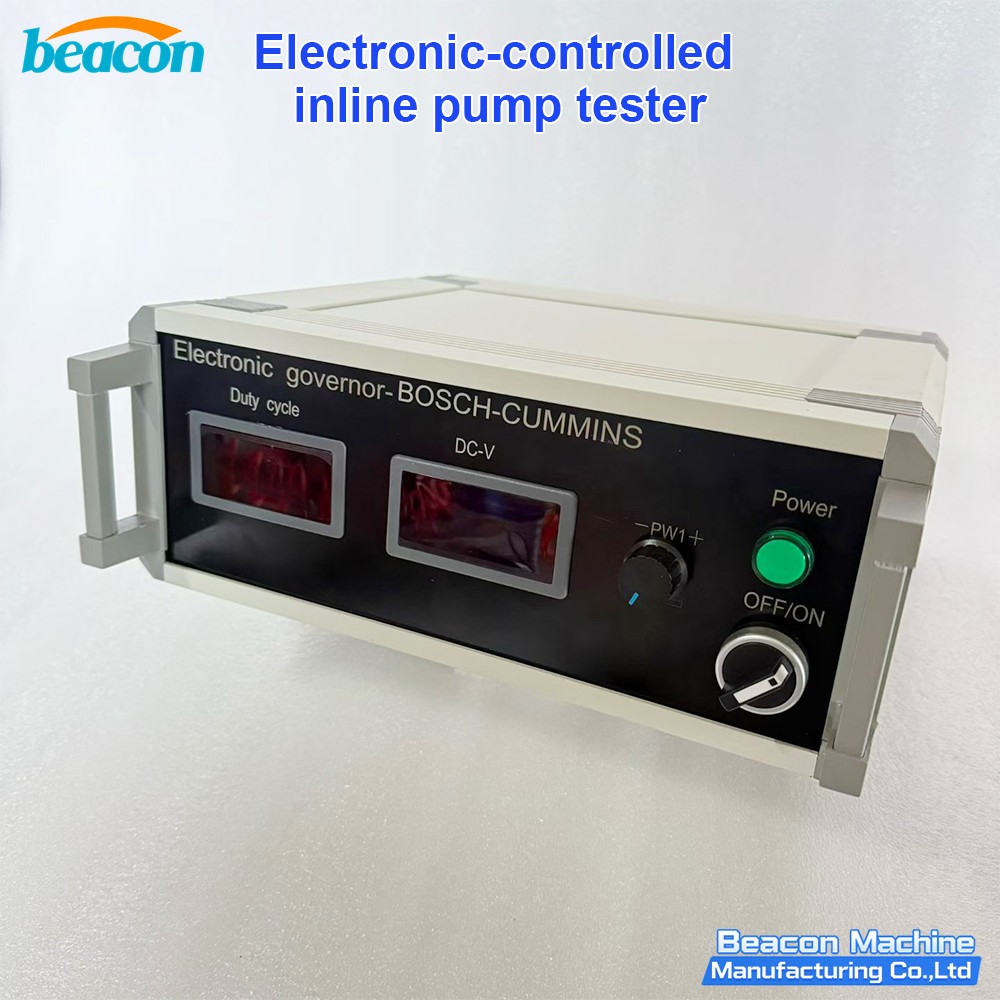

The current product specification lists a 10 kg unit with dual digital LED displays, wiring harnesses, dial indicator and sensor accessories.

Product Advantages

• Designed for electronically controlled inline pumps

• Supports BOSCH and Cummins applications

• Compatible with QST30 and selected Cummins systems

• Electronic governor control

• Rack stroke position testing

• Dual digital LED display

• Portable 10 kg design

• Suitable for bench and field service

• Includes dedicated wiring and measurement accessories

Application Scenarios

• BOSCH QST30 pump testing

• Cummins 6BTA5.9 pump service

• Cummins 4BTA 3.9 pump diagnosis

• SYJ-12P8 pump testing

• Electronic governor diagnosis

• Rack stroke measurement

• Diesel pump repair

• Heavy-duty diesel service

FAQ

Q: Which pumps can this tester support?
A: It is designed for BOSCH/QST30, SYJ-12P8, Cummins 6BTA5.9 and Cummins 4BTA 3.9 applications.

Q: What does the tester measure?
A: It is primarily used to check electronic governor operation and rack stroke position.

Q: Is it portable?
A: Yes. The unit weighs approximately 10 kg and is designed for bench and field service.

Q: Is it suitable for Cummins engines?
A: Yes. It supports selected Cummins electronically controlled inline pump applications.
