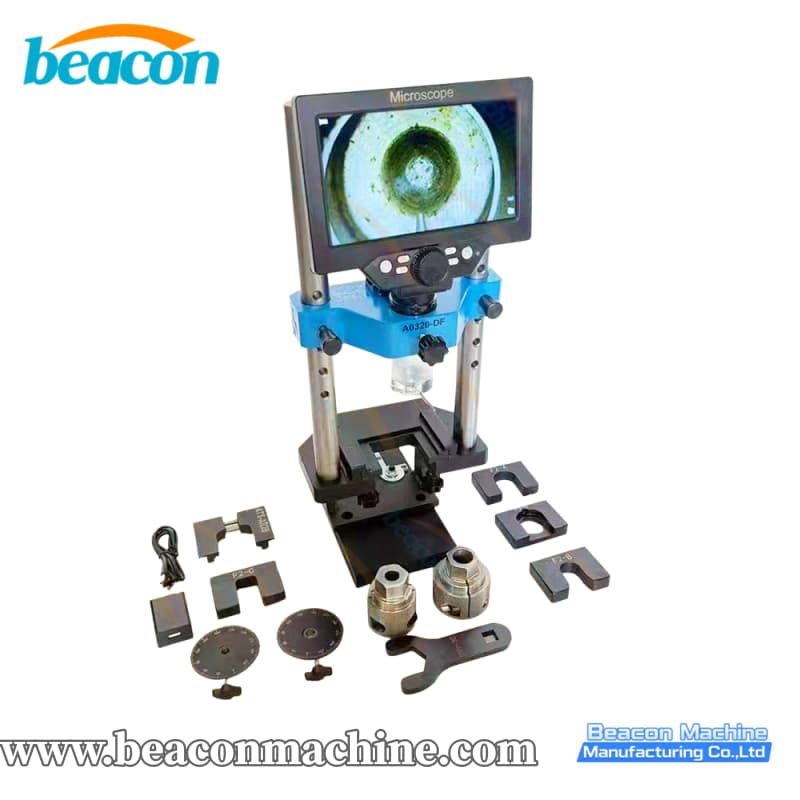

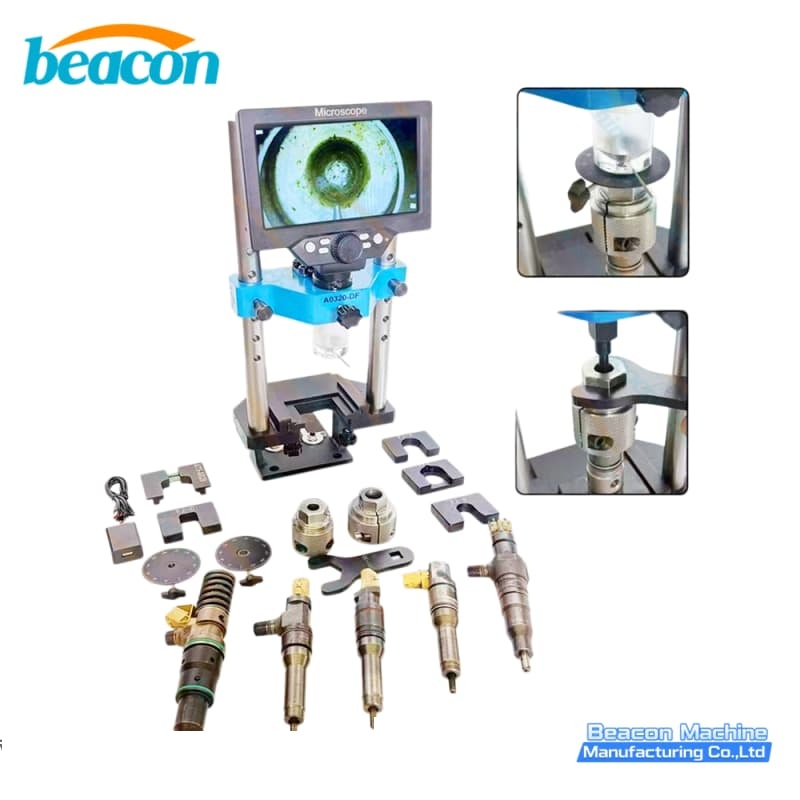

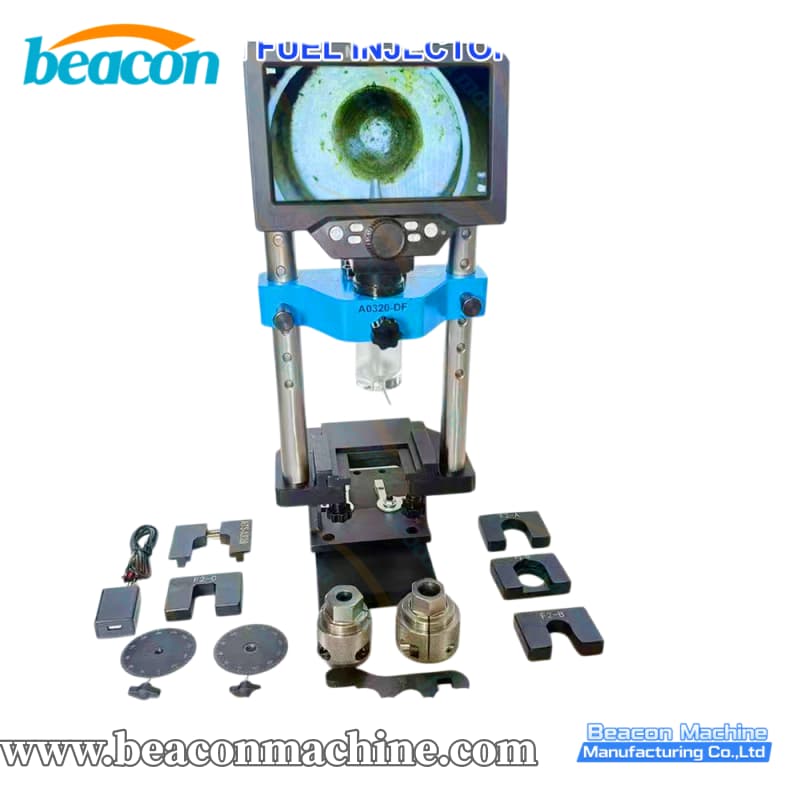

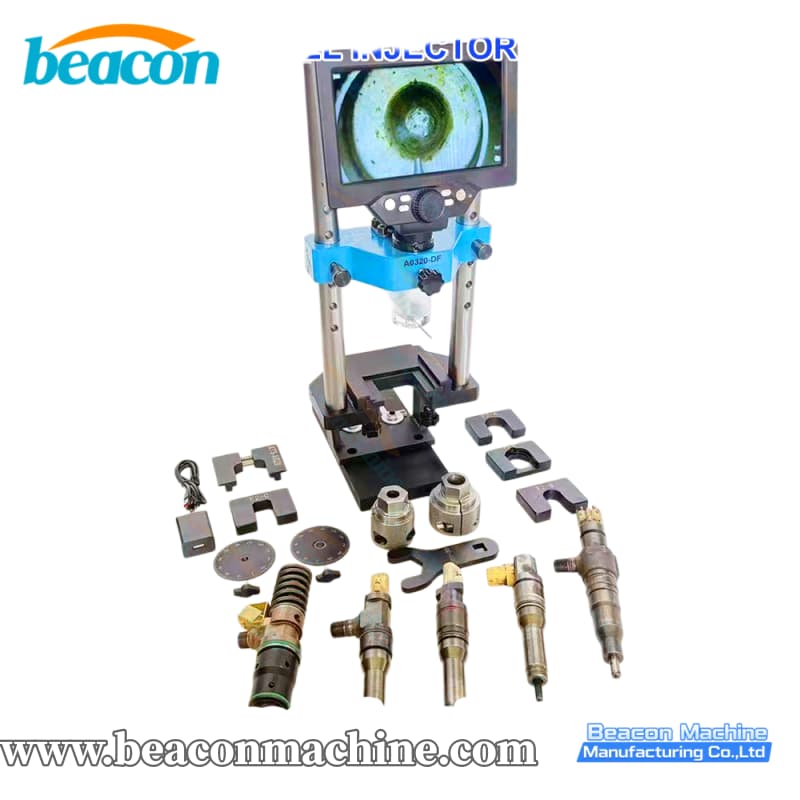

G4-80 Delphi Smart F2E Injector Injection Angle Alignment and Testing Repair Tool

The G4-80 Delphi Smart F2E Tool addresses a specific requirement of the "Smart" injector series: angular alignment. Incorrect nozzle orientation can lead to piston damage and poor combustion. This tool locks the injector in the exact position required for factory-spec assembly.

• Features & Advantages:

• Angle Precision: Eliminates guesswork in nozzle orientation relative to the injector body.

• Protection: Protects the delicate electrical connector pins during mechanical work.

• Dual Use: Functions as both an assembly jig and a test bench mounting adapter.

• Application Scenarios: Calibrating and rebuilding Delphi F2E systems for Euro 6 engines.

• FAQ:

• Q: Why is alignment necessary? A: The spray pattern must align with the piston bowl; the F2E system does not use a dowel pin for this, so this tool is required.
