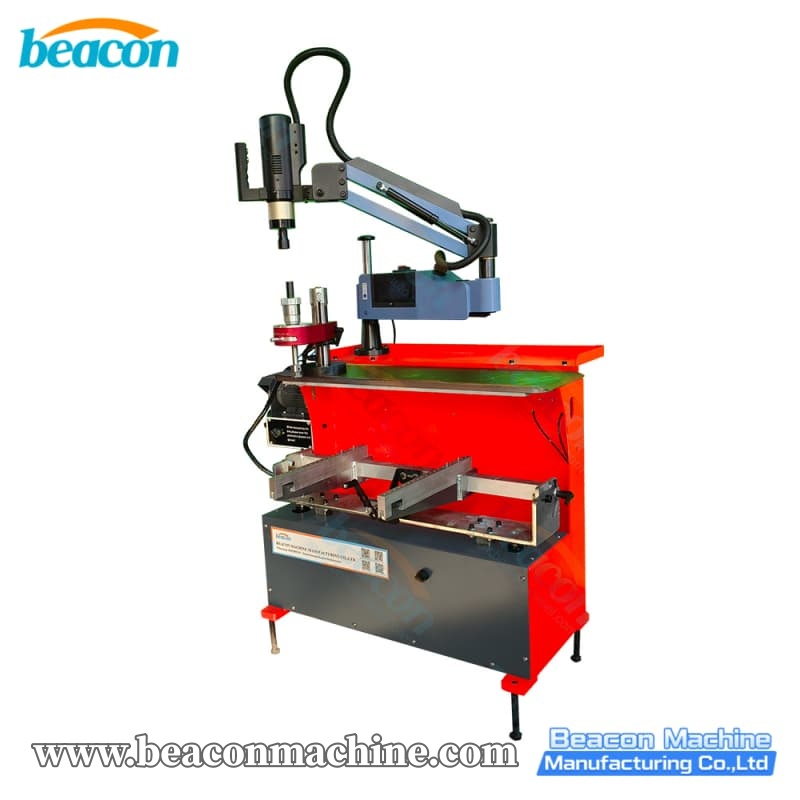

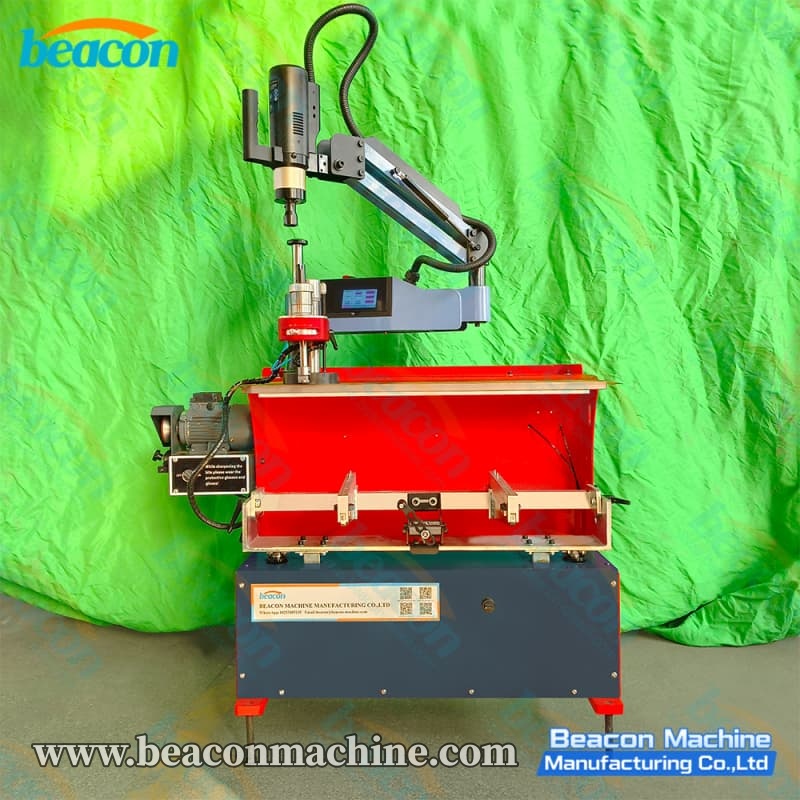

GS-2000 Portable Valve Seat Grinding Machine

Compact GS-2000 portable valve seat machine with spherical air-floating technology. Features 16-50mm machining capacity, ideal for on-site repairs and small engine workshops.

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

WhatsApp: +86-13375386258

Details

The GS-2000 is a highly versatile portable valve seat grinding machine designed for flexibility and precision. Unlike large stationary machines, the GS-2000 is lightweight and can be easily positioned for machining valve seats ranging from 16mm to 50mm. It utilizes a spherical air cushion system that ensures "weightless" centering, providing high-precision results for motorcycle, automotive, and small marine engines.

Valve seat resurfacer

High precision valve seat grinder

GS-2000 Portable Valve Seat Grinding Machine Advantage

Portability: Lightweight head (7kg) allows for easy transport and setup on various cylinder heads.
Air-Floating Precision: Features a spherical air cushion providing full-scale floating support for automatic centering and reduced friction.
Versatile Power: Supports spindle rotation from 50-150 rpm with variable tool holders (18-65mm range).
Efficiency: Perfect for workshops with limited space or for jobs requiring the tool to be brought to the workpiece.

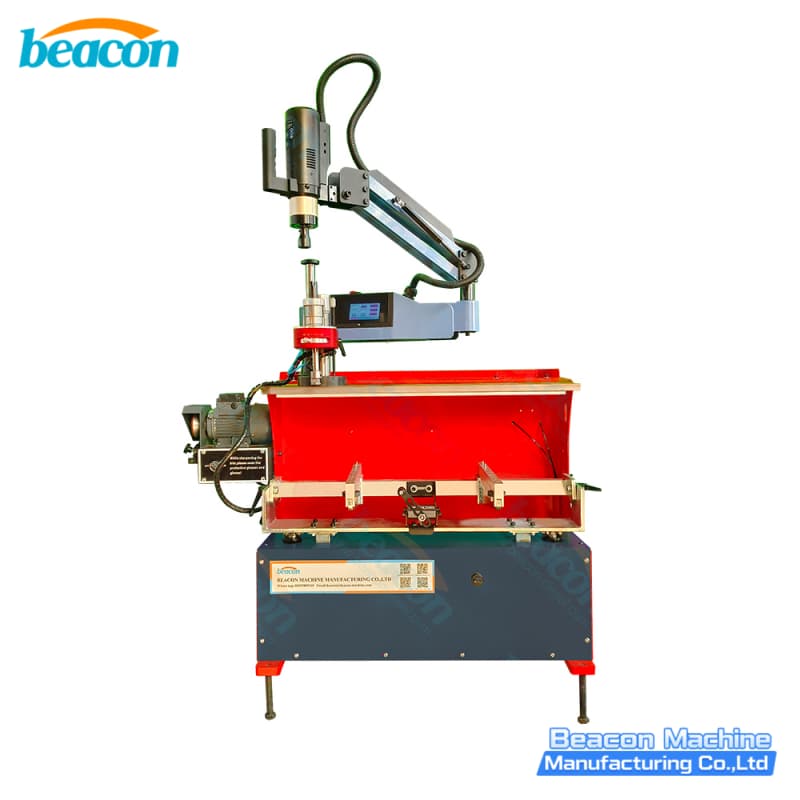

Truck engine valve repair

Valve seat machine tool

Valve seat boring head

parameter

Category	Item	Specification
Machining Capacity	Machining Diameter Range	16 – 50 mm (0.63" – 2.00")
	Tool Holder Sizes	18–35 mm / 32–45 mm / 35–65 mm
	Cutting Inserts	Various sizes included
Spindle Specs	Spindle Rotation Speed	50 – 150 rpm
	Spindle Stroke	15 mm (0.60")
	Sphere-Cylinder Travel	2.5 mm (0.10")
	Air Cushion Type	Horizontal & Spherical (Full-scale floating)
Dimensions & Weight	Machine Head Weight	7 kg (15.4 lbs)
	Total Machine Weight	155 kg (341 lbs)
	Head Dimensions (L×W×H)	253.5 × 135 × 208 mm
	Overall Dimensions (L×W×H)	1050 × 580 × 1050 mm
Power & Air	Power Supply	230V AC, 1-Phase, 50/60 Hz (2.5 kVa)
	Pneumatic Supply Required	6 bar (87 psi)
	Max. Air Flow	40 L/min (1.5 CFM)
