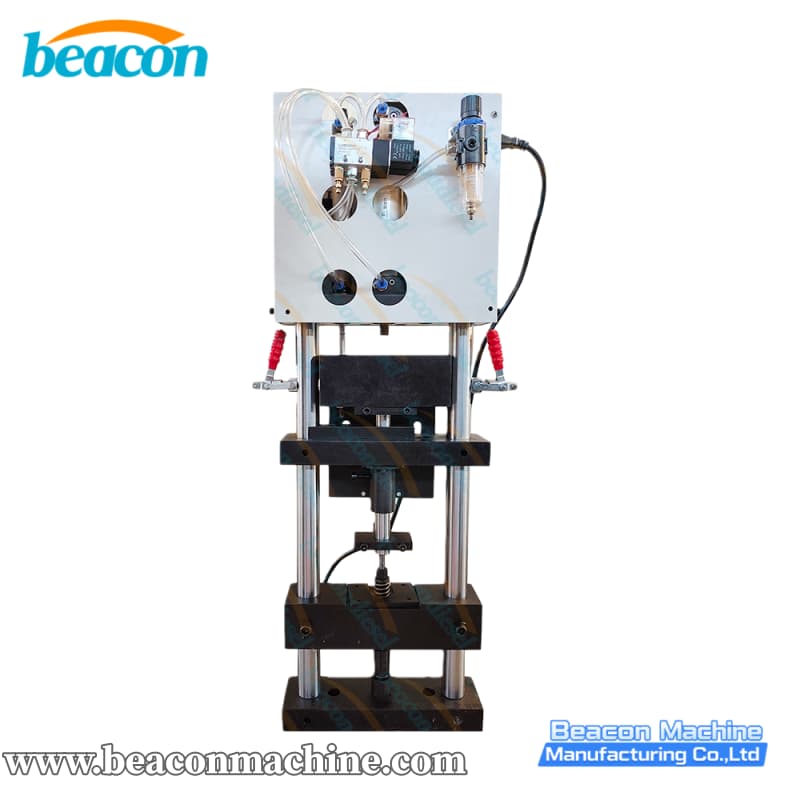

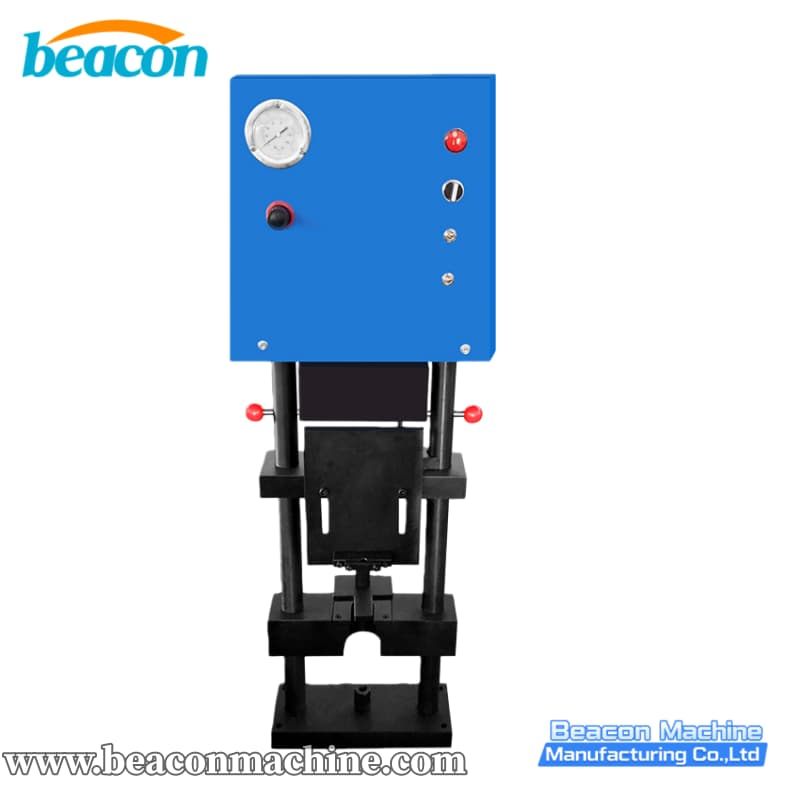

PT101 Cummins PT Injector Top Stop Setting Tool

The PT101 Diesel Fuel Injector Pump Top Stop Setting Fixture is a specialized maintenance tool designed specifically for the calibration of Cummins PT (Pressure-Time) fuel injectors. Before an injector is flow-tested, its mechanical travel (stroke) must be set perfectly to prevent the plunger from bottoming out in the cup.

• Functionality: It measures and adjusts the "Top Stop" setting, which determines the maximum upward travel of the injector plunger.

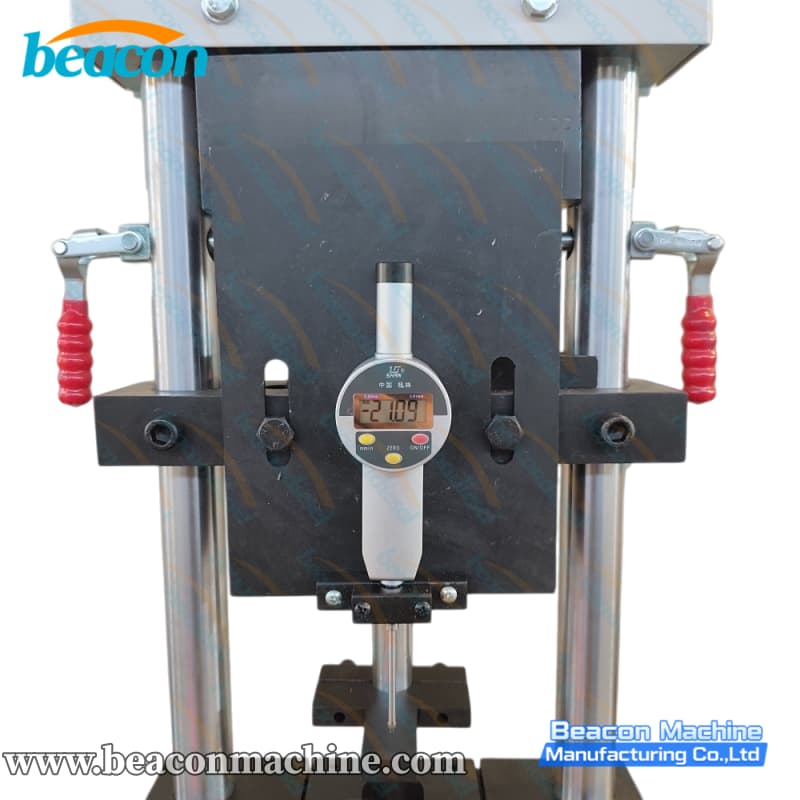

• Mechanism: The unit utilizes a pneumatic cylinder to apply consistent hold-down pressure on the injector, mimicking the spring force, while a high-precision dial indicator measures the travel distance within 0.01mm.

• Compatibility: Designed to work with a wide range of PT injector models, including standard PT flange types and cylindrical injectors (with appropriate adapters).


• Eliminates Guesswork: Replaces manual "crowding" methods with a standardized pneumatic process, ensuring every injector is set with the exact same force.

• Prevents Mechanical Failure: Incorrect top stop settings are the #1 cause of bent pushrods and broken injector plungers. The PT101 ensures clearance is within OEM tolerance.

• High Efficiency: Quick-clamp design and easy-to-read dial gauge significantly speed up the rebuilding process compared to makeshift tools.

• Durability: Constructed with hardened steel components to withstand the repetitive stress of daily workshop use.
