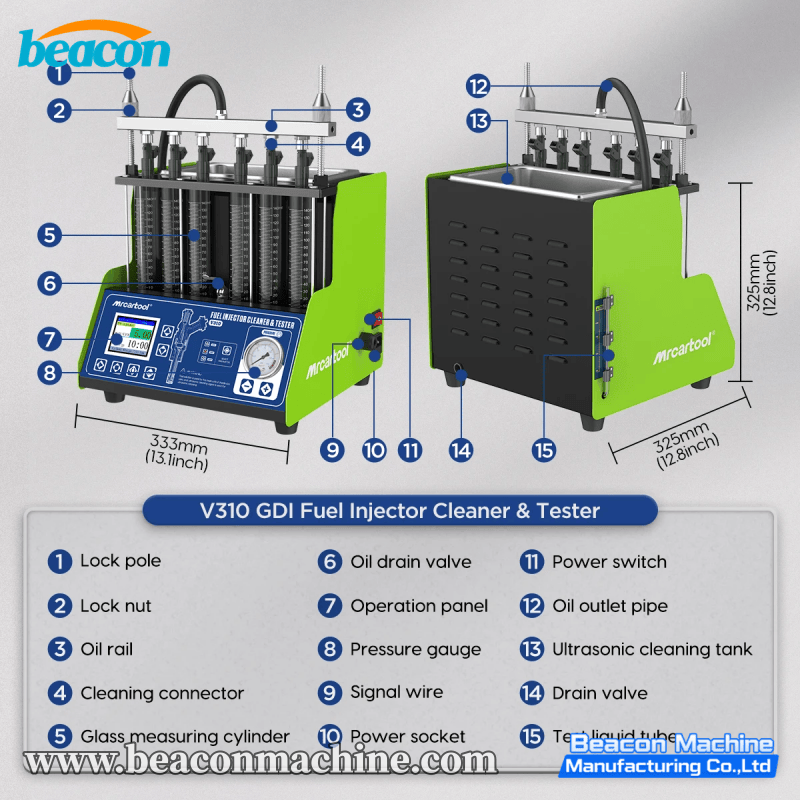

V310 6-Cylinder GDI Fuel Injector Cleaner and Tester (Large Screen)

V310 machine for 6-cylinder GDI and EFI injectors. Features a large display, touch operation, and comprehensive ultrasonic cleaning.

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

WhatsApp: +86-13375386258

Details

The V310 Flagship Fuel Injector Service Center combines capacity, technology, and user experience. It features a premium Large LCD Screen interface, replacing traditional button controls for a more intuitive operation experience. As a top-tier desktop unit, it supports simultaneous testing of 6 cylinders and is fully compatible with GDI technology. This machine is designed for high-end service centers that demand efficiency, visual clarity, and the ability to service larger V6 engines or multiple batches of injectors at once.



V310 6-Cylinder GDI Fuel Injector Cleaner and Tester (Large Screen) Advantage

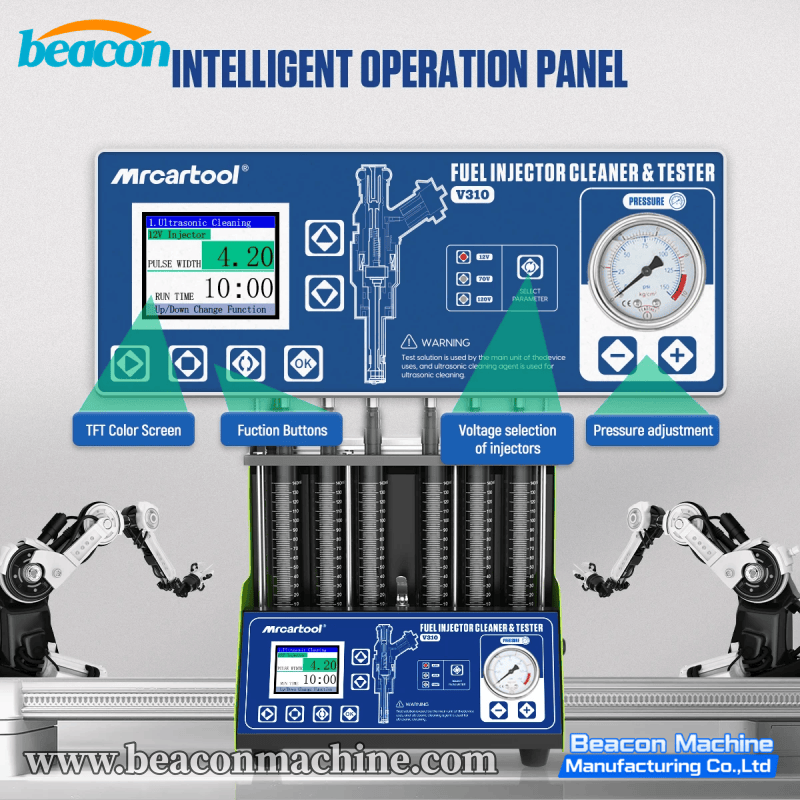

  • Superior User Interface: The Large Screen Display provides clear, real-time data visualization of all test parameters, making operation faster and easier to learn.

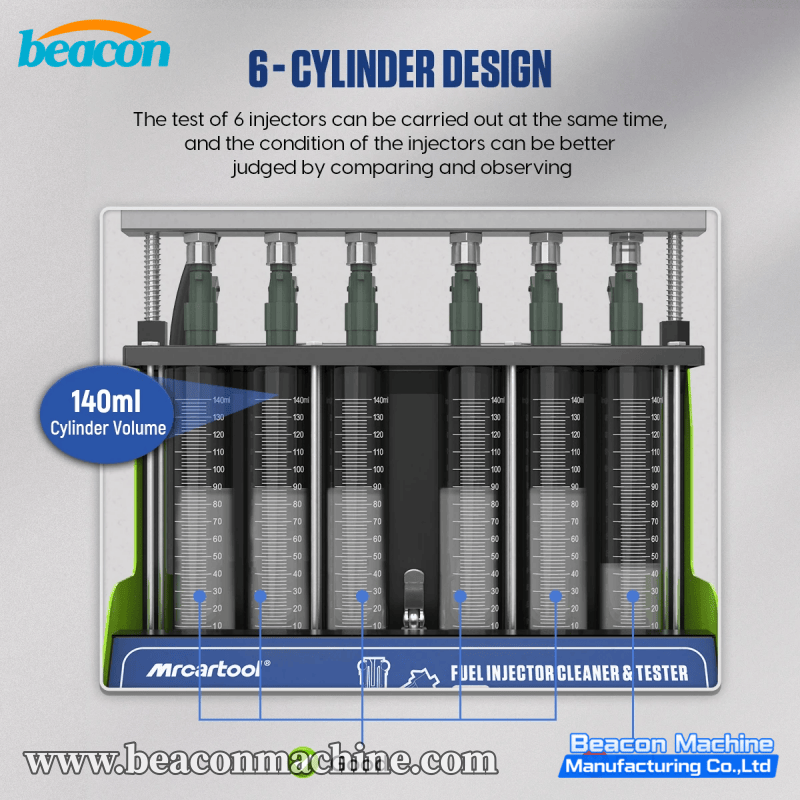

  • 6-Cylinder GDI Support: The only model in the compact V-series that handles 6 injectors at once while fully supporting high-pressure GDI diagnostics.

  • Maximized Efficiency: A larger 2000ml tank and 6-cylinder rail allow technicians to service more injectors in less time compared to 4-cylinder models.

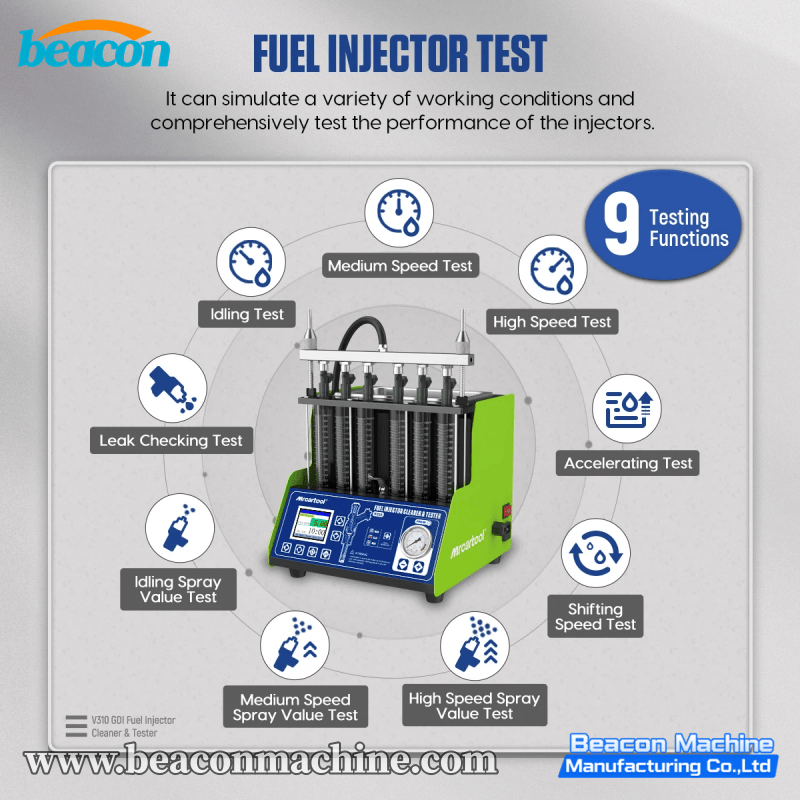

  • Full-Range Diagnostics: Combines the best features of the series—high-pressure tightness testing, GDI driver support, and automated cleaning cycles—into one premium unit.


parameter

ModelV310
Cylinder Capacity6 Cylinders

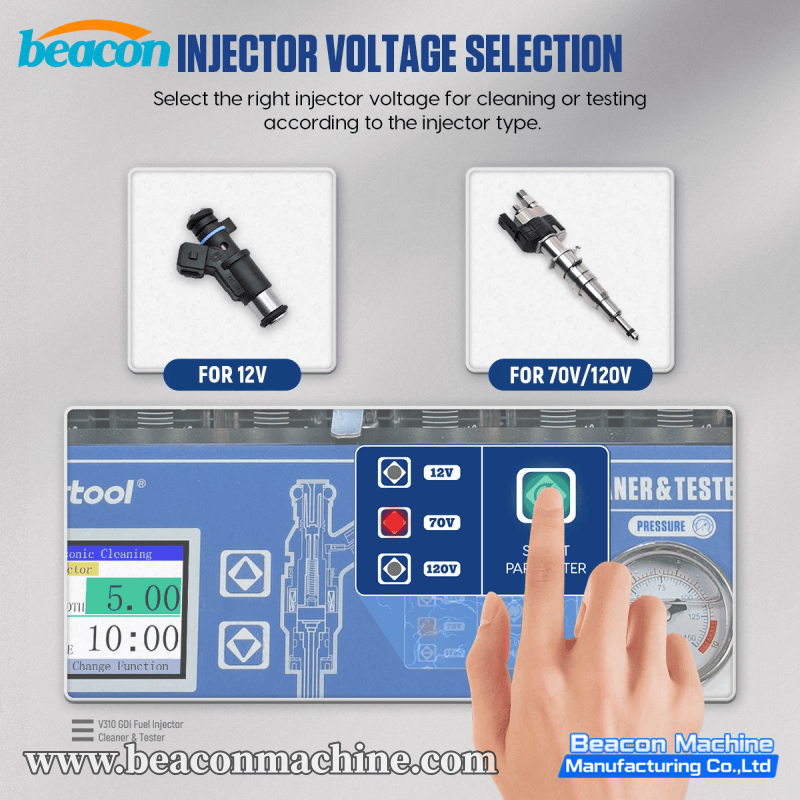

Compatible Injector TypeStandard EFI + GDI Support
Ultrasonic Cleaning Power70 W
Ultrasonic Frequency40 kHz
Rotation Speed0 ~ 7,500 r/min
System Pressure0 ~ 0.6 Mpa
PWM Pulse Width0 ~ 20.0 ms (Step: 0.1 ms)
Injection Times0 ~ 9900 times (Step: 100 ms)
Working Time Setting0 ~ 10 min

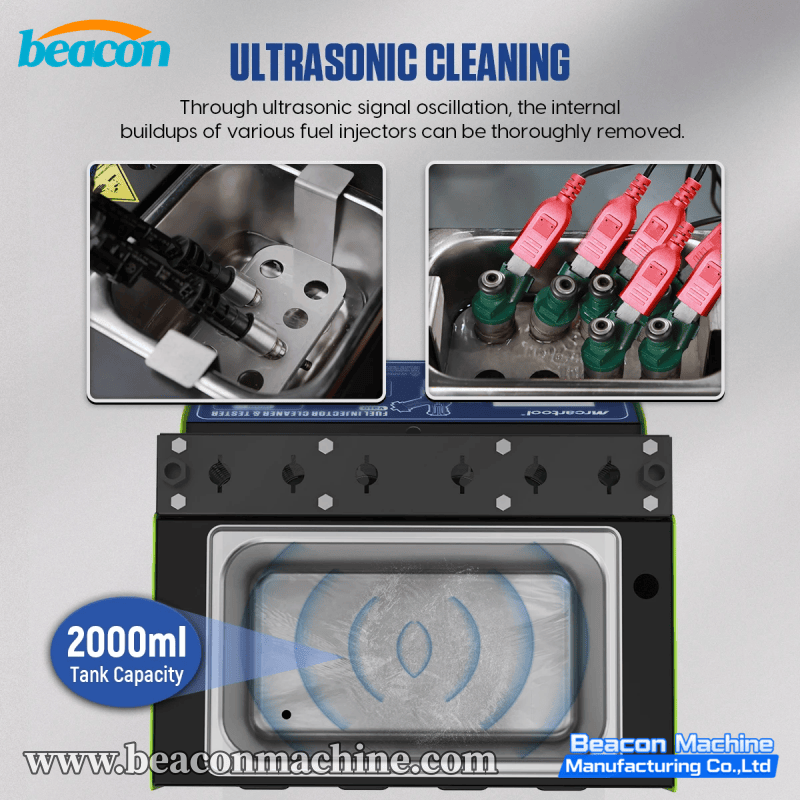

Tank Capacity2000 ml (Large Capacity)
Cylinder Volume180 ml

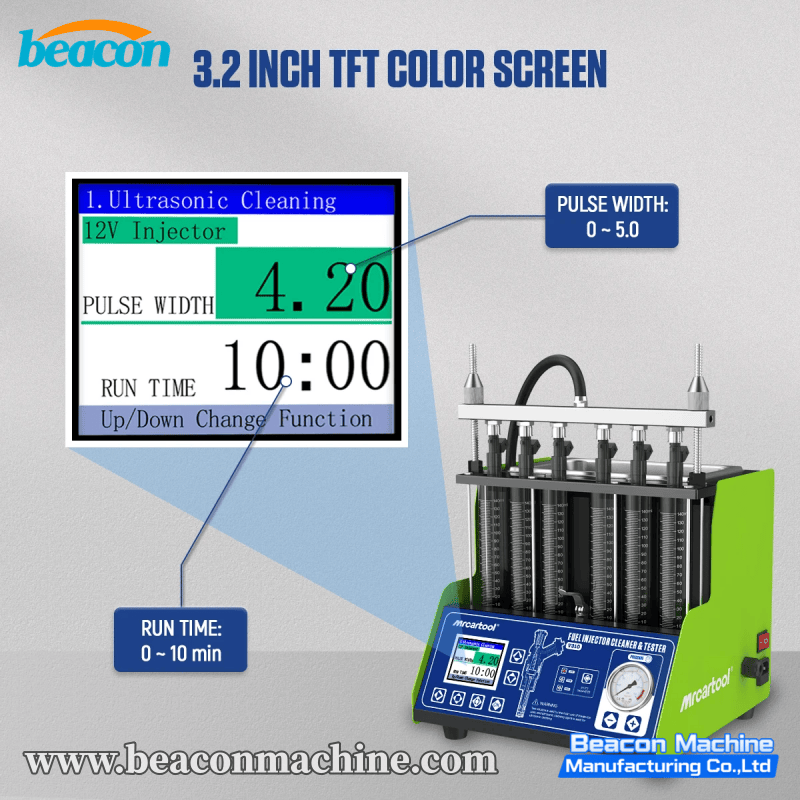

Display TypeLarge LCD Screen
Dimensions340 × 295 × 360 mm
