Professional EUI/EUP Cambox Testing System: The Complete Guide to EU-Combox

Electronic Unit Injectors (EUI) and Electronic Unit Pumps (EUP) are widely used in heavy-duty commercial vehicles, construction machinery, marine engines, and agricultural equipment. To test and calibrate these mechanically driven electronic injectors on a standard fuel injection test bench, a high-precision Cambox system is essential.

The EU-Combox EUI/EUP Cambox System offers a complete, modular solution designed to simulate actual engine camshaft stroke and actuation, allowing technicians to test fuel delivery, response time (BIP), and pressure performance accurately.

What is an EUI/EUP Cambox?

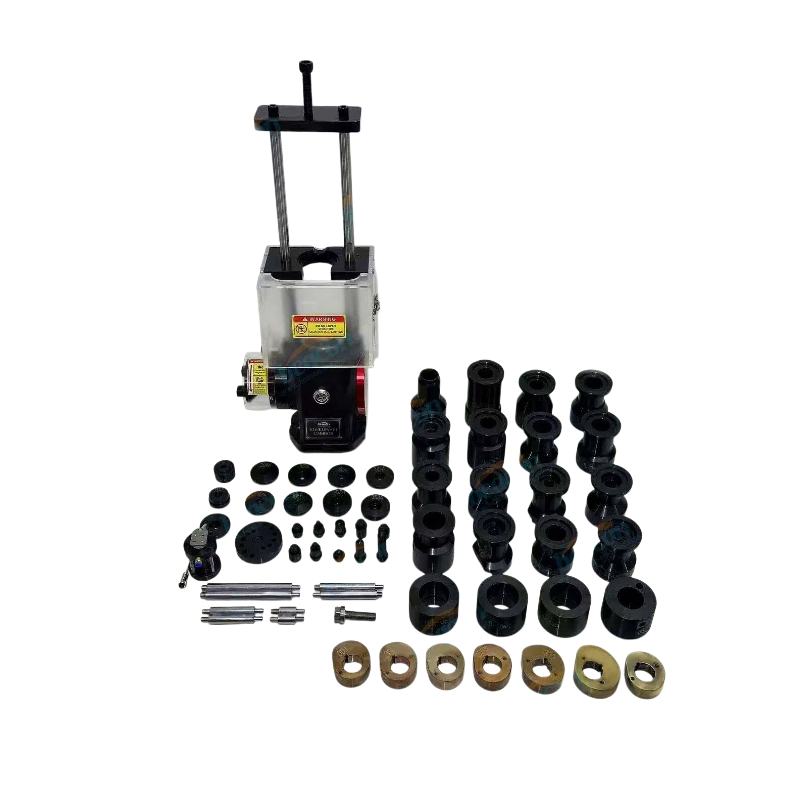

A Cambox is a mechanical mounting fixture installed on a fuel injection test bench. It converts the rotary motion of the test bench drive motor into precise vertical reciprocating movement using interchangeable cams, pushrods, and collectors. This simulates the engine rocker arm pushing the EUI or EUP plunger.

Core Features & Advantages of the EU-Combox

1. Heavy-Duty & Safe Construction
   Equipped with high-rigidity steel guide shafts, a solid mounting frame, and a transparent protective safety cover to ensure clean and safe operation during high-speed stroke testing.

2. Broad OEM Compatibility
   Supports leading global brands including Caterpillar, Cummins, Bosch, Mercedes-Benz, Delphi, Scania, Iveco, Volvo, Detroit Diesel, and VW.

3. BIP (Response Time) Sensor Integration
   Includes dedicated response time sensors (P/N 1041) to measure the precise solenoid valve closure time, critical for modern diesel emissions compliance.

4. Modular & Expandable Design
   In addition to standard EUI/EUP setups, optional expansion packages allow testing for Cummins HPI, VW PD/PPD, Land Rover TD5, and Cummins PT injectors.

Comprehensive Component & Adapter Overview

Standard EUI Adapters

• Caterpillar Series: 3512B (301C), C12 (303C), C13 / C15 / C18 (304C)

• Cummins Series: M11 / N14 (302C)

• Scania Series: 305C EUI Adapter

• Bosch & Iveco Series: Bosch DDC N3 (308C), Iveco 8 (310C), Bosch Iveco 10/13 (311C)

• Delphi Series: Delphi A / E1 / E3 (309C)

Standard EUP Adapters

• Bosch Mercedes-Benz: Benz ACTROS (306C), Benz ATEGO (307C)

• Bosch Liebherr: 312C EUP Adapter

• Delphi DAF: 313C EUP Adapter

Standard Precision Cams & Accessories

• Interchangeable Cams: 001, 004, 006, 007, M11 cams for specific lift profiles.

• Support Hardware: Steady assembly (1100), steady screws (1101), transition blocks (1030), support rods (1031), collectors (301A–306A), pushrods (301B–311B), and cam removal tool (5101).

Optional Expansion Packages

To suit various workshop needs, the EU-Combox system offers dedicated optional add-on sets:

1. Cummins HPI (X15 / Q60) Kit:
   Includes HPI Cam, 314C (Q60 Adapter), 315C (X15 Adapter), and dedicated 307A/308A collectors.

2. VW PD / PDB / PPD & Land Rover Kit:
   Supports Bosch VW PD (317C), Bosch VW PDB (318C), Siemens VW PPD Piezo (320C), Land Rover TD5 (321C), and VW Cam (4010).

3. Detroit DD60 N2 & Bosch Nissan Kit:
   Includes Bosch Nissan EUI adapter (316C), Detroit DD60 N2 adapter (319C), and matching collectors.

4. Cummins PT Injector Kit:
   Includes PT EUI Adapters (331C–334C) and full profile cams (031–037 with lifts ranging from 169 to 426).

6. Application Scenarios & FAQ

Application Scenarios

1. Commercial Fleet Repair Shops
   Ideal for servicing heavy-duty trucks powered by Mercedes-Benz ACTROS/ATEGO, Scania, Iveco, and DAF engines.

2. Construction & Earthmoving Machinery Service Centers
   Essential for recalibrating Caterpillar (C12, C13, C15, C18, 3512B) and Liebherr excavator/generator fuel systems.

3. Diesel Fuel Injection Specialist Remanufacturers
   Provides high-repeatability testing environments for high-volume rebuilding of Delphi, Bosch, and Cummins unit injectors.

4. Passenger Car & Light Commercial Repair (VW / Land Rover)
   Enables specialized diagnosis of VW TDI Unit Injectors (PD/PPD) and Land Rover Defender/Discovery TD5 engines.

FAQ (Frequently Asked Questions)

Q1: What is the difference between EUI and EUP?

• EUI (Electronic Unit Injector): Combines the high-pressure pump mechanism and fuel injection nozzle into a single integrated unit mounted in the engine cylinder head.

• EUP (Electronic Unit Pump): The high-pressure pump unit is separate from the nozzle and connected via a short high-pressure steel pipe.

Q2: Can the EU-Combox Cambox be installed on my existing diesel test bench?
Yes. The EU-Combox Cambox is designed with universal mounting dimensions and height adjustments, making it compatible with most standard diesel fuel injection test benches on the market.

Q3: Does this Cambox system support BIP (Solenoid Response Time) testing?
Yes. The system includes a dedicated response time sensor (P/N 1041) and signal interface, allowing your test bench software to measure the exact opening and closing delays of the injector solenoid valve.

Q4: Do I need to buy all optional kits at once?
No. You can start with the standard EU-Combox kit and purchase optional packages (such as Cummins HPI, VW PD, or PT Injectors) whenever your workshop business expands to those engine types.

Q5: How do I select the correct Cam and Pushrod for a specific injector model?
Each injector family corresponds to a specific combination of adapter code, collector model, pushrod length, and cam profile listed in the operation manual catalog. Technician training and detailed matching charts are provided with the product.
