GS-1750 Cylinder Head And Block Pressure Tester High Efficiency Engine Leak Detector

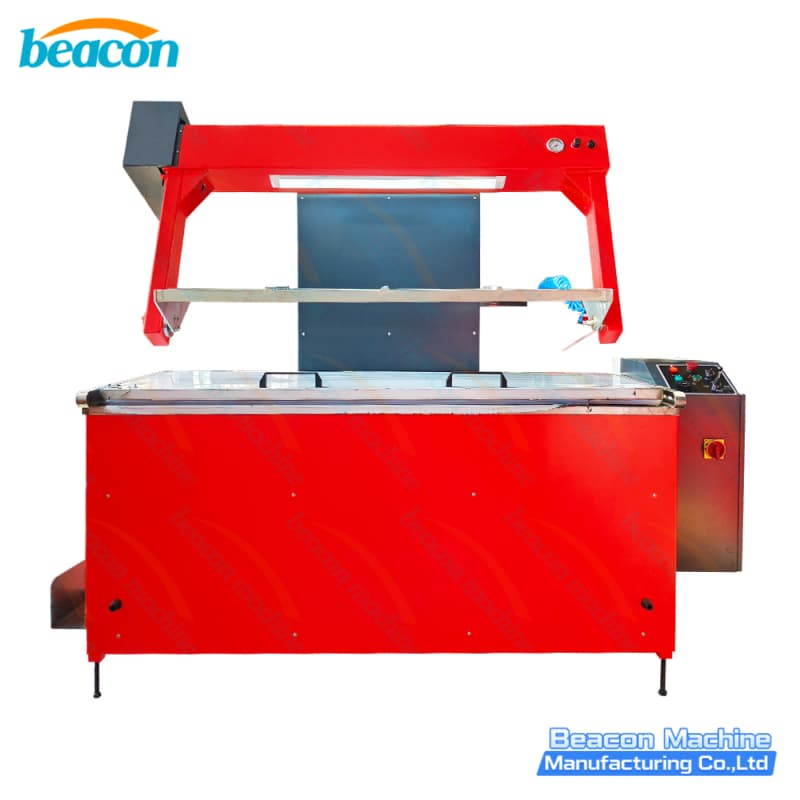

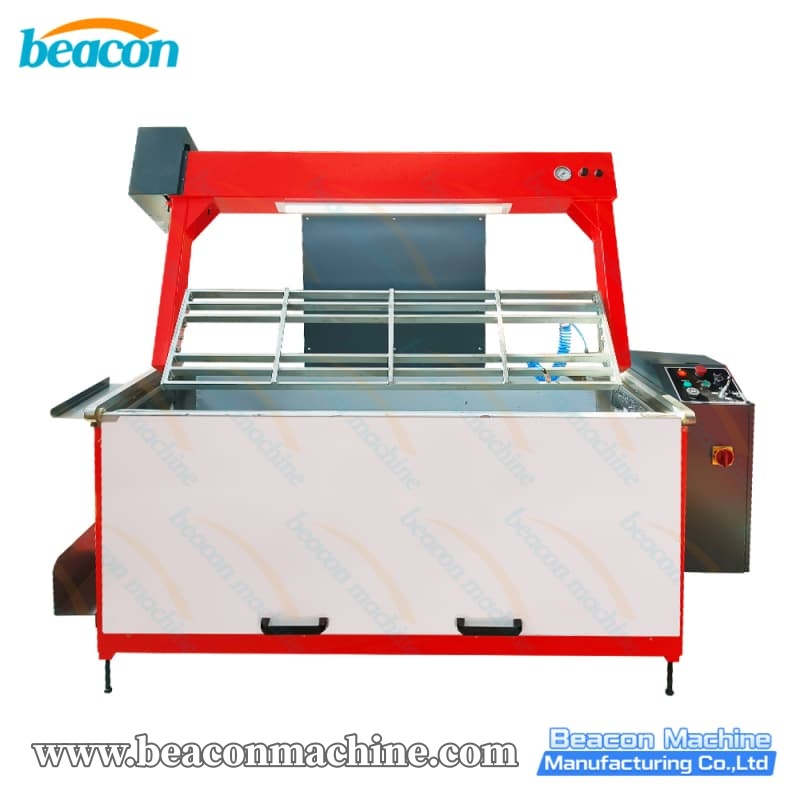

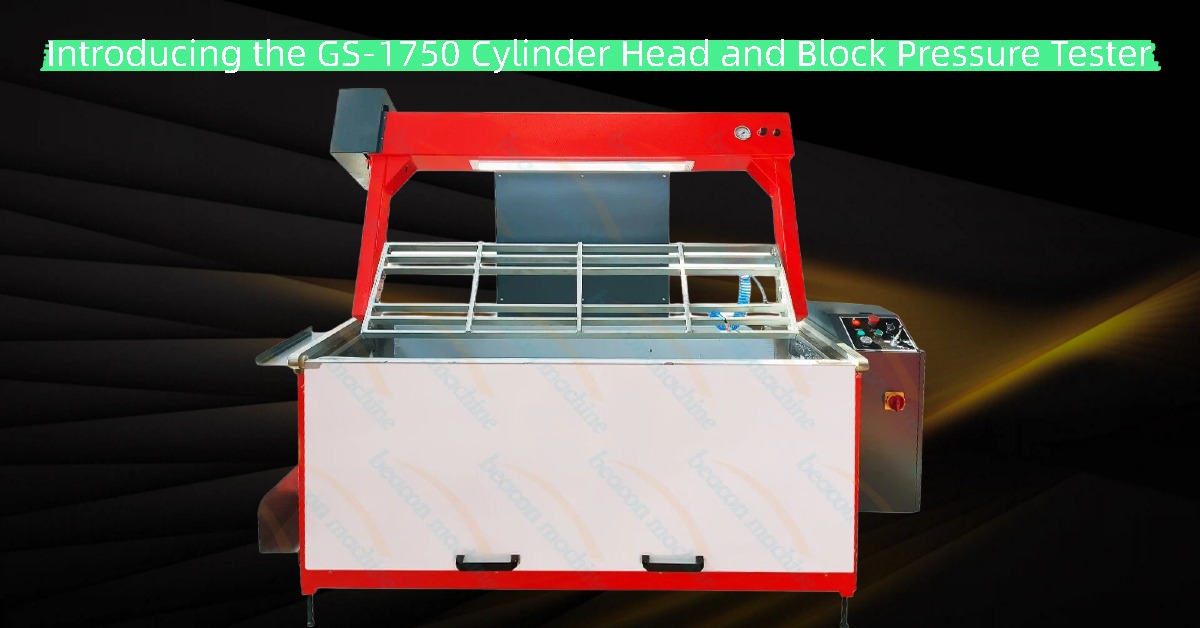

Precision and Efficiency: Introducing the GS-1750 Cylinder Head and Block Pressure Tester

In the field of engine maintenance and remanufacturing, detecting leaks in cylinder heads and blocks is a critical step. Beacon Machine Manufacturing Co., Ltd. is proud to present the GS-1750 Cylinder Head And Block Pressure Tester, a high-efficiency detection equipment designed to integrate pneumatic, electrical, and hydraulic systems for superior performance.

Key Features of GS-1750

1. Real-World Simulation: The GS-1750 is capable of simulating the actual engine temperature of a vehicle in a driving state. This allows mechanics to identify leaks that may only appear under thermal expansion, ensuring a comprehensive diagnosis.

2. Infinite Flip Bracket: Equipped with an advanced infinite flip bracket, the machine allows the workpiece to be rotated. This 360-degree accessibility helps operators accurately find defects in every corner of the cylinder head and cylinder block.

3. High-Power Heating: With two 5.5KW heating elements and a thermostat range of 0-92°C, the water tank reaches operating temperature quickly and maintains it efficiently.

4. Robust Construction: As seen in the detailed components, the machine features a heavy-duty gear motor (0.37KW) and a powerful pump motor (0.75KW), ensuring reliability and longevity.


Technical Specifications

Below are the detailed parameters for the GS-1750 model:

• Model: GS-1750

• Power Supply: 3x380V-AC-50Hz

• Heating Elements: 5.5 KW x 2

• Thermostat Range: 0-92°C

• Rotational Speed: 4.5 Tr/min

• Gear-motor Power: 0.37 KW

• Pump-motor Power: 0.75 KW

Capacities & Dimensions:

• Max Head Capacities:

• Length: 415 mm (16.3 inch)

• Width: 465 mm (18.3 inch)

• Height: 1450 mm (57 inch)

• Machine Space Requirements:

• Length: 2300 mm (90.5 inch)

• Width: 1200 mm (47.2 inch)

• Height: 1850 mm (72.8 inch)

• Net Weight: Approx. 650 kg (1433 lbs)

Accessories
The GS-1750 comes complete with a full set of accessories, including heavy-duty clamps, bolts, and mounting hardware, ensuring you can secure various sizes of cylinder heads and blocks immediately upon setup.

For more information, please visit our official websites at www.beaconmachine.com

6. Application Scenarios & FAQ

Application Scenarios

• Automotive Engine Rebuilding Shops: Essential for validating the integrity of cylinder heads before and after machining.

• Heavy Duty Truck Maintenance: Suitable for larger engine blocks due to its robust size and weight capacity.

• Quality Control in Manufacturing: Used for final testing of casted engine parts to ensure no porosity or casting defects.

• Vocational Training Centers: Ideal for teaching students the proper procedures for hydrostatic pressure testing and leak detection.

FAQ

Q1: How does the GS-1750 detect leaks?
A: It seals the cylinder head or block and pressurizes it while submerged in hot water (simulating engine temperature). Bubbles escaping from the metal indicate the exact location of a crack or defect.

Q2: What is the maximum temperature the water tank can reach?
A: The machine is equipped with a thermostat that controls the temperature between 0 and 92°C, allowing for accurate thermal stress simulation.

Q3: Does the machine allow for rotation of the engine block?
A: Yes, it is equipped with an "infinite flip bracket" and a rotational system (speed 4.5 Tr/min) that allows you to rotate the workpiece to inspect it from all angles while submerged.

Q4: What is the power requirement for this machine?
A: The GS-1750 requires a 3x380V-AC-50Hz power supply to operate the heating elements and motors efficiently.

Q5: What is the total heating power?
A: The machine utilizes two heating elements, each rated at 5.5KW, providing rapid heating for the water tank.
