Maximize Your Workshop Capabilities with the CR707 Common Rail Injector & Pump Test Bench

Maximize Your Workshop Capabilities with the CR707 Common Rail Injector & Pump Test Bench

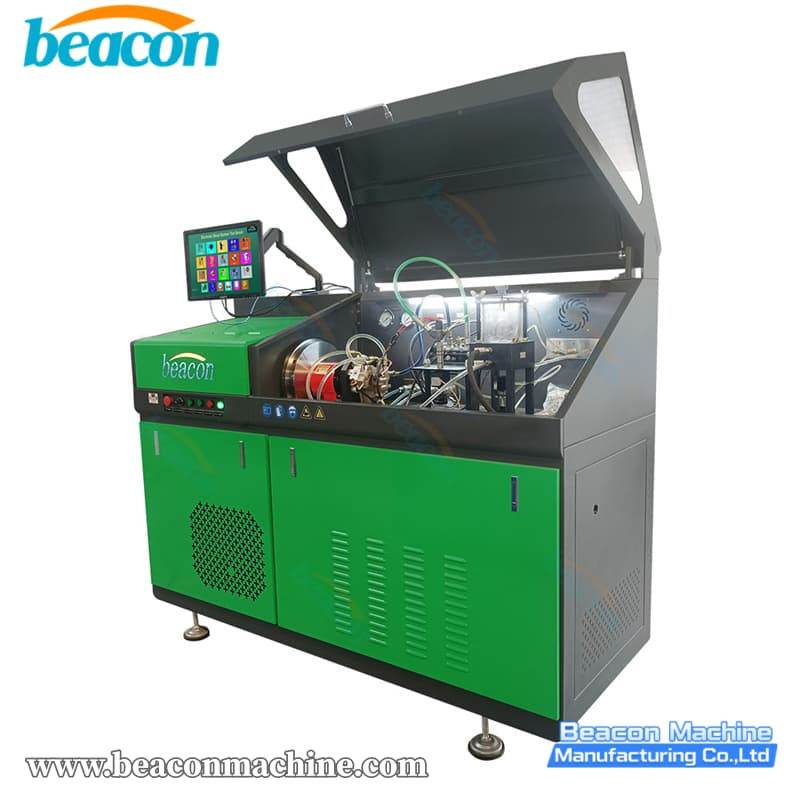

For diesel repair professionals seeking a highly versatile and upgradeable diagnostic solution, the CR707 Common Rail Injector Pump Test Bench by Beacon Machine is an exceptional choice. Designed to handle both standard common rail components and complex specialized systems, the CR707 is built to scale with your business needs.

Comprehensive Standard Functions

Out of the box, the base model (equipped with an 11kw 380v 3-phase motor) provides robust testing capabilities that cover the majority of daily workshop tasks:

• Broad Compatibility: Tests standard common rail injectors, advanced piezo injectors, and common rail pumps.

• Specialized Pump Testing: Includes standard testing functions for the Denso HP0 pump.

• Injector Coding: Capable of generating codes for major brands including Delphi, Bosch, Denso, and Siemens.

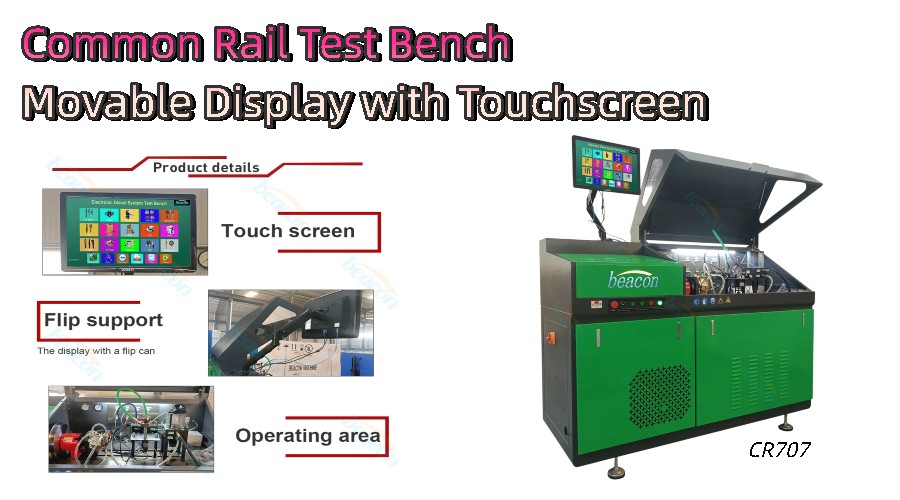

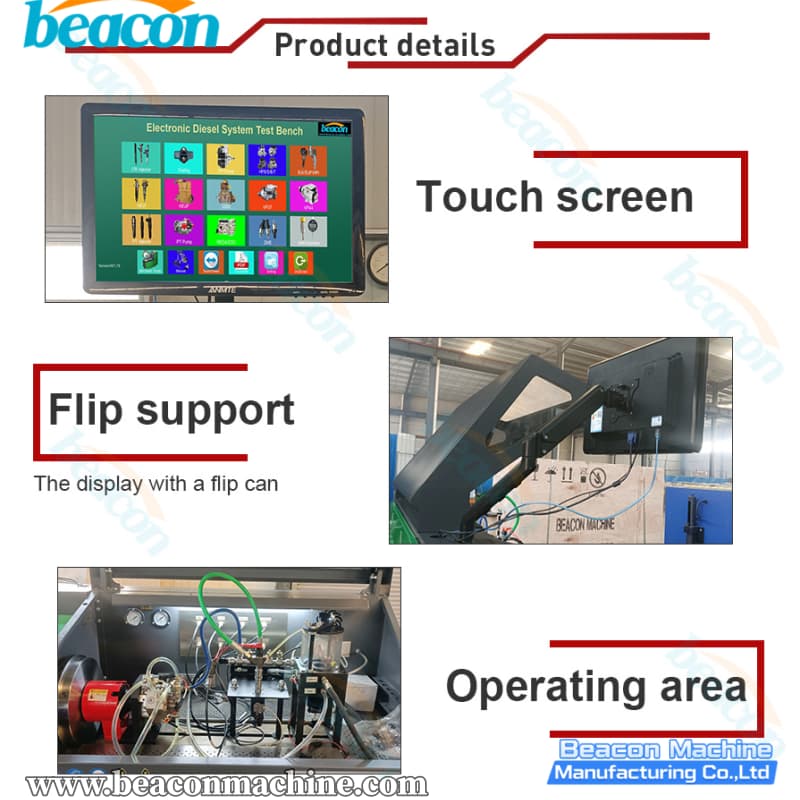

• Ergonomic Design: Features a highly adjustable touch screen that can be moved up, down, left, right, front, and back for optimal user comfort.

Ultimate Scalability: Optional Functions

What sets the CR707 apart is its extensive list of optional upgrades, allowing you to customize the bench for heavy-duty or specialized testing:

• EUI/EUP Testing: Options include 10 or 23 adapters, and EUI/EUP testing with a gear scale cam box.

• HEUI Testing: Configurable with a single oil circuit (split holder) or an oil + diesel dual circuit (one-piece holder), plus support for FORD 6.0 and Cat 3408 injectors.

• Increased Efficiency: Upgrade to test 2 or 4 injectors simultaneously, drastically reducing testing time.

• Advanced Diagnostics: Add BIP function, Delphi E3 double pulse control, ZME test measurement unit, or AHE injector dynamic stroke measurement (equipped with Bosch 110/120 measuring tool and dial indicator).

• Heavy Duty Pumps: Add capabilities to test Cat 320D, HEUI actuation pumps, and CP4 pumps.


Key Technical Parameters

• Motor Power Options: 11KW (Standard), 15KW, 18.5KW, 22KW (Optional)

• Main Motor Speed: 0-4000 r/min (adjustable)

• Fuel Pressure Control: 0 - 2400 bar (Control accuracy: 1 bar)

• Electronic Power: 380v / 220v (3 phase) or 220v (single phase)

• Machine Dimensions: 1.9m * 0.78m * 1.56m

• Weight: 770 KG (Contains cam box)

Whether you are servicing passenger vehicles, commercial trucks, or heavy construction equipment, the CR707 test bench delivers the precise pressure control (up to 2400bar) and comprehensive test range required to ensure diesel systems perform flawlessly.

6. Application Scenarios & FAQ

Application Scenarios

• Comprehensive Diesel Repair Centers: Perfect for workshops that need an all-in-one machine to handle everything from standard Bosch common rail injectors to specialized Caterpillar HEUI systems.

• Diesel Injector Remanufacturing: Essential for factories rebuilding injectors that require accurate testing and the generation of new compensation codes (Bosch, Delphi, Denso, Siemens) before resale.

• High-Volume Fleet Maintenance: By upgrading to the "Test 4 injectors simultaneously" optional function, large fleet operators can rapidly diagnose and service multiple truck injectors, minimizing vehicle downtime.

FAQ

Q1: What injector codes can the standard CR707 model generate?
A: The standard version of the CR707 is equipped to perform injector coding for major brands including Delphi, Bosch, Denso, and Siemens.

Q2: Can I upgrade the machine to test HEUI or EUI/EUP systems later?
A: Yes, the CR707 is highly modular. You can add optional functions such as EUI/EUP cam box adapters or HEUI testing kits (with dual oil circuits) based on your workshop's growing needs.

Q3: What are the electrical requirements to run the CR707?
A: The machine is flexible and can be manufactured to suit your local power supply. It supports 380v (3-phase), 220v (3-phase), and even 220v (single phase). Motor power can also be selected from 11kw up to 22kw.

Q4: Can the CR707 test multiple injectors at once to save time?
A: Standard testing is done one by one, but you can choose optional upgrades that allow the bench to test either 2 or 4 common rail injectors simultaneously, greatly increasing your testing efficiency.

Q5: Does this machine test the CP4 pump?
A: Testing the Bosch CP4 pump is available as an optional function. You can specify this requirement when ordering the machine so the necessary hardware and software are included.
