Ultimate Guide to the CR618 Common Rail Test Bench for Diesel Injection Systems

Ultimate Guide to the CR618 Common Rail Test Bench for Diesel Injection Systems

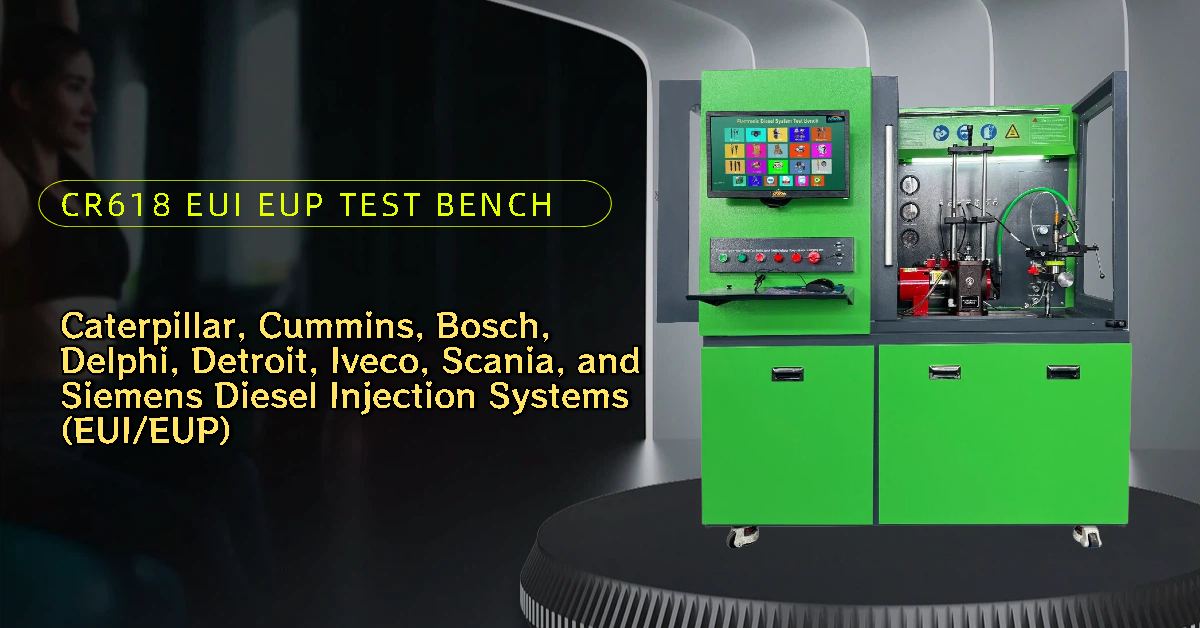

In the modern diesel repair industry, precision and wide-ranging compatibility are everything. The CR618 Common Rail Test Bench, manufactured by Beacon Machine Manufacturing Co., Ltd., is an advanced piece of equipment designed to imitate the working conditions of a diesel engine ECU (Engine Control Unit). By providing accurate control signals, it perfectly drives and tests high-pressure common-rail fuel pumps and injectors.

Comprehensive Testing Capabilities

The CR618 is not just a standard tester; it is an integrated automatic machine capable of testing thousands of EFI injectors and fuel pumps.

• Supported Brands: Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, and more.

• Supported Types: Solenoid valve type and piezoelectric crystal type injectors.

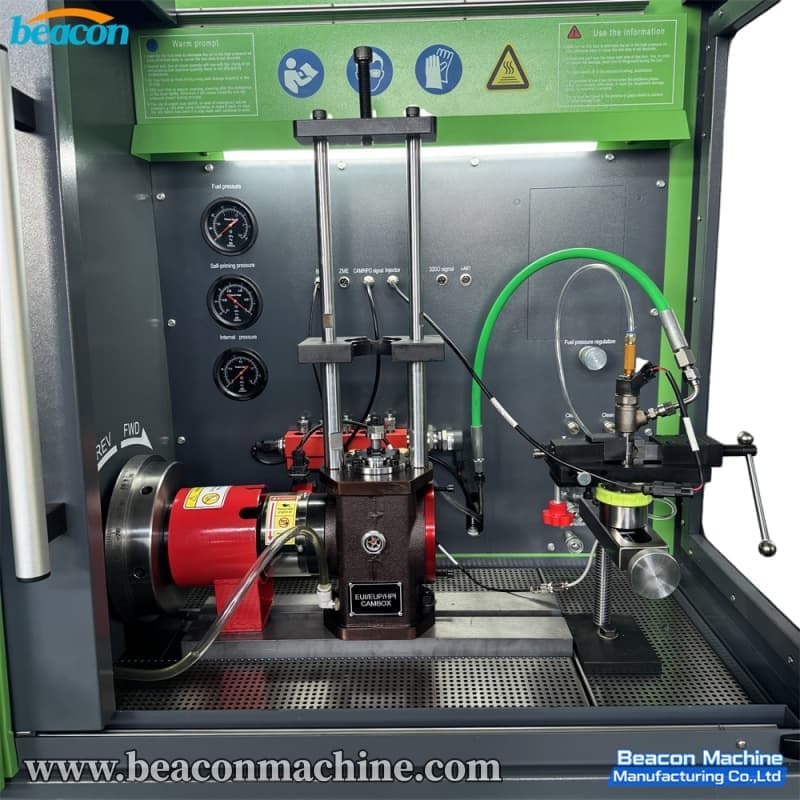

• Optional Expansions: Test EUI/EUP, HEUI medium pressure injectors, actuation pumps, Caterpillar 320D pumps, and various rotary pumps.


Key Features of the CR618 Test Bench

1. Fully Automatic Operation: One-key operation handles test bench speed, fuel rail pressure adjustments, flow measurement, and report analysis automatically.

2. Advanced Diagnostics: It can test injection response time, injector resistance, and inductance.

3. Compensation Codes: Capable of generating various types of injector compensation codes.

4. Open Database & Upgrades: The test standard data matches original factory data. The database is fully open (allowing users to add new part numbers), and the network supports automatic updates to keep functions up-to-date.

5. High Pressure Capacity: The system can reach a maximum pressure of 2400 bar during common rail injector testing.

Technical Specifications

• Nominal Power of Main Engine: 11 kW

• Overall Size: 150 * 110 * 180 cm

• Weight: 750 KG

• Operating Temperature: -10～50℃ (14～122°F)

Whether you are diagnosing complex fuel delivery issues or calibrating remanufactured injectors, the CR618 provides the original factory-standard accuracy required for top-tier diesel maintenance.

6. Application Scenarios & FAQ

Application Scenarios

• Professional Diesel Repair Shops: Essential for diagnosing and fixing faulty common rail injectors and high-pressure pumps.

• Diesel Component Remanufacturing: Used to calibrate rebuilt injectors (Bosch, Denso, Delphi) and generate new compensation codes before selling them to the market.

• Heavy Machinery Fleet Maintenance: Ideal for maintaining fleets of excavators, trucks, and agricultural machinery that utilize Caterpillar, Cummins, or similar electronic fuel injection systems.

FAQ

Q1: What brands of injectors can the CR618 test?
A: The CR618 supports a massive database of injectors including Bosch, Delphi, Denso, Siemens, Caterpillar, and Cummins. It handles both standard solenoid and advanced piezoelectric injectors.

Q2: Can I test EUI/EUP or HEUI systems with this bench?
A: Yes, EUI/EUP testing, HEUI testing, and tests for older rotary pumps (like VP44 and VP37) are available as optional functions that can be integrated into the CR618.

Q3: Can I add new injector data if a part number is missing?
A: Absolutely. The software features a fully open database. You can manually input and edit the specific parameters for new working conditions, or rely on the automatic network upgrades provided by Beacon Machine.

Q4: Is the equipment safe for high-pressure testing?
A: The CR618 can reach a maximum testing pressure of 2400 bar. For safety, the protective door of the operating room must be closed during testing. The machine is also equipped with emergency stops and precision controllers.

Q5: What are the installation requirements?
A: The machine weighs 750KG and requires an 11kW power supply. It must use an independent dedicated socket with reliable grounding. If your local power supply is unstable, it is highly recommended to use a power supply voltage regulator to protect the precision electronic instruments inside.
