Master VDO Injector Repair: A Deep Dive into the Siemens Piezo Full-Functional Tester

If you are in the diesel injection repair business, you know that Siemens VDO piezoelectric injectors are among the most difficult to diagnose and repair. Unlike solenoid injectors, piezo crystals are extremely sensitive to voltage, temperature, and assembly precision.

A standard multimeter isn't enough. You need a tool that can simulate engine working conditions and measure the microscopic movements of the piezo crystal.

Enter the Siemens Piezo Full-Functional Tester (Model: CRI350). This comprehensive device is designed to test Bosch, Denso, and Siemens VDO injectors, ensuring they meet Euro 4, Euro 5, and Euro 6 emission standards.

Here is why this tester is a "must-have" for your workshop.

1. Comprehensive Health Check for Piezo Crystals

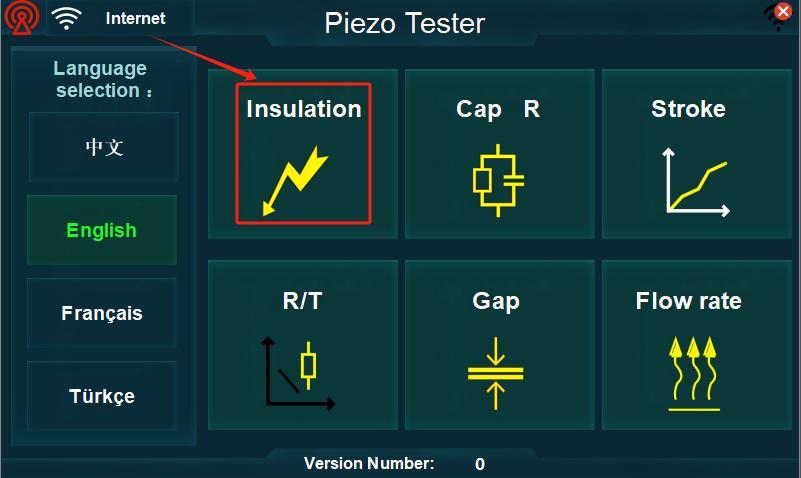

The core of a piezo injector is the crystal stack. If this fails, the injector fails. This tester provides three critical electrical tests:

• Insulation Test (40V-1000V): It checks if the injector is leaking electricity to the shell. The device automatically detects short circuits (displayed in red) to prevent burning out your vehicle's driver ECU.

• Capacitance & Resistance: It measures the capacitance (μF) and resistance (kΩ) under load.

• Bosch: 0.5-1.5μF

• Denso: 0.5-3.0μF

• Siemens: 0.8-2.8μF

• R/T Test (Resistance over Time): A unique feature that monitors the stability of the piezo crystal resistance over a period of time. It helps you identify intermittent failures that only happen when the injector warms up.

2. The "Stroke Test": Precision with Bluetooth Technology

Repairing Siemens VDO injectors often involves replacing the internal components. But how do you know if the needle lift is correct?

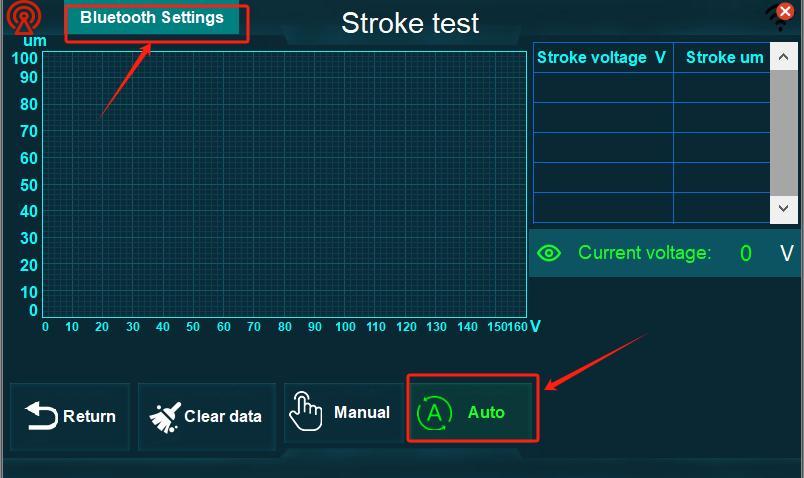

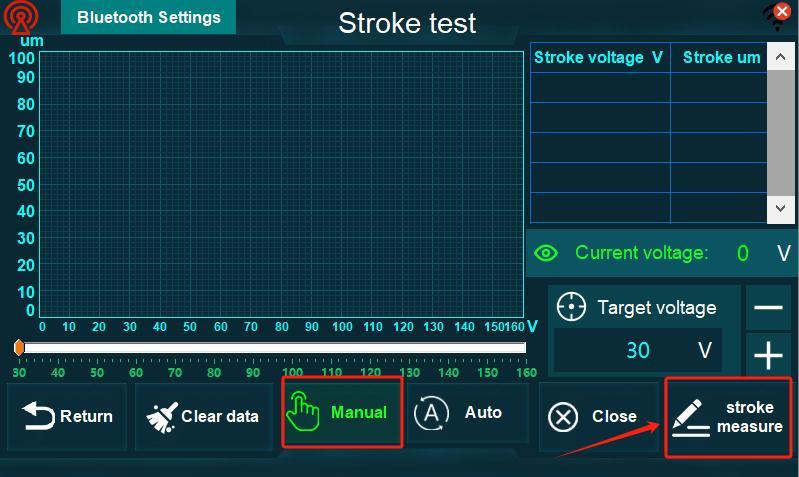

This tester features a specialized Stroke Test mode specifically for Siemens VDO injectors.

• How it works: It uses a high-precision Bluetooth Micrometer (included in the kit) to measure the elongation of the piezoelectric ceramic core in real-time.

• Dynamic Curve: The screen displays a characteristic curve of Driving Voltage vs. Elongation. A smooth rising curve means a healthy injector; a jumpy curve indicates poor linearity and unstable fuel output.

3. Gap and Flow Testing for Perfect Calibration

Mechanical assembly is just as important as electrical health.

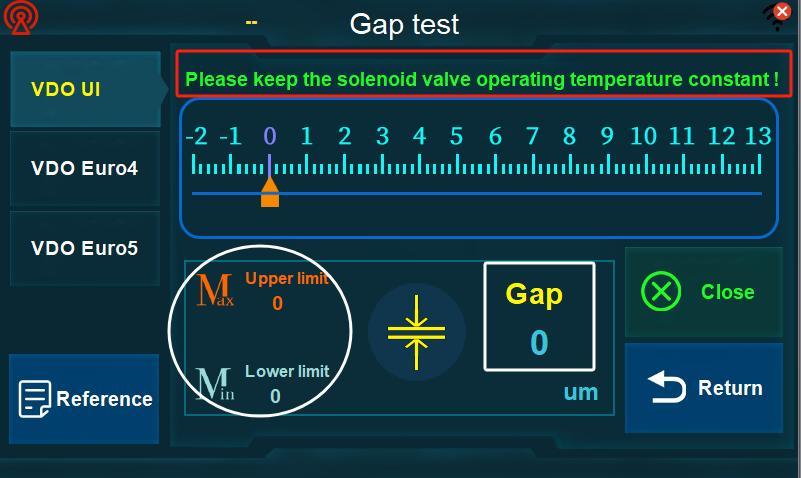

• Gap Test: Measures the air clearance between the piezo ceramic and the iron core. The system guides you to adjust the clamping nut to the perfect "Green Zone" target. Note: The device helps you avoid over-tightening, which causes irreversible damage.

• Flow Test: Using a built-in air pump (53V working voltage, 5Bar pressure), it simulates the engine running state. A float flowmeter visualizes the return air value, allowing you to verify flow performance without putting it on a full test bench.





4. Compact and Easy to Use

Despite its advanced features, the Siemens Piezo Tester is designed for convenience:

• Size: Compact footprint (22cm x 16cm x 28cm), fitting easily on any workbench.

• Interface: Large touch screen with clear "Pass/Fail" color indicators (Green for OK, Red for Fail).

• Universal Support: Comes with drive harnesses for Bosch, Denso, and Siemens, plus a universal harness.
