Welcome to the future of precise automotive diagnostics. Whether you are running a professional diesel repair shop or an automotive diagnostic center, the iGAP-200 GAPMASTER Injector Diagnostic Tool manufactured by Beacon Machine is designed to elevate your testing accuracy and operational efficiency.

Here is everything you need to know about this advanced piezo injector tester.

🌟 Key Product Features

The iGAP-200 is engineered to provide comprehensive and thorough testing with an extremely user-friendly experience:

1. Intelligent Integrated Design: Features a compact structure that handles data recording, report generation, and firmware upgrades natively—no external control components required.

2. 7-inch HD Touchscreen: The high-definition touch display offers sensitive controls, making parameter adjustment and mode switching intuitive for users of all levels.

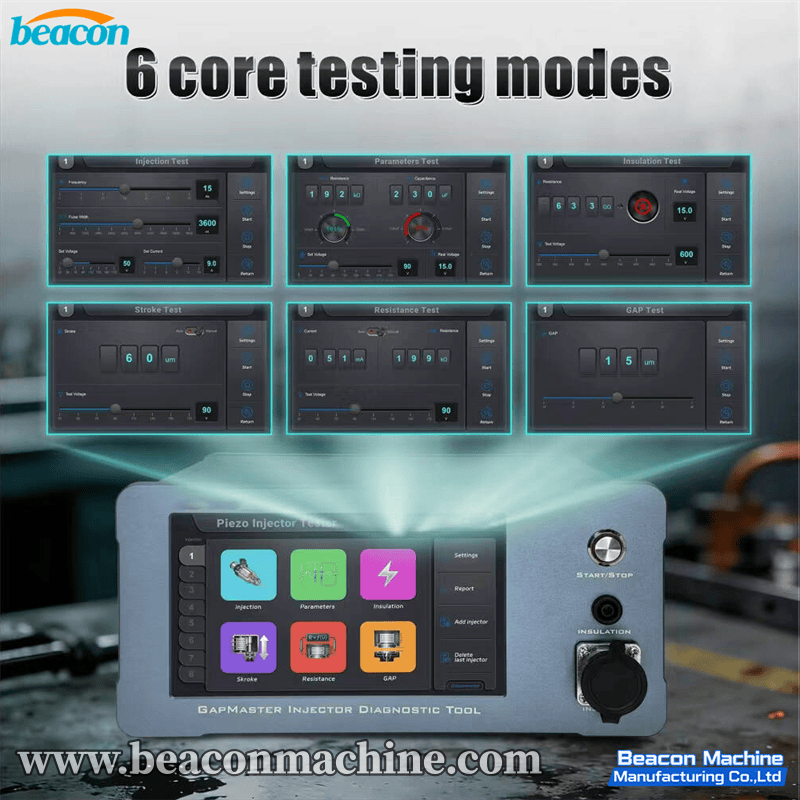

3. 6 Core Test Modes: Provides comprehensive testing including oil injection drive, static parameters, insulation, dynamic stroke, dynamic resistance/load, and gap.

4. Global Voltage Adaptability: Supports an AC 100V~240V wide voltage input, ensuring strong versatility for global markets.

5. High-Precision Electronic Measurement: Ensures accurate and reliable detection with clear qualification criteria and intuitive indicator methods, making it friendly even for beginners.

6. Safety & Quick Control: Equipped with clear status indicator lights and a physical Start/Stop button to quickly halt tests in an emergency.

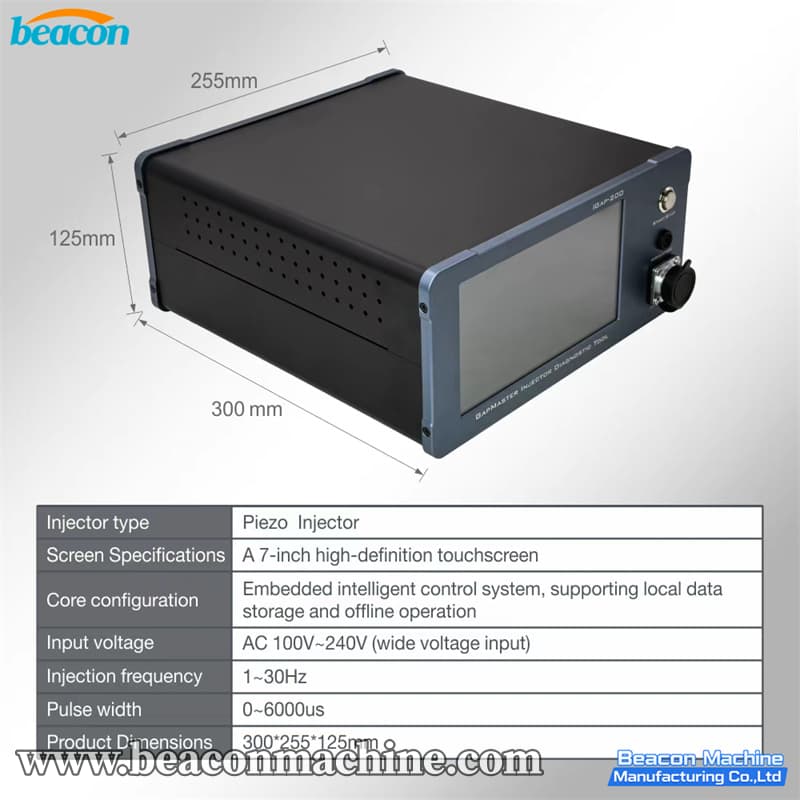

📊 Technical Specifications

Designed to handle demanding diagnostic tasks, the iGAP-200 boasts the following specifications:

• Product Model: iGAP-200 GAPMASTER

• Injector Type: Piezo Injector

• Screen Specifications: 7-inch high-definition touchscreen

• Core Configuration: Embedded intelligent control system (supports local data storage & offline operation)

• Input Voltage: AC 100V~240V (Wide voltage input)

• Injection Frequency: 1~30Hz

• Pulse Width: 0~6000us

• Product Dimensions: 300mm x 255mm x 125mm

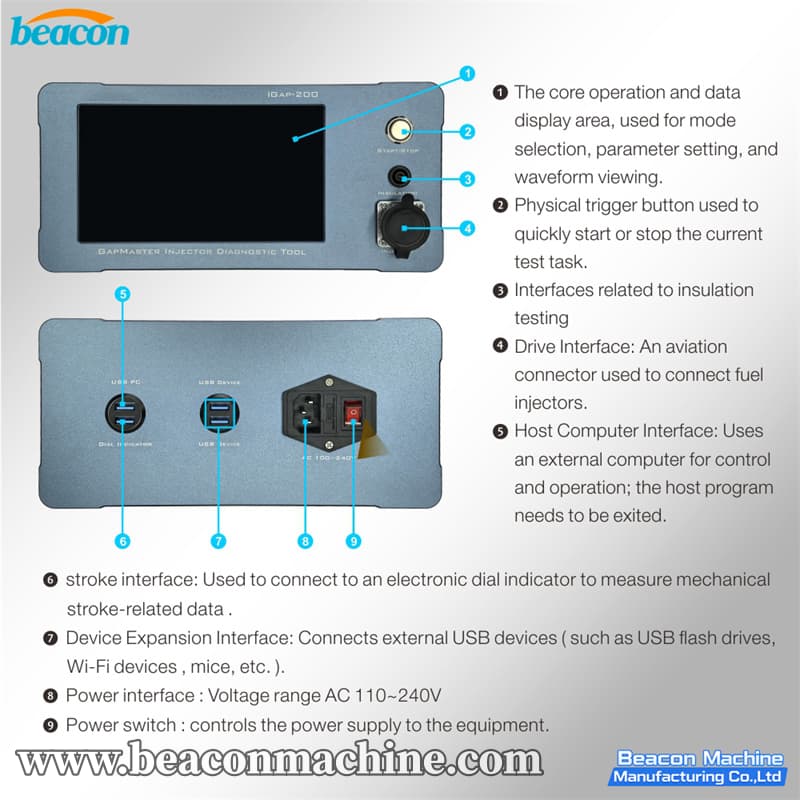

🔌 Comprehensive Interface Design

The tool is designed with highly functional front and rear panels to support various diagnostic needs:

• Front Panel: Features the core operation screen, a physical Start/Stop button, an Insulation testing interface, and an Aviation connector (Drive Interface) for fuel injectors.

• Rear Panel: Includes a Host Computer Interface (USB PC), a Stroke Interface (for electronic dial indicators to measure mechanical stroke), Device Expansion USB ports (for flash drives, Wi-Fi, mouse), and the main power supply/switch.


6.Application Scenarios & FAQ

🏭 Application Scenarios

The iGAP-200 Piezo Injector Diagnostic Tool is highly versatile and ideal for:

• Diesel Fuel Injection Repair Shops: For diagnosing and rebuilding faulty piezo injectors.

• Automotive Maintenance Centers: To perform quick troubleshooting and verification of fuel system issues.

• Automotive Vocational Schools: As a reliable teaching aid for students learning about modern diesel engine systems.

• R&D and Quality Control Labs: For testing injector performance metrics like dynamic stroke and resistance.

Frequently Asked Questions (FAQ)

Q1: Can I use the iGAP-200 offline without a computer?
A: Yes! The iGAP-200 features an embedded intelligent control system that fully supports local data storage and offline operation via its 7-inch touchscreen.

Q2: What types of injectors is this device compatible with?
A: The iGAP-200 is specifically designed for testing and diagnosing Piezo Injectors.

Q3: Can I connect external devices like a mouse or a USB drive?
A: Absolutely. The rear panel is equipped with a Device Expansion Interface (USB ports) allowing you to connect USB flash drives, Wi-Fi dongles, or a computer mouse for easier navigation.

Q4: Will this machine work with the power grid in my country?
A: Yes, the iGAP-200 supports a wide voltage input of AC 100V~240V, making it plug-and-play in almost every country around the world.

Q5: How do I test the mechanical stroke of the injector?
A: You can connect an electronic dial indicator directly to the dedicated "Stroke Interface" on the rear panel of the machine to accurately measure mechanical stroke-related data.
