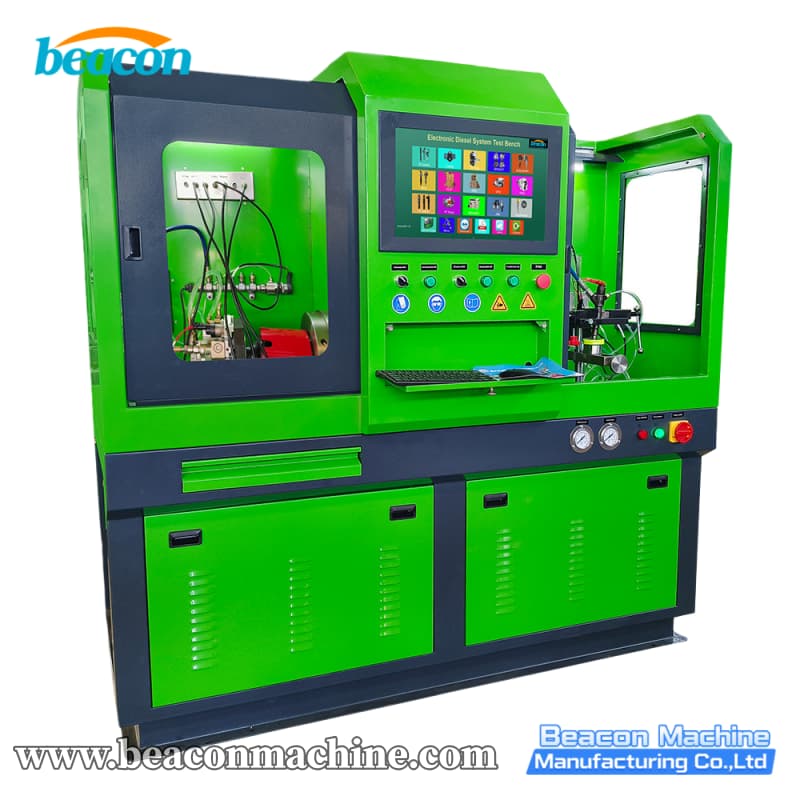

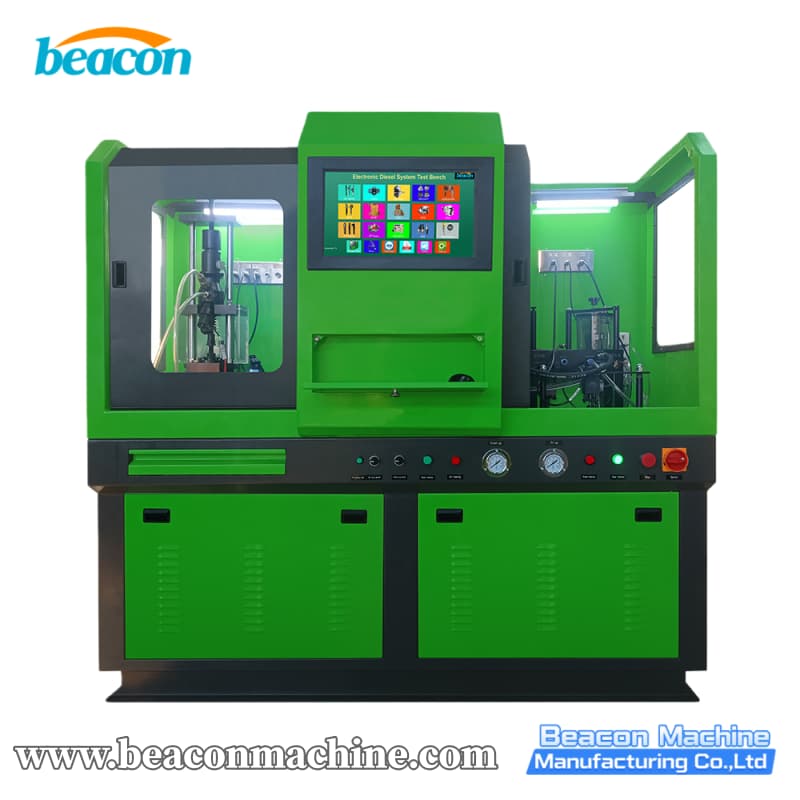

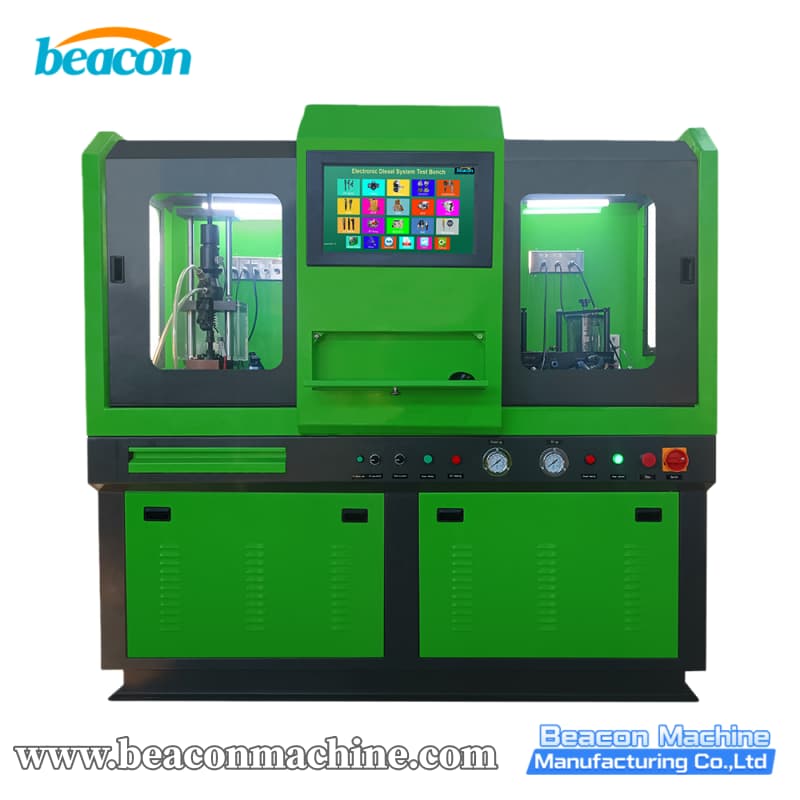

CR1016 Diesel Common Rail Test Bench
Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.
Details
CR1016 is a professional diesel common rail test bench developed for higher workload workshops.
It supports injector testing, pump testing, HEUI systems and injector coding across multiple brands.
The 11KW motor ensures stable pressure output and continuous operation.
| Function Item | Support |
|---|---|
| Common Rail Injector Test | Yes |
| Piezo Injector Test | Yes |
| Common Rail Pump Test | Yes |
| Denso HP0 Pump Test | Yes |
| HEUI CAT C7 / C9 / 3126B Test | Yes |
| Bosch / Denso / Siemens / Delphi Coding | Yes |
| EUI / EUP Test with TU-C CAMBOX | Yes |
| Optional Test System | Availability |
|---|---|
| 2 / 4 / 6 Injectors Test | Optional |
| HEUI CAT 3126A | Optional |
| HEUI CAT 3412E | Optional |
| HEUI Navistar | Optional |
| HEUI Isuzu | Optional |
| HEUI Ford G2.8 / 6.0 | Optional |
| HEUI Ford G2.9 | Optional |
| CAT C7 / C9 Pump Test | Optional |
| CP4 Pump Test System | Optional |
| Cummins PT Injector / Pump | Optional |
| Cummins HPI Q60 X15 Injector | Optional |
| AHE Injector Dynamic Stroke | Optional |
| SCV / ZME Test | Optional |
| Delphi E3 Dual Pulse | Optional |
| Rail Pressure Sensor | Optional |
| DRV / HPV Test | Optional |
| Solenoid Valve Test | Optional |
| CRIN4 MP4 Injector | Optional |
| Cummins XPI Injector | Optional |
| DENSO HP5 / HP6 Pump | Optional |
CR1016 Diesel Common Rail Test Bench Advantage
Higher power motor for long-term testing
Accurate injector flow and pressure control
Wide compatibility with diesel platforms
Reliable performance for daily workshop use
parameter
| Item | Specification |
|---|---|
| Power | 11 KW |
| Voltage | 380V |
| Phase | 3 Phase |
| Net Weight | 845 kg |
| Gross Weight | 902 kg |
| Net Size | 180 × 90 × 180 cm |
| Packing Size | 188 × 102 × 195 cm |
Applications
Professional diesel repair workshops
Commercial vehicle service centers
FAQ
Q: What is the main difference from BC808?
A: CR1016 provides higher power and better stability for continuous operation.
