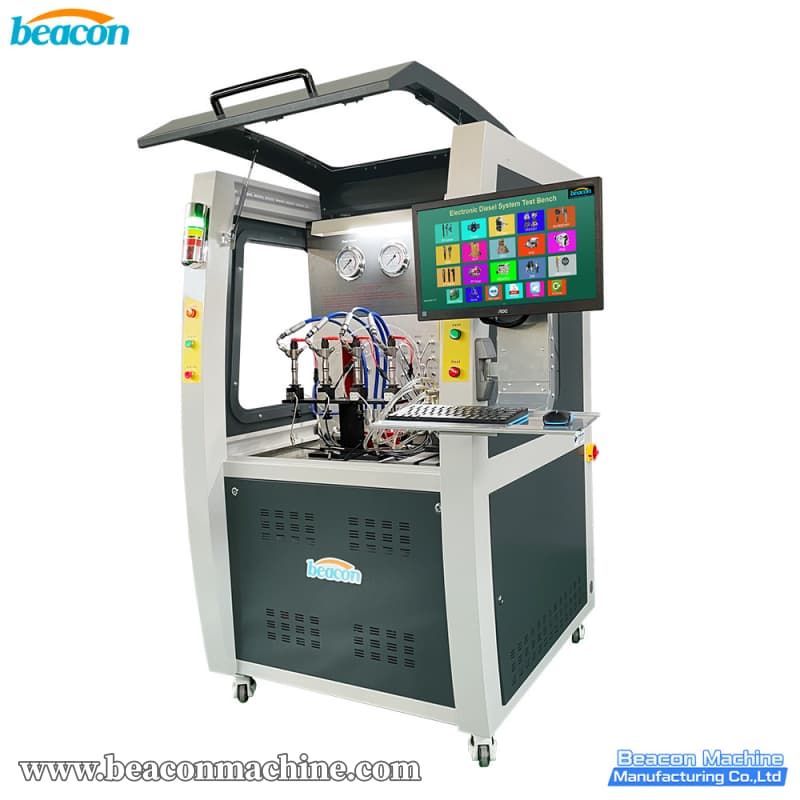

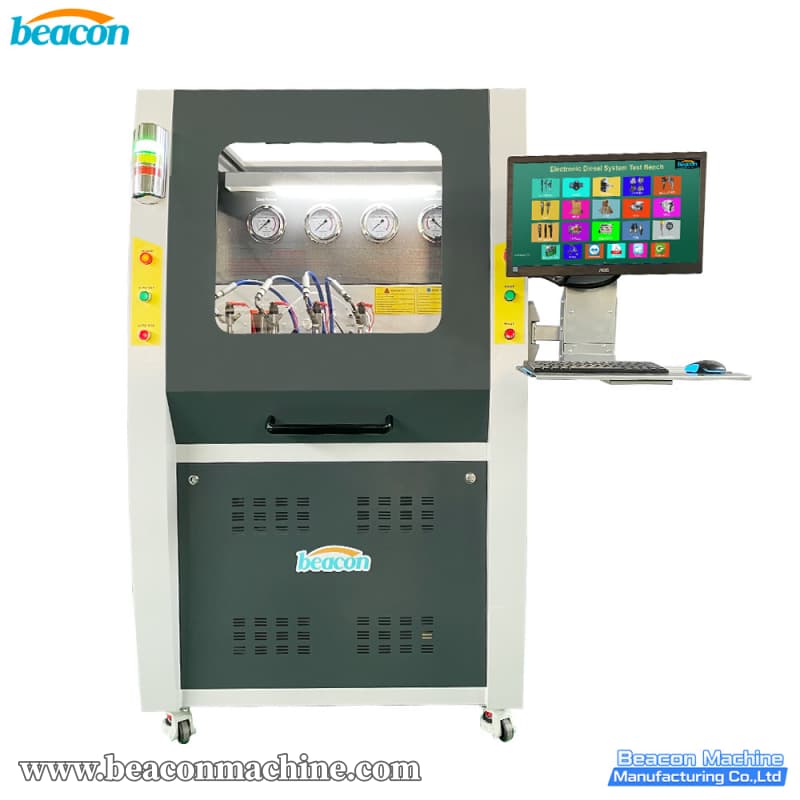

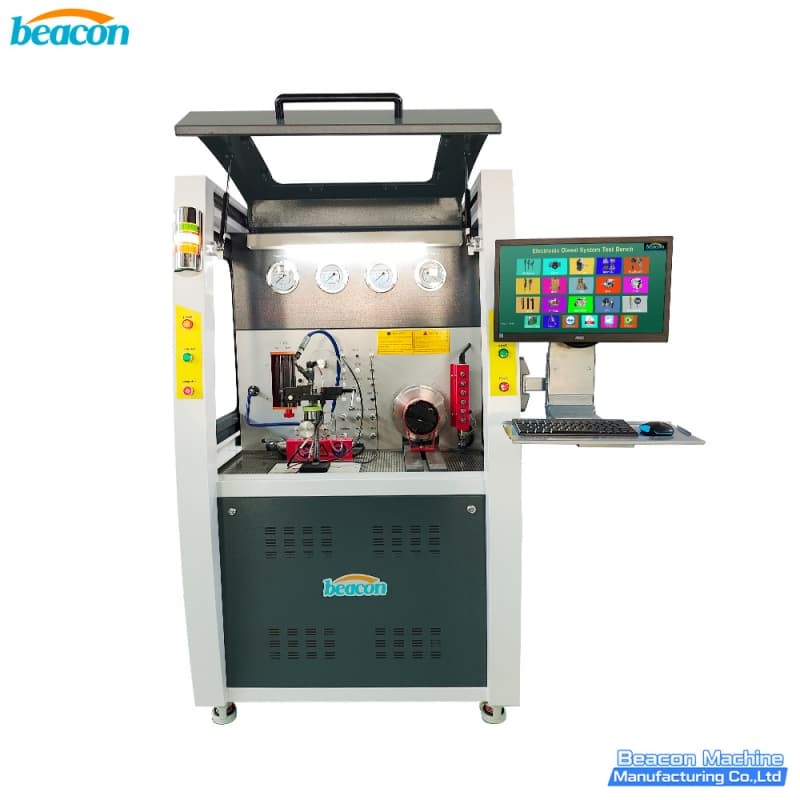

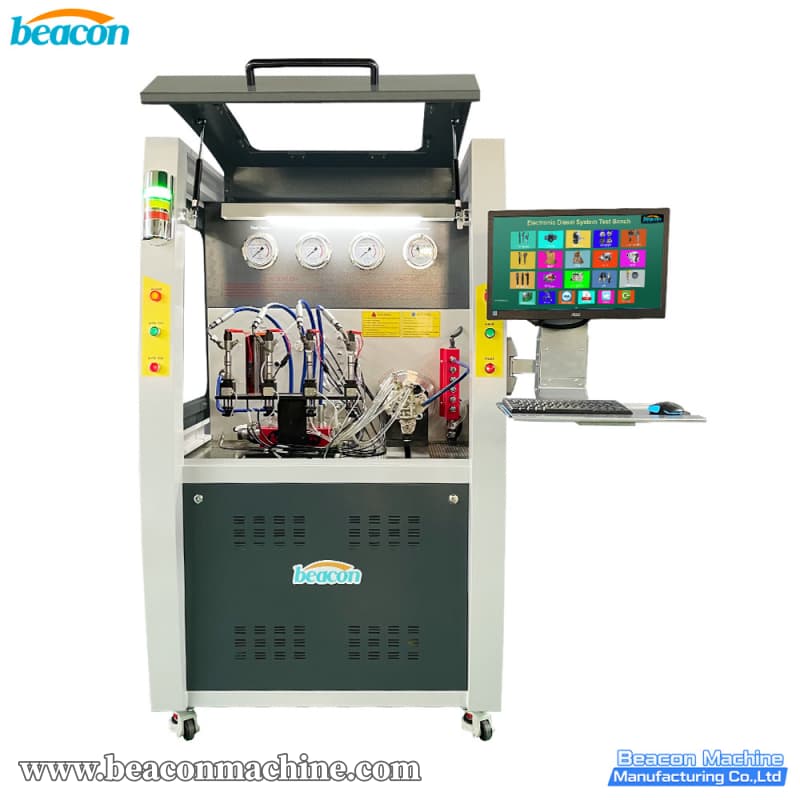

CR1029 Multi-Functional Common Rail Test Bench

The CR1029 Common Rail Test Bench is a premium, all-in-one diagnostic solution designed for professional diesel service shops and laboratories. Powered by a robust 7.5KW motor (380V), it integrates high-precision graduated cylinders and two sets of rail-and-tube DRVs to deliver unparalleled testing accuracy.

From standard common rail components to complex HEUI, EUI/EUP systems, and advanced injector coding, the CR1029 provides a comprehensive testing environment for modern heavy-duty and automotive diesel systems.

Comprehensive Functionality

1. Common Rail Injector & Pump Testing

• Full diagnostics for standard CR and Piezoelectric injectors.

• Specialized injector support: Bosch MP4 CRIN4 (4-pin), DENSO (6-pin), and Cummins XPI.

• Universal CR pump testing across all major brands (DENSO HPO/HP5/HP6, CP4 with complete kits, and CAT 320D high-pressure pumps).

2. Specialized HEUI System Testing

• HEUI Injectors: Full test capabilities with dedicated kits for CAT (C7, C9, 3126A/B, 3412E), Navistar, Isuzu, and Ford (G2.8, 6.0, G2.9).

• HEUI Pumps: Reliable performance testing for CAT C7, C9, and 3126B pumps.

3. EUI/EUP & Special Functions

• Heavy-duty EUI/EUP testing powered by the premium TU-E CAMBOX Complete Set.

• Advanced Delphi E3 Dual Pulse Control testing system for cutting-edge fuel injection analysis.


Applications

• Professional Diesel Repair Shops: Ideal for commercial vehicle workshops specializing in heavy-duty truck and fleet maintenance.

• Fuel Injection Laboratories: Perfect for component remanufacturing, calibration, and quality control.

• Agricultural & Construction Machinery Service: Tailored for servicing Caterpillar, John Deere, and heavy industrial diesel systems.


FAQ (Frequently Asked Questions)

Q1: Can the CR1029 test the latest Euro 6 injectors?A: Yes, the CR1029 is fully equipped to handle advanced injectors including Bosch MP4 CRIN4 (4-pin) and Cummins XPI injectors.

Q2: Does the bench come with the necessary adapters for Caterpillar HEUI testing?A: Absolutely. The CR1029 includes comprehensive test kits for CAT C7, C9, 3126A/B, and 3412E injectors and pumps.

Q3: What is the benefit of the dual DRV configuration?A: The two sets of rail-and-tube DRVs provide exceptionally stable pressure regulation, allowing for highly accurate and repeatable test results under maximum workloads.

• All-in-One Diagnostic Platform: Eliminates the need for multiple machines by integrating CR injector/pump, HEUI system, and EUI/EUP testing into a single bench.

• Extensive OEM Coverage: Out-of-the-box compatibility with Bosch (MP4 CRIN4), Denso (HPO, HP5/6), Delphi (E3), Cummins (XPI), Caterpillar, and Navistar.

• Complete HEUI & EUI/EUP Kits: Equipped with a TU-E CAMBOX complete set and specialized adapters (C7, C9, 3126A/B, 3412E, Ford G2.8/G2.9) for versatile applications.

• Smart Coding & Calibration: Automatically generates precise calibration codes for Bosch, Denso, Delphi, Siemens, and Cummins XPI injectors to ensure optimal engine performance.

• Advanced Component Testing: Dedicated systems for SCV/ZME valves, rail pressure sensors, DRV/HPV valves, and solenoid valves to catch minor system faults.
