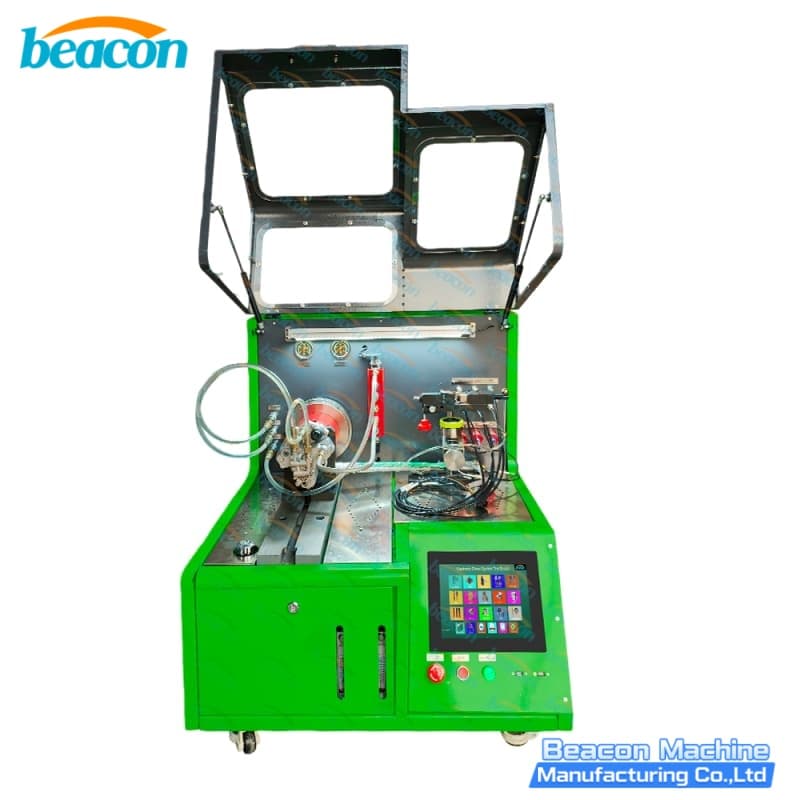

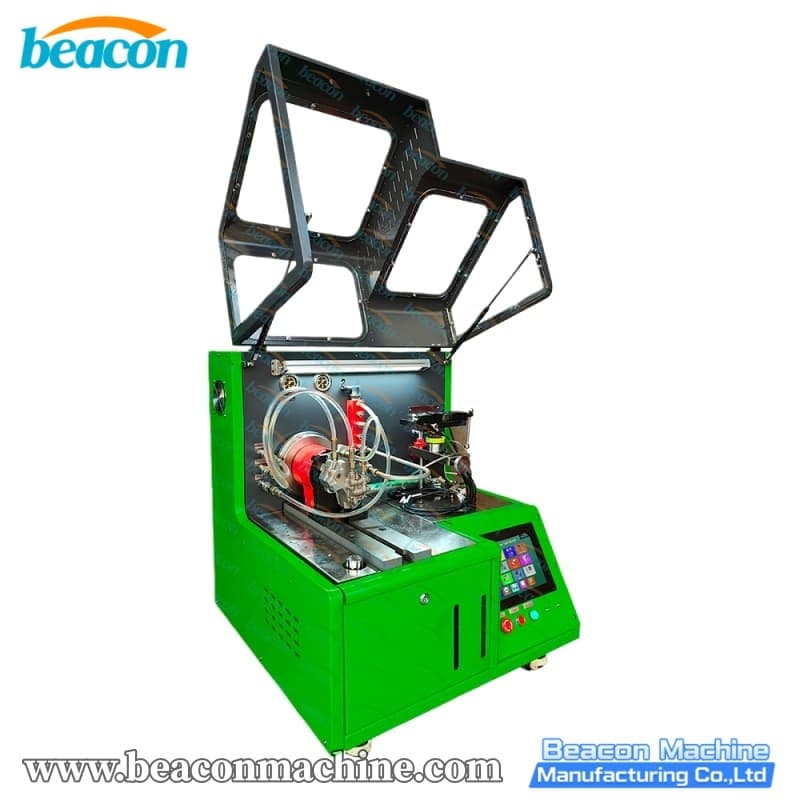

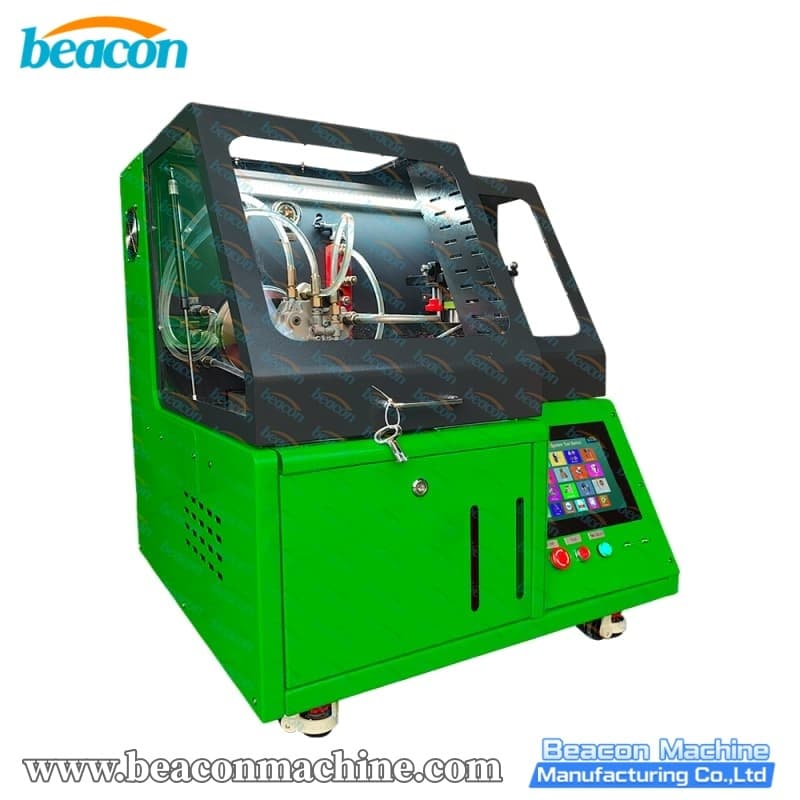

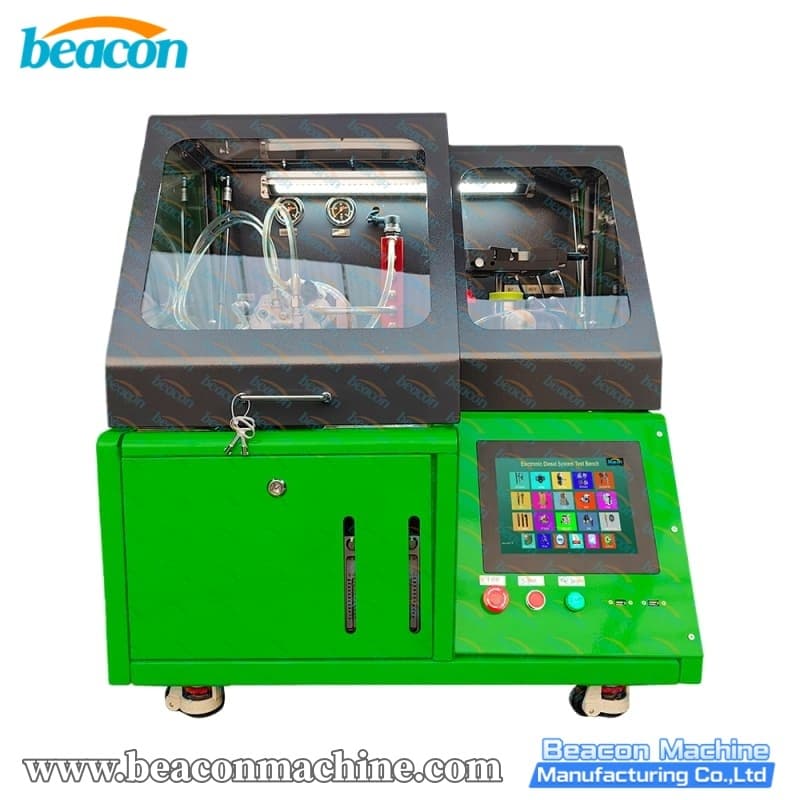

CR216 Common Rail Injector and Pump Test Bench

The CR216 Common Rail Injector and Pump Test Bench is a compact yet versatile diagnostic station designed for efficient diesel system maintenance. Powered by a 5.5KW 380V 3-phase motor, this basic model provides a comprehensive solution for testing both fuel injection and high-pressure supply capabilities.

It features an Industry-Leading Database, covering thousands of part numbers for Bosch, Denso, Delphi, and Siemens, ensuring you can service the majority of vehicles on the road today.

Key Functionality:

1. Injector Testing: Supports testing for Common Rail Injectors (CRI) and Piezo Injectors with BIP function.

2. Coding Capability: Generates coding (IMA/ISA/QR) for all major brands.

3. Pump Testing: Capable of testing standard Common Rail Pumps (CRP) and specifically engineered for Denso HP0 Pumps.





Comprehensive Software Database:
The system is pre-loaded with extensive calibration data, ensuring wide compatibility with global vehicle models:

• Common Rail Injectors (Total: 7,725 Data):

• Denso: 4,287 test plans (Market Leader)

• Bosch: 2,587 test plans

• Delphi: 449 test plans

• Siemens: 171 test plans

• Others: Cummins (54), MTU (19), Caterpillar (17)

• Injector Coding (Total: 4,185 Data):

• Denso: 2,375 codes (16/22/24/26/28/30/32QR)

• Bosch: 1,174 codes (IQA/IMA/ISA)

• Delphi: 438 codes (I2C/I3C)

• Siemens: 160 codes (IIC)

• Cummins: 28 codes (XPI)

• Pump Testing:

• Common Rail Pumps: 1,821 standard test plans.

• Denso HP0 Pumps: 83 specialized test plans.

Note: The database is continuously updated. The numbers above represent the current system version

• Extensive Data Support: Built-in massive database with over 7,700 injector test plans and 4,000+ coding data, covering almost all market models (detailed below).

• Compact & Powerful: Integrates injector and pump testing in a 320KG unit (958075cm), saving workspace.

• Specialized Pump Support: Includes 83 dedicated test plans for Denso HP0 pumps, solving a common workshop pain point.

• Full Coding System: Supports coding for Bosch, Denso (2375+ data), Delphi, Siemens, and Cummins.

• Advanced Diagnostics: Features BIP (Begin of Injection Period) testing for precise solenoid response analysis.
