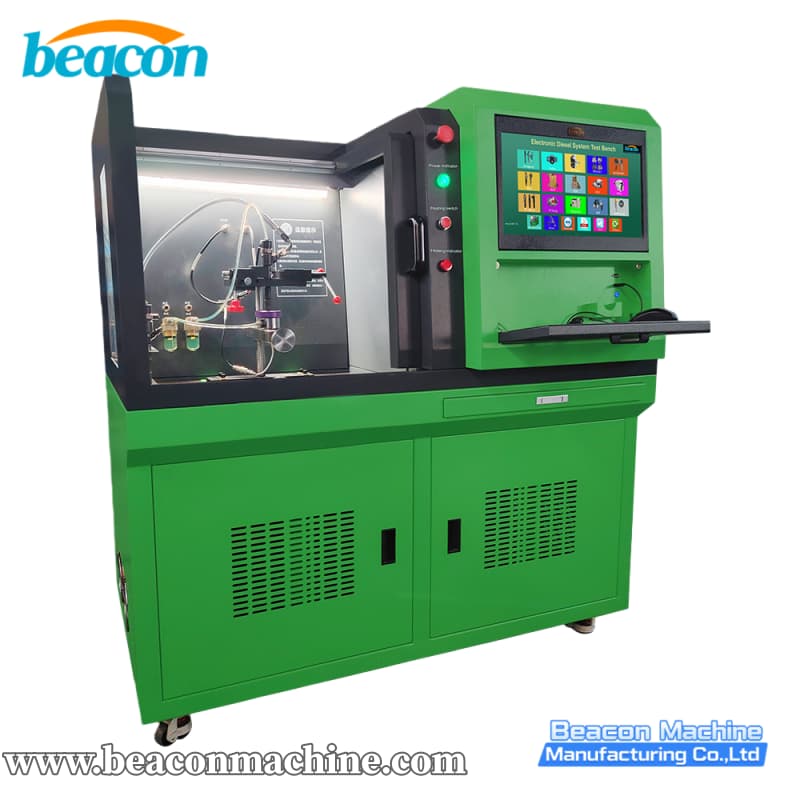

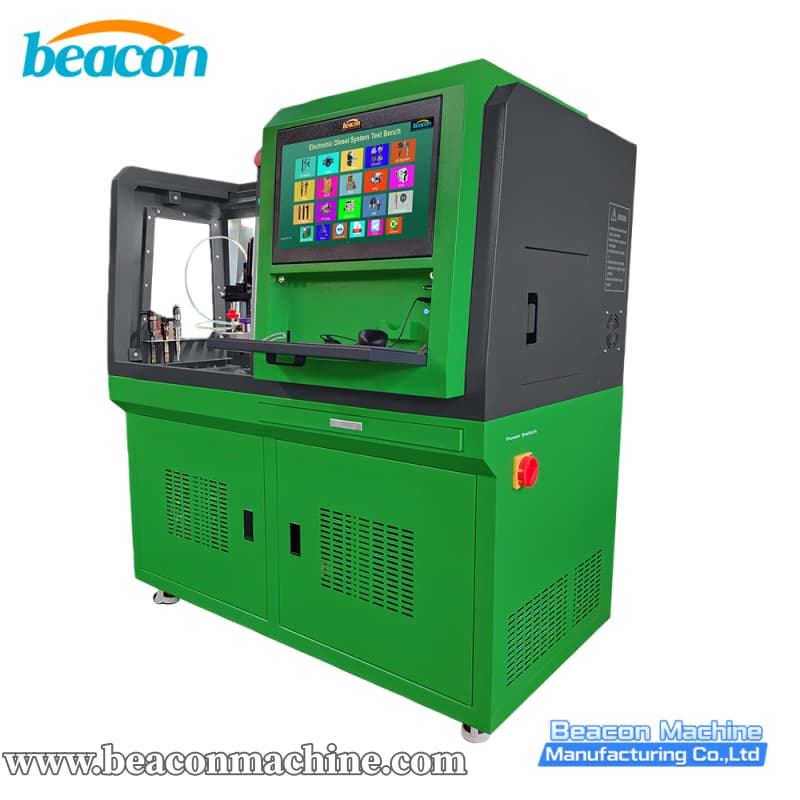

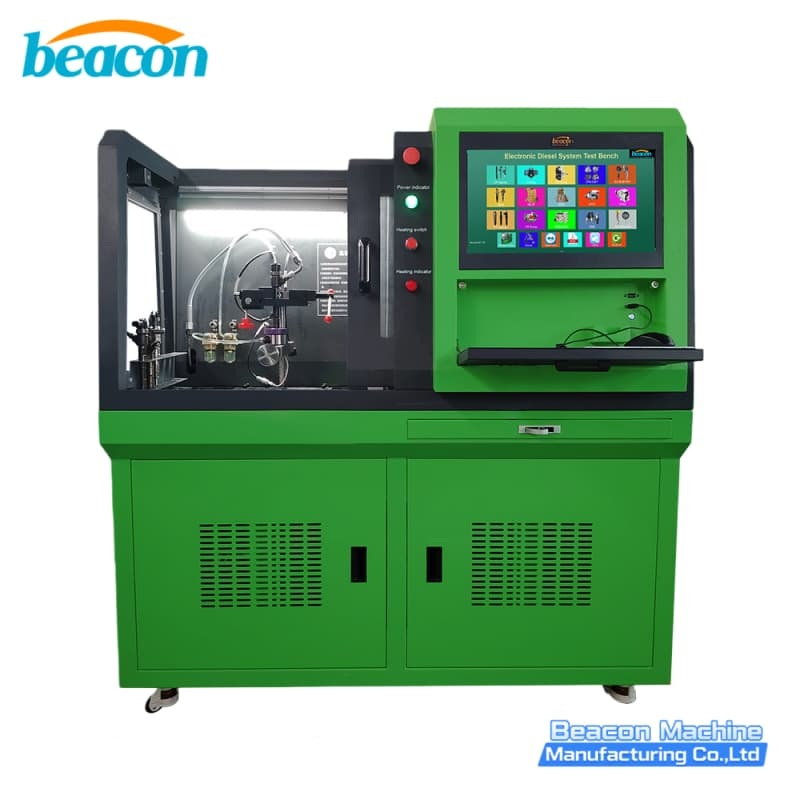

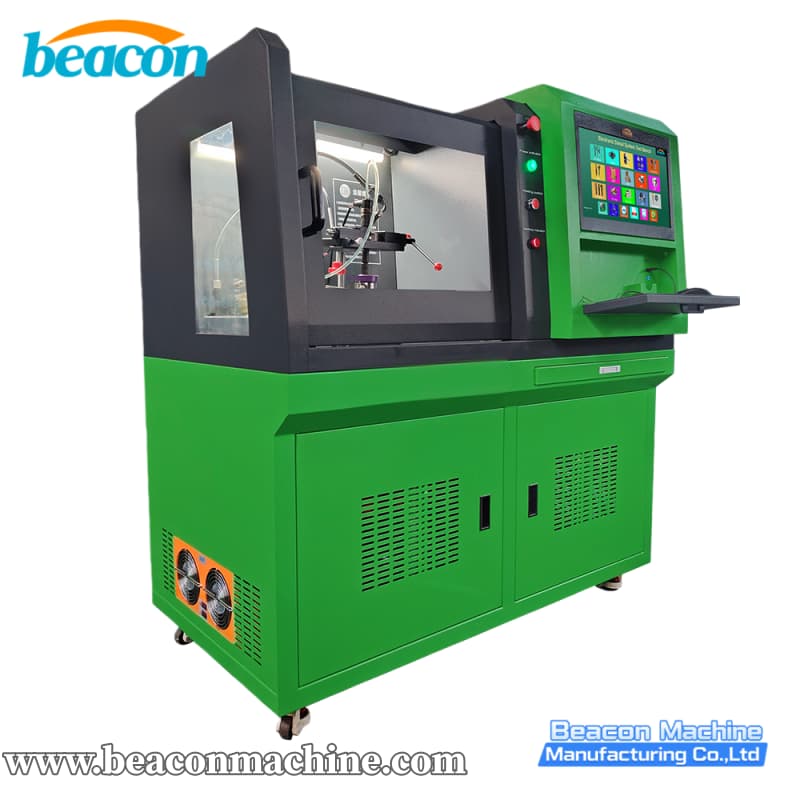

CR311 Intelligent Crdi Test Bench with BIP System

The CR311 is a specialized Common Rail Injector Test Bench focused on electronic precision. It is slightly more compact than the CR309 but retains the powerful BIP test system for analyzing injector response times.
Standard Features:

• Comprehensive testing for Solenoid and Piezo injectors.

• Coding generation for major brands (Bosch, Denso, Siemens, Delphi).

• Integrated BIP test system with necessary test kits.


• Response Time Analysis: The BIP function is essential for detecting "lazy" injectors that flow correctly but react too slowly.

• Wide Compatibility: Capable of being upgraded to test 4 injectors simultaneously or handle high-pressure CP4 pumps (Optional).

• Cost-Efficiency: Offers high-end electronic diagnostic features in a 400kg robust chassis.


• Application: Workshops focused on precise electronic diagnosis of modern common rail systems where BIP values are critical.

• FAQ:

• Q: Does this machine support air conditioning cooling?
  A: Yes, "Air conditioning forced cooling" is available as an optional add-on.

• Q: Can I test 4 injectors at once?
  A: Yes, you can choose the optional function to test 2 or 4 injectors simultaneously.

Upgrade Options:

• Efficiency: Test 2 or 4 injectors simultaneously.

• Advanced Diagnostics: AHE injector dynamic stroke (with Bosch 110, 120 tools), Rail pressure sensor test, DRV/HPV test, Solenoid valve test.

• Heavy Duty & Special Kits: CRIN4 (4-pin Bosch MP4), Cummins XPI, DAF CR Injector kits, CAT C9.3 kits, Denso 6-pin kits.

• Performance: Install BOSCH CP4 pump (Rail pressure 2800bar), Air conditioning forced cooling.
