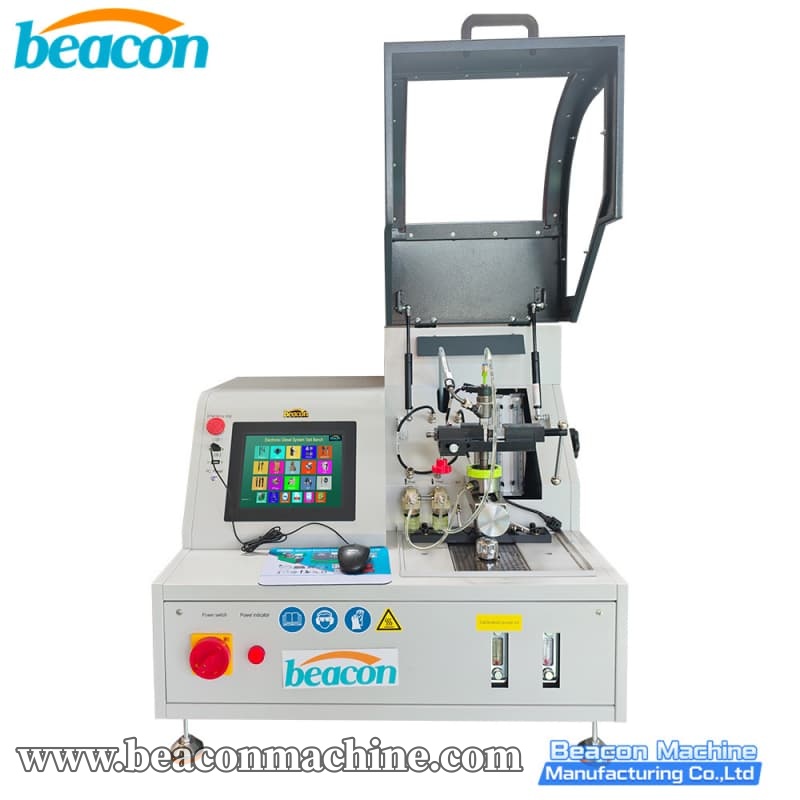

EPS211 Injector Machine Test Bench

The EPS211 (EPS211S) Common Rail Injector Test Bench is a compact yet powerful diagnostic unit designed for professional workshops. Despite its small footprint (830750900mm), it is engineered with a 4.0KW motor and an original Bosch CP3 pump, capable of generating high working pressures up to 250MPa (2500 Bar). This makes it uniquely capable of testing the latest Euro 6 high-pressure injectors in a portable chassis.

Key Features & Functions:

1. Extreme Pressure Capability: Reaches 2400-2500 Bar pressure, far exceeding standard small benches, to test Bosch, Denso, Delphi, and Siemens high-pressure injectors.

2. Precision Measurement: Utilizes a high-accuracy flow meter (3μ filtering) for digital fuel analysis, ensuring stable data (User also retains the option to verify with a measuring cylinder).

3. Advanced Diagnostics: Standard equipped with BIP (Response Time) testing to detect solenoid valve delay and "soft failures."

4. Comprehensive Support: Fully supports Piezo injector testing and generates IMA/ISA/QR codes for all major brands.

5. Robust Power: Features a 4KW output power supply (compatible with 380V/220V) to drive the high-pressure pump efficiently.


• Best-in-Class Pressure: The biggest advantage of the EPS211 is its ability to reach 2400 Bar in a compact body. Most benches of this size only reach 1800 Bar, making the EPS211 suitable for newer, higher-pressure injector technologies.

• Space-Saving Design: With dimensions of just 830750900mm and a net weight of 160kg, it is perfect for mobile service vans or workshops with limited space, without sacrificing performance.

• High Accuracy: The electronic flow meter system provides much higher repeatability and speed compared to traditional glass tube measurements.

• Standard BIP Function: Unlike many competitors who charge extra, the BIP (BIP test kits included) comes standard, allowing for deeper diagnosis of the injector's internal mechanics.

• Durable Hardware: Built with a genuine Bosch CP3 pump and a frequency-controlled motor (0-3000rpm), ensuring long-term reliability and low noise operation.
