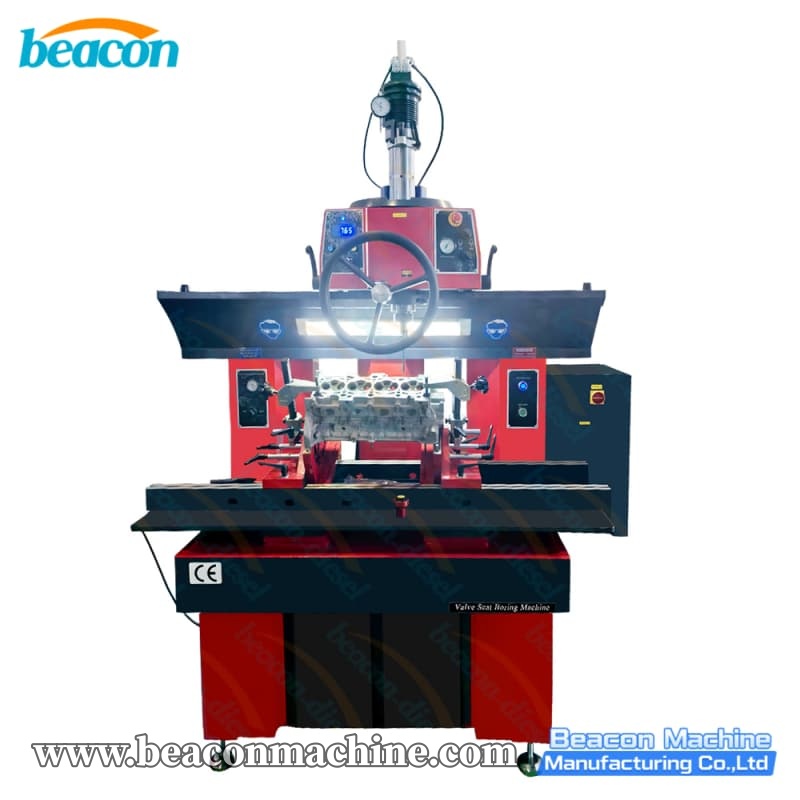

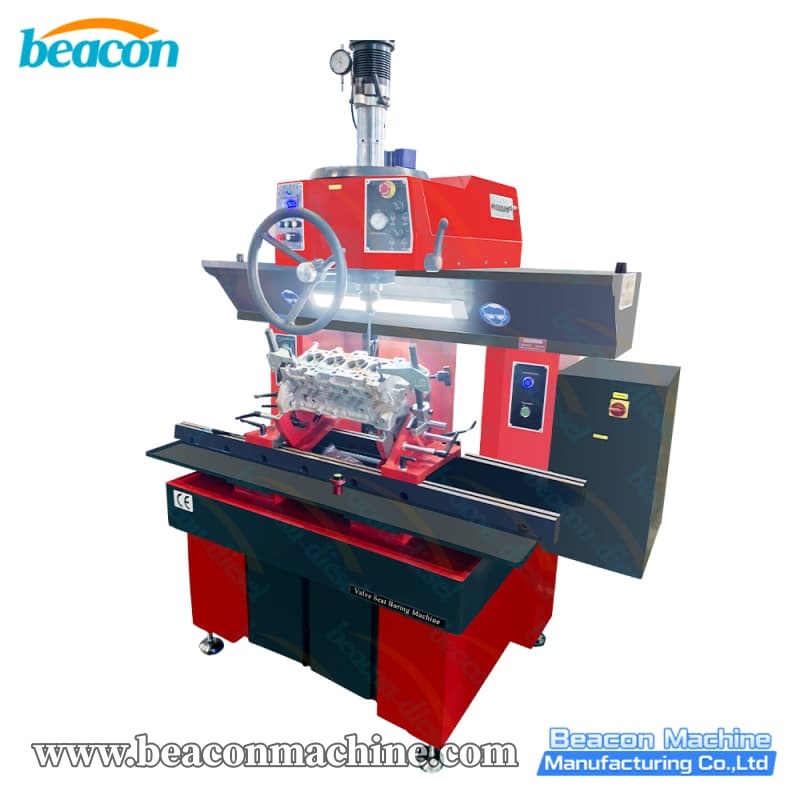

GS-180B High Power Valve Seat Grinding Machine

Enhanced GS-180B Valve Seat Machine with 2200W motor and 14-90mm machining range. Designed for heavy-duty engines requiring higher torque and larger cutting capacity.

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

WhatsApp: +86-13375386258

Details

The GS-180B is an upgraded version of the standard model, delivering higher power and larger capacity for demanding jobs. Equipped with a 2200W spindle motor, it effortlessly cuts valve seats up to 90mm in diameter. This makes it suitable for larger automotive engines and medium-duty trucks. Despite its compact footprint, it maintains a heavy mass (1850kg) for stability during heavy cutting operations.

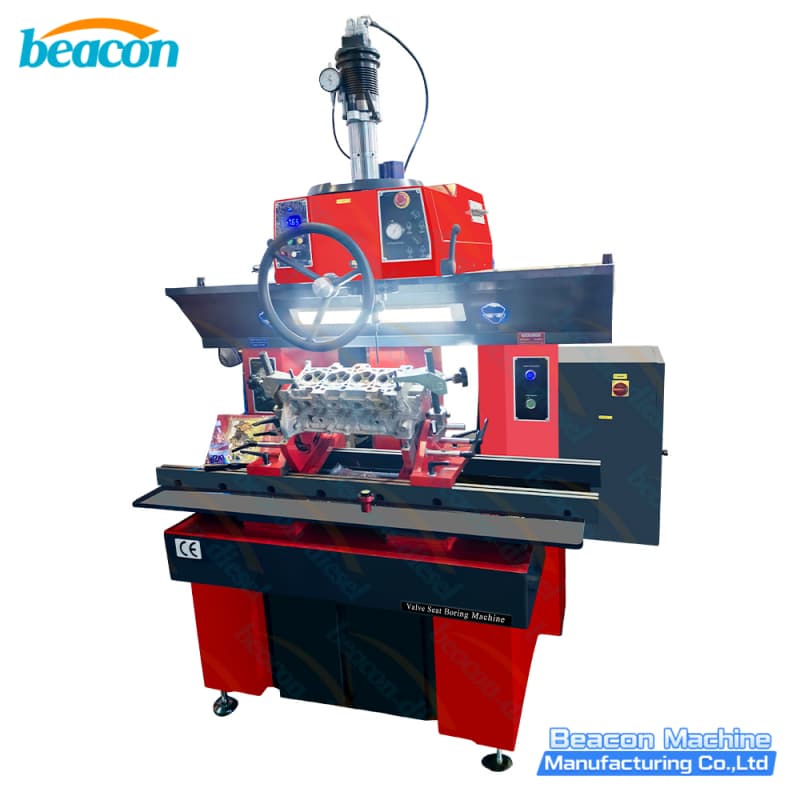

Valve seat cutting machine

Portable valve seat cutter

GS-180B High Power Valve Seat Grinding Machine Advantage

Increased Power: A 2200W motor provides higher torque for cutting harder valve seat materials.
Larger Capacity: Machining diameter extended to 90mm compared to the standard model.
Stable Structure: Heavy-duty casing ensures rigidity, critical for maintaining accuracy on larger valves.
User Friendly: Features automatic centering and effortless spindle movement via air cushions.

Engine rebuilding equipment

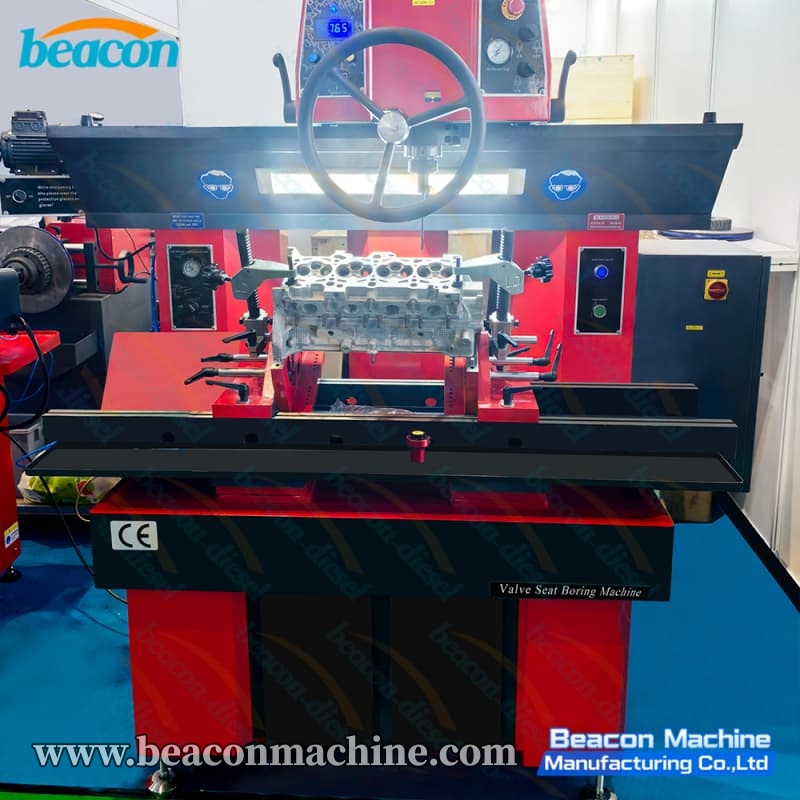

Heavy duty valve seat boring

parameter

Category	Item	Specification
Machining Capacity	Machining Diameter Range	14 – 90 mm (0.60" – 3.54")
	Max. Cylinder Head Length	Unlimited
	Max. Cylinder Head Width	500 mm (19.7")
	Max. Cylinder Head Height	450 mm (17.7")
	Workpiece Tilting	+45° ~ -15°
Spindle Specs	Spindle Motor Power	2200 W (High Torque)
	Spindle Rotation Speed	20 – 1000 rpm (Variable)
	Spindle Vertical Travel	200 mm (8.5")
	Max. Spindle Inclination	5.5 Degrees
	Sphere-Cylinder Travel	9 mm (0.4")
Accuracy & Travel	Lengthwise Travel	1000 mm (39.0")
	Crosswise Travel	40 mm (1.6")
Power & Data	Power Supply	380V/50Hz/3Ph or 220V/60Hz/3Ph
	Air Pressure Required	6 bar (87 psi)
	Max. Air Flow	300 L/min (11 CFM)
	Noise Level	65 dBA (@400rpm) / 82 dBA (@1200rpm)
Dimensions	Overall Dimensions (L×W×H)	1050 × 1150 × 1150 mm
	Net Weight (Approx.)	1850 kg (4078 lbs)
