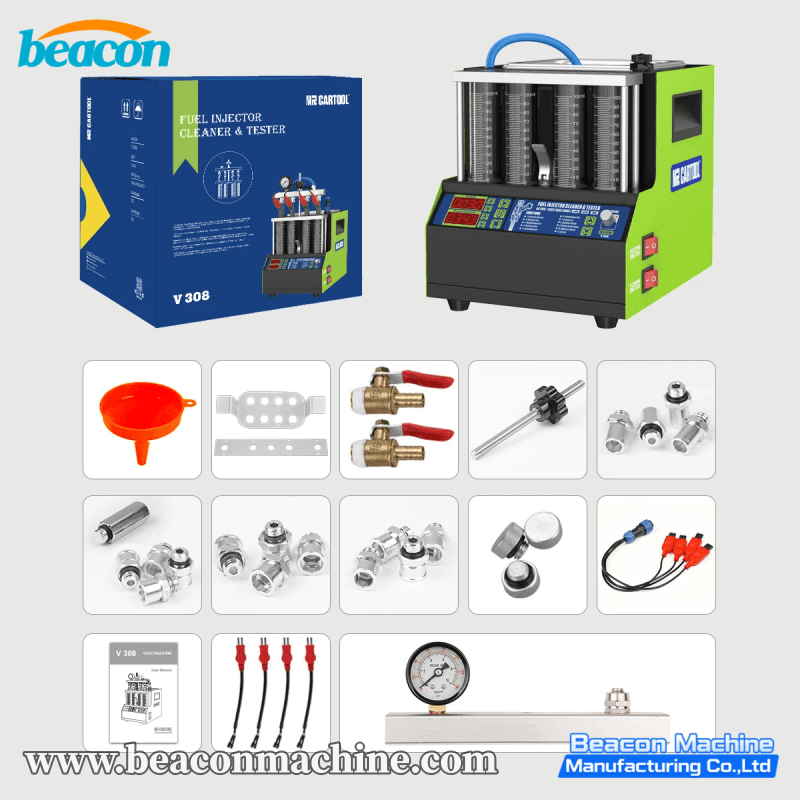

V308 4-Cylinder Auto Fuel Injector Tester and Cleaner

V308 4-cylinder injector cleaner for standard EFI engines. Performs ultrasonic cleaning, uniformity detection, and tightness tests.

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

WhatsApp: +86-13375386258

Details

The V308 Auto Fuel Injector Cleaner is the essential maintenance tool for standard EFI (Electronic Fuel Injection) vehicles. Designed for efficiency and simplicity, it focuses on the core needs of most mechanics: ultrasonic cleaning and flow testing. This compact 4-cylinder machine allows technicians to visually inspect the spray pattern and identify blocked or leaking injectors quickly. It is the perfect entry-level solution for workshops servicing older or standard gasoline fleets (Non-GDI).



V308 4-Cylinder Auto Fuel Injector Tester and Cleaner Advantage

  • Cost-Effective Solution: Delivers all essential diagnostic functions (Uniformity, Atomization, Tightness) at an affordable price point for standard MPI/EFI engines.

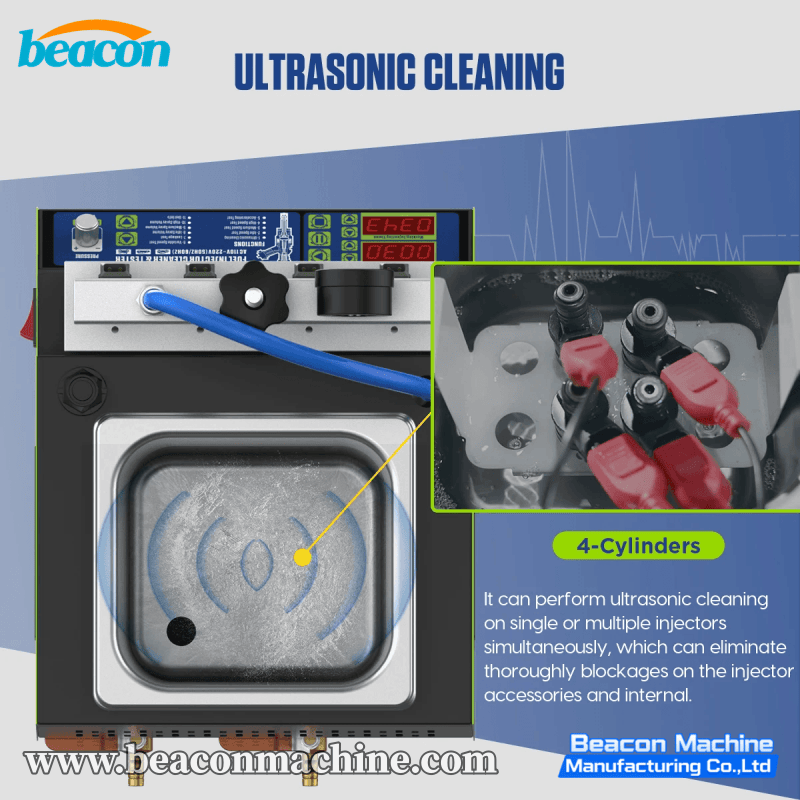

  • Ultrasonic Deep Clean: capable of performing simultaneous ultrasonic cleaning on multiple injectors to remove internal carbon deposits effectively.

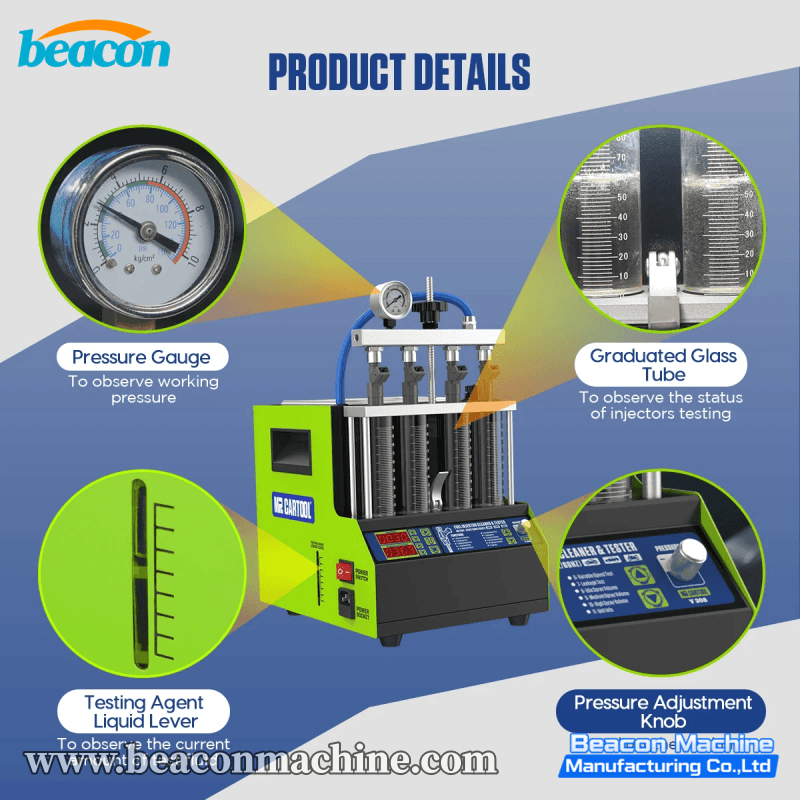

  • Visual Diagnostics: Features bright background LED lighting, making it easy to observe weak spray patterns or dripping nozzles during the test.

  • Compact Design: Small footprint (approx. 340mm width) fits easily on any workbench without taking up valuable space.


parameter

ModelV308
Cylinder Capacity4 Cylinders
Compatible Injector TypeStandard EFI / MPI (No GDI)
Ultrasonic Cleaning Power70 W
Ultrasonic Frequency40 kHz
Rotation Speed0 ~ 7,500 r/min
System Pressure0 ~ 0.6 Mpa
PWM Pulse Width0 ~ 20 ms (Step: 0.1 ms)
Injection Times0 ~ 9900 times (Step: 100 ms)
Working Time Setting0 ~ 20 min

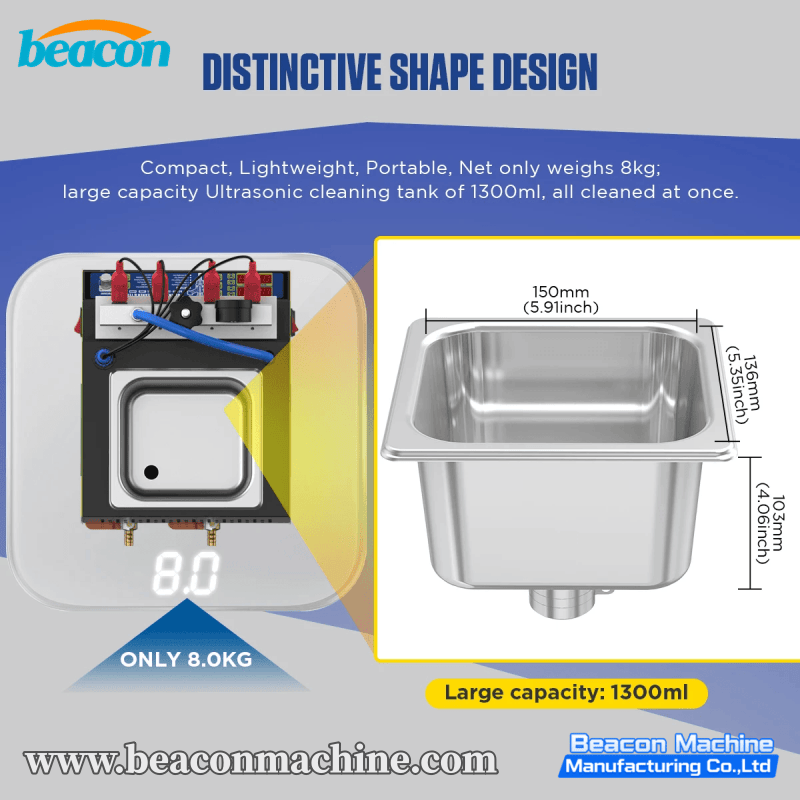

Tank Capacity1300 ml
Cylinder Volume180 ml

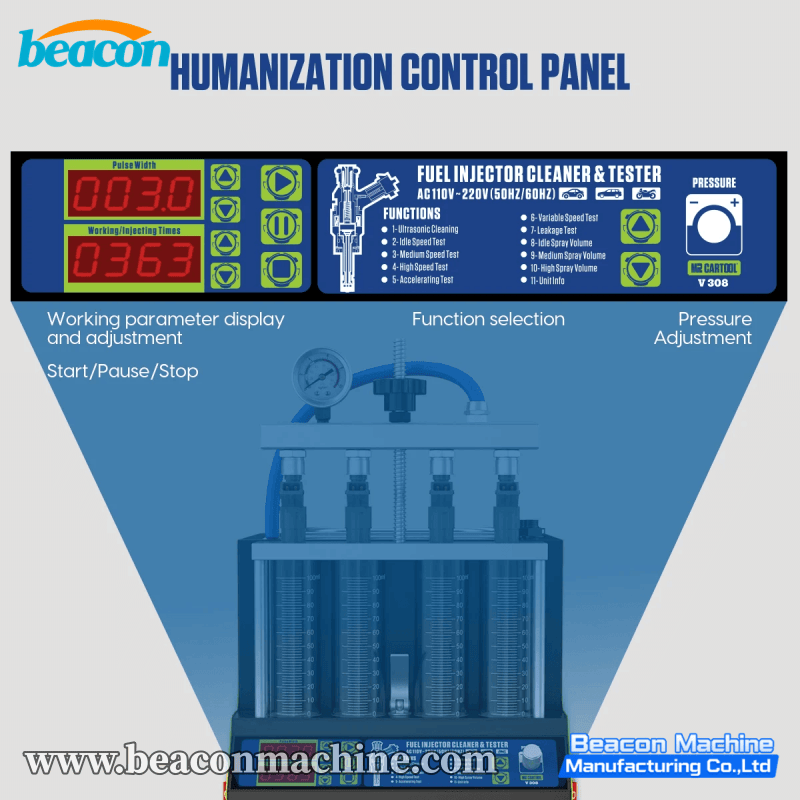

Display TypeLED Digital Display
Dimensions340 × 295 × 360 mm
