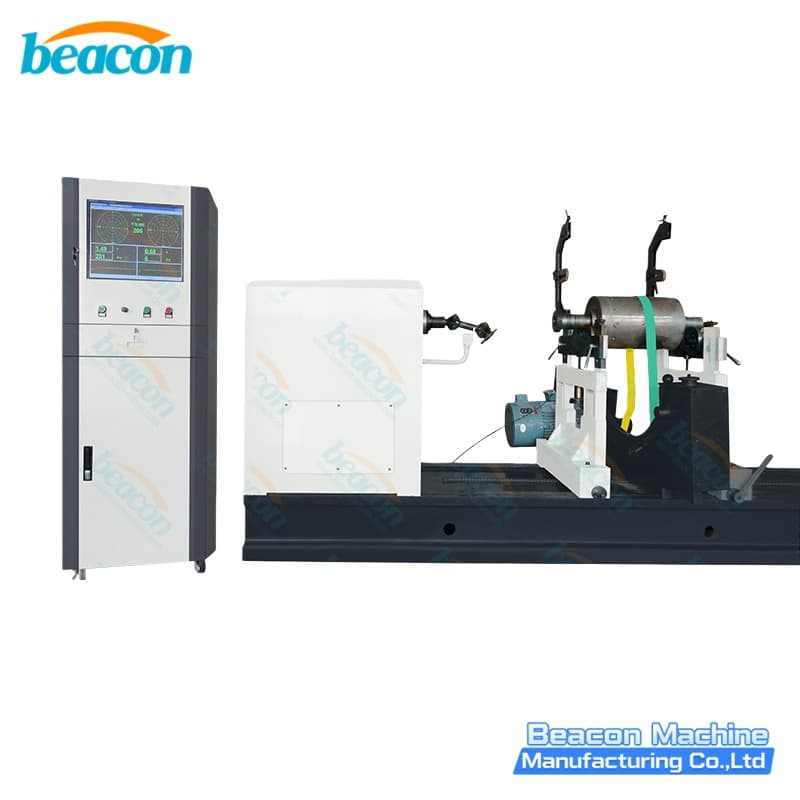

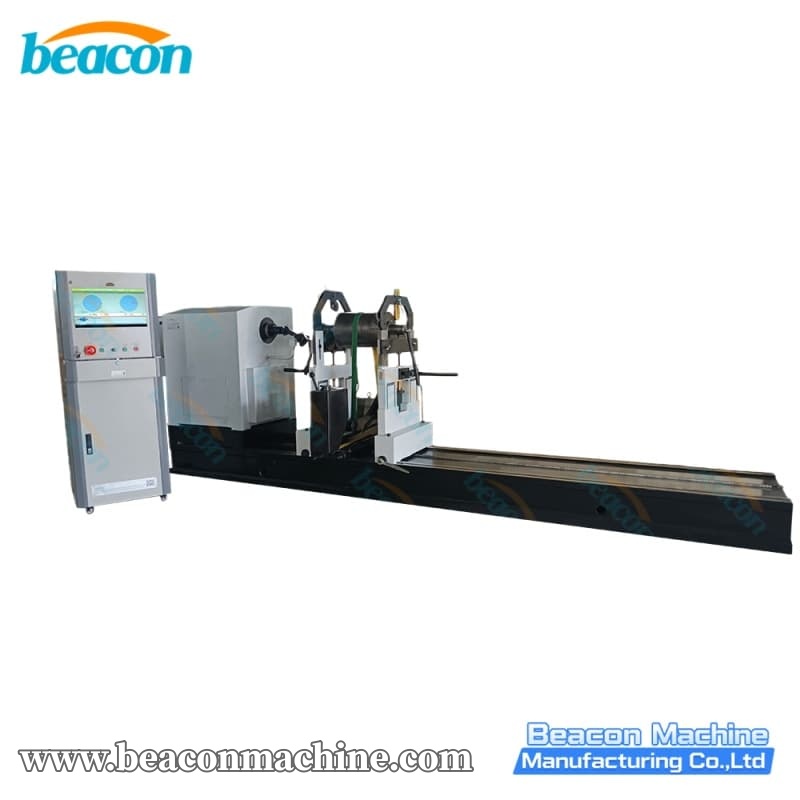

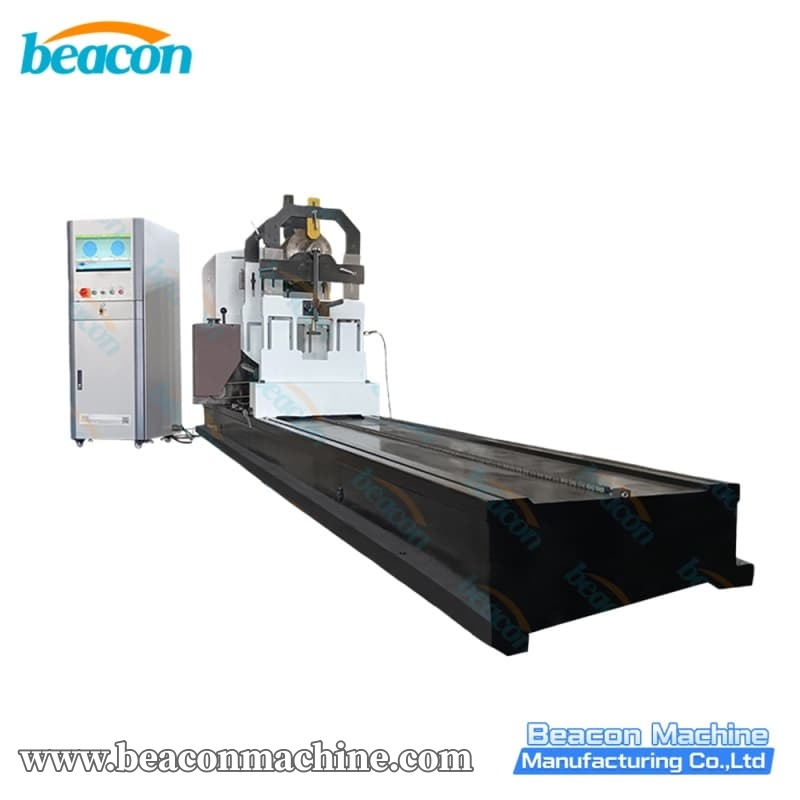

YYH-2000A Universal Joint and Belt Dual Drive Dynamic Balancing Machine

The YYH-2000A Dual Drive Dynamic Balancing Machine is a versatile, heavy-duty industrial balancer designed for rotating parts weighing up to 2000kg. Its standout feature is the integration of two driving modes: a Universal Joint drive and a Ring Belt drive. This hybrid design allows operators to choose the optimal drive method based on the specific rotor characteristics. Use the Universal Joint for transmitting high torque to heavy, high-drag rotors like large fans and agricultural rollers; switch to the Belt drive for high-precision, noise-free balancing of motor armatures and textile rollers. It accommodates large workpieces with a maximum diameter of 1800mm and a length of up to 3500mm

• Dual Drive Versatility: Combines the best of both worlds. The Universal Joint handles heavy-load startups and irregular shafts, while the Belt Drive ensures high measuring accuracy with no fixture interference.

• Heavy Duty Capacity: Designed with a robust bed and supports to handle massive workpieces up to 2000kg and 3500mm in length.

• Powerful Propulsion: Equipped with independent motors for each drive mode (11KW for Joint, 7.5KW for Belt), ensuring sufficient power for various inertia loads.

• High Precision: Despite its heavy load capacity, it achieves a minimum residual unbalance of ≤0.5 gmm/kg, meeting strict industrial standards.

• Variable Speed Control: Both drive modes feature frequency conversion (VFD) speed regulation, allowing safe and smooth acceleration for delicate or heavy parts.
