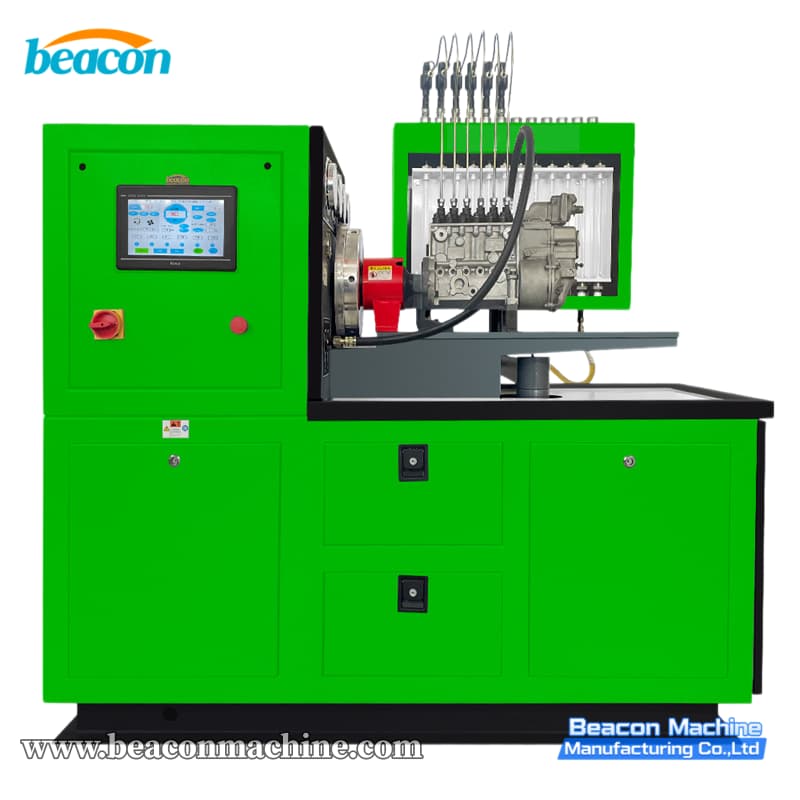

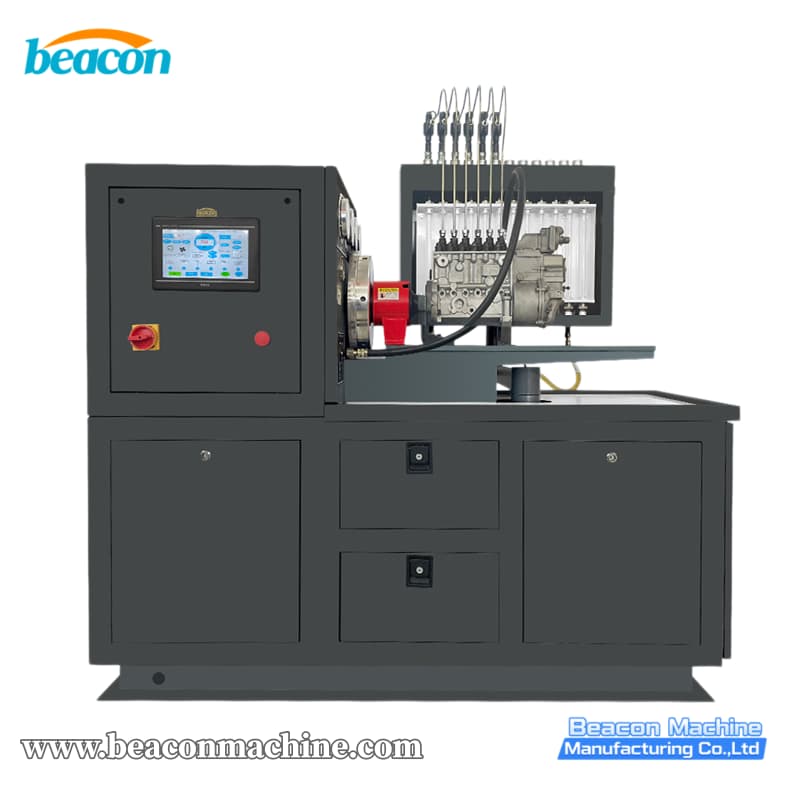

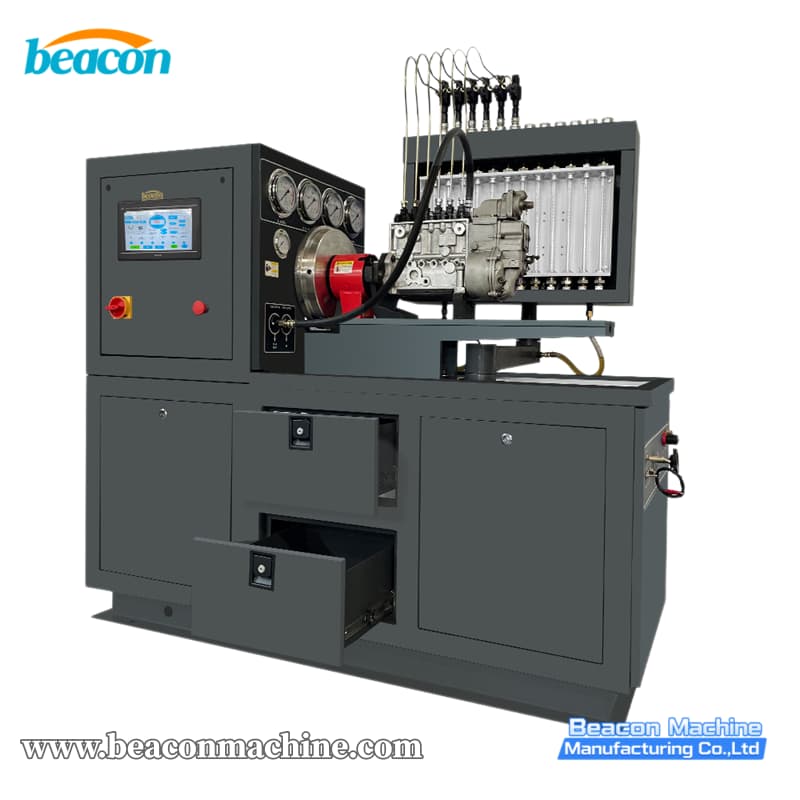

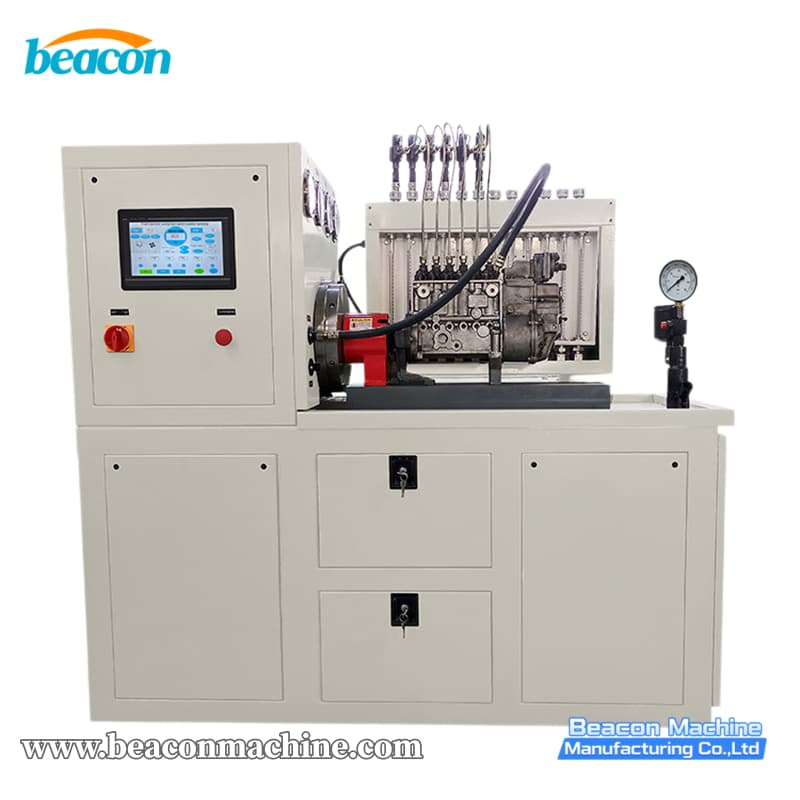

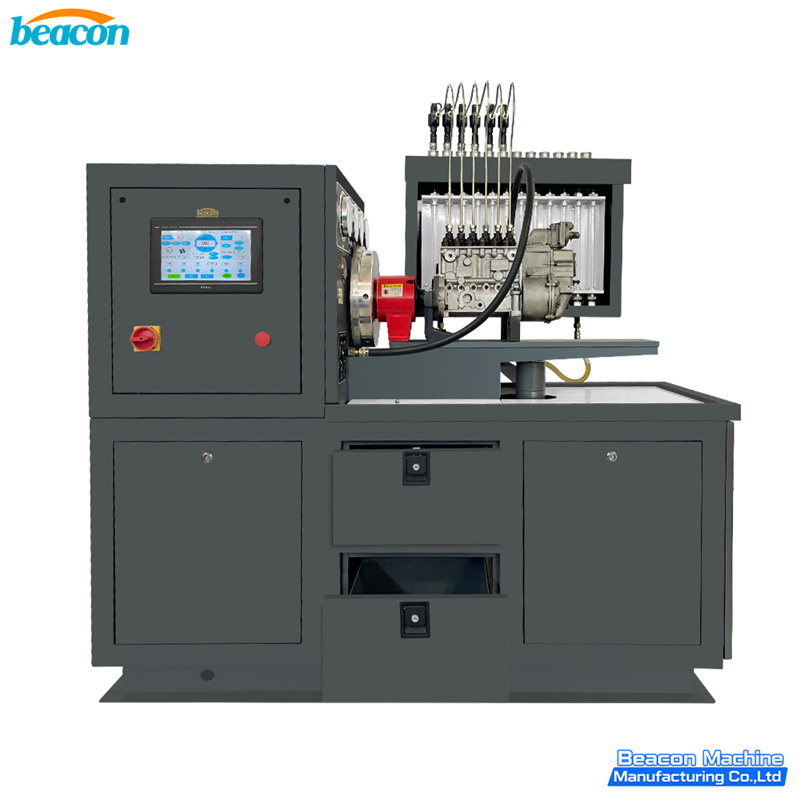

12PSD Diesel Fuel Injection Pump Test Bench

Beacon Machine 12PSD diesel fuel injection pump test bench features Siemens PLC and 11kW motor, supporting 12-cylinder testing for efficient pump maintenance.

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

WhatsApp: +86-13375386258

Details

The 12PSD Diesel Fuel Injection Pump Test Bench is a professional equipment designed for the testing, debugging, and maintenance of diesel engine fuel injection systems. Equipped with a 380V 3-phase 11kW main motor and an AC frequency conversion drive system, it ensures stable and adjustable output. The machine adopts a Siemens PLC control system, a touch screen interface, and Schneider core electrical components to accurately measure fuel delivery, injection timing, and interval angles at any speed. With its 12-cylinder testing structure, it can simultaneously test up to 12 cylinders, making it an ideal choice for diesel fuel system diagnostics.

Product Advantages:

Premium Configuration: Powered by Siemens PLC and Schneider electrical components, ensuring low failure rates and precise data processing.
High Automation: Features an electromagnetic control system for oil collection, eliminating manual operation and significantly improving testing efficiency.
Built-in Lubrication System: Equipped with an independent engine oil lubrication circuit to protect the tested injection pumps during operation, simulating real working conditions.
Versatile Functions: Capable of checking mechanical governors, distributor pumps, and boost compensators. It also comes standard with an S60H nozzle tester.

Application Scenarios:
Widely used in diesel fuel injection pump repair shops, diesel fuel system maintenance centers, large engine repair factories, and automotive engineering training labs.
FAQ:

Q: Can this machine test distributor pumps?
A: Yes. The 12PSD can check and adjust distributor pumps, measure their return oil volume and internal pressure, and test 12V/24V solenoid valves.
Q: What are the power requirements?
A: The equipment requires a 380V 3-phase AC power supply to drive the 11kW main motor.
Q: How is the fuel collected during the test?
A: It is equipped with an electromagnetic control oil collection system that operates fully automatically, which is both highly efficient and user-friendly.
