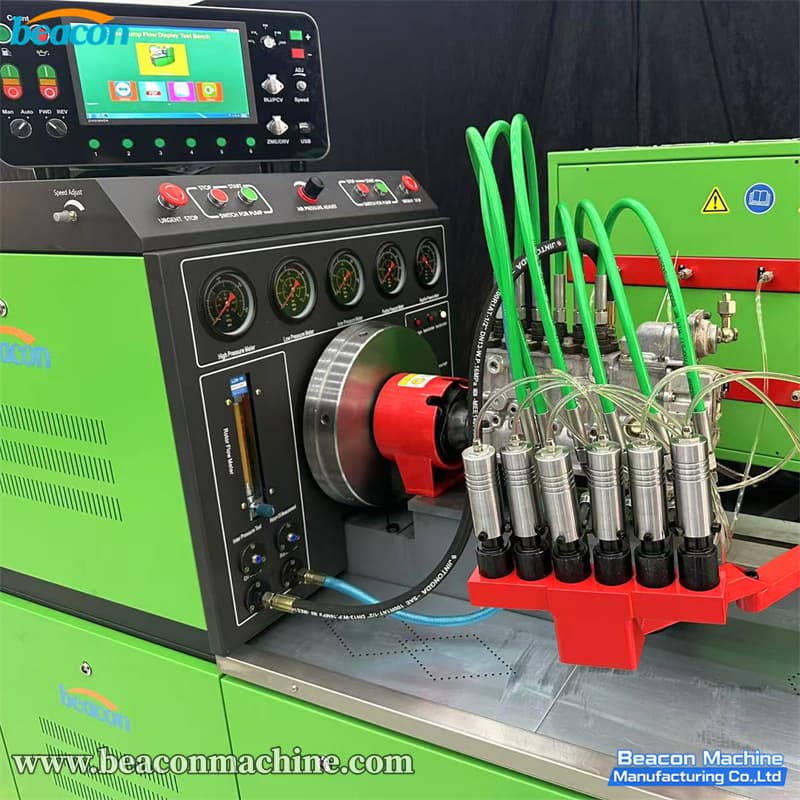

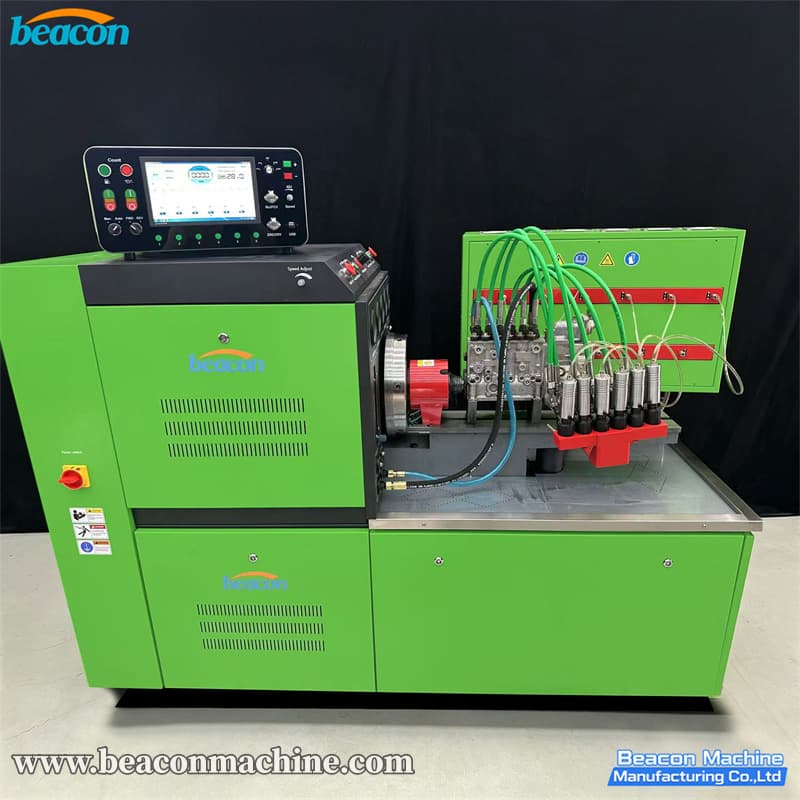

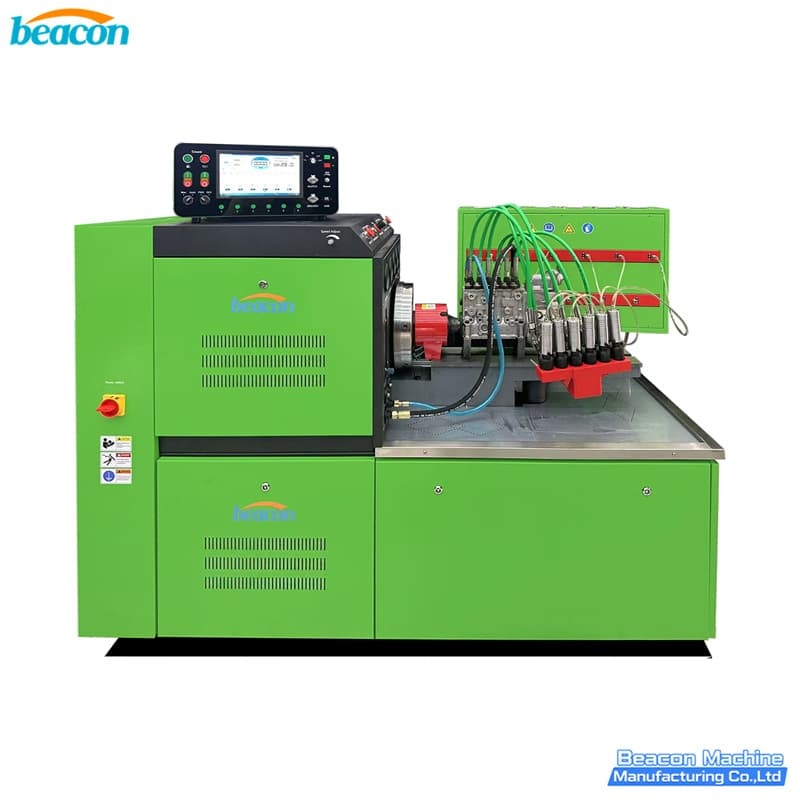

ES816 Mechanical Fuel Injection Pump Test Bench

Product Introduction

The ES816 Mechanical Fuel Injection Pump Test Bench is a professional diesel injection pump testing and calibration machine designed for workshops, diesel service centers and fuel injection specialists.

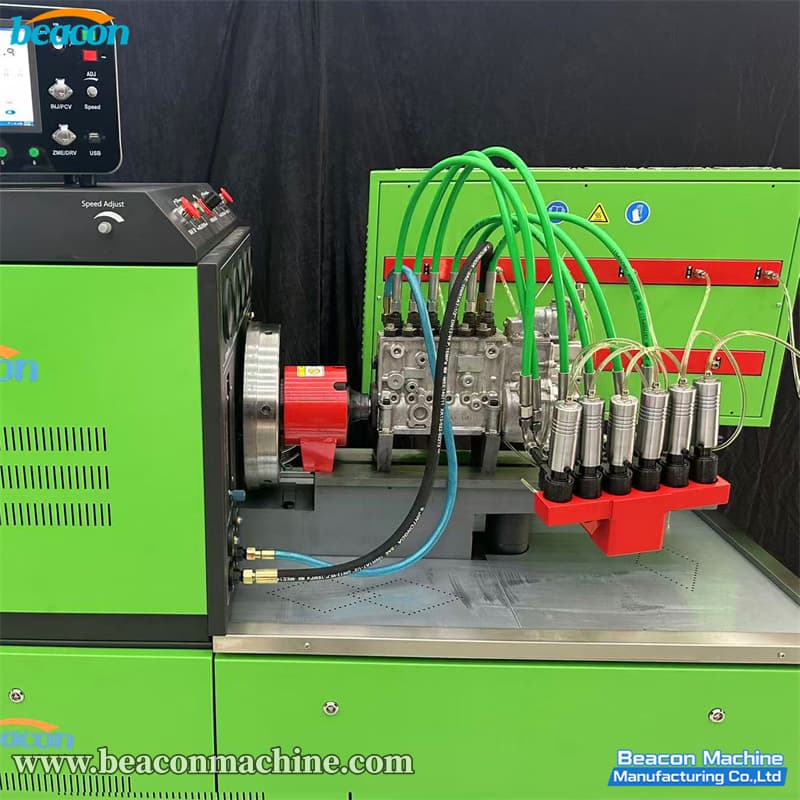

Powered by a 22KW motor, the ES816 provides high torque and stable speed performance for testing mechanical diesel fuel injection pumps. It is designed to test A-type, B-type and P-type inline pumps as well as VE distributor pumps.

The machine uses 12 flow sensors to measure fuel delivery and displays testing data on a computer in real time. Compared with conventional visual measurement methods, the sensor-based system provides convenient digital data reading and improves testing efficiency.

The ES816 also integrates a VE pump flow meter, oil lubrication system, stainless-steel worktable, multi-button control panel and built-in air supply.

The computer system can monitor parameters such as speed, counting, temperature, air pressure, feed angle and rack travel. Testing data can be saved, modified, printed and uploaded to a pump database for future reference.

Main Functions

• Measure fuel delivery of each cylinder at different speeds.

• Test the fuel delivery point and delivery interval angle.

• Inspect and adjust mechanical governors.

• Test and adjust distributor pumps.

• Test boost and compensation devices.

• Measure VE pump return fuel quantity.

• Test 12V/24V VE pump solenoid valves.

• Measure internal pressure of distributor pumps.

• Check the advance angle device with optional equipment.

• Check injection pump sealing performance.

• Test supply pumps, including VE pumps.

• Generate and display speed characteristic curves.

• Save and manage pump testing data in the database.

• Generate and print test reports.


Product Advantages

22KW Heavy-Duty Drive System
The 22KW motor provides high output torque and stable operation when testing large mechanical injection pumps.

12 Flow Sensors
Multiple flow sensors enable digital measurement of fuel delivery from individual pump elements and help technicians compare cylinder-to-cylinder delivery.

Computerized Testing and Data Management
Test parameters can be displayed and controlled through the computer system. Data can be stored, modified, printed and managed through a pump database.

Variable-Frequency Speed Control
The frequency converter provides flexible speed adjustment and helps maintain stable testing conditions.

VE Pump Testing Capability
The dedicated VE pump flow measurement system supports return-flow, internal-pressure and solenoid-valve testing.

Temperature Control
Constant-temperature control helps maintain consistent fuel testing conditions.

Professional Workshop Design
The stainless-steel worktable, built-in air supply and multi-position operating design make the machine suitable for long-term workshop use.

Safety Protection
The machine incorporates overvoltage, overload and short-circuit protection for safer operation.

Applications

The ES816 is suitable for:

• Diesel injection pump repair workshops

• Diesel fuel injection laboratories

• Heavy-duty diesel service centers

• Agricultural machinery repair centers

• Truck and commercial vehicle repair workshops

• Construction machinery service centers

• Generator engine maintenance workshops

• Marine diesel engine service

• Diesel pump remanufacturing facilities

• Fuel injection pump calibration businesses


FAQ

Q1: What types of pumps can the ES816 test?
The ES816 is designed for A-type, B-type and P-type mechanical injection pumps as well as VE distributor pumps.

Q2: Can the ES816 test VE pumps?
Yes. The machine is equipped with a VE pump flow measurement system and can test VE pump return flow, internal pressure and 12V/24V solenoid valves.

Q3: How many flow sensors does the ES816 use?
The specified configuration includes 12 flow sensors for fuel delivery measurement.

Q4: Can the machine test the mechanical governor?
Yes. The ES816 can be used to inspect and adjust mechanical governors.

Q5: Can the ES816 measure fuel delivery for each cylinder?
Yes. The system measures the fuel delivery of individual cylinders at different test speeds.

Q6: Can testing data be saved?
Yes. Testing data can be saved, modified and uploaded to the pump database. Reports can also be generated and printed.

Q7: Does the ES816 have a computer control system?
Yes. Speed, counting, temperature, air pressure, feed angle and rack travel can be monitored and controlled through the computer system.

Q8: What is the motor power?
The standard configuration specified for the ES816 uses a 22KW motor
