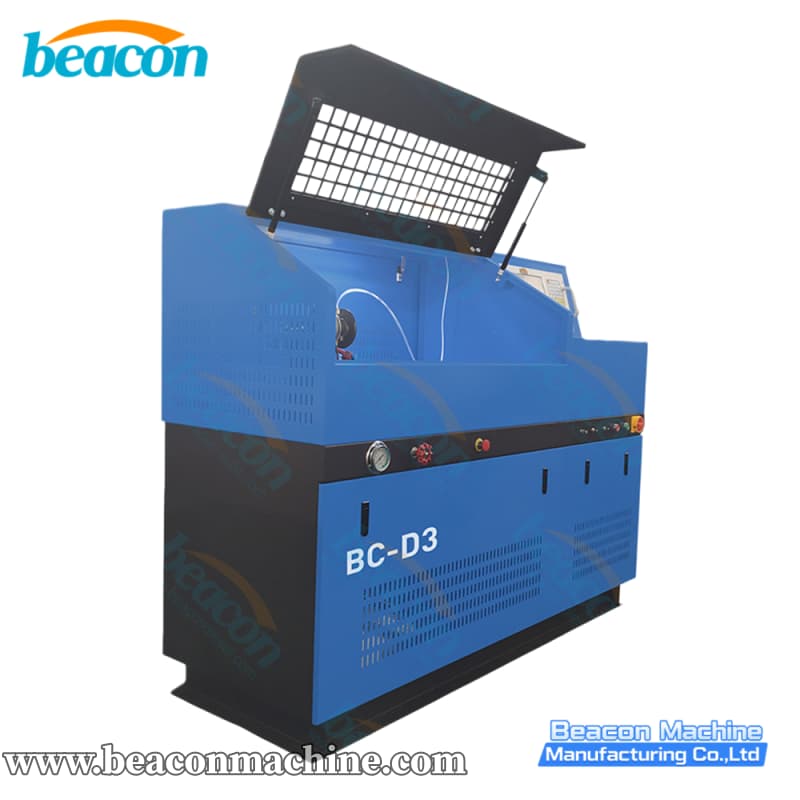

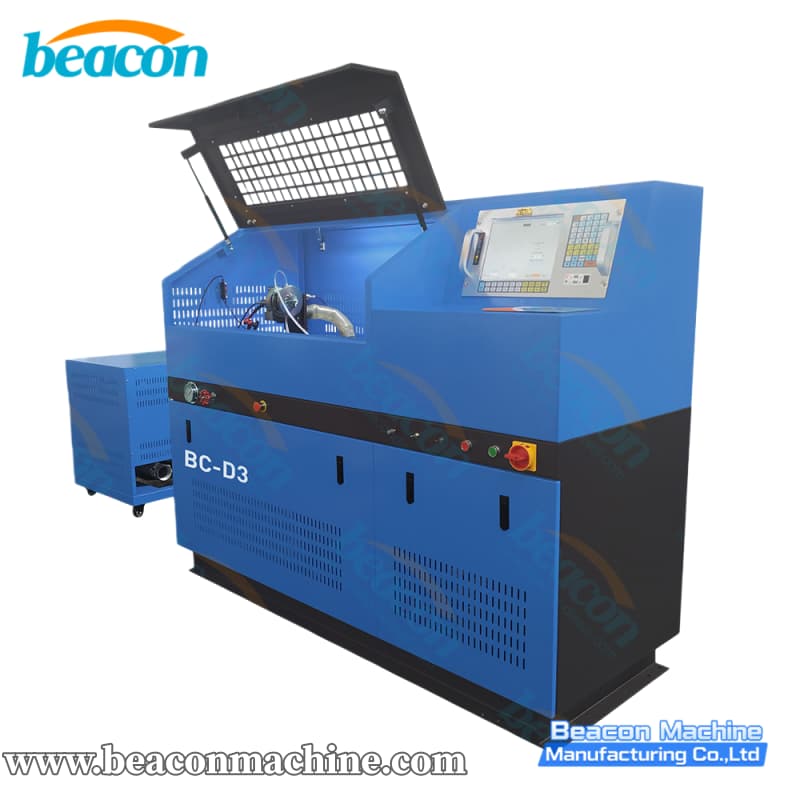

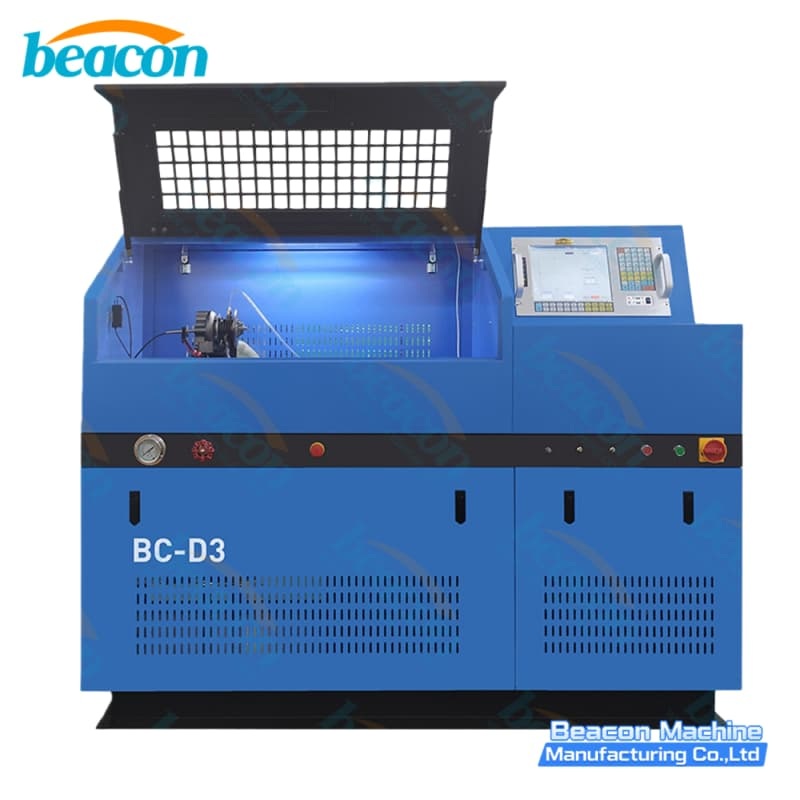

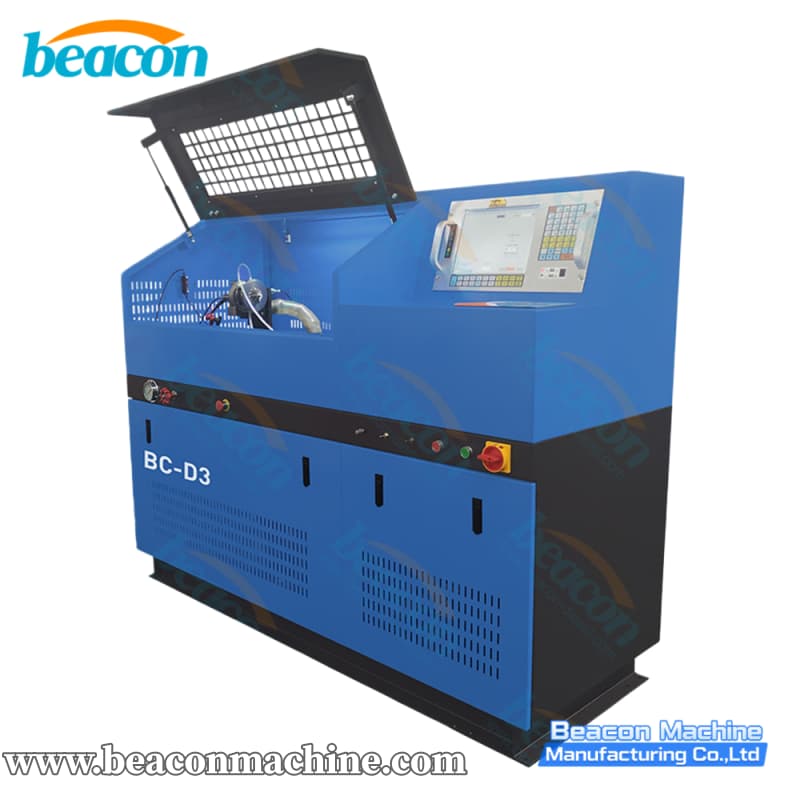

BC-D3 High Speed Turbocharger Balancing Machine

Precision Balancing for Turbocharger Shafts

The BC-D3 is a state-of-the-art High Speed Turbocharger Balancing Machine designed to eliminate vibration and ensure the longevity of rebuilt turbochargers. Unlike manual systems, the BC-D3 is fully automated, eliminating operator error to ensure repeatability and compatibility of testing results.

Advanced Control System:
The machine operates on a reliable industry-grade computer with a Windows XP operating system. Data is displayed on a large 15-inch colorful LCD monitor, allowing operators to view testing curves, adjust parameters, and interact directly with the machine interface.

High-Speed VSR Technology:
Equipped with VSR (Vibration Sorting Rig) features, the BC-D3 uses frequency control to adjust speeds from 0 to 200,000 RPM (depending on the actual needs). It utilizes a high-precision photoelectric sensor (red light) to detect unbalance with extreme accuracy.

Integrated Design:
A key feature of the BC-D3 is its self-sufficiency. It comes with a built-in fan system, meaning no external air compressor is required, saving workshop space and equipment costs.

Application Scenarios:

• Turbo Remanufacturing Plants: Final balancing of the turbocharger core assembly (CHRA) after rebuilding.

• Heavy Duty Repair: Balancing large turbos for trucks and excavators (up to 50kg).

• Performance Shops: Tuning high-speed turbos for racing applications.

FAQ (Frequently Asked Questions)

Q1: Do I need an air compressor to run the BC-D3?
A: No. The BC-D3 is equipped with its own fan system, so an external air compressor is not required.

Q2: What is the maximum weight of the turbocharger it can balance?
A: The machine supports a maximum turbocharger weight of 50KG.

Q3: How do I connect different turbo models?
A: We provide 5 standard connecting flanges. If the holes on your turbo do not match, you can drill holes on the flanges independently to fit your specific model.

Q4: Do I need to run the machine at 200,000 rpm for every test?
A: Not necessarily. While the machine supports high speeds, a test speed of 30,000 rpm is often sufficient for normal balancing operations and allows the turbo to run smoothly.

Q5: What should I do if the computer doesn't start or the screen is black?
A: Try removing the battery on the motherboard, discharging it for 10 minutes, and reinstalling it. Also, reseat the memory stick (RAM) to ensure good contact, as vibrations during transport can sometimes loosen components.

Q6: How do I determine the "0 point" angle?
A: As shown in the software, the red laser from the sensor hits the reflective sticker on the turbo. This point is 0. If the turbo rotates clockwise, a phase difference of 90 degrees requires the reflective sticker to be moved 90 degrees counter-clockwise.

• Fully Automated: Eliminates differences caused by manual operation, ensuring stable and accurate test results.

• No Air Compressor Needed: Built-in high-power fan (7.5KW) drives the turbo, simplifying installation.

• Wide Speed Range: Frequency conversion control allows speed adjustment from 0 up to 200,000 rpm.

• High Load Capacity: Capable of balancing turbochargers with a maximum weight of up to 50KG.

• Universal Compatibility: Comes with 5 connecting flanges to fit a vast majority of turbochargers. Users can also drill custom holes in the flanges if needed.

• User-Friendly Interface: Windows-based software allows for free choice of parameters and custom memory recording modes.

• Efficient Workflow: Equipped with a pneumatic handwheel for easy de-emphasis work.
