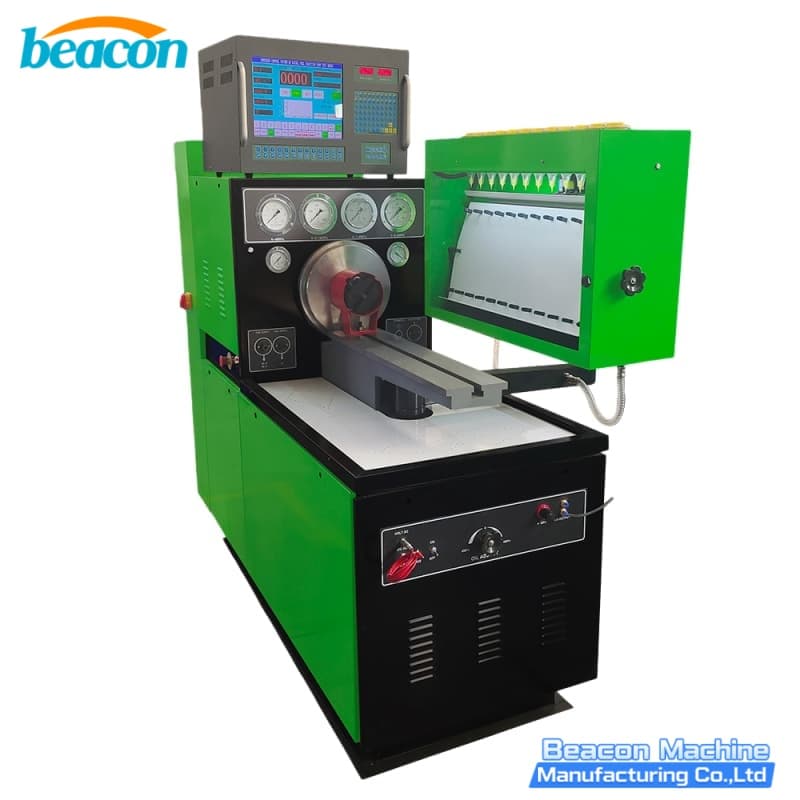

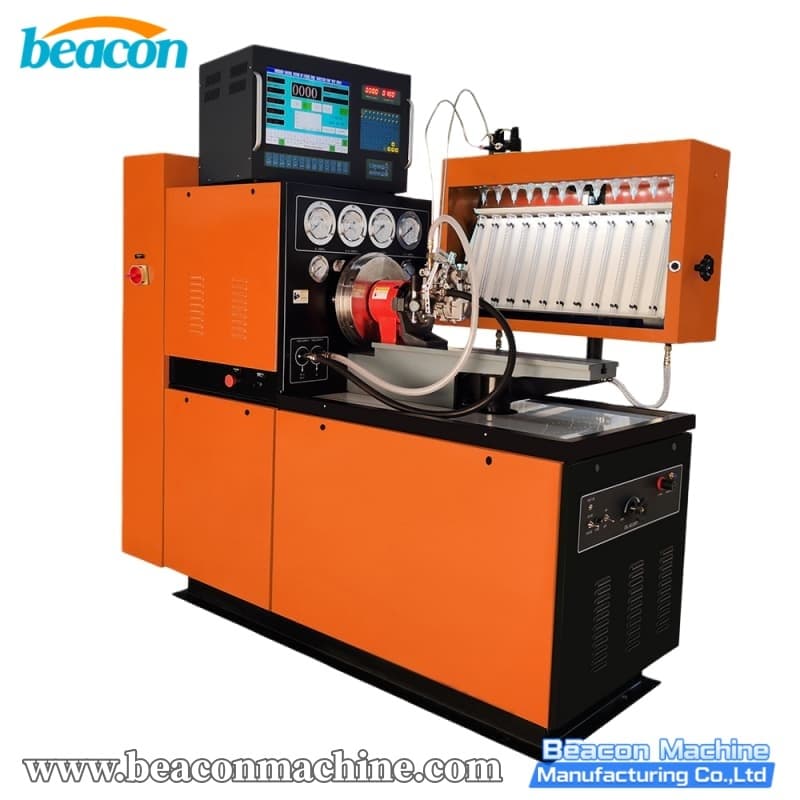

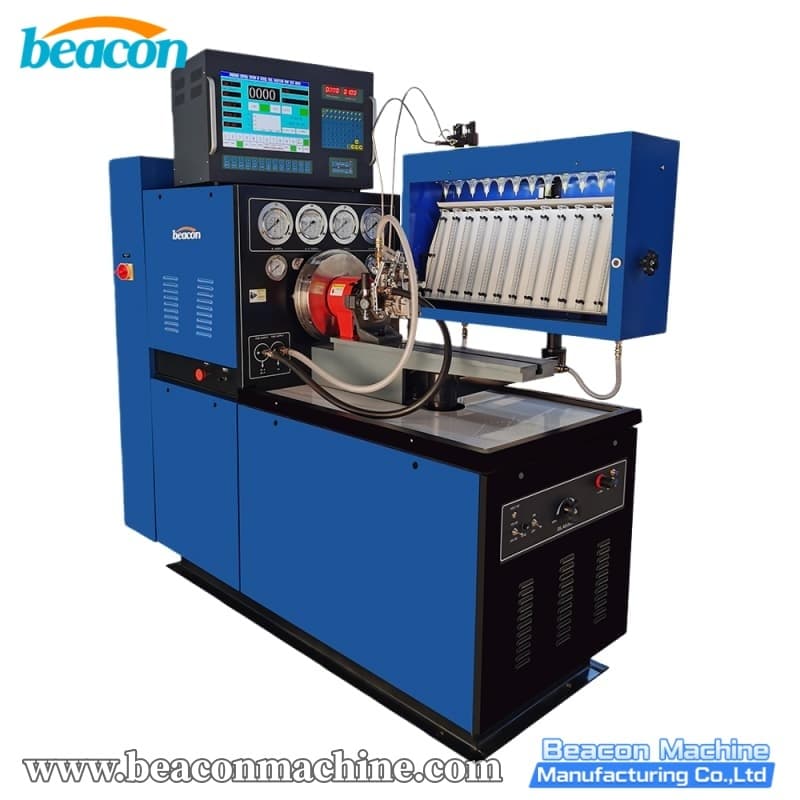

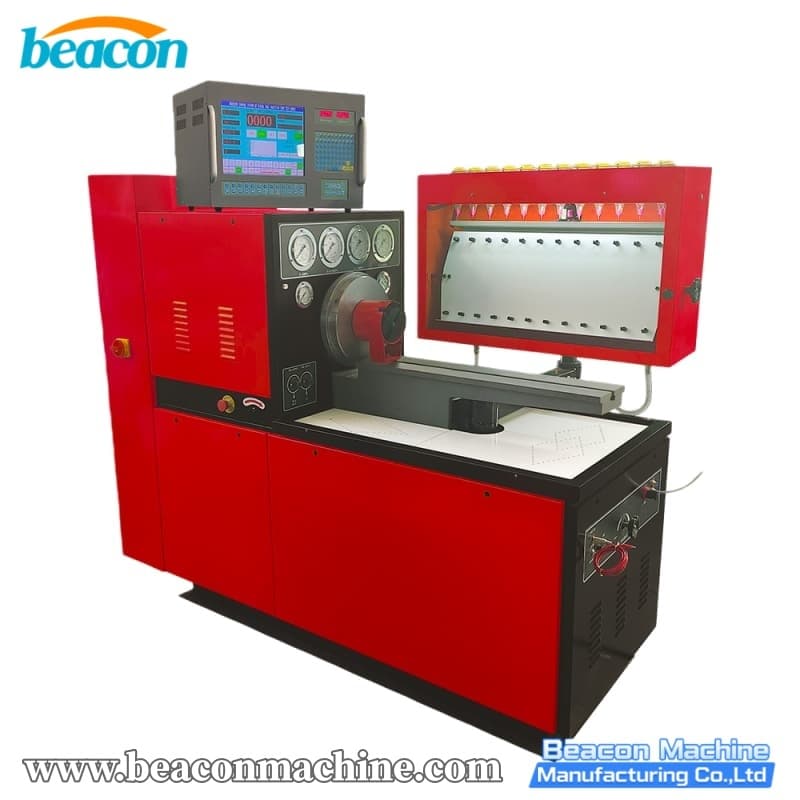

BC3000 Computerized Diesel Injection Pump Test Bench (PYBK-3000 System)

The BC3000 Computerized Diesel Injection Pump Test Bench represents an advanced upgrade in the mechanical pump testing series. Unlike standard digital display models, the BC3000 is integrated with the PYBK-3000 Control System, featuring a large screen display (CRT/LCD) for superior data visualization.

System Highlights:

1. Smart Control: The PYBK-3000 controller allows operators to view rotation speed, count, temperature, and advance angle data simultaneously on a clear screen interface.

2. Visualized Diagnostics: Replaces traditional button-press operations with a computer-aided interface, making parameter setting and monitoring more intuitive.

3. Comprehensive Testing: Retains all core mechanical functions (1-12) including cylinder delivery measurement, interval angle testing, and governor adjustment.

4. Distributor Pump Logic: fully supports VE pump testing with electromagnetic valve control (12V/24V) and internal pressure verification.

5. Robust Build: Built on the reliable 12PSB mechanical chassis with variable frequency drive technology.

Q: Comparison of different models

12PSB-E (Euro II): Keywords focus on Mechanical, Test Bench, Slope Panel (emphasizing mechanical structure and ergonomics).

12PSB-X (Standard): Keywords focus on Test Stand, Conventional, Blue/Green (emphasizing the standard model and appearance).

BC3000 (Computerized): Keywords focus on Test Station, Computerized, Screen Display, System (emphasizing intelligence and control system).

• Screen Display Interface: Equipped with the PYBK-3000 Monitor, providing a user-friendly visual experience that reduces reading errors compared to digital tubes.

• Computer-Aided Operation: The control system enables faster switching between test modes and more precise speed regulation.

• Data Management: The screen system allows for easier monitoring of real-time testing conditions (Oil Temperature, RPM, Stroke Count).

• Enhanced Cooling: Standard configuration includes Forced Cooling (Refrigerant: R22) to ensure the electronics and oil temperature remain stable.

• Versatile Functionality: capable of checking the travel of stroke and advance angle (on request) with data displayed on the system.

• Professional Configuration: Includes Oil Lubrication, Gas pump with storage, and the necessary adaptors for varied pump types.
