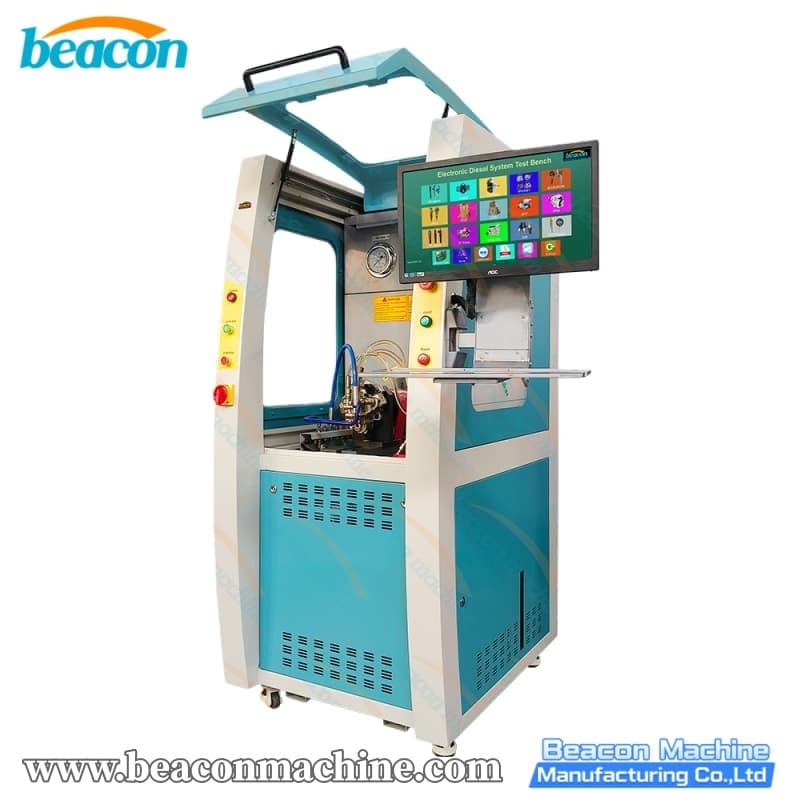

CR1027 7.5KW Full Function Common Rail Pump Injector Test Bench

CR1027 7.5KW test bench for Pumps, Injectors, EUI/EUP, and HEUI. Upgraded chassis and fixtures. Supports CP4, CAT320D, Cummins, and more.

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

WhatsApp: +86-13375386258

Details

The CR1027 is the advanced successor to the CR1017, designed as a comprehensive calibration center. Powered by a 7.5KW motor, it handles everything from standard injectors to heavy-duty pumps and unit injectors.

Core Functions: CR Injectors (incl. Piezo), CR Pumps, Denso HP0, Coding.
Upgrades over CR1017: Latest multi-function clamp/fixture, standard EUI/EUP oil supply motor (plug-and-play for optional EUI kits), and higher quality sheet metal chassis.
Huge Optional List: Compatible with 16+ add-on kits including EUI/EUP Cambox, CAT 320D, Cummins PT/HPI/XPI, Bosch CP4, etc.

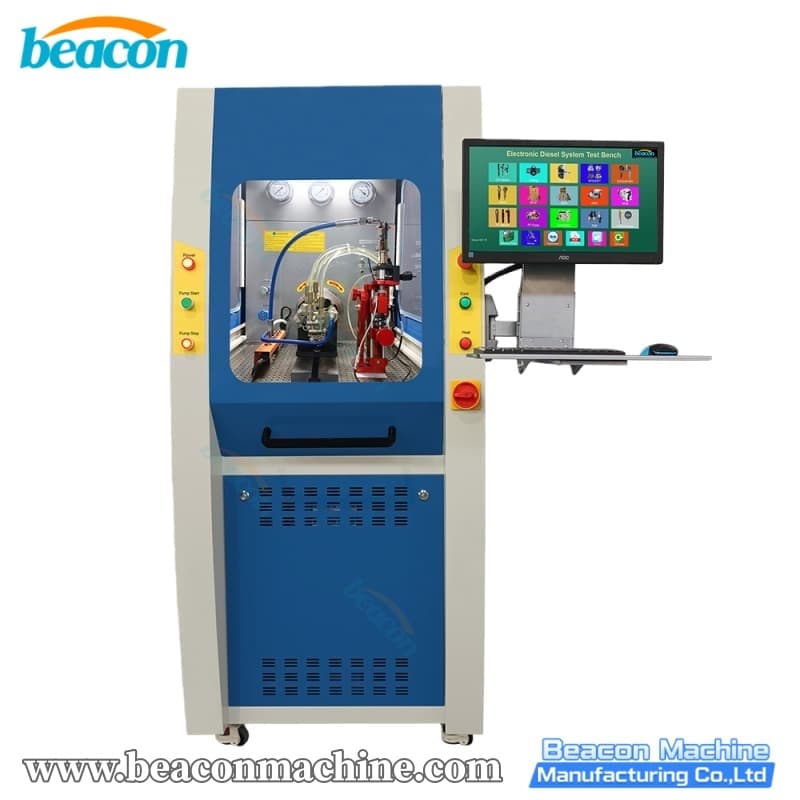

CR1027

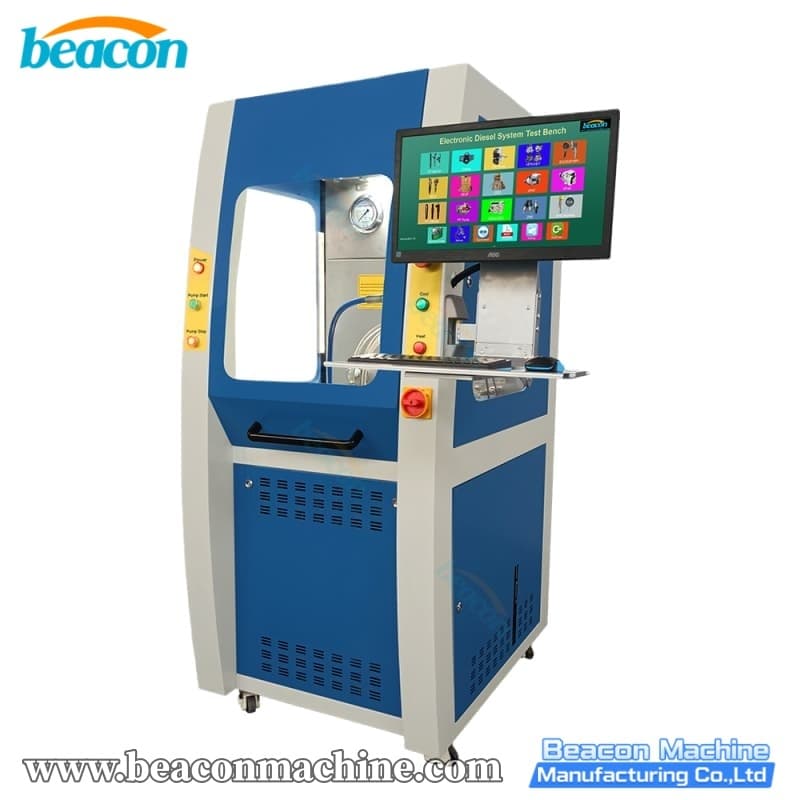

pump tester

CR1027 7.5KW Full Function Common Rail Pump Injector Test Bench Advantage

Future-Proof Design: Comes standard with the EUI/EUP oil motor, making future upgrades to Unit Injector testing easy and cheap.
Universal Fixture: The newly designed clamp holds various components more securely and quickly.
Superior Build: Thicker, higher-quality chassis plate ensures stability and reduces vibration.
All-in-One Power: 7.5KW motor handles high-pressure pump testing (CP4, HP6, HP7) with ease.

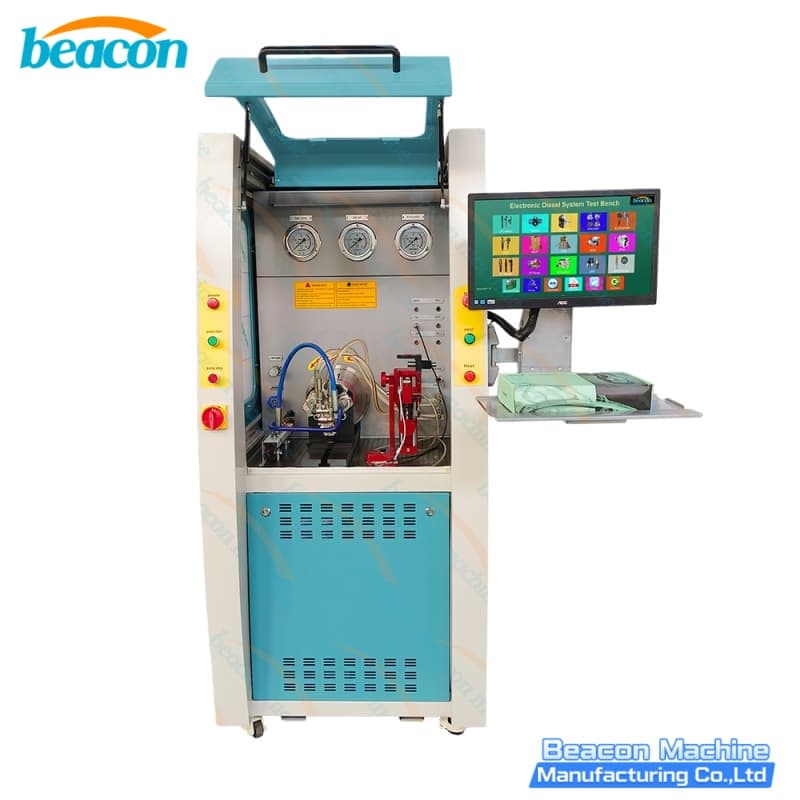

EUI EUP

Caterpillar test

parameter

Model	CR1027
Power	7.5KW
Voltage Options	220V (1ph/3ph), 380V (3ph)
Base Functions	CR Injectors, Piezo, CR Pumps, Denso HP0, Coding
Optional Functions	EUI/EUP, HEUI, CAT320D, CP4, Cummins PT/HPI/XPI, etc.
Special Features	Pre-installed EUI Oil Motor, New Universal Fixture
Color Options	Green, Red, Black, Blue, Grey, Yellow
Net Weight	400 kg
Dimensions (Actual)	860 x 1000 x 1850 mm
Packing Dimensions	950 x 1070 x 2000 mm

Application Scenarios & FAQ:

Application Scenario:
The ultimate solution for comprehensive Diesel Injection Centers. This machine is for workshops that want to be a "One-Stop-Shop," capable of repairing Common Rail Injectors, High-Pressure Pumps, and Heavy Duty Unit Injectors (EUI/EUP/CAT) all on one station.
FAQ:

A: The CRS5000 is an Injector-only tester (4KW). The CR1027 is a full-system tester (7.5KW). The CR1027 tests Common Rail Pumps (CP1/CP2/CP3/HP3/HP4), Injectors, and supports optional kits for EUI/EUP and CAT systems, which the CRS5000 cannot do.
Q: What is the difference between CR1027 and CRS5000?

Q: How does CR1027 differ from the older CR1017 model?

A: The CR1027 features three key upgrades:

Latest multi-function clamp for faster setup.
Standard EUI/EUP oil supply motor included (making future EUI upgrades cheaper and easier).
Improved heavy-duty chassis quality.

Q: Can I add EUI/EUP testing later?

A: Yes, because the CR1027 comes with the lubrication motor pre-installed, you only need to buy the Cam Box and adapters later to enable this function.
