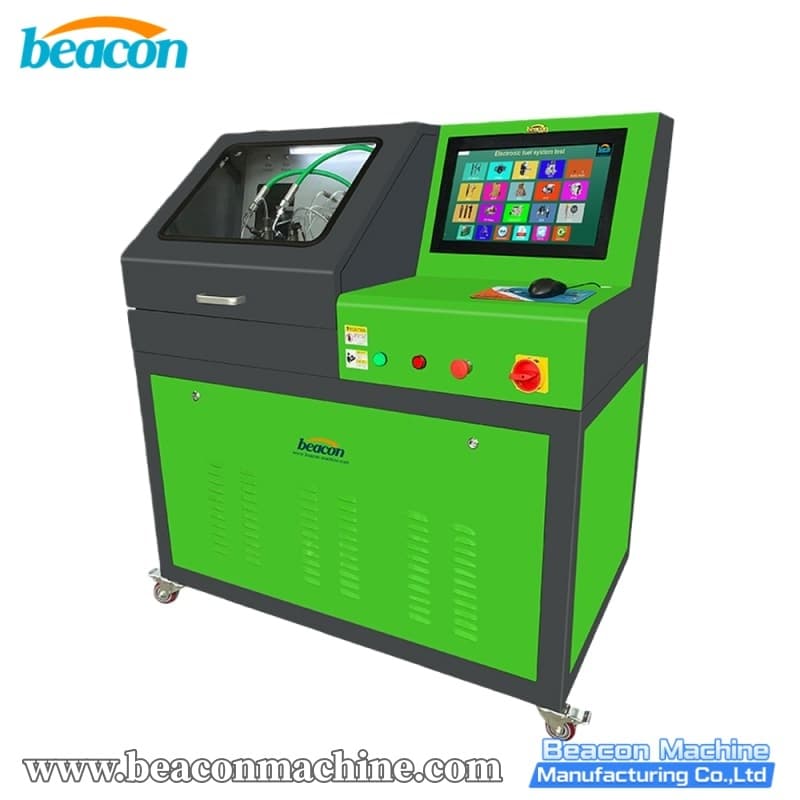

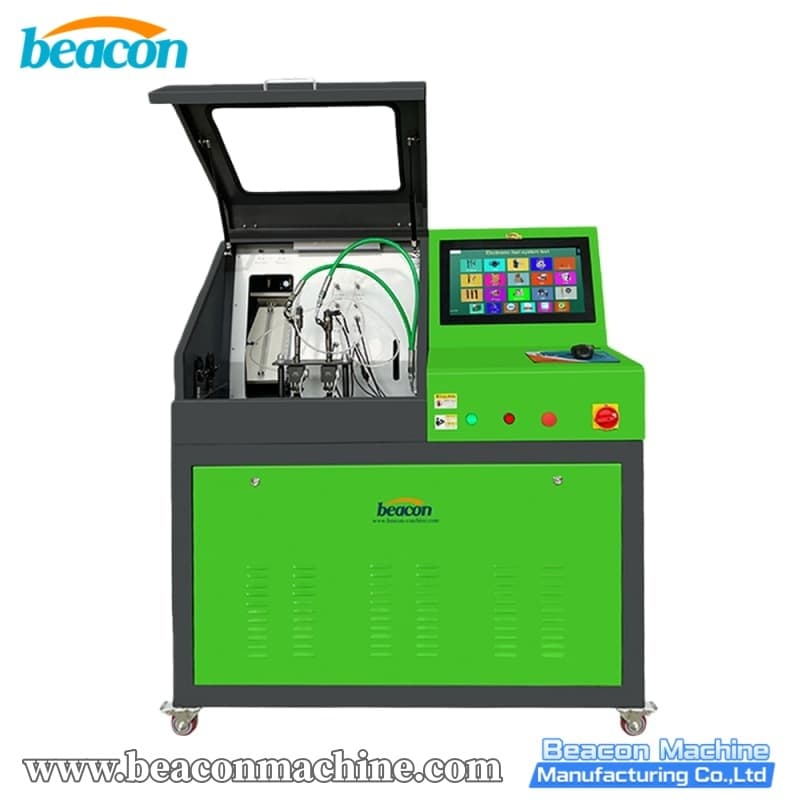

CRS5000 4KW Common Rail Piezo Injector Test Stand

Heavy-duty CRS5000 test stand with 4.0KW motor. Tests and codes Common Rail/Piezo injectors (Bosch/Denso/Delphi/Siemens).

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

WhatsApp: +86-13375386258

Details

The CRS5000 is built for durability and higher throughput. Equipped with a robust 4.0KW standard motor, it offers stable testing for a wide variety of injectors.

Motor: 4.0KW Standard (Asynchronous) Motor.
Voltage Flexibility: Available in 220V (1ph/3ph) and 380V (3ph).
Capabilities: Tests and codes Common Rail and Piezo injectors.
Coding: Full support for Bosch, Denso, Siemens, Delphi.

CRS5000

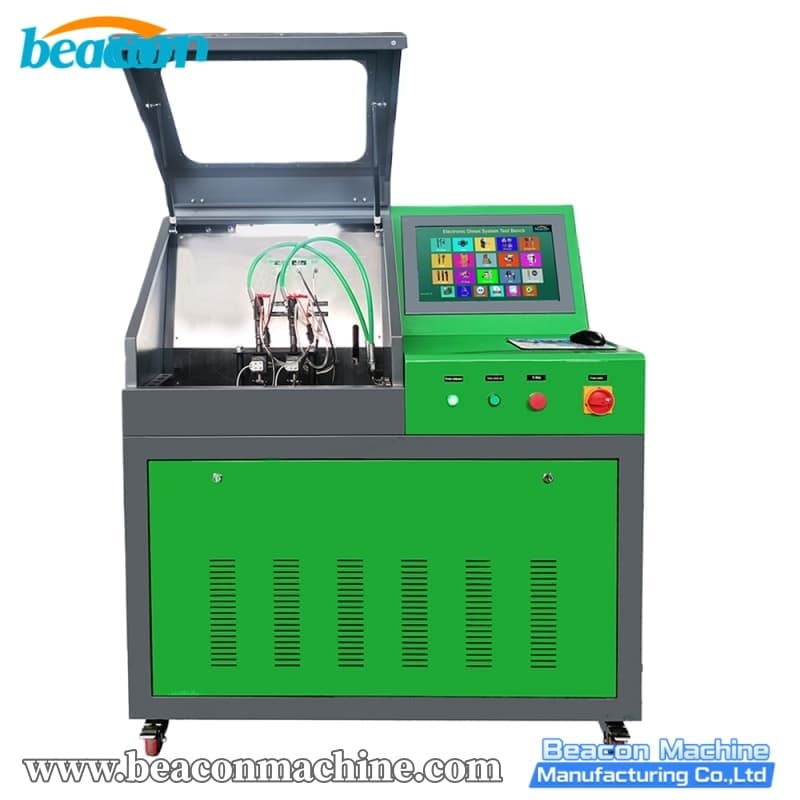

4KW test bench

CRS5000 4KW Common Rail Piezo Injector Test Stand Advantage

High Power: The 4.0KW motor provides robust torque for consistent testing sessions.
Versatile Power Supply: Can be customized for single-phase or three-phase workshops.
Full Diagnostics: comprehensive testing logic for leak, full load, idle, and pre-injection.
Expandable: Optional BIP function available.

injector repair

diesel diagnostics

parameter

Model	CRS5000
Power	4.0KW Standard Motor
Voltage Options	220V (1ph/3ph), 380V (3ph)
Injectors Supported	Common Rail, Piezo
Coding Function	Yes (Bosch, Denso, Siemens, Delphi)
Color Options	Green, Red, Black, Blue, Grey, Yellow
Net Weight	280 kg
Dimensions (Net)	1300 x 850 x 1490 mm
Packing Dimensions	1380 x 940 x 1600 mm

Application Scenario:
Suitable for busy workshops handling a high volume of injector repairs. The larger chassis and 4.0KW motor provide the durability needed for continuous industrial operation.
FAQ:

A: While both machines test and code injectors, the CRS5000 is more powerful (4.0KW vs 2.0KW) and has a larger physical structure. The EPS205 uses a servo motor for precision in a small package, while the CRS5000 uses a robust asynchronous motor for durability in a standard cabinet size.
Q: What is the difference between CRS5000 and EPS205?

Q: What is the difference between CRS5000 and CR1027?

A: Functionality Scope: CRS5000 is dedicated strictly to Injector Testing. The CR1027 is a multi-function test bench (7.5KW) that tests Injectors, Common Rail Pumps, and can be expanded to test EUI/EUP and HEUI systems. If you need to test Pumps, you must choose the CR1027.
