MINI 12PSB 8-Cylinder Diesel Injection Pump Test Bench

Standard MINI 12PSB 8-cylinder diesel pump test bench with 7.5KW motor. Features digital rpm display, oil lubrication, and forced cooling.

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

WhatsApp: +86-13375386258

Details

The MINI 12PSB (Standard) is our classic, compact diesel injection pump test bench designed for efficiency and reliability. Engineered for workshops that demand consistent performance without taking up excessive floor space, this 8-cylinder machine is powered by an industrial-grade A.C. Frequency Drive. It provides a comprehensive solution for calibrating mechanical inline pumps and distributor pumps (VE). With its robust color-customizable body (Green, Blue, Red, etc.) and integrated Forced Cooling System (R22), the MINI 12PSB ensures stable operation even during long testing sessions.

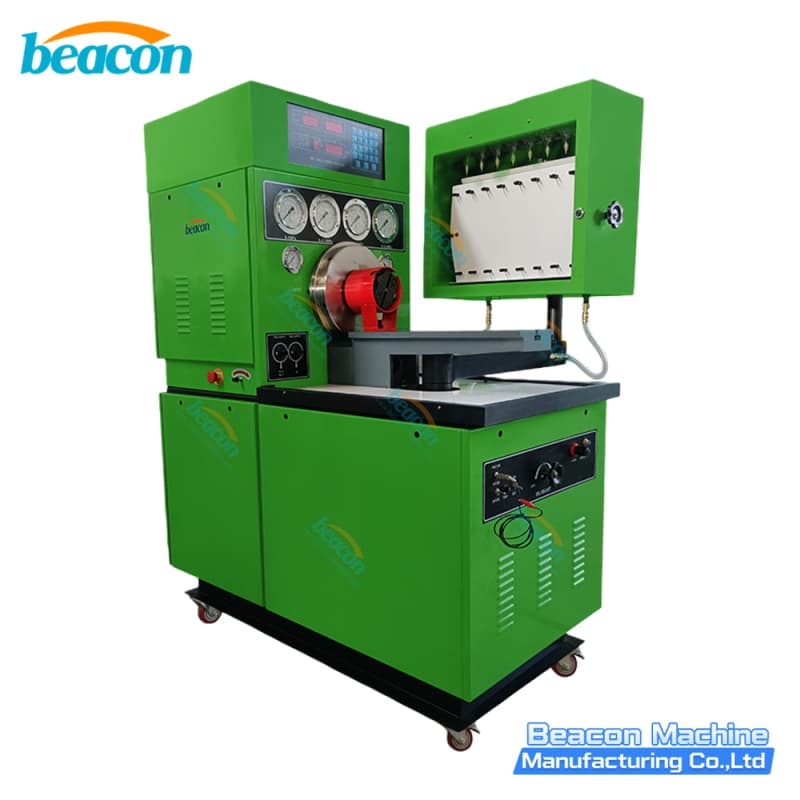

diesel pump calibration machine

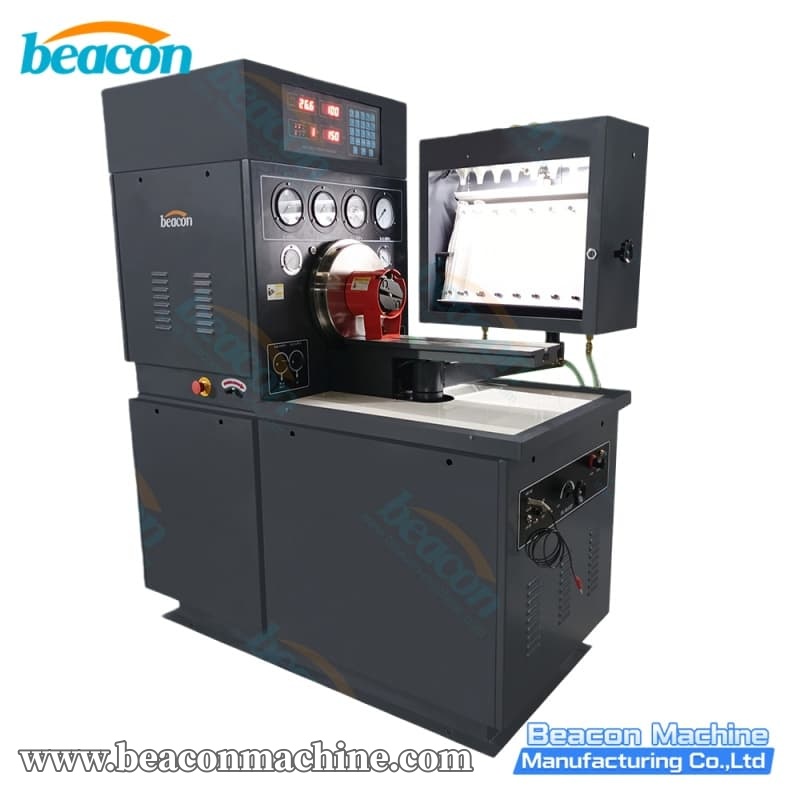

diesel test bench

MINI 12PSB 8-Cylinder Diesel Injection Pump Test Bench Advantage

Universal Compatibility: Capable of testing 8-cylinder mechanical pumps, measuring fuel delivery at any speed, and checking injection timing with precision.
Stable Temperature Control: Features an advanced oil temperature control system (0～99.9℃) with R22 refrigerant forced cooling, ensuring test fluid properties remain constant for accurate results.
Dual-Voltage Flexibility: Available in both 220V (Single/3-Phase) and 380V (3-Phase) configurations with power options of 7.5KW or 11KW to suit your workshop's power grid.
Cost-Effective Durability: Built with a simplified, rugged structure that reduces maintenance costs while offering all 12 essential testing functions, including solenoid valve testing (12V/24V).

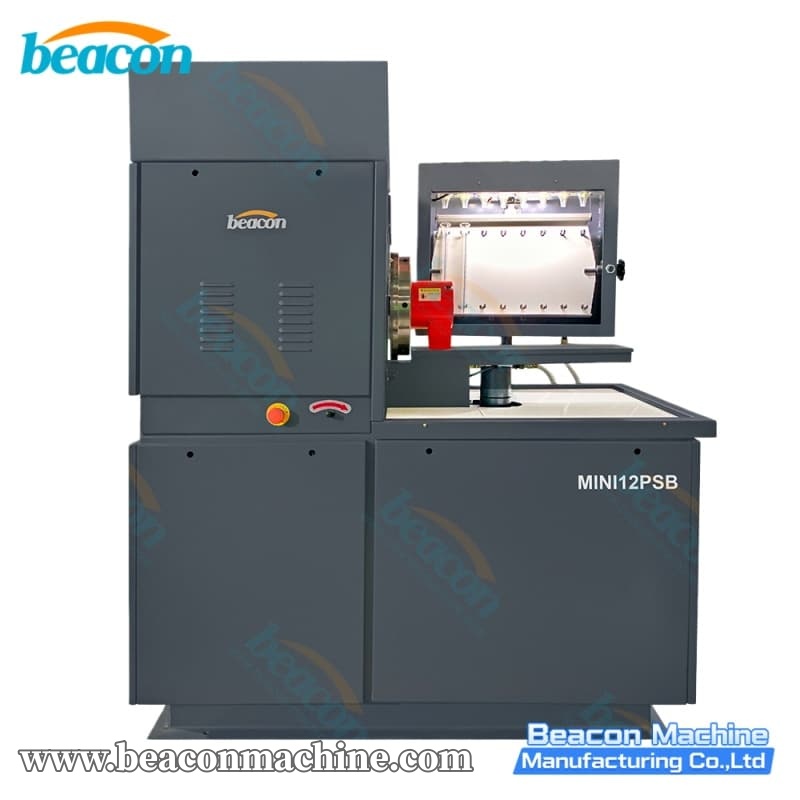

fuel injection repair

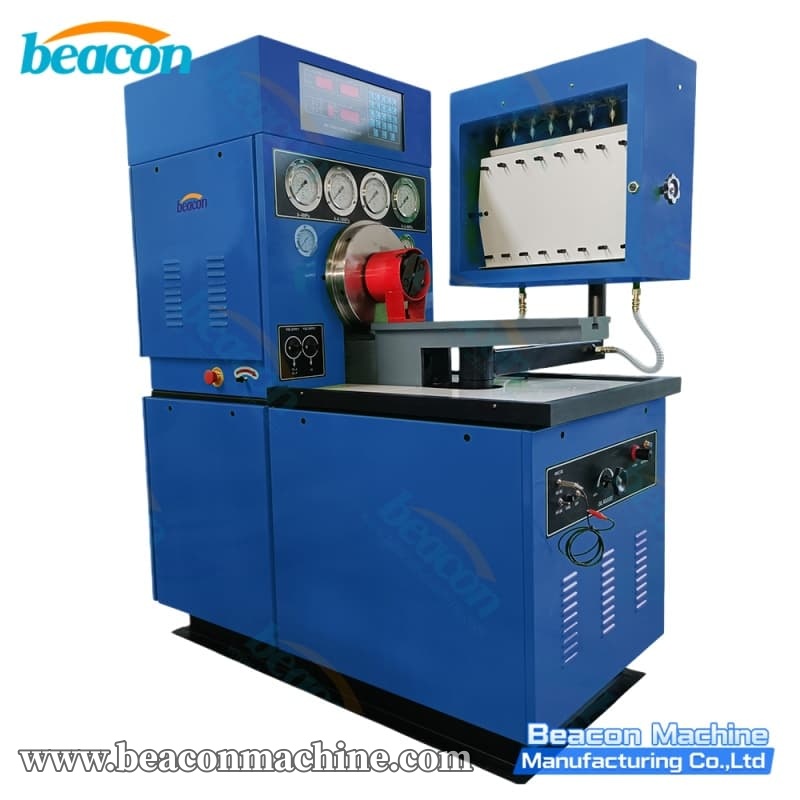

12psb

parameter

Technical Parameter	Specification
Compatible Models	MINI 12PSB, 12PSB-A, 12PSB-S
Number of Cylinders	8 Cylinders
Motor Power	7.5KW or 11KW (Selectable)
RPM Speed Range	0 - 4000 r/min
RPM Accuracy	± 1 r/min
Power Input	380V 3-Phase / 220V 3-Phase / 220V 1-Phase
Frequency Drive	A.C. Inverter Control
Fuel Tank Capacity	40 Liters
Oil Pressure (High)	0 - 4 Mpa
Oil Pressure (Low)	0 - 0.4 Mpa
Internal Pressure	0 - 1.6 Mpa
DC Supply	12V / 24V
Measuring Cylinders	45ml & 150ml (Glass)
Stroke Counter	50 - 9999 Strokes
Temperature Control	40℃ ± 2℃ (Range 0-99.9℃)
Cooling Method	Forced Cooling (Refrigerant R22)
Dimensions	Standard Compact Size
Available Colors	Green, Red, Blue, Yellow, Grey, Black

Application Scenarios

Vehicle Repair Shops: Calibration of pumps for older trucks and diesel cars.
Agricultural Maintenance: Testing pumps for tractors and harvesters.
Marine/Generator Service: Maintaining mechanical pumps for small vessels and gensets.
Vocational Training: Educational use for teaching diesel injection principles.

FAQ

Q: Can I change the color of the machine?
A: Yes, we offer Green, Red, Black, Blue, Grey, and Yellow. Please specify your preference when ordering.

Q: What is the difference between 7.5KW and 11KW?
A: 7.5KW is sufficient for most standard automotive pumps. 11KW provides higher torque, recommended for larger truck pumps or heavy-duty use.

Q: Does this machine test Common Rail pumps?
A: No, the MINI 12PSB series is for Mechanical Pumps (Inline, VE, Distributor). For Common Rail, please check our CRS series.
