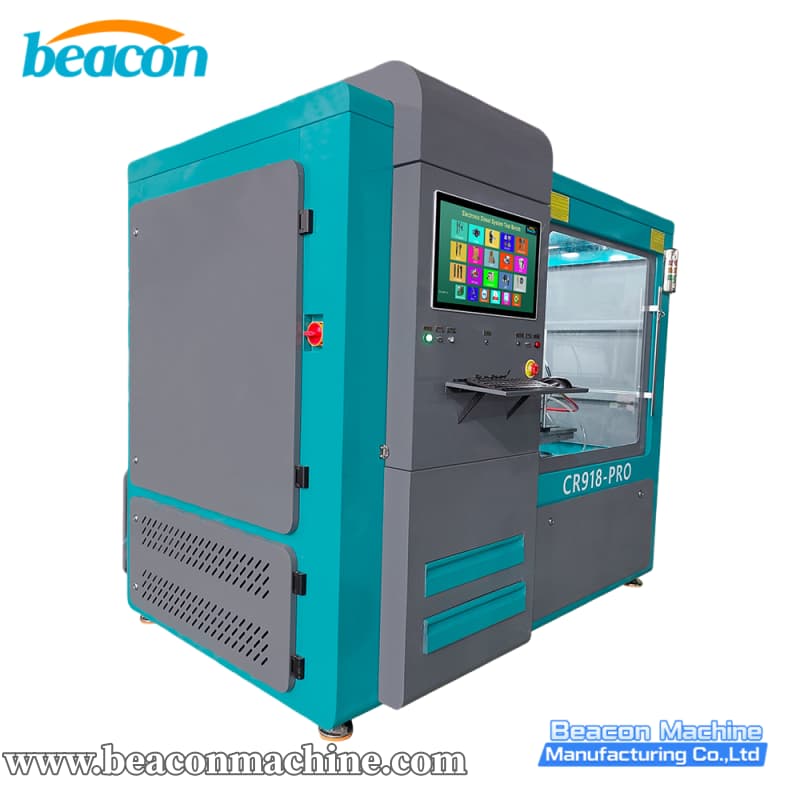

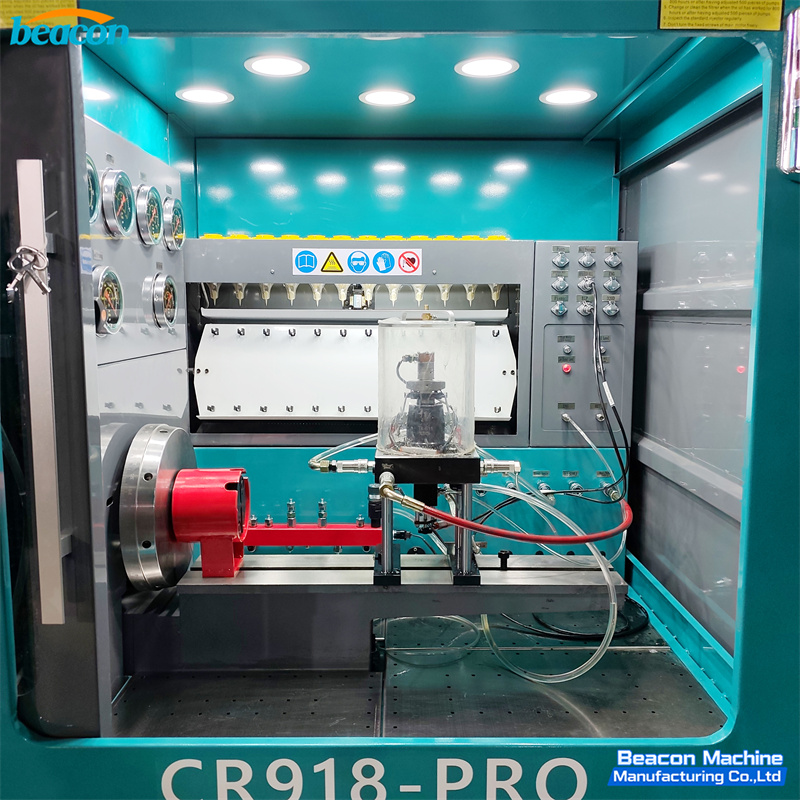

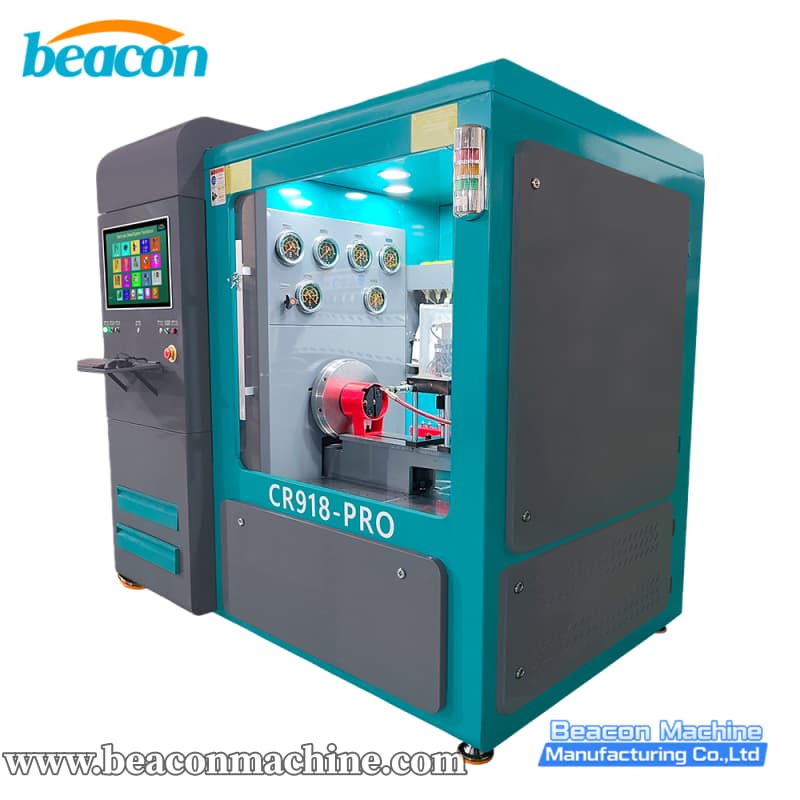

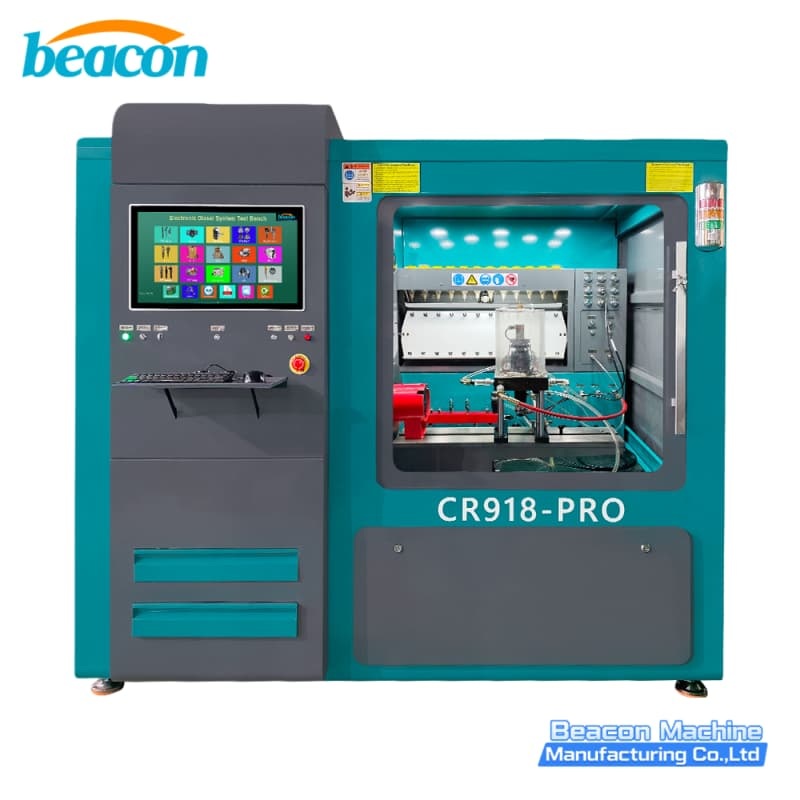

CR918-PRO Professional Diesel Common Rail Test Bench

CR918-PRO professional diesel test bench for injectors, CAT pumps and CP4 systems up to 2800 bar.

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

Details

CR918-PRO is a high-end diesel test bench designed for heavy-duty and industrial applications.
It features four oil tanks, a 21.5-inch touch screen, electric tilting rotation and aviation connectors.
The system supports CAT 320D, CAT C7/C9 pumps and CP4 high-pressure testing.
CAT injector test bench

Function Item	Support
Common Rail Injector Test	Yes
Piezo Injector Test	Yes
Common Rail Pump Test	Yes
Denso HP0 Pump Test	Yes
HEUI CAT C7 / C9 / 3126B Test	Yes
Injector Coding (Bosch / Denso / Siemens / Delphi)	Yes
EUI / EUP Test with TU-C CAMBOX	Yes
CAT 320D Pump Test System	Standard

CP4 pump test

Optional Test System	Availability
2 / 4 / 6 Injectors Test	Optional
CAT C7 / C9 Pump Test	Optional
CP4 Pump Test System (2800 bar)	Optional
Cummins PT Injector / Pump	Optional
Cummins HPI Q60 X15 Injector	Optional
AHE Injector Dynamic Stroke	Optional
SCV / ZME Test	Optional
Delphi E3 Dual Pulse	Optional
Rail Pressure Sensor Test	Optional
DRV / HPV Test	Optional
Solenoid Valve Test	Optional
CRIN4 MP4 Injector	Optional
Cummins XPI Injector	Optional
DENSO HP5 / HP6 Pump	Optional
MTU 4000.1 / 4000.3 Injector	Optional
DAF CR Injector	Optional
Cummins QSK19 Injector	Optional
CAT C9.3 Injector	Optional
Delphi Smart Injector (F2 / F2E)	Optional

CR918-PRO Professional Diesel Common Rail Test Bench Advantage

Industrial-grade structure
High-pressure capability up to 2800 bar
Advanced CAT pump testing
Integrated lubrication and alarm system

diesel test bench

parameter

Item	Specification
Power	15 KW
Voltage	380V
Phase	3 Phase
Net Weight	1250 kg
Gross Weight	1355 kg
Net Size	205 × 140 × 195 cm
Packing Size	217 × 150 × 207 cm
Oil Tanks	Diesel / Engine Oil / Lubrication / Waste Oil
Touch Screen	21.5 Inch
